Roller Tables

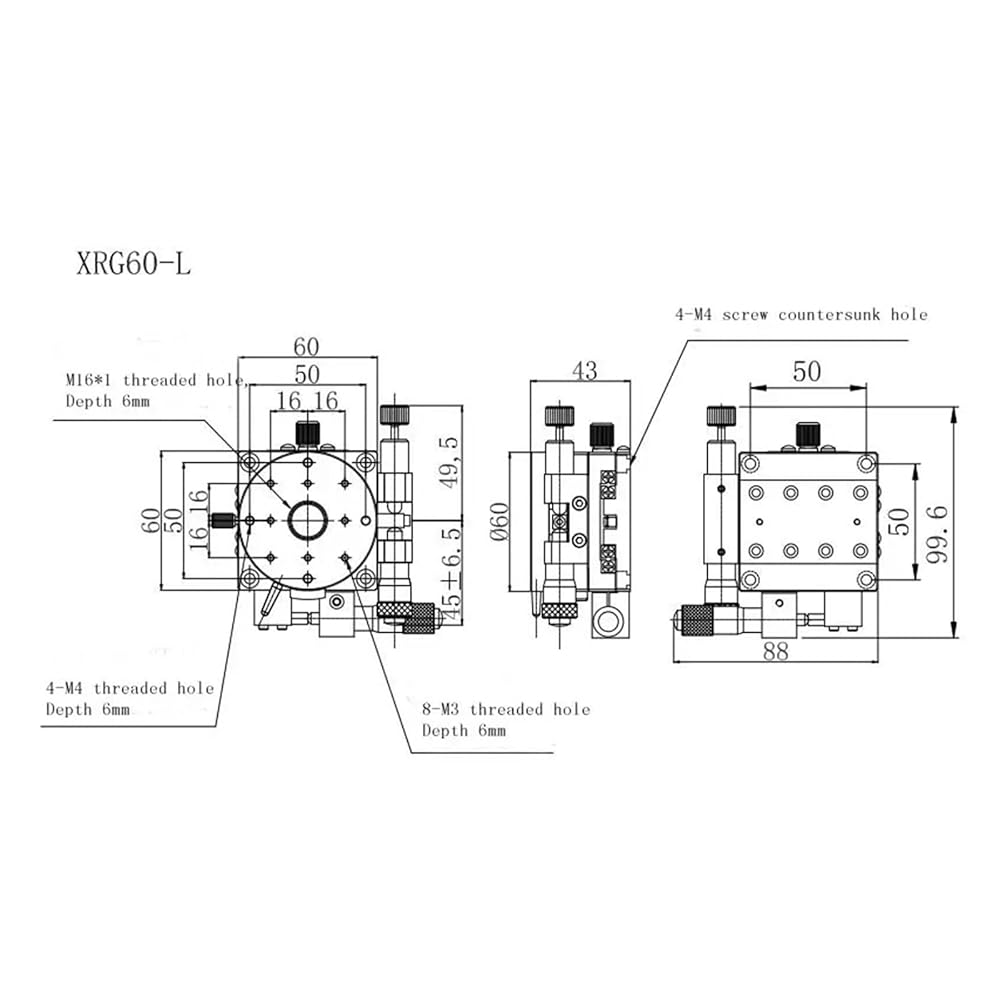

Product model specifications: XRG60-L
Movement direction: XR axis two directions
Achievable: precise fine-tuning of front and rear/left and right, 360-degree rotation
Material: Aluminum alloy (surface black anodized)
Workbench size: 60mm×60mm
Guide rail type: V-type precision crossed roller guide rail
Movement amount: X axis ±6.5mm
R axis: coarse adjustment 360° rotation, fine adjustment 5°
Minimum reading of micrometer knob: 10um/scale
Load: 29.4N (3kgf)
Accuracy: 10um
Straightness: 5um
Weight: 0.56KG
