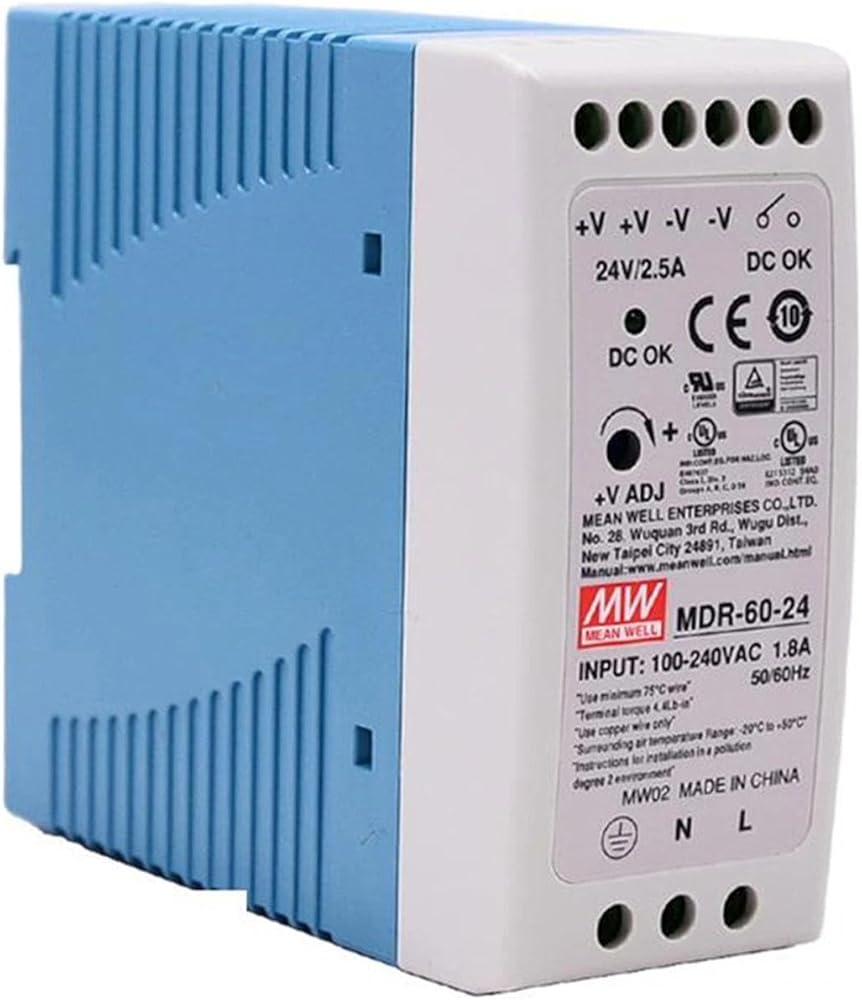

MDR-60-24 Industrial Power SupplyThe MDR-60-24 is a high-performance, 60W switchable power supply for industrial and hazardous environments. It delivers 24V DC at 2.5A with 87% efficiency and
Key FeaturesHigh Efficiency: Up to 87% typical,
Stable Output: ±1.0% voltage accuracy for precision devices
Wide Input: 85-264VAC / 120-370VDC, global compatibility
Safety Protection: Short-circuit, overload, over-voltage protection
Certifications: Class I, Div 2 T4, UL508, UL62368-1, TUV EN62368-1, EAC, BSMI

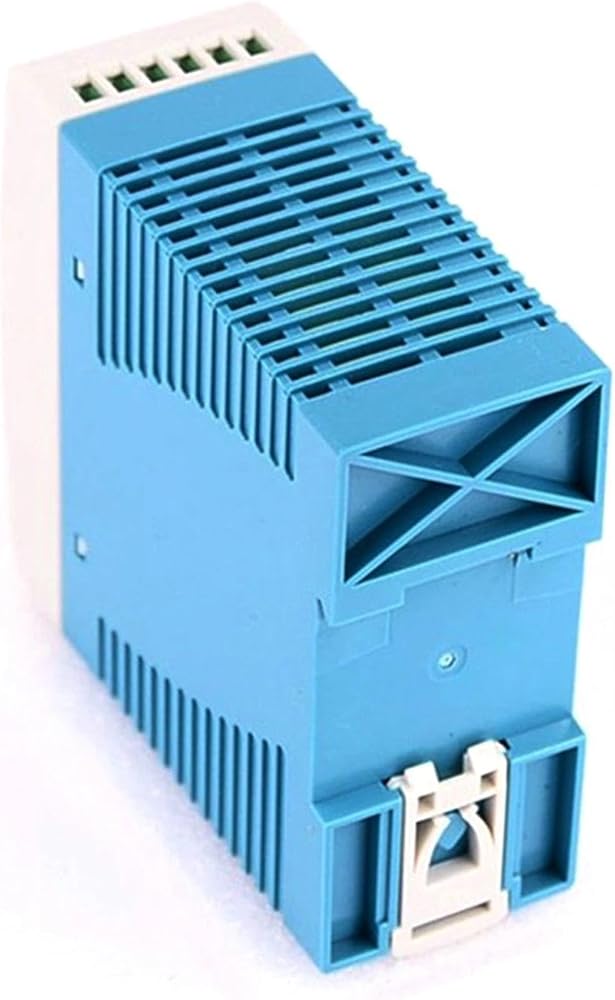

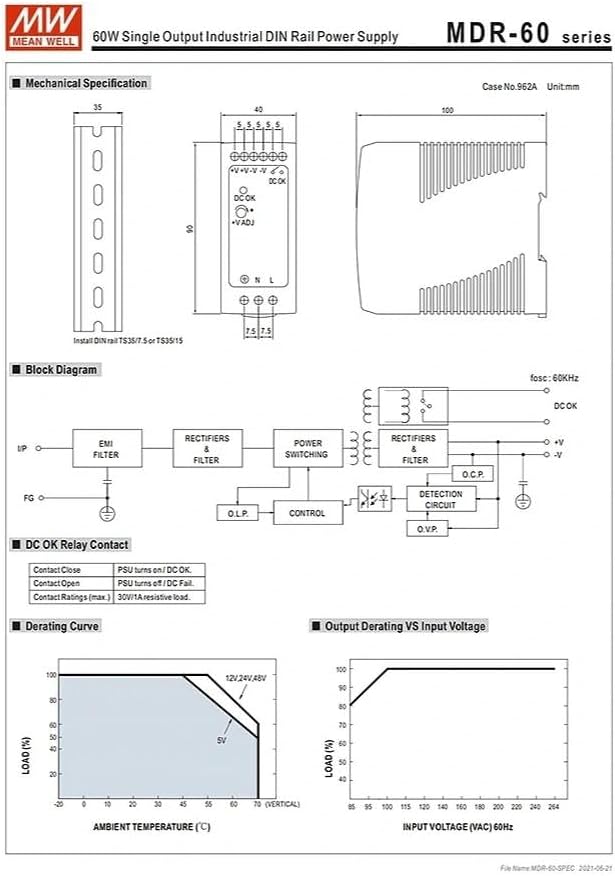

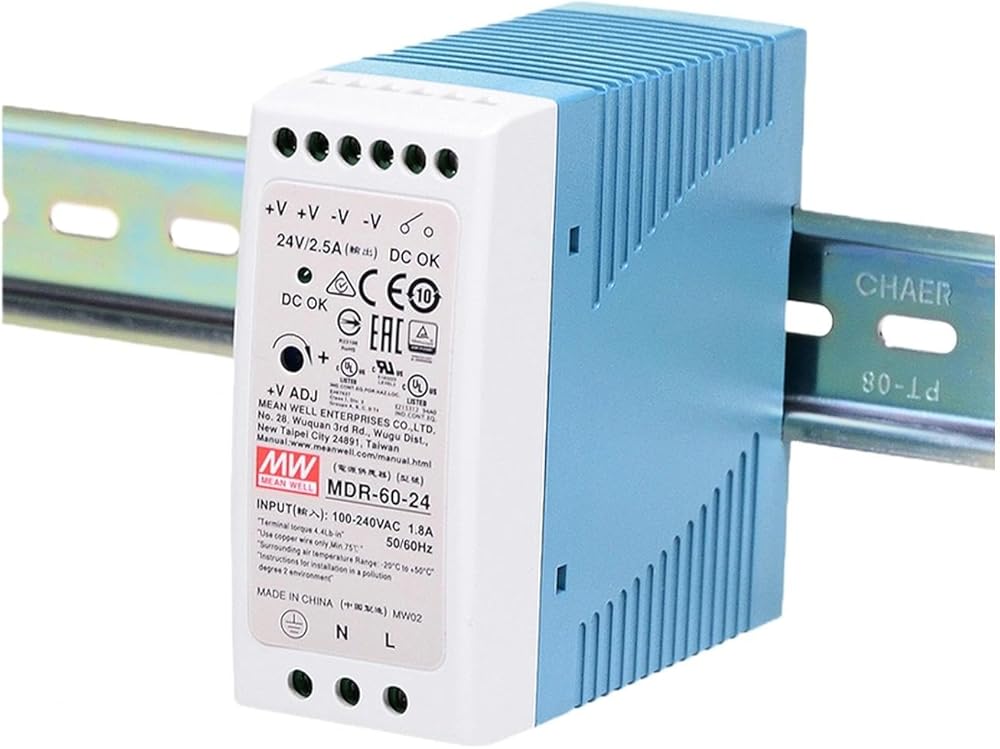

Compact Design: TS-35 rail mount, 40×90×100mm, 0.33Kg
Robust Environment: -20~+70℃, 2G vibration, 20-90% RH non-condensing
Reliability: Full-load aging test, MTBF up to 2355.2K hours

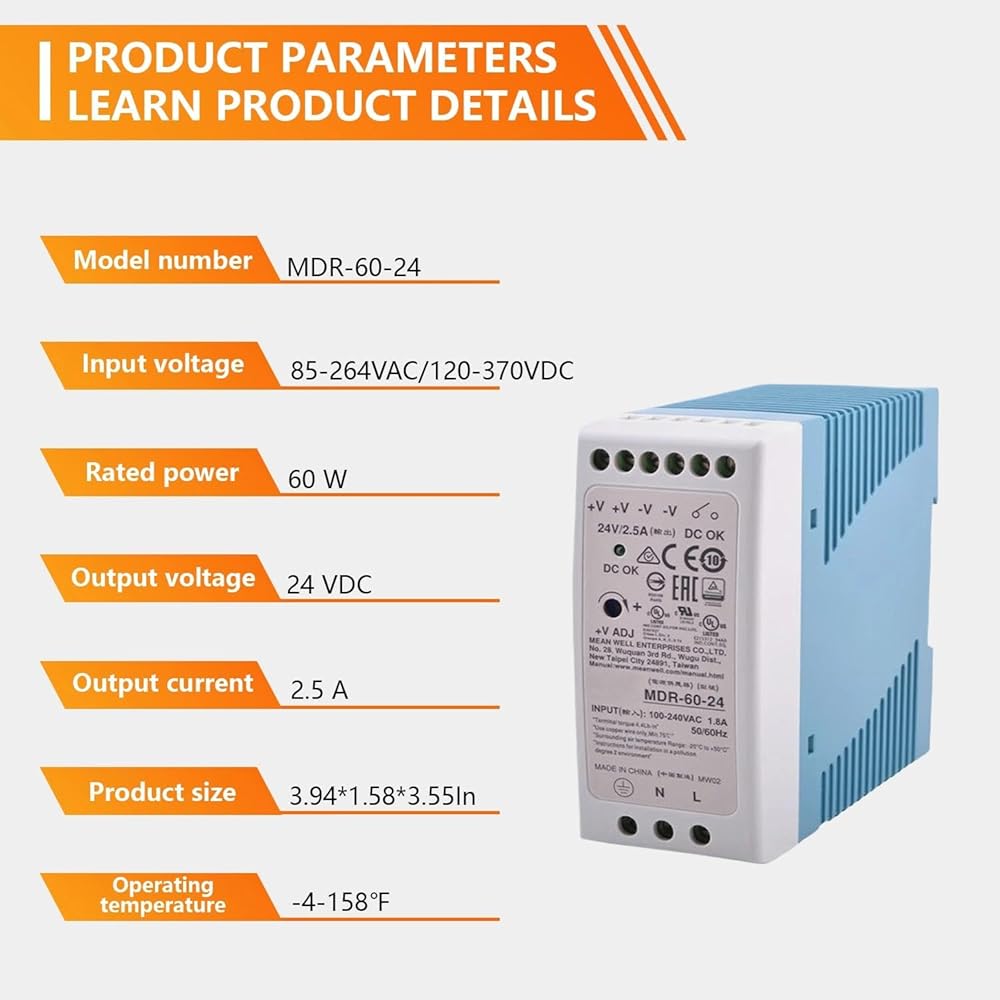

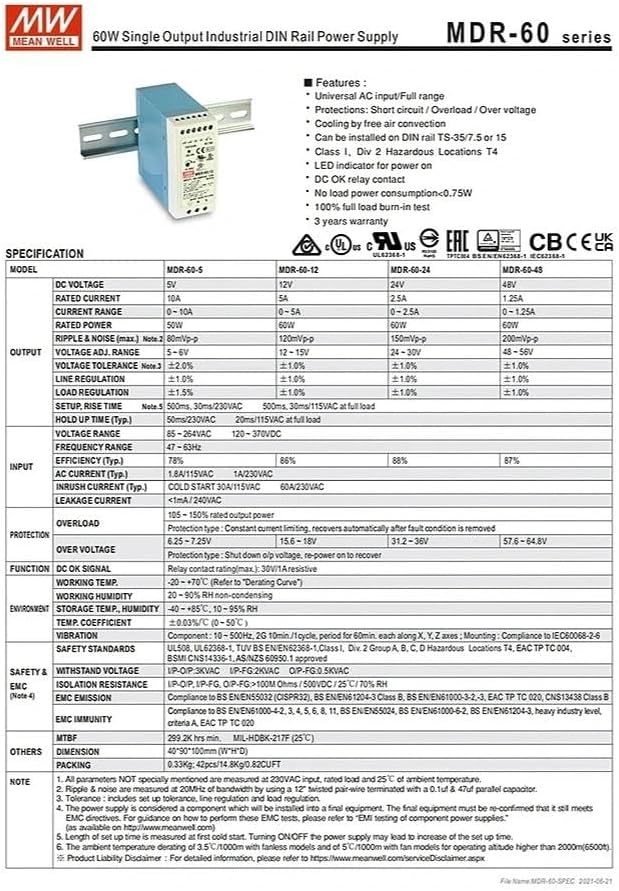

Technical SpecificationsOutput: 24V DC, 2.5A, 60W; Ripple & Noise: 150mVp-p max
Input: 85-264VAC / 120-370VDC, 47-63Hz
Efficiency: Up to 87% typical
Protection: Short-circuit, overload, over-voltage (auto-recovery)
Operating Temperature: -20 to +70℃
Safety Standards: UL508, UL62368-1, Class I Div 2 T4
Size: 40×90×100mm (W×H×D); Weight: 0.33Kg
MTBF: >2355.2K hours per Telcordia SR-332
ApplicationsIndustrial automation (PLC, DCS, I/O modules)
Class I, Div 2 hazardous locations (petrochemical, gas stations)
Industrial sensors, actuators, relays, solenoid valves
High EMI environments (frequency converters, motor control)
Outdoor/workshop equipment with wide temperature range
Warranty and Support3-year warranty with full-load aging testing.
