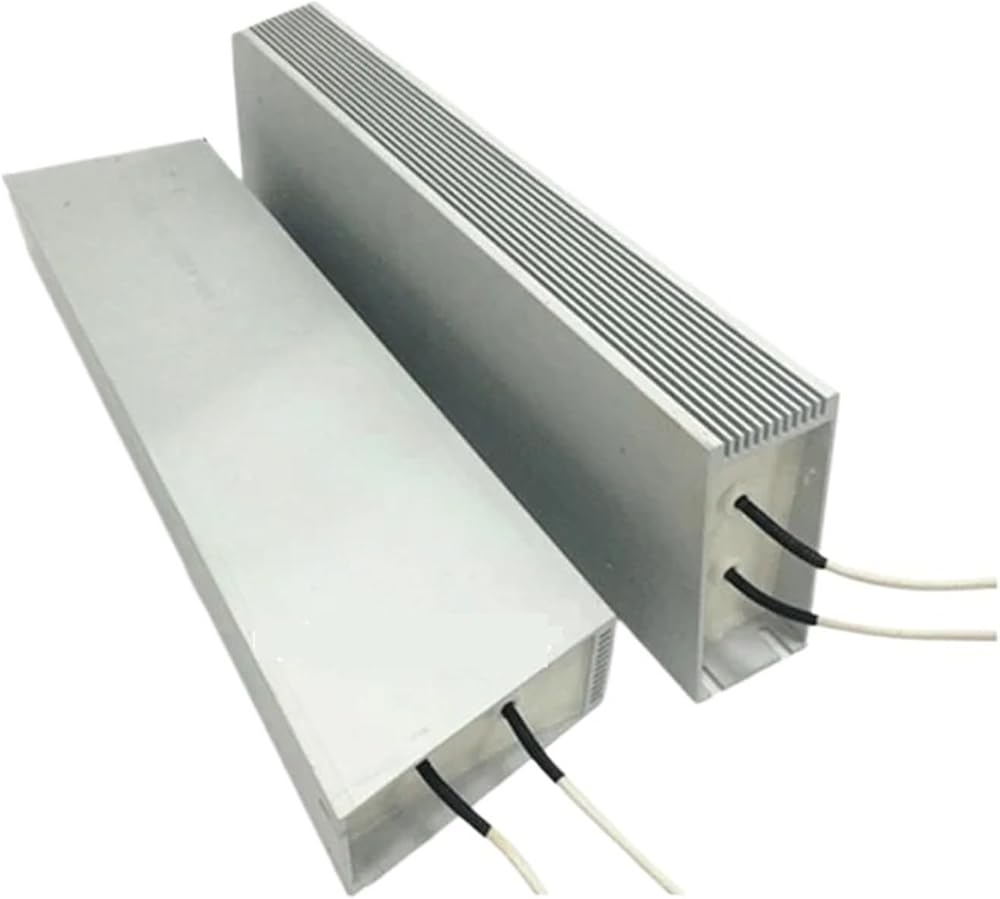

Resistor Chip Arrays
1000w 1200w 1500w,aluminum shell resistor,trapezoidal resistor,braking resistor,elevator resistor
Power Derating Curve:
Main testing items and experimental methods and performance requirements:
Property
Inspection method
Requirement
Constant Damp-heat
Temperature 40RH(60-95)% 96h
R±(5%±0.05)
Temperature change
-55+553 Circle
R±(2%±0.05)
Transiert overload
10 Time pr 5s
No damage
Insulation resistance
DC 1000V
R100M
Voltage resistance
AC3000V 50Hz 5s
No breakdown
Load life
25Ur 1000h
R20%
Terminal strength
45N 30s
No damage
Resistance to vibration
F:5-200Hz a=1g XYZ each 2H
R±(1%R±0.05)
Dimensional drawings:
Power(W)
Size(mm)
Wiring
Length(mm)
A B C D E F G
1000W
400
384
50
107
30
5.5
500
1200W
450
434
50
107
30
5.5
500
1500W
485
469
50
107
30
5.5
500
2000W
550
534
50
107
30
5.5
500
Matching model of inverter and brake resistor:
Model of the inverter
Brake resistor specifications
Braking
10%ED
Motor Power(Kw)
W
H2200-0004K1
80
200
125
0.4(220V)
H2200-0007K1
100
200
125
0.75(220V)
H2200-0015K1
300
100
125
1.5(220V)
H2200-0022K1
300
70
125
2.2(220V)
H2200-0007K1
80
750
125
0.75
H2200-0015K1
300
400
125
1.5
H2200-0022K1
300
250
125
2.2
H2200-0037K1
400
150
125
3.7
H2200-0055K1
500
100
125
5.5
H2200-0075K1
1000
75
125
7.5
H2200-0110K1
1000
50
125
11
H2200-0150K1
1500
40
125
15
H2200-0185K1
4800
32
125
18.5
H2200-0220K1
4800
27.2
125
22
H2200-0300K1
6000
20
125
30
H2200-0370K1
9600
16
125
37
H2200-0450K1
9600
13.6
125
45
H2200-0550K1
12000
20/2
125
55
H2200-0750K1
18000
13.6/2
125
75
H2200-0900K1
18000
20/3
125
90
H2200-1100K1
18000
20/3
125
110
H2200-1320K1
24000
20/4
125
132
H2200-1600K1
36000
13.6/4
125
160
H2200-1850K1
45000
13.6/5
125
185
H2200-2000K1
45000
13.6/5
125
200
H2200-2200K1
48000
13.6/5
125
220
H2200-3150K1
576000
13.6/6
125
315
==========
High-concerned chemical : None
Model Number : 1000w 1200w 1500w
product name : Aluminum shell resistor
