Cnc machine parts RM / SFU1605 set rolled ball screw end machined+flange nut+housing dsg16h+BKBF/EKEF/FKFF12 end support+coupler
Recommended length: the longer the length, the smaller the diameter, the easier it is to bend
1.100-1000mm Recommended SFU1204/SFU1605/SFU2005/SFU2505/SFU3205
2.1000-1600mm Recommended SFU1605/SFU2005/SFU2505/SFU3205
3.1600-2000mm Recommended SFU2005/SFU2505/SFU3205
4.2000-2500mm Recommended SFU2505/SFU3205
5.2500mm+ Recommend SFU3205

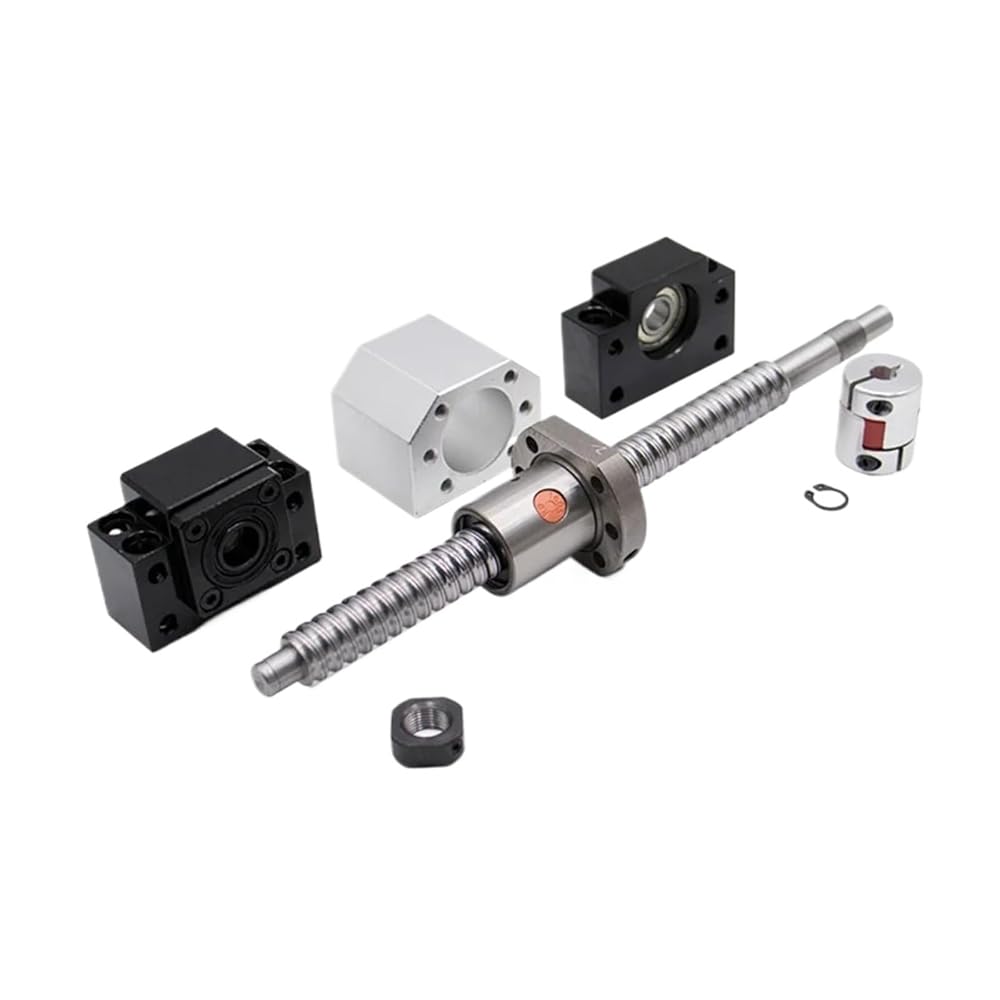

1* 16mm Ball screw rod with nut
1* BKBF12 support seat
1* DSG16H Nut seat
1* D25 L30 - 8mm X10mm Coupling
1.G10 grade GCR15 steel ball
2.High speed and low noise
3.Super wear-resistant
Nut
Dust ring
GCR15 Steel ball
Circular reverser
Waist metal inverter
Stepper Motor
Motor Integrated
Seat
Sliding Table
Guide Width or Diameter : 16mm
Length : 100-6000mm(Customized )
Feature : Low Friction, High Accuracy and Long Operating Life
Lead pitch : 5mm
Nut type : Single Nut
Structure : Ball screw & Nut
Color : Nickel White
Application : 3D Printer,CNC Machinery, Engraving,Linear Module, Screw Drive
thread direction : right thread
end support : BKBF12 /EKEF12 /FKFF12
coupler : D25L30:8*10
Ball nut housing : DSG16H
Length1 : 100mm 150mm 165mm 200mm 250mm 265mm
Length2 : 300mm 350mm 400mm 365mm 450mm 465mm 500mm 550mm 565mm
Length3 : 600mm 700mm 800mm 850mm 750mm 900mm 950mm 1000mm
Length4 : 1200mm 1250mm 1265mm 1300mm 1350mm
