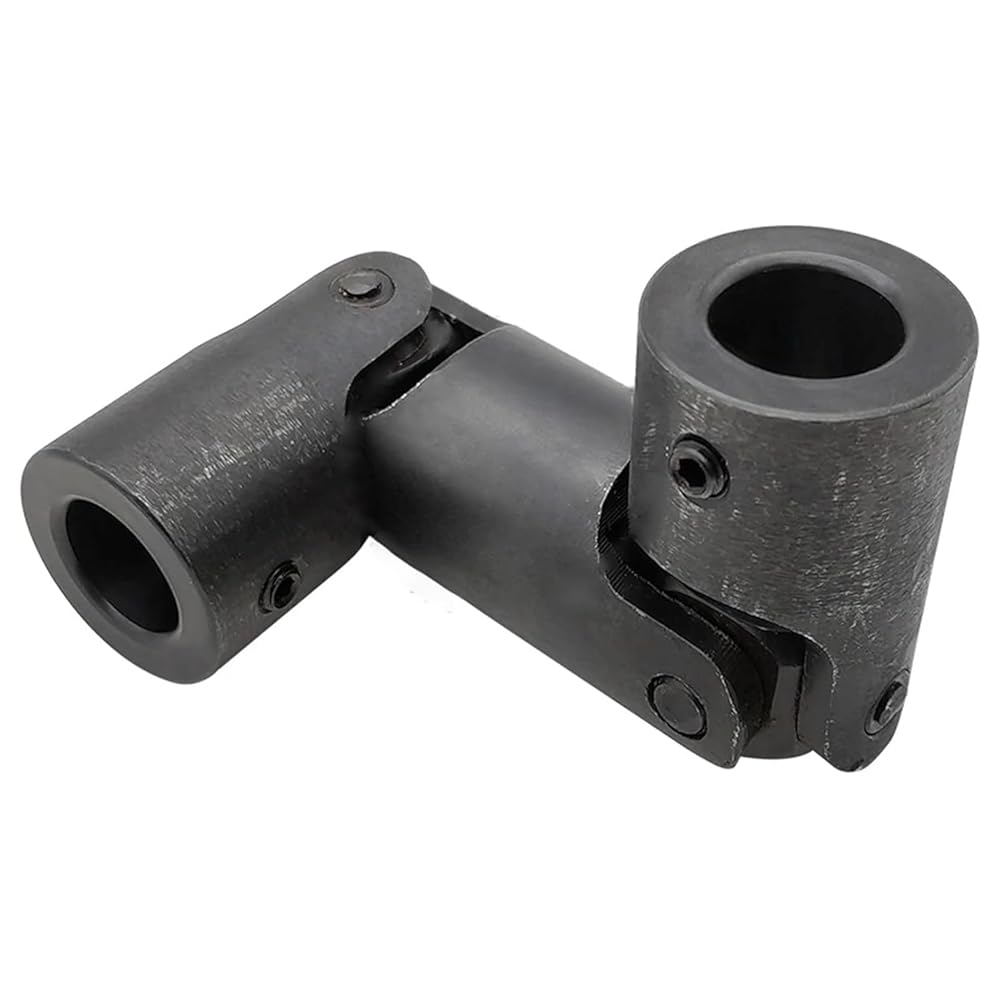

1pc 3 Sections Universal Joint Coupling Shaft Motor Connector Coupler Bushing Shaft Adjustable in Kuwait

18x32x148mm A

KWD 32.500
مقاس18x32x148 ملم
أسلوبأ
– 1 +

مميزات خاصة

  • Notice: The coupling is A Type 3 section Joint, and does not have a keyway.
  • Each section of maximum rotation angle of 30 degree
  • Material: 45 Carbon Steel
  • Versatile Compatibility: Perfectly suited for a wide range of applications, including blowers, 3D printers, DIY robots, CNC machines, and stepper motors. This shaft coupler ensures seamless integration into your projects, providing the stability and performance you need Precision Required: Our coupling features for a secure grip, delivering exceptional torque with minimal inertia. Enjoy enhanced sensitivity and reliability in your motor and gearbox assemblies
  • Part Number: XHK-0929

وصف

Notice: The coupling is A Type 3 section Joint, and does not have a keyway.

"10x20x82mm" means its inner diameter is 10mm, outer diameter is 20mm and length is 82mm, without keyway.

Each section of maximum rotation angle of 30°

Material: 45 Carbon Steel

Size: Inner Diameter(d) x Outer Diameter(D) x Length(L2):
6x16x75mm, 8x16x75mm, 8x18x62mm, 10x20x74mm, 10x20x82mm, 12x23x86mm, 12x24x95mm, 14x25x96mm, 14x28x115mm, 16x30x105mm, 16x30x148mm, 18x32x115mm, 18x32x148mm, 20x36x128mm, 20x32x148mm, 22x32x148mm, 22x38x145mm, 25x44x163mm

Package Included: Universal Joint x 1
Part Number: XHK-0929
