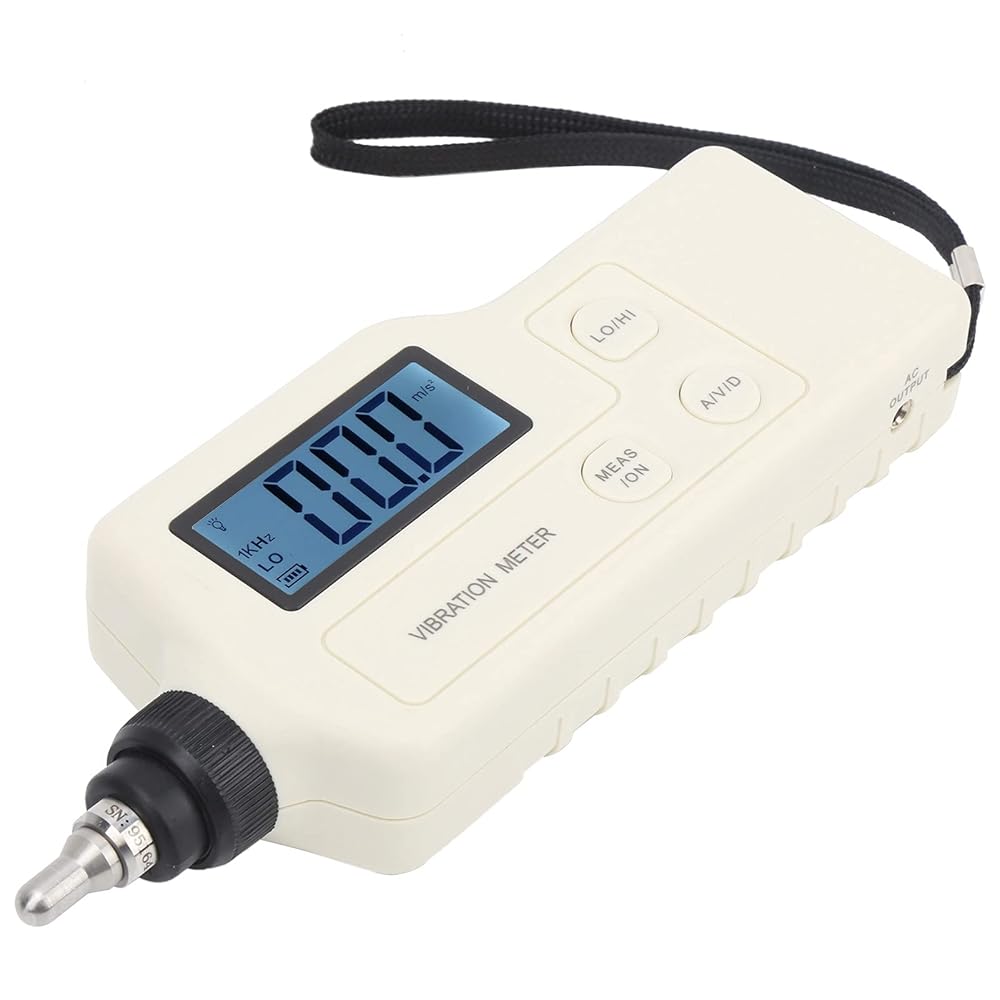

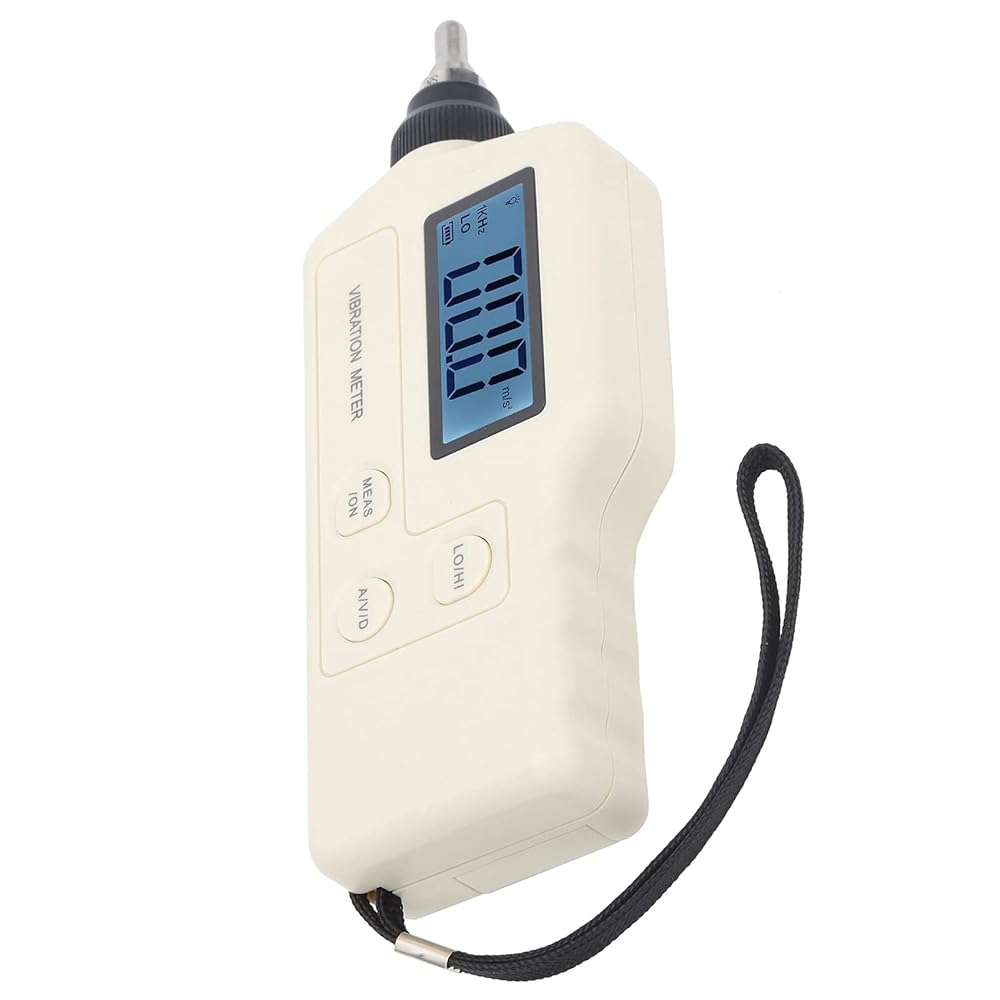

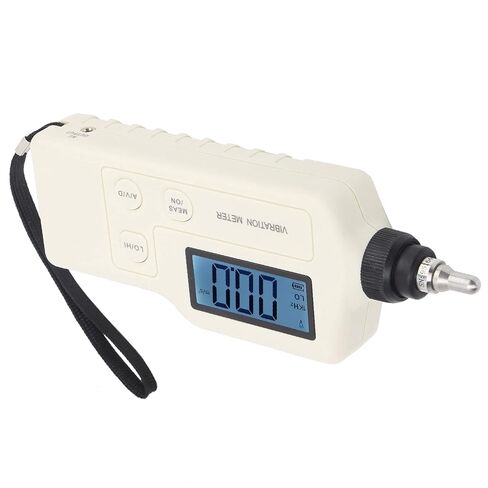

1. Easy to use, the structure is compact and portable to take with you during measurement.
2. Digital display LCD large screen, measured value and status visually.
3. It can measure acceleration, speed and displacement and select different vibration frequency characteristics.
4. High sensitivity probe, accurate measurement, equipped with AC signal output interface.
5. With low battery indicator, automatic shut-off function and LCD backlight function.

Technical data:
Item Type:Vibration Meter
Material: ABS
Colour: as shown in the picture.
Acceleration measurement range: 0.1-199.9m/s peak
Speed measuring range: 0.1-199.9s effective value
Displacement Measurement Range: .001-1.999mm Tip
Measurement error: ±5% ±2 digits (ie 2 words)
LCD display: 3.5 digit display
Frequency range of acceleration measurement: 10 Hz ~ 1 kHz, 1 kHz ~ 15 kHz.
Frequency range of speed measurement: 10Hz ~ 1kHz
Frequency range of displacement measurement: 10 Hz ~ 1 kHz.
Display data exchange cycle: 1 second
Power supply: 1 x 9V alkaline battery (not included)
Data output: AC output 2V peak (full range display) load: 10kΩ or high impedance headphones can be connected
Quiescent current: ≤20μA.
Working current: ≤ 25 mA.
Auto power off function: auto shut off within one minute without operation
LCD backlight function: turn off after 7 seconds without operation
Operating temperature range: 0~40℃
Working humidity range: 30%~90%RH
Use:
Get the product, open the power cover of the back cover, insert it, close the back cover, lightly press MEAS/ON to turn it on,
