[PRACTICAL LABORATORY EQUIPMENT]A rotary evaporator is a laboratory device used for the continuous distillation of large quantities of volatile solvents under reduced pressure. Has a large capacity, large caliber rotary evaporation bottle, placed in a water bath, rotate the heating, so that the solution of diffusion efficient evaporation
[FEATURES]PTFE and fluorine rubber double rotating seal, to ensure high vacuum. The temperature control system, accurate and reliable. In does not affect the system and solution under the condition of vacuum distillation, continuous collection. The PTFE discharge valve, easy to clean and no pollution

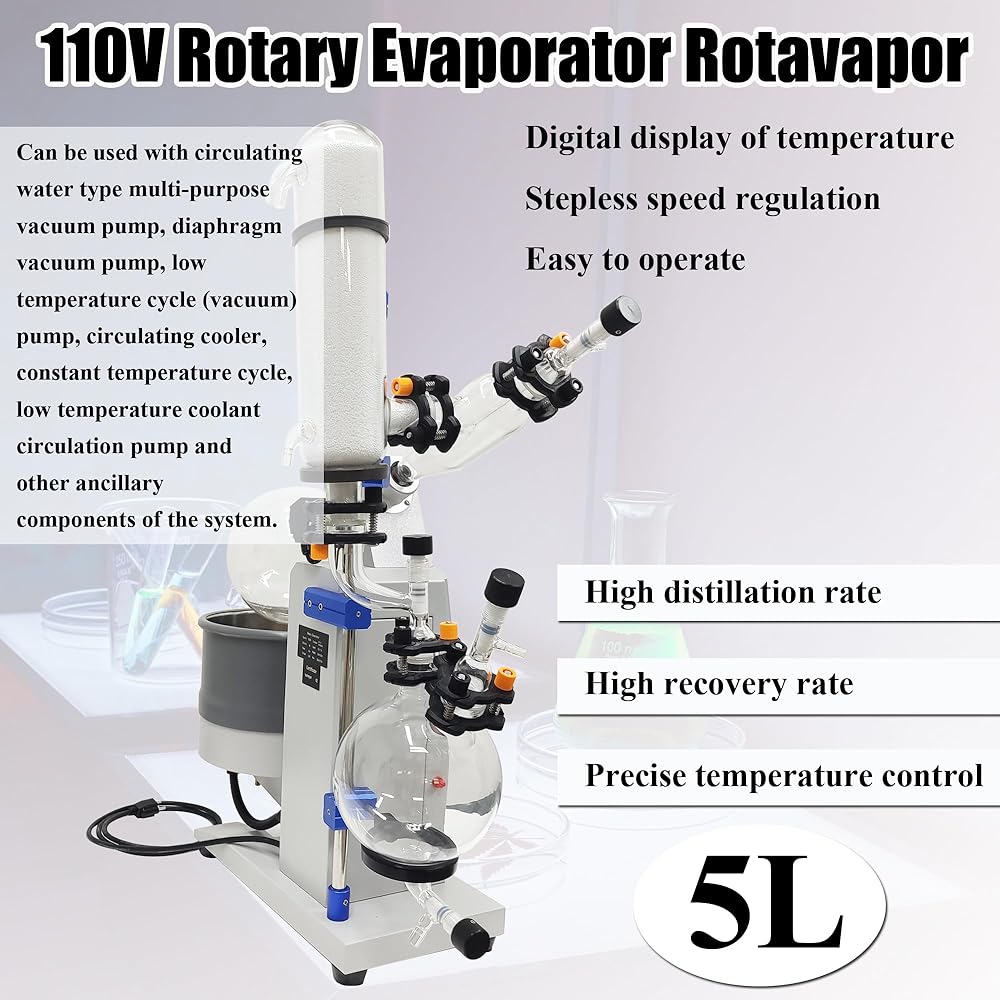

[STRONG APPLICABILITY]The 5L rotary evaporator with pressure gauge can be used with circulating water type multi-purpose vacuum pump, diaphragm vacuum pump, low temperature cycle (vacuum) pump, circulating cooler, constant temperature cycle, low temperature coolant circulation pump and other ancillary components of the system

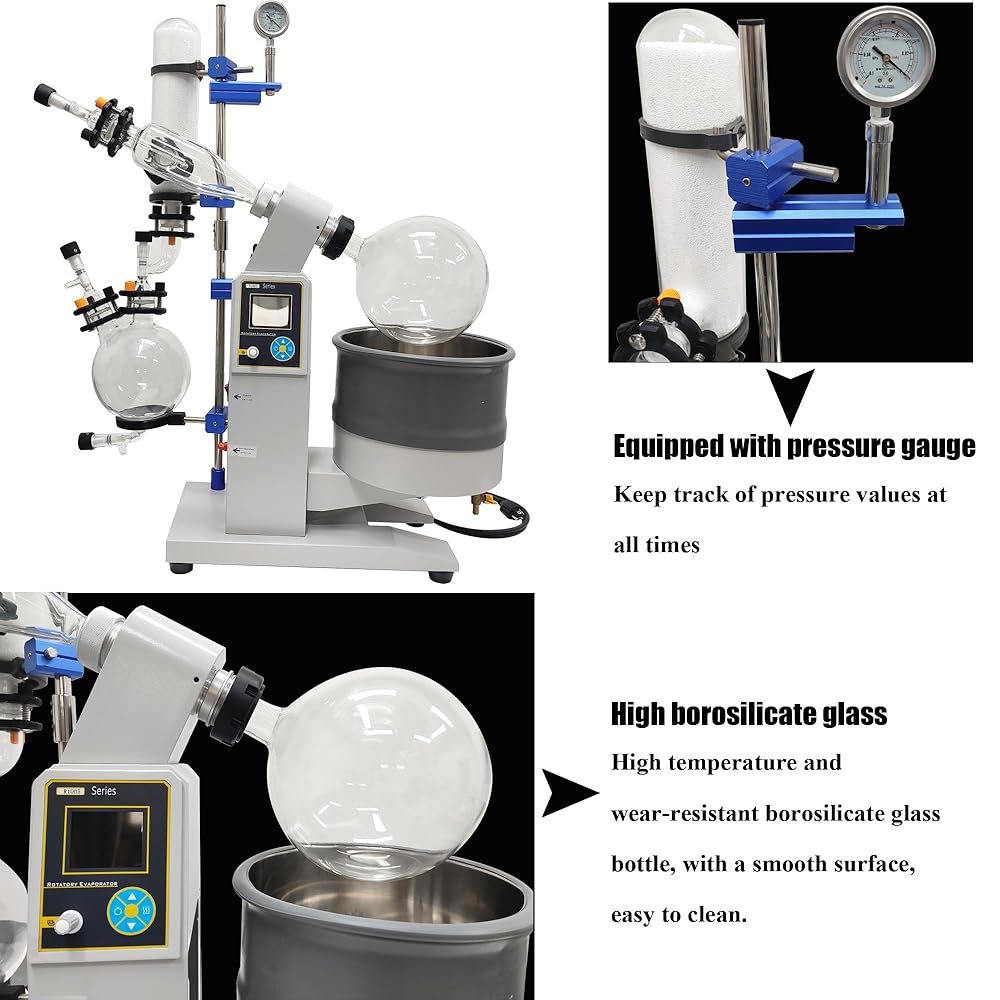

[EASY TO OPERATE]This explosion-proof intelligent 5L electric rotary evaporator comes with a pressure gauge. Electronic intelligent temperature control with digital display. High temperature control accuracy, more stable temperature control, and more intuitive temperature display. Easy and convenient operation

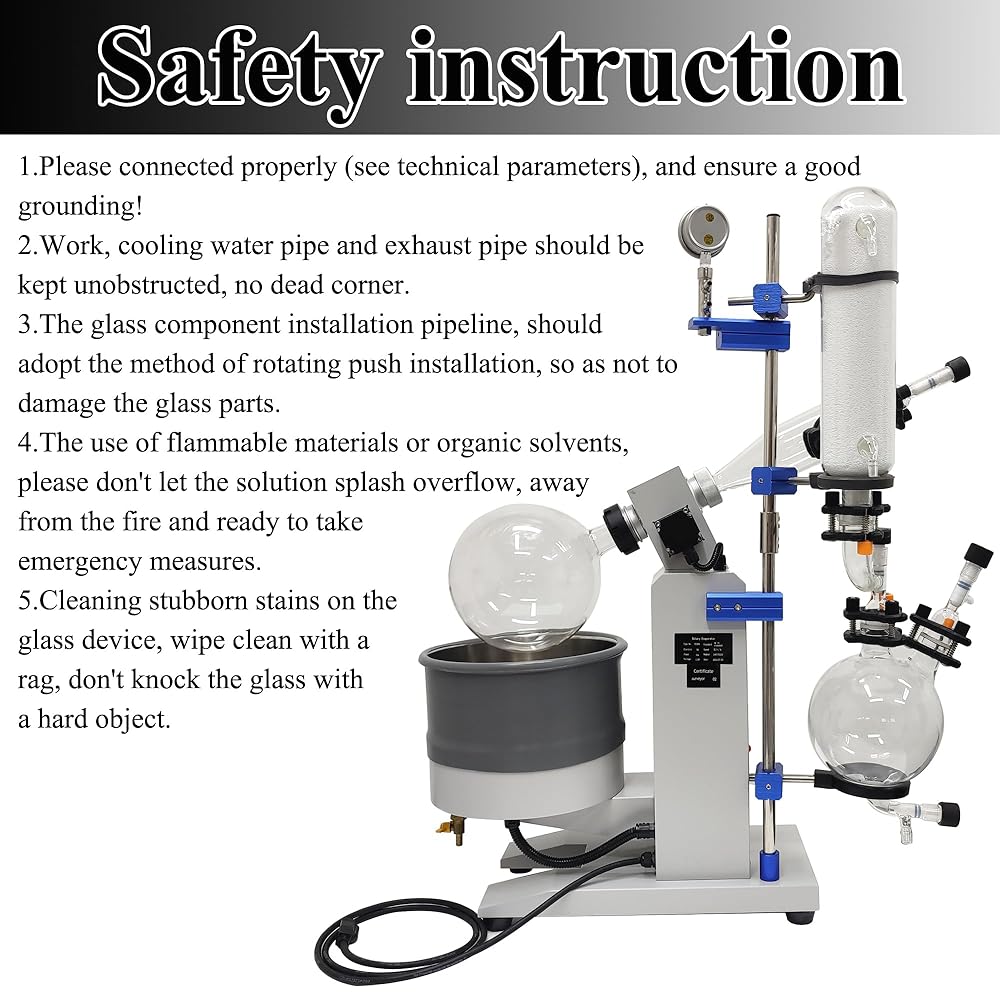

[SAFETY INSTRUCTION]Please connected properly (see technical parameters), and ensure a good grounding! Work, cooling water pipe and exhaust pipe should be kept unobstructed, no dead corner. The glass component installation pipeline, should adopt the method of rotating push installation, so as not to damage the glass parts. The use of flammable materials or organic solvents, please don't let the solution splash overflow, away from the fire and ready to take emergency measures. The equipment bracket is randomly shipped in blue and silver

وصف

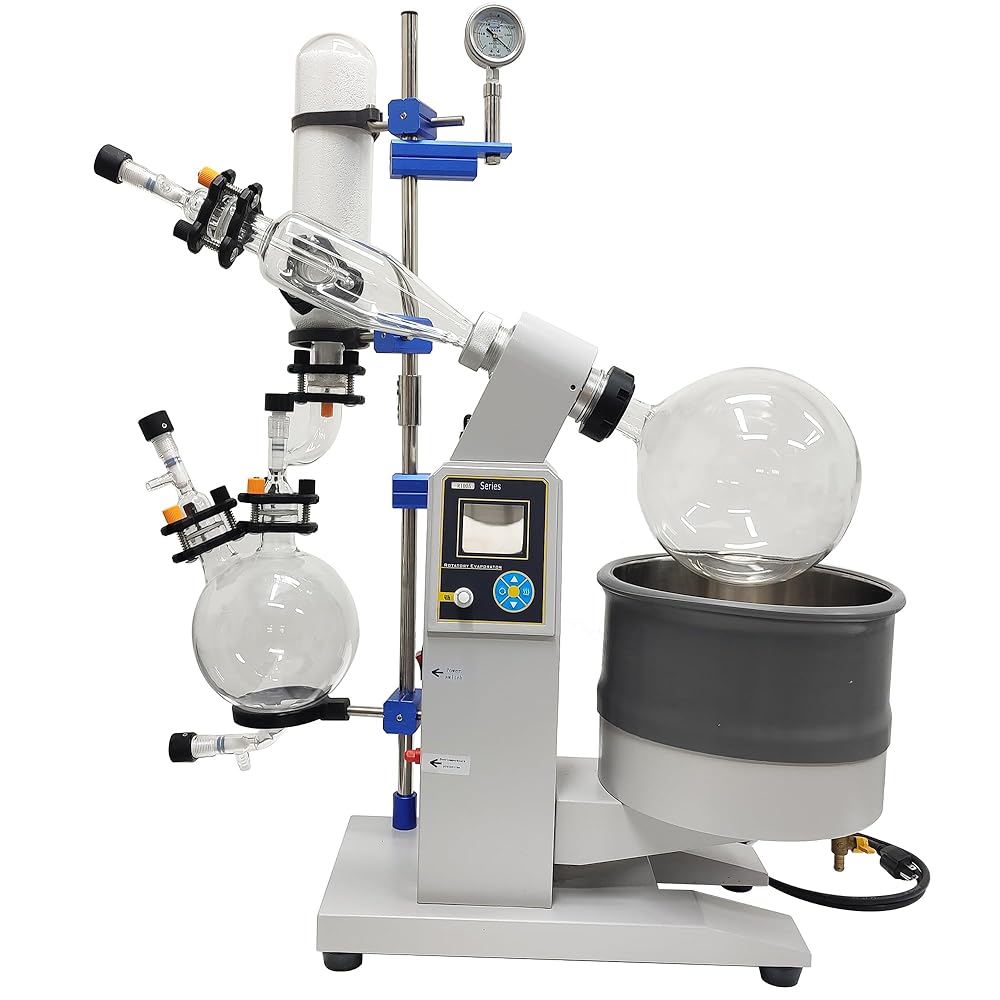

110V 5L Rotary Evaporator explosion-proof type

We have two kinds of conventional (220491) and explosion-proof type (220568), can be selected according to the experimental environment.

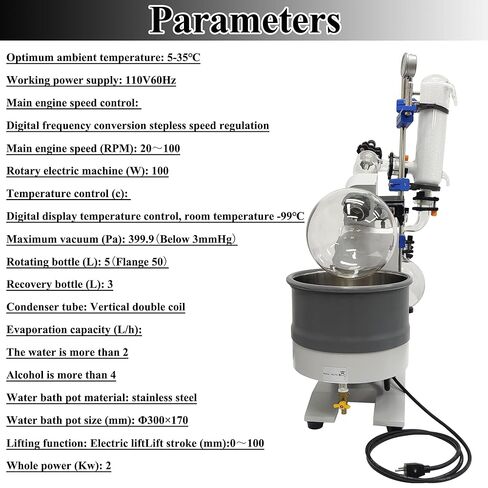

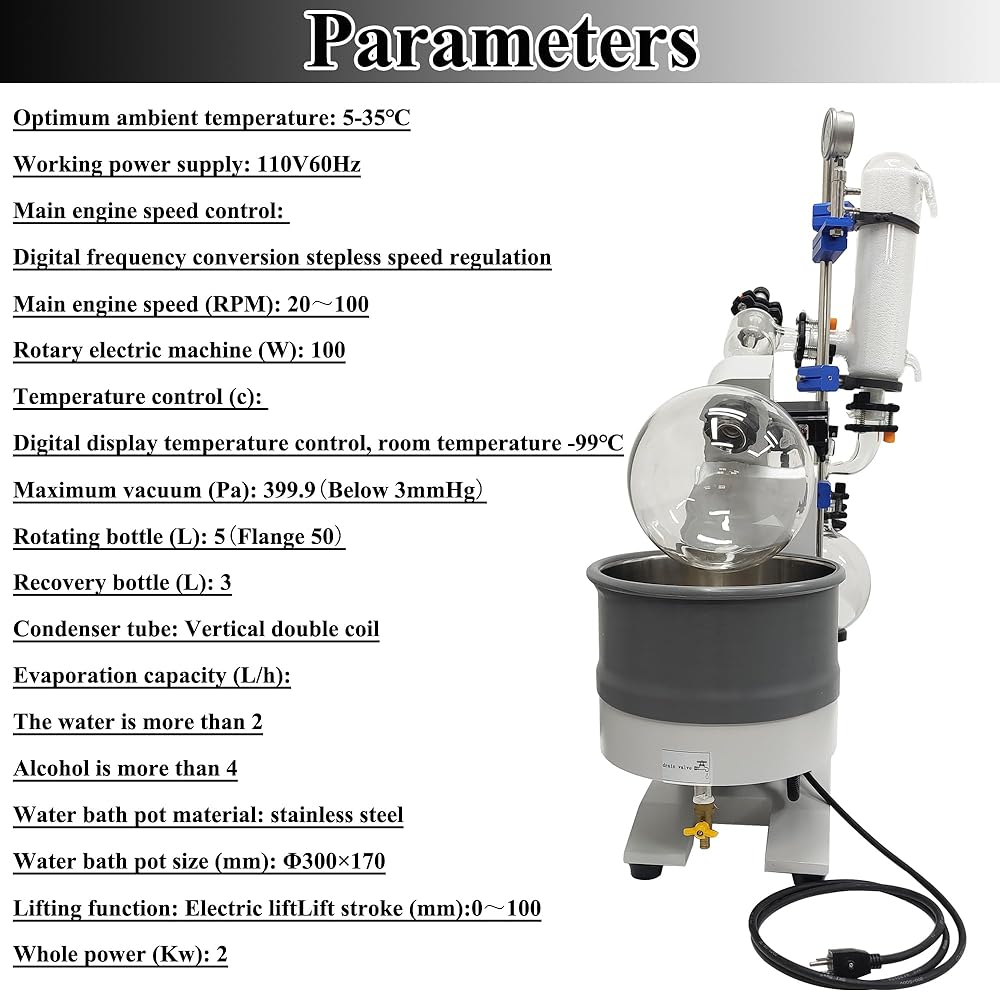

Parameters:

Optimum ambient temperature ：5-35℃

Working power supply：110V60Hz

Main engine speed control: Digital frequency conversion stepless speed regulation

Main engine speed (RPM):20～100

Rotary electric machine (W):100

Temperature control (c): Digital display temperature control, room temperature -99℃

Maximum vacuum (Pa)：399.9（Below 3mmHg）

Rotating bottle (L)：5（Flange 50）

Recovery bottle (L)：3

Condenser tube：Vertical double coil

Evaporation capacity (L/h):The water is more than 2

Alcohol is more than 4

Water bath pot material:stainless steel

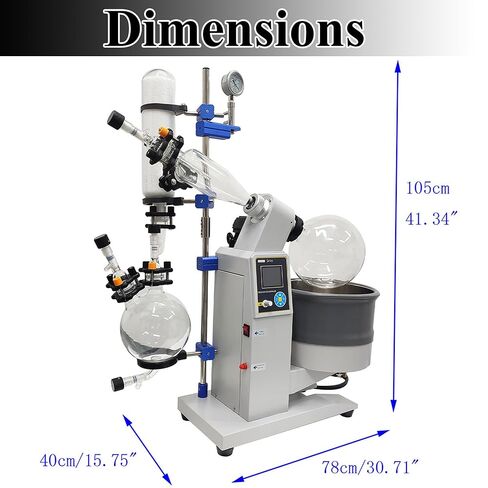

Water bath pot size (mm):Φ300×170

Lifting function:Electric lift

Lift stroke (mm):0～100

Whole power (Kw):2

Note: Cleaning stubborn stains on the glass device, wipe clean with a rag, don't knock the glass with a hard object.

Item Included(220568):

1 Set of 110V 5L Rotary Evaporator Rotavapor
