مميزات خاصة

Efficient Power Transmission: Our planetary gear motor is uniquely designed to realize efficient power transmission. It ensures stable output power through the cooperative work of multiple gears and is suitable for all types of mechanical equipment and automation systems.
Compact Design: Planetary gear motors have a compact design that delivers powerful torque output in a limited space. Whether for industrial robots, automation devices, or power tools, they can be easily installed and integrated.
EXCELLENT DURABILITY: Made of materials, they are highly resistant to wear and fatigue. Our motors undergo rigorous quality testing and are able to maintain stable operation for long periods of time in harsh working environments, reducing maintenance costs.
Low Noise and Efficient Heat Dissipation: The planetary gear motor design emphasizes low noise operation to ensure a quiet and comfortable working environment. In addition, advanced heat dissipation technology keeps the motor at a lower temperature during high load operation, prolonging service life and improving overall efficiency.
A variety of specifications available: We offer a wide range of specifications and models of planetary gear motors to meet different application requirements. Whether it is small equipment or large machinery, we have the right solution to support .

وصف

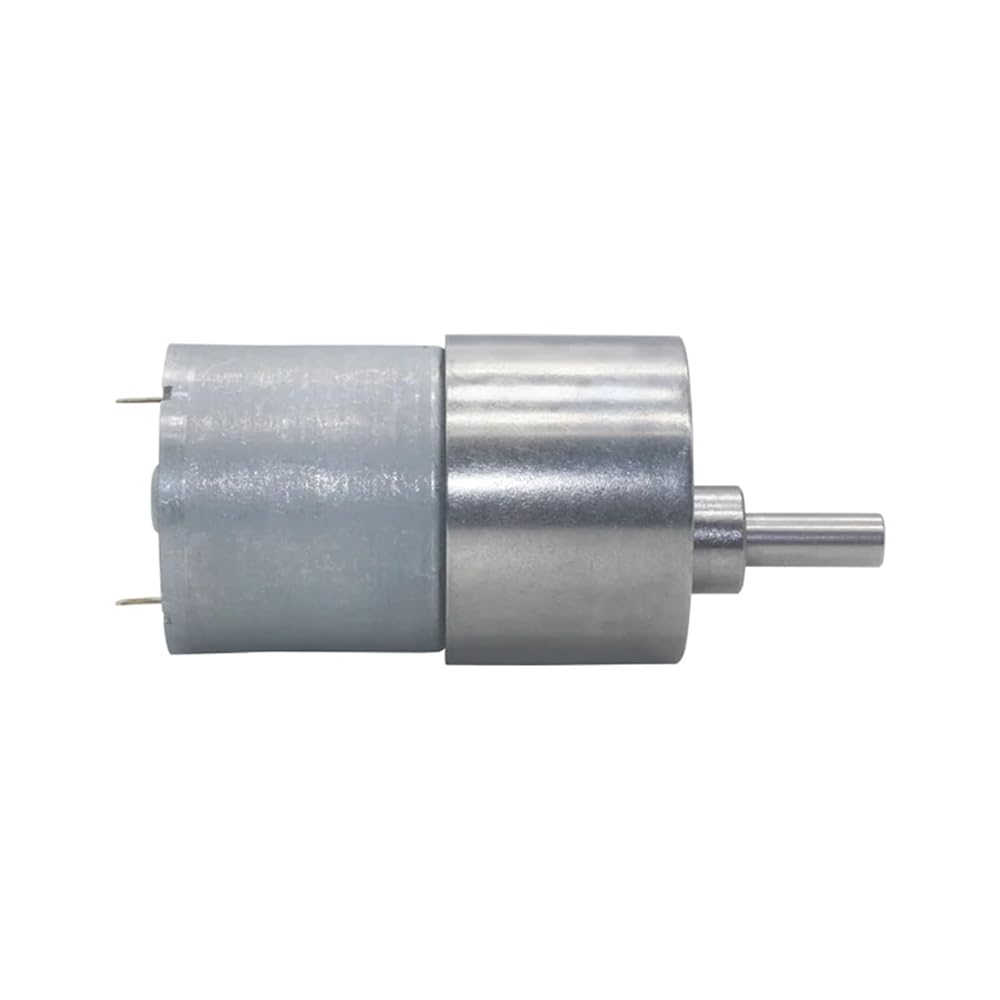

DC12V 24V Reduction Gear Motor with Geared Box & DType Shaft12mm JGB373530
Specification
Voltage DC12V 24V
NoloadSpeed 12rpm, 20rpm, 37rpm, 59rpm, 76rpm, 111rpm, 178rpm, 333rpm, 531rpm, 1000rpm, 1600rpm
Voltage: DC24V
No-load Speed:7rpm, 12rpm, 22rpm, 35rpm, 45rpm, 66rpm, 107rpm, 200rpm, 320rpm, 600rpm, 960rpm
Max Power: 0-5W
Max Torque: 40kg.cm
Motor Diameter: 33mm
Motor Body Length: 30mm
Output Shaft Diameter: 6mm
Output Shaft Length: 15mm
Gearbox Diameter:37mm
Hign-concerned Chemical : None
Color : Silver
Torque : Max 25kg.cm
Usage : Fan,BOAT,Home Appliance
Model Number : JGB37-3530
Continuous Current(A) : 60ma
Construction : Permanent Magnet
Type : Gear Motor
Protect Feature : Totally Enclosed
Commutation : Brush
Output Voltage : 5w
Color : Silver
Torque : Max 25kg.cm
Usage : BOAT,FAN,Home Appliance,boat, fan
Model Number : JGB37-3530
Continuous Current(A) : 60ma
Construction : Permanent Magnet
Type : Gear Motor
Protect Feature : Totally Enclosed
Commutation : Brush
