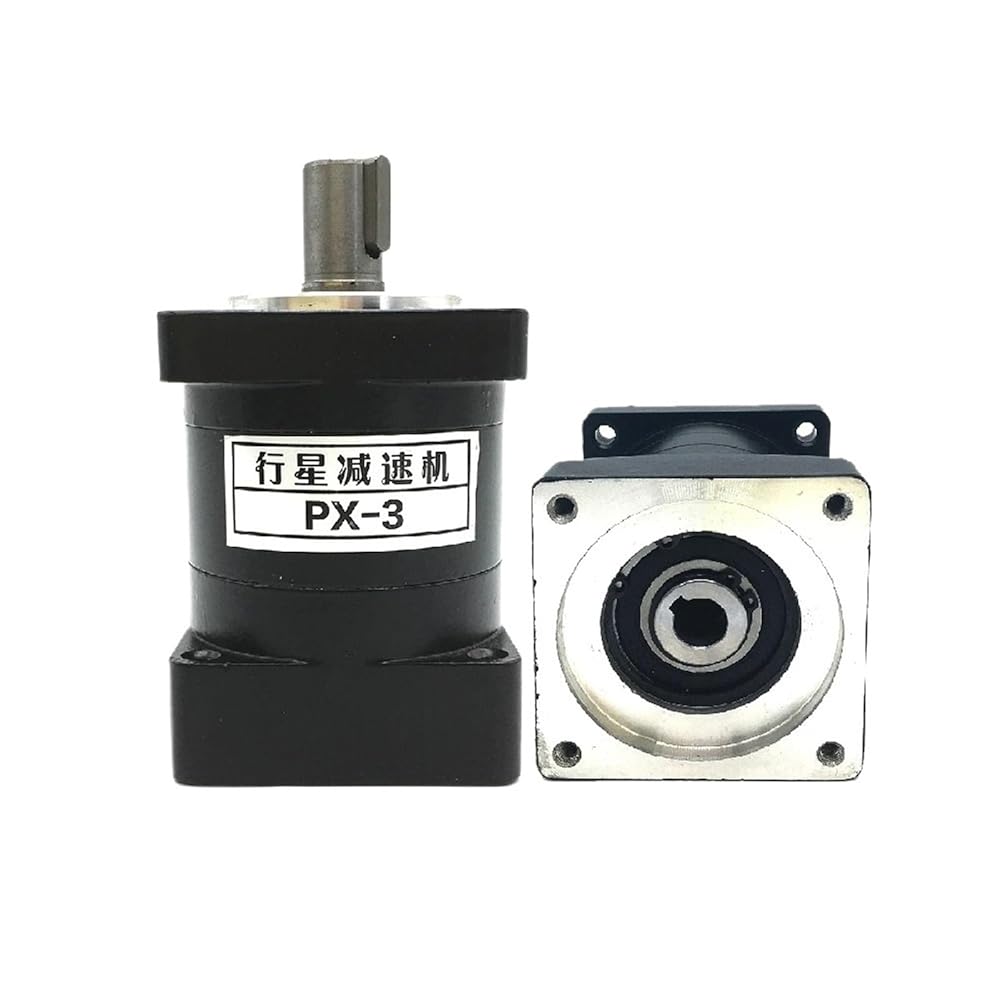

Servo Motor Planetary Gearbox Gear 80mm Flange Input & Output 19mm Ratio 31,5:1,10.56:1~216 Speed Reducer for Brushless Motor Servo Motor CNC
Package Listing:
1x Planetary Gearbox
1x Key
4x Install screws
PS:
For Servo Motor :Input Shaft: 19mm , Output Shaft: 19mm (Keyway=5mm)
For Brushless Motor :Input Shaft: 14mm Output Shaft: 16mm (Keyway=5mm)
80PX Reducer Technical Parameters
Stage
Stage 1(L1)
Stage 2(L2)
Stage 3(L3)
Speed Ratio
3/4/5/6/8/10
15/20/24/30/
36/40/50/60
100/120/150/200
Input (MM)
19(For Servo Motor)
19(For Servo Motor)
19(For Servo Motor)
Output shaft (MM)
19(For Servo Motor)
19(For Servo Motor)
19(For Servo Motor)
Keyway (MM)
5
5
5
Body length (MM)
83
98
113
Rated load (N.M)
30
50
60
Maximum load (N.M)
50
80
100
Full load efficiency (%)
95
90
85
Backlash Precision (arcmin)
18
25
35
Rated input speed (RPM)
3000
3000
3000
Protection level (IP)
65
65
65
Noise (dB)
60
60
60
Average service life (H)
20000
20000
20000
Gear material
20Cr Carbon steel
20Cr Carbon steel
20Cr Carbon steel
Drawing For Servo Motor:
Drawing For Brushless Motor:
==========
Torque : 60Nm
Model Number : 80PX-3-19/19-70-63.6
Construction : Gearbox
Type : Gear Motor
Protect Feature : Drip-proof
Commutation : Brushless
Efficiency : IE 1
Input : 19mm
Output Shaft : 19mm
Rated Input speed : less than 3000prm
Noise : 60dB
Precision : less than 18 Arcmin
Protection level : IP65
Flange : 80mm
Rated Load : L1= 30Nm , L2=50NM, L3=60Nm
Gear material : 20Cr Carbon steel
Servo Motor reducer : Step-down gearbox
planetary reducer : planetary gearbox
Gearbox gear : plan
