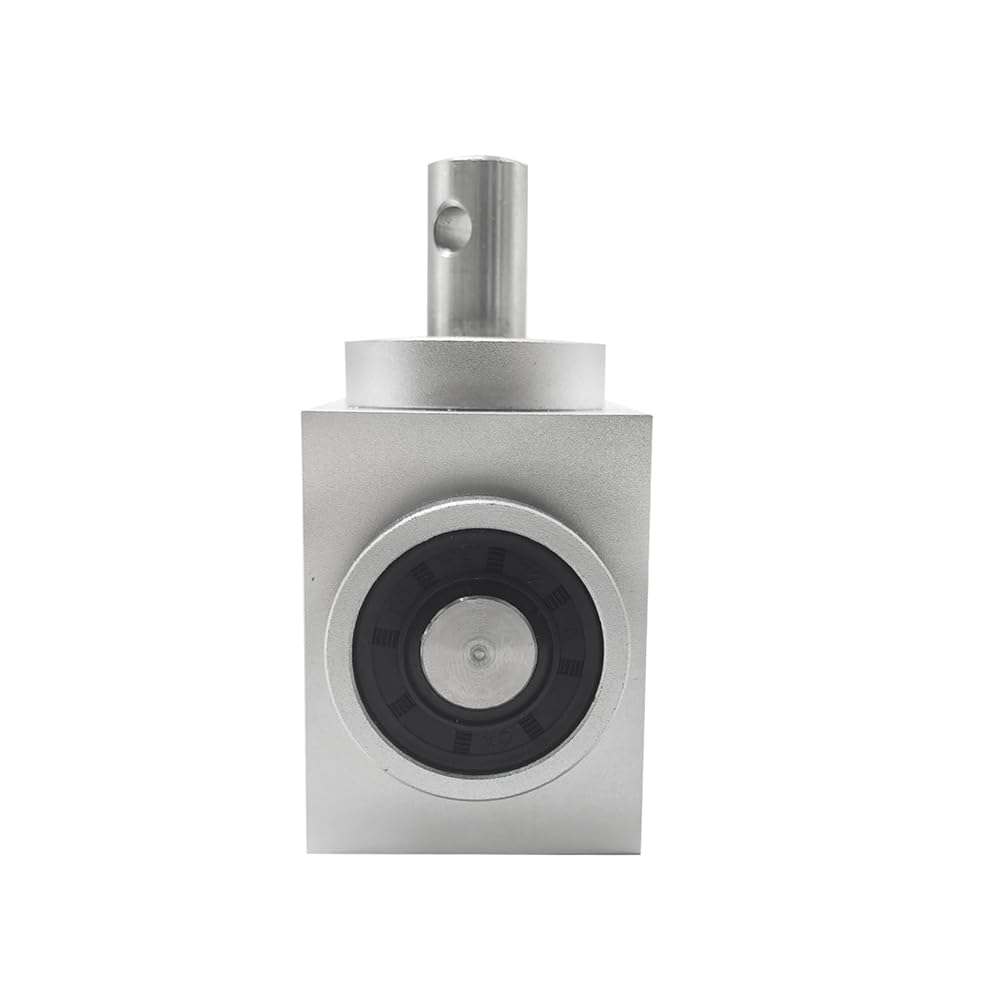

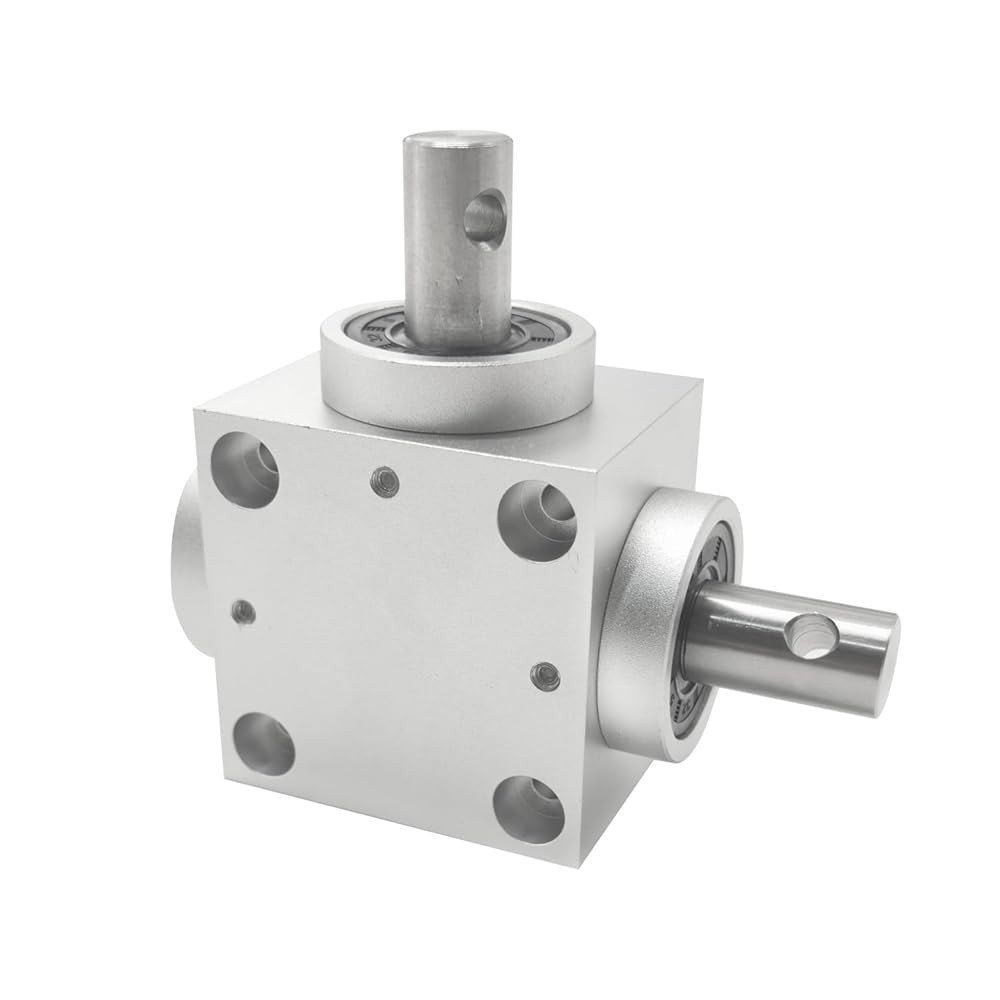

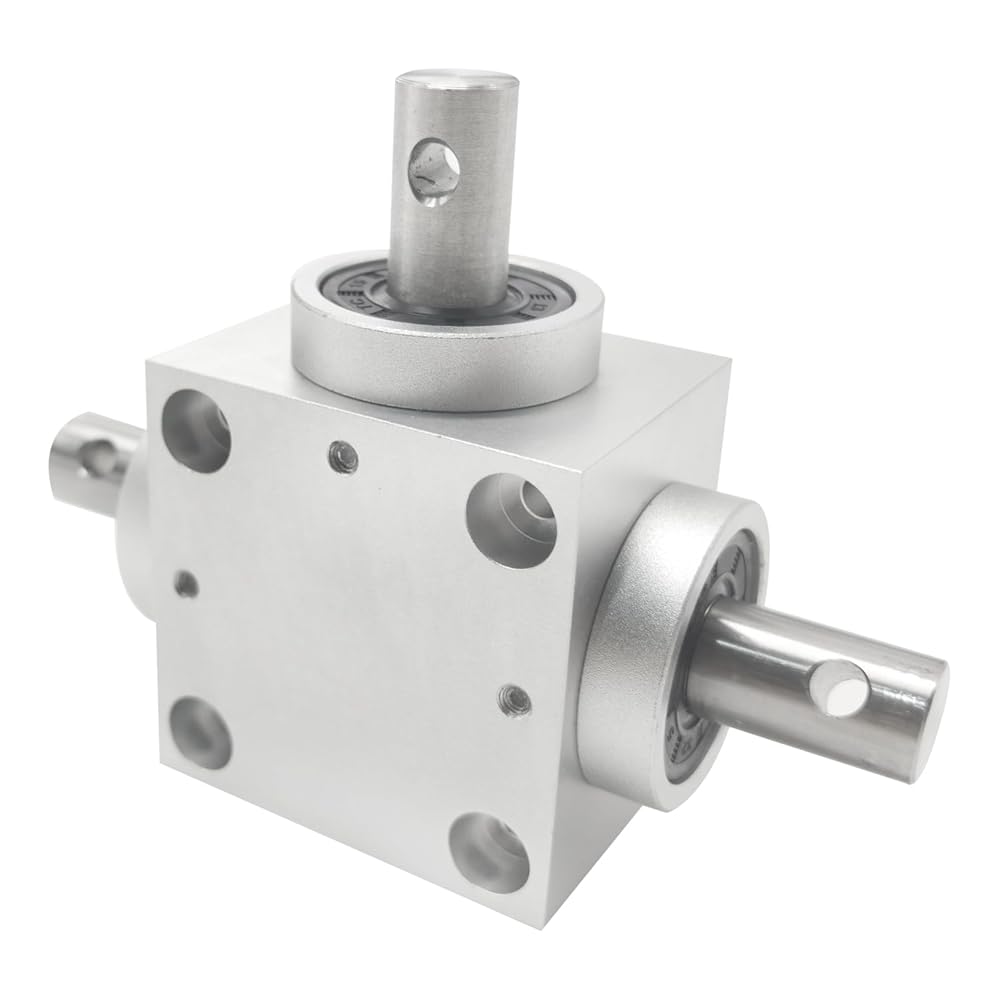

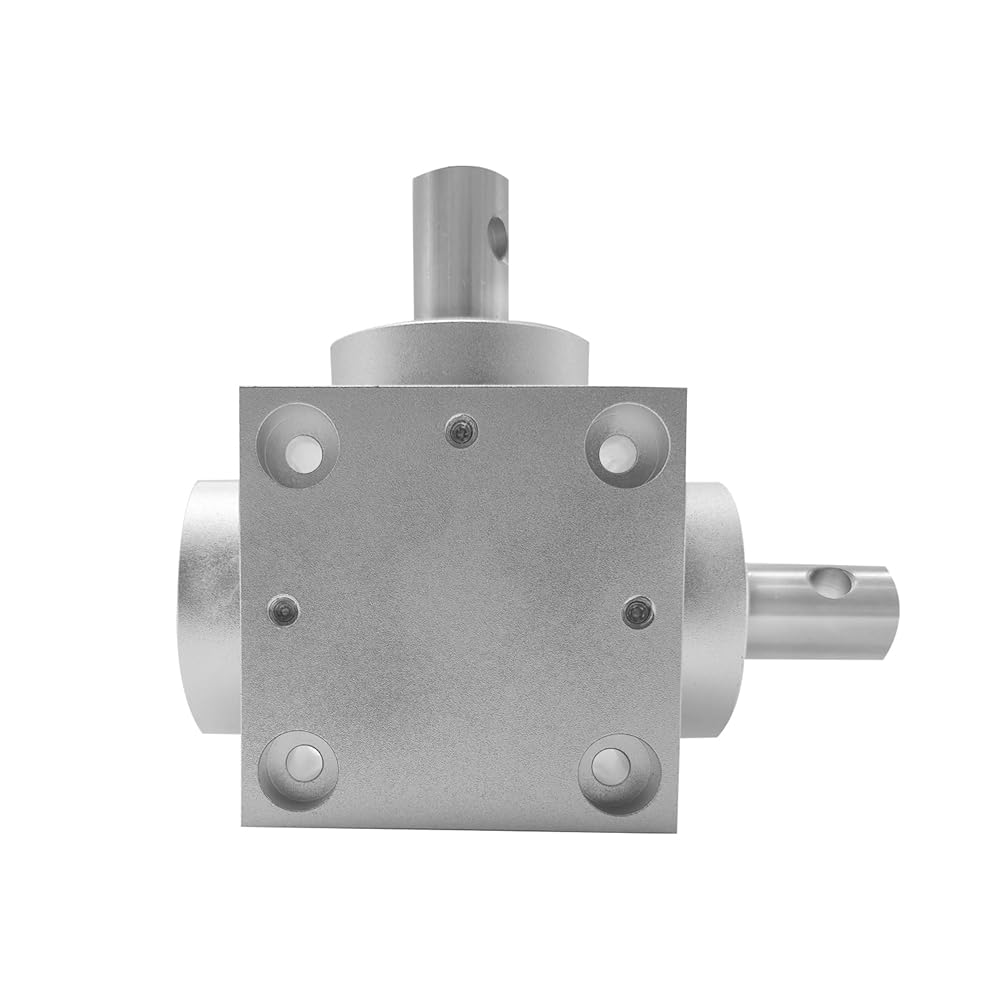

PGFUN 1:1 Waterproof Right Angle Gearbox
Waterproof 1:1 Right Angle Gearbox: this right-angle gearbox adopts a sealed structure to form a sealed cavity, which is suitable for outdoor projects in humid and dusty conditions, like garden spraying devices, boat power devices, lightweight lift tables, etc.
Easy to Install and Use: there are 4 mounting holes on the side of the commutator, which is convenient for fixing the equipment. It can be connected to the motor through a coupling or gear and belt to drive, or it can be driven by a hand crank with a 15mm bore.
Materials: sandblasted anodized aluminum alloy housing, 45 steel gears, stainless steel shafts.

Specification:
2pcs built-in 1.5 module 20 teeth bevel gears,

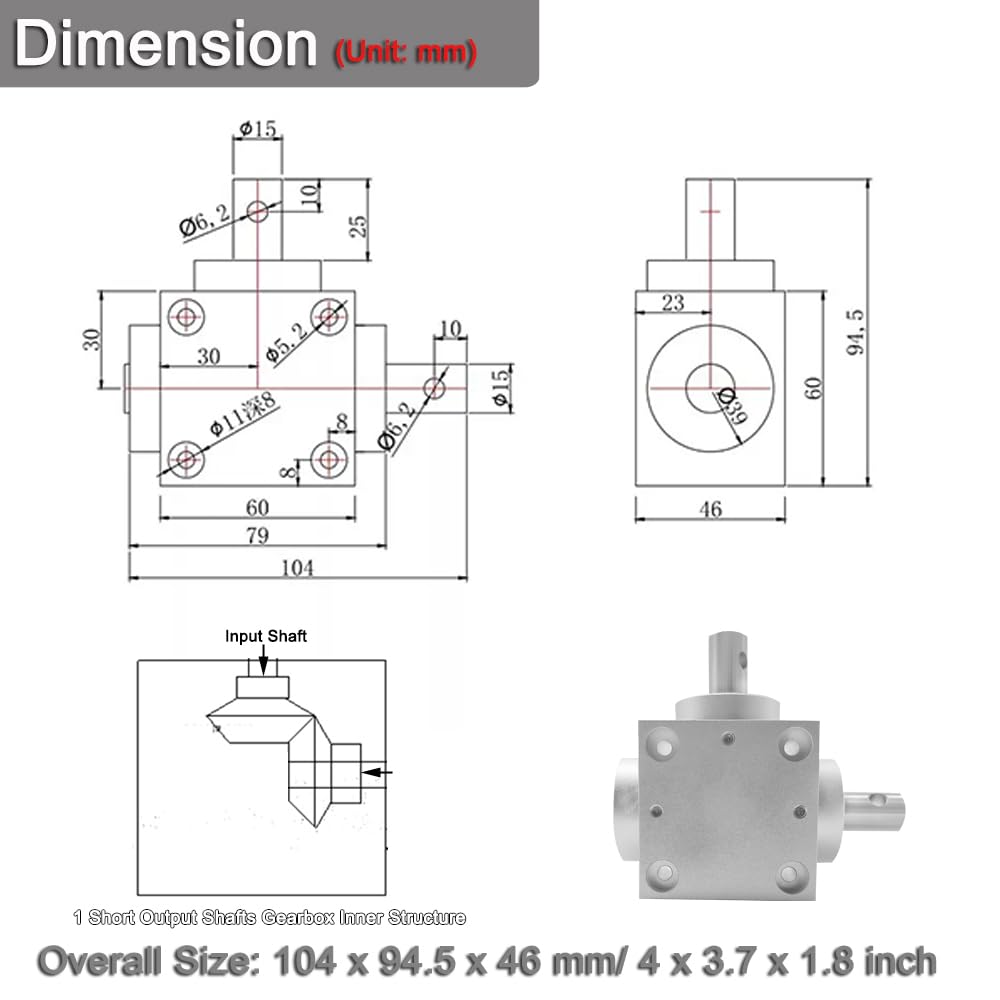

Shaft size 25mm x 15 mm/1 x 0.6" shaft,
Max Axis Loading: 30 kgs/ 66.1 lbs,
Max torque rating: 10 N.M/ 7 ft.lbs,
Max rotation speed: 1500 rpm,
Backlash: 5 degrees,
Ingress protection: IP64 ( dust-tight protection and withstand water splashes from any direction, NOT suppot soaking in water for a long time)
Tips: if 3D file is needed, free to contact us.
