مميزات خاصة

EASY TO OPERATE- The high and low temperature circulation device adopts LCD demonstration. The overall operation is simple, one click start. Equipped with 3 taps and 2 pipes, no additional parts are required. In addition, it is equipped with wheels, with brakes, easy to move and fix
INTELLIGENT TEMPERATURE CONTROL- The high and low temperature circulating device adopts intelligent operation panel. The entire liquid circulation is a fully enclosed system. At high temperatures, the heat transfer fluid is not easily volatile or oxidized, and at low temperatures, it is not easy to absorb moisture from the air, thus extending the service life of the heat transfer fluid
FINE WORKMANSHIP- This high and low temperature circulation integrated machine device adopts closed filling port which is made of premium 304 stainless steel material. In addition, the inlet and outlet is made of stainless steel, which is firm and long-lasting

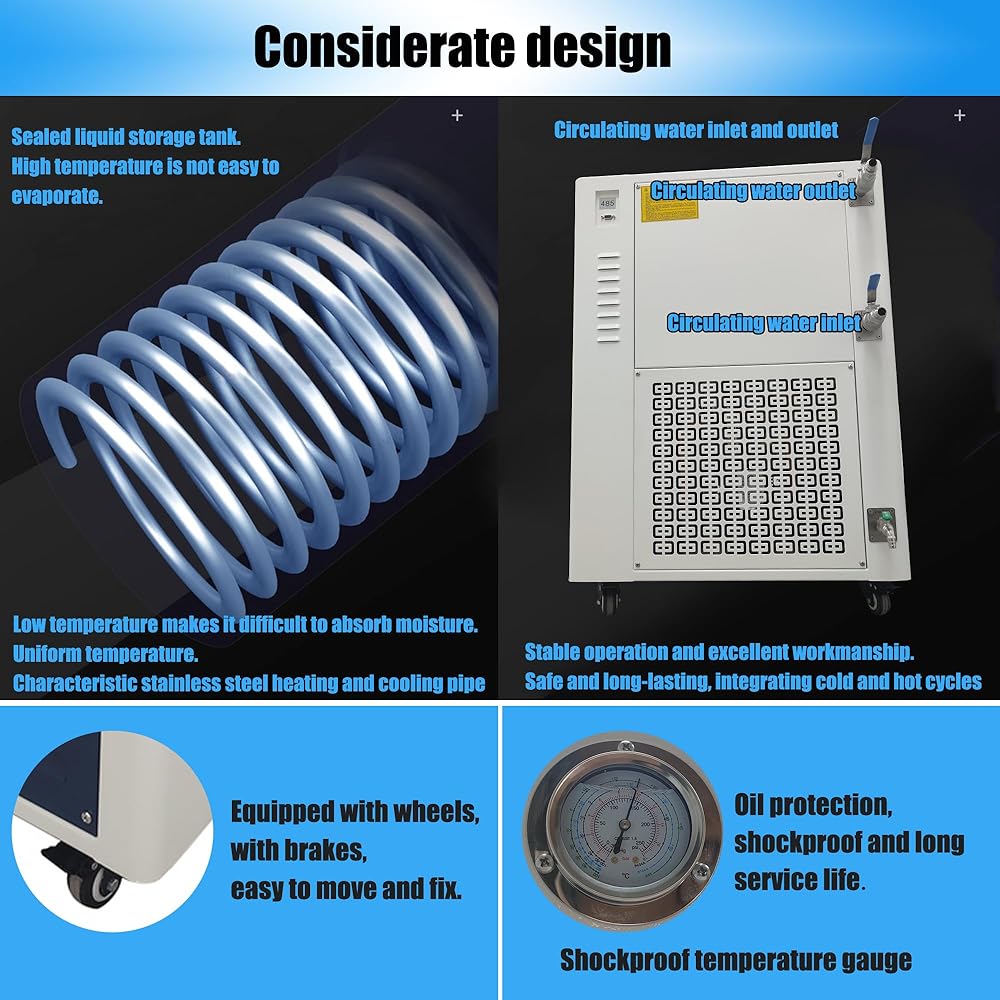

CONSIDERATE DESIGN- There is a visual window on the lab high and low temperature circulation machine. We can observe the heat transfer oil at any time, easy to replace. At the same time, the machine is with a pressure gauge. It is convenient to view the specific pressure values
APPLICATION RANGE- The hot and cold integrated cycle reaction machine can be used to cool flasks, beakers, test tubes, etc; It can be used for cooling and cooling of glass reactors and fermentation tanks; It can be used for rotary evaporator, vacuum frozen drying oven and other cooling; It can be used as a cryogenic reaction bath alone or in combination with other equipment to provide the temperature conditions required for experiments or production

وصف

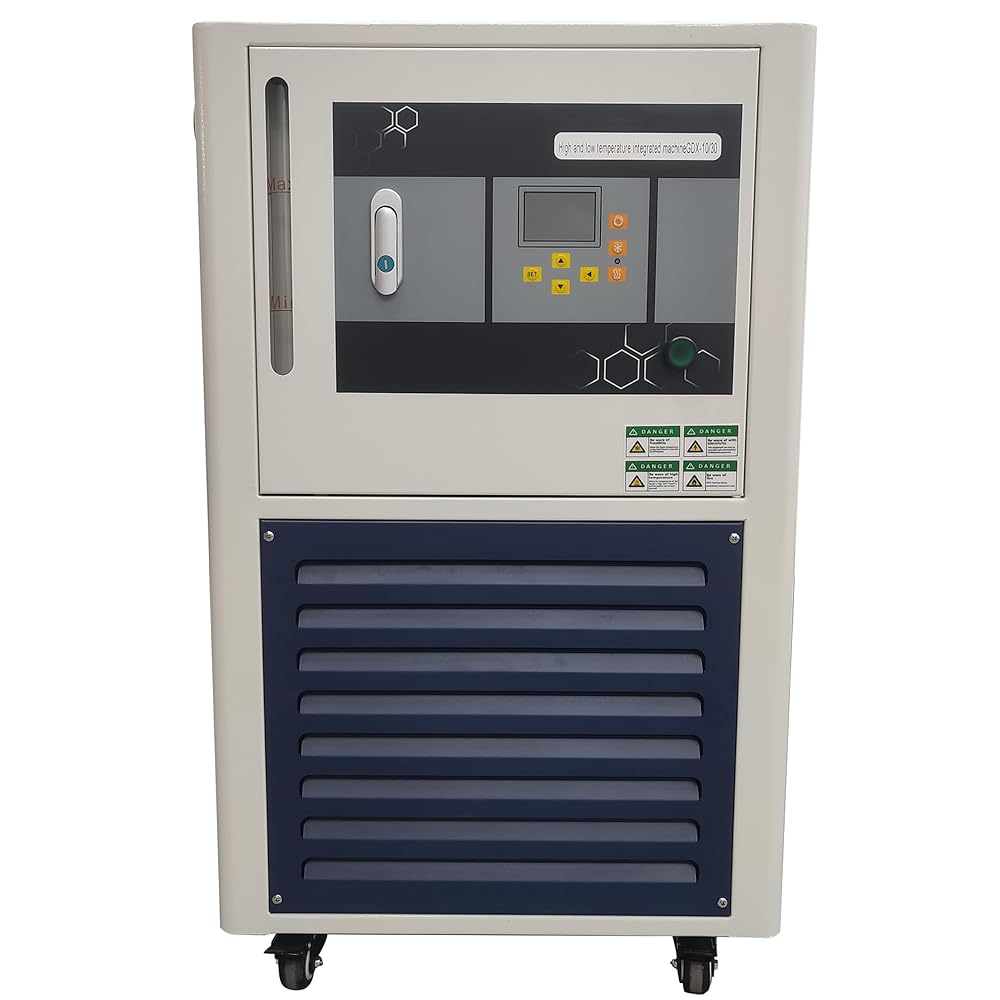

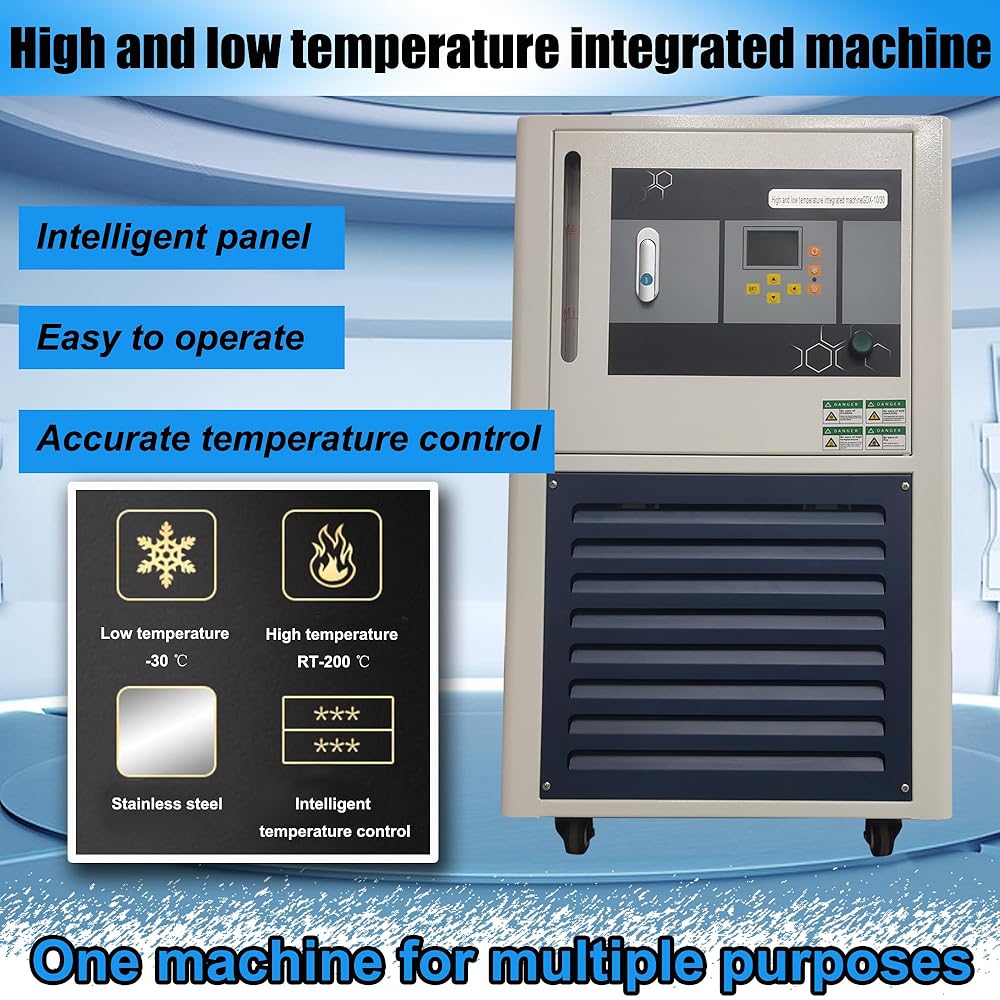

High and low temperature integrated machine

The" High and low temperature integrated machine" is required to be installed indoors.

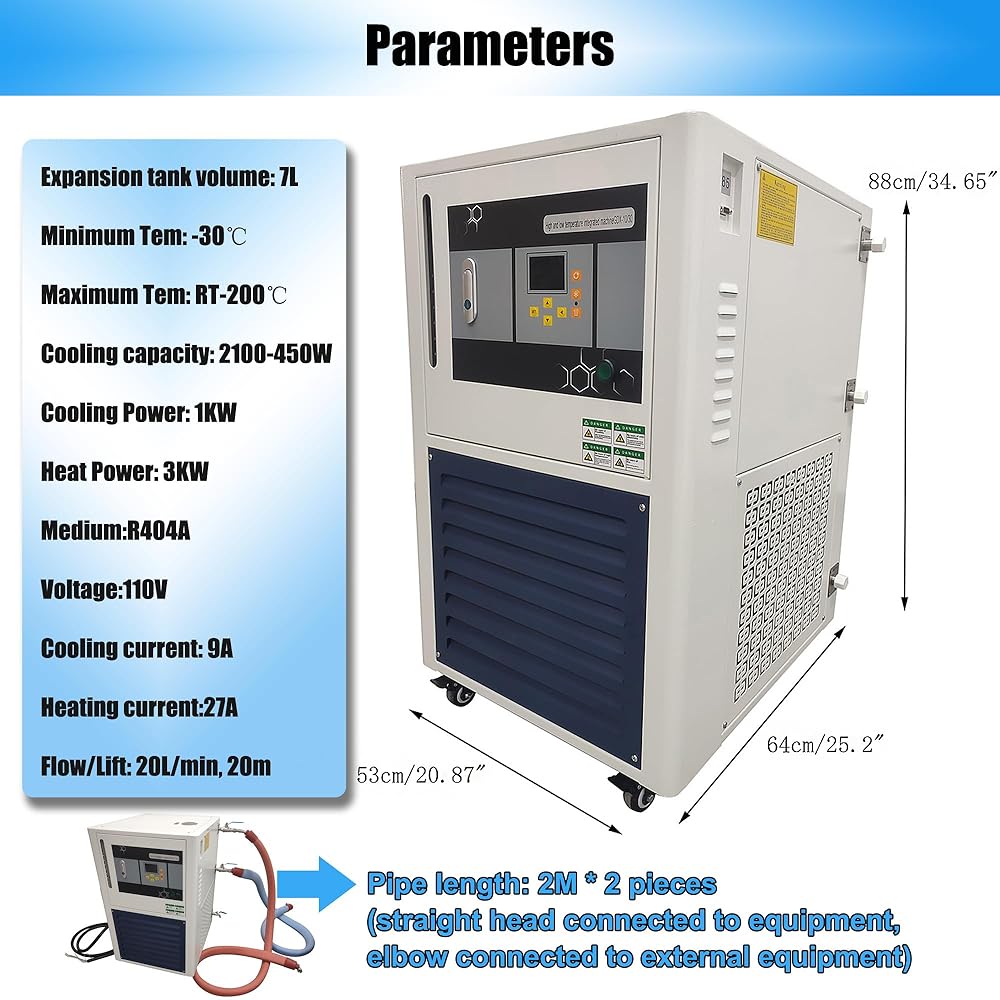

Parameters:

Expansion tank volume: 7L

Minimum Tem: -30℃

Maximum Tem: RT-200℃

Cooling capacity: 2100-450W

Cooling Power: 1KW

Heat Power: 3KW

Medium:R404A

Voltage:110V

Cooling current: 9A

Heating current:27A

Flow/Lift: 20L/min,20m

Pipe length: 2M * 2 pieces (straight head connected to equipment, elbow connected to external equipment)

Attention:

1. Please bring your own thermal oil (low viscosity thermal oil is recommended)

2. Please find a professional electrician to connect the air switch (63A is recommended)

Features:

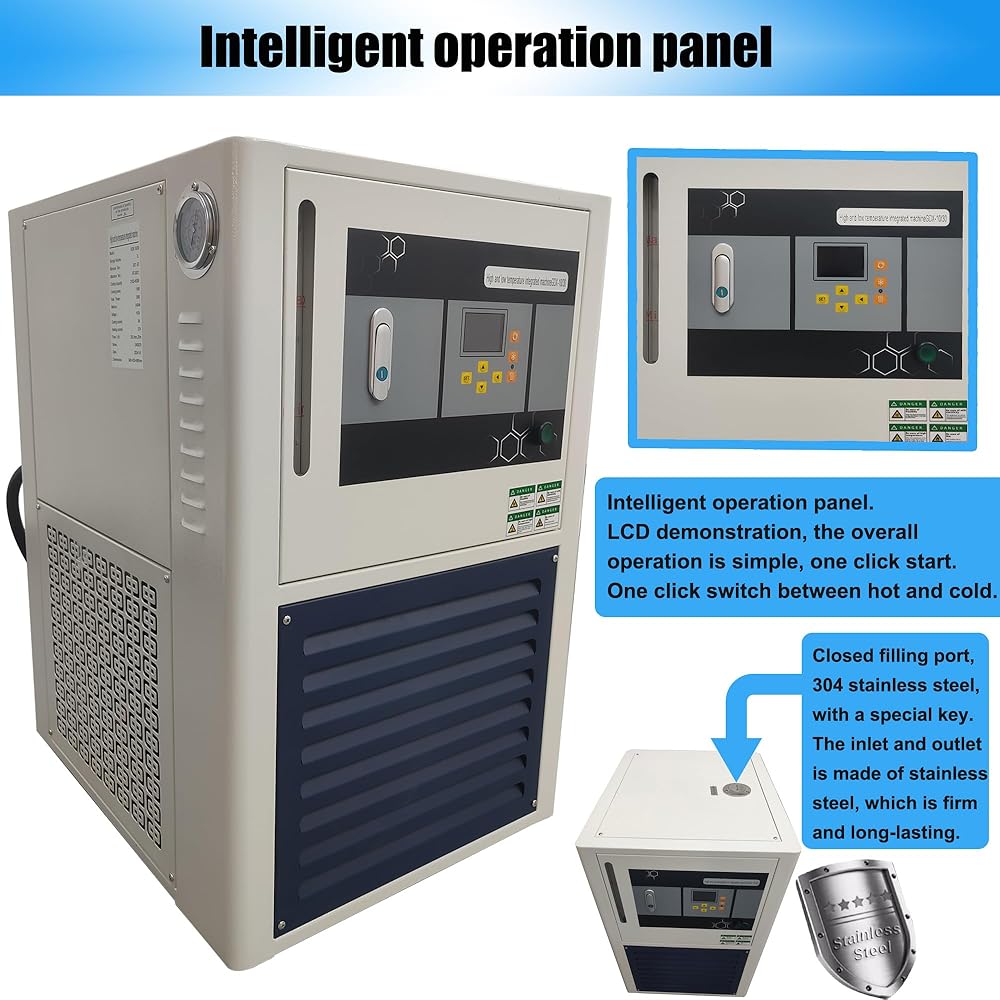

1. Intelligent operation panel. LCD demonstration, the overall operation is simple, one click start.

2. Closed filling port, 304 stainless steel, with a special key. The inlet and outlet is made of stainless steel, which is firm and long-lasting.

3. Equipped with wheels, with brakes, easy to move and fix.

4. Visual window, observe the heat transfer oil at any time, easy to replace.

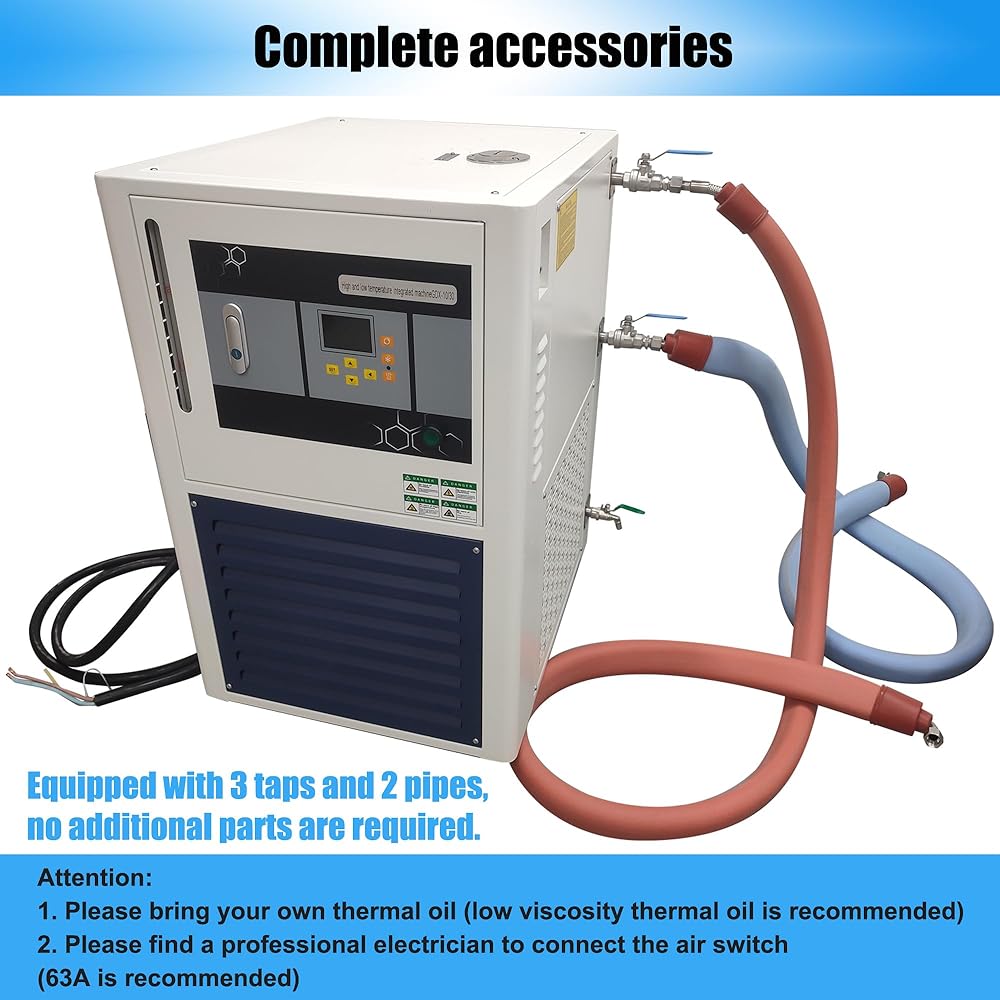

5. Equipped with 3 taps and 2 pipes, no additional parts are required.

Item Included(220574):

1 Set of High and low temperature circulation device
