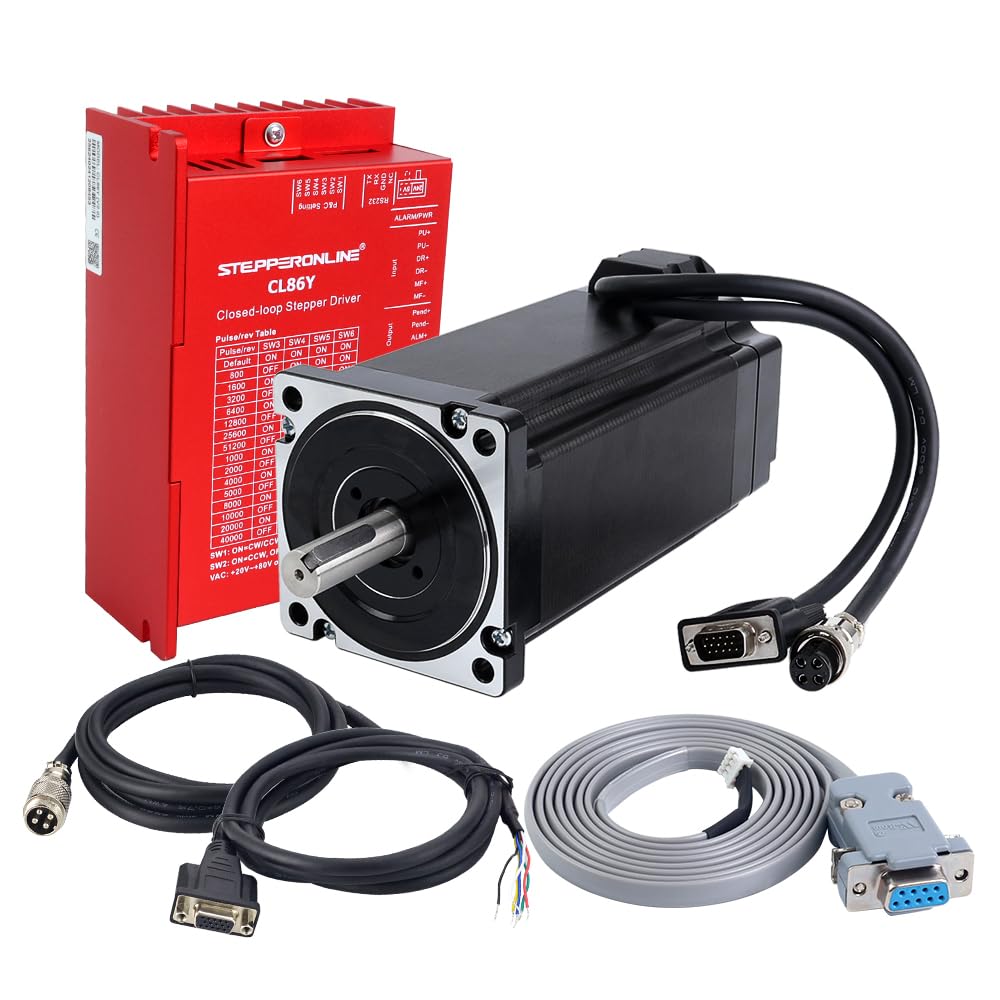

This CNC kit includes:

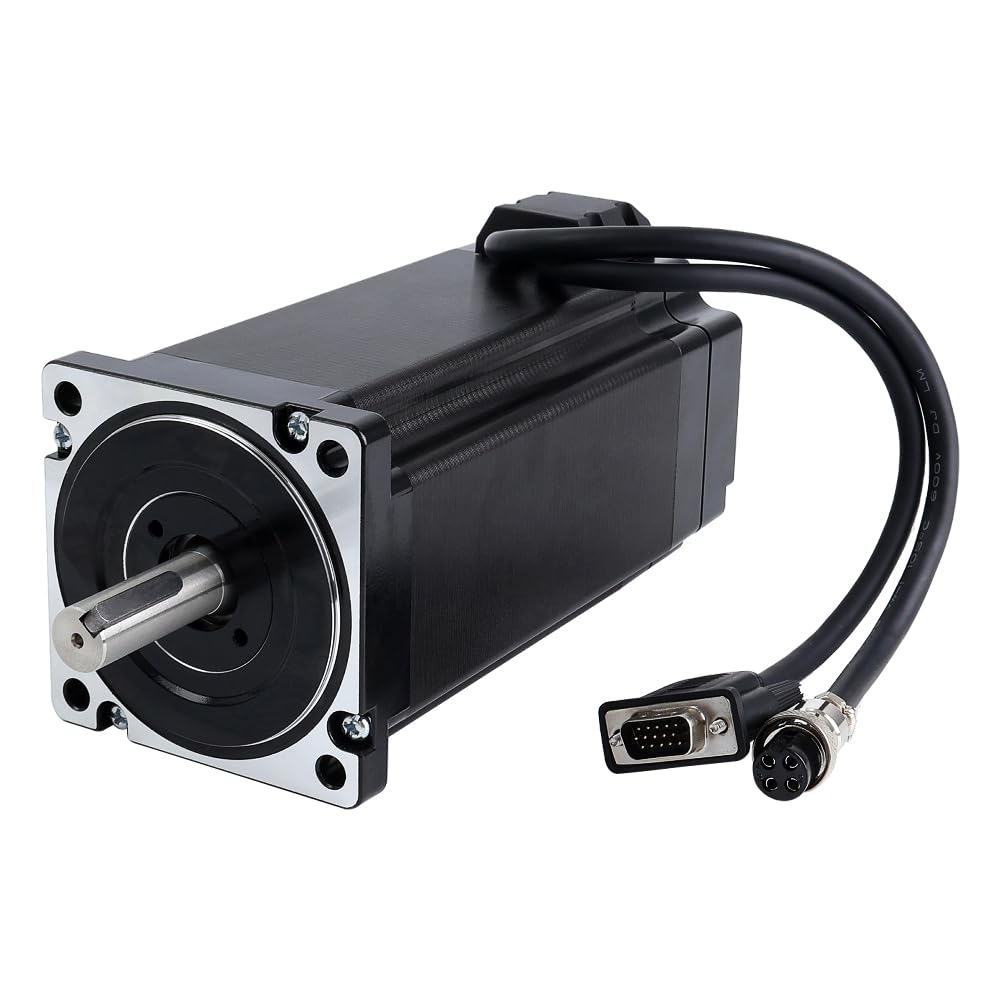

1 x 34HS59-6004D-E1000: S Series Nema 34 Closed Loop Stepper Motor 12.00Nm(1699.34oz.in)Encoder 1000PPR(4000CPR)

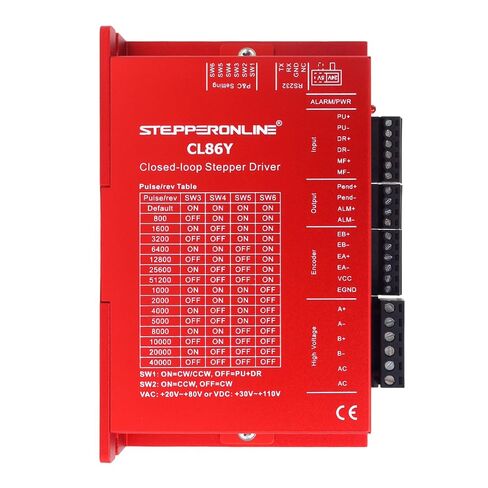

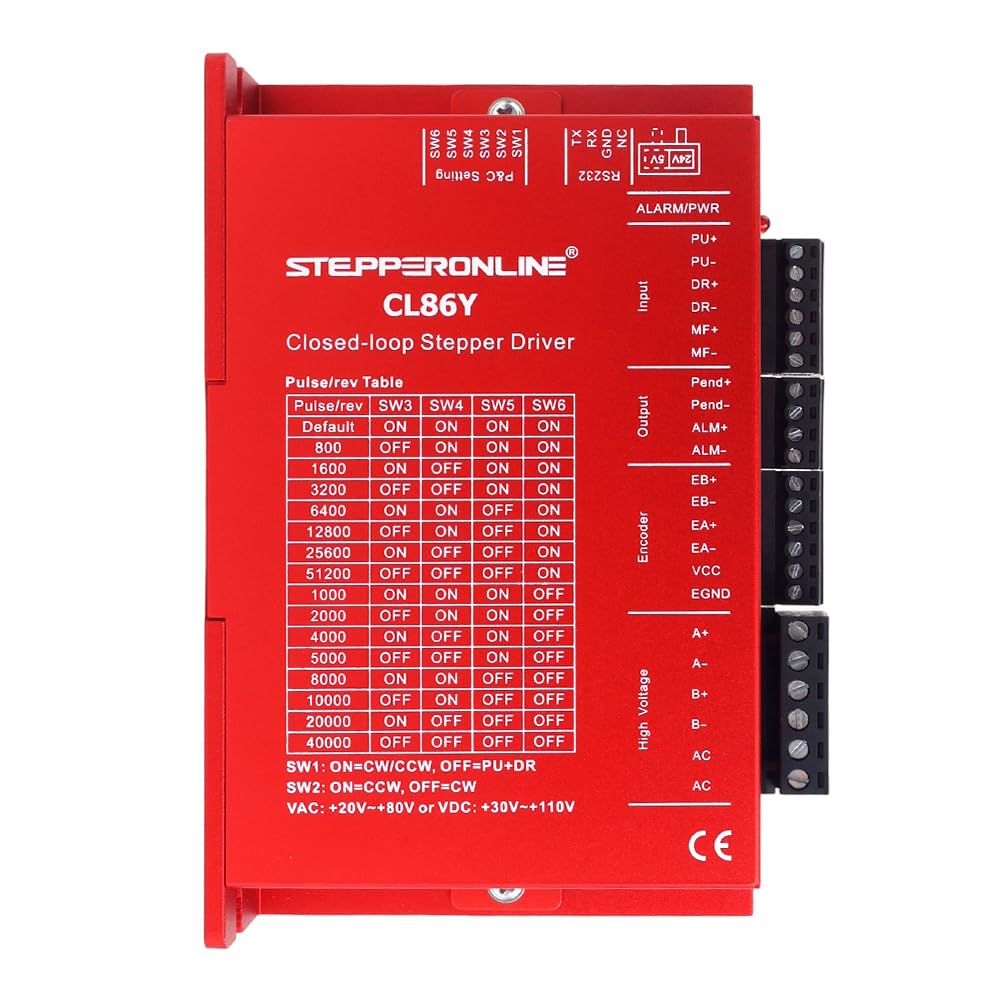

1 x CL86Y-V20: Y Series Closed Loop Stepper Driver V2.0 0-8.5A 20-80VAC/30-110VDC for Nema 34 Stepper Motor

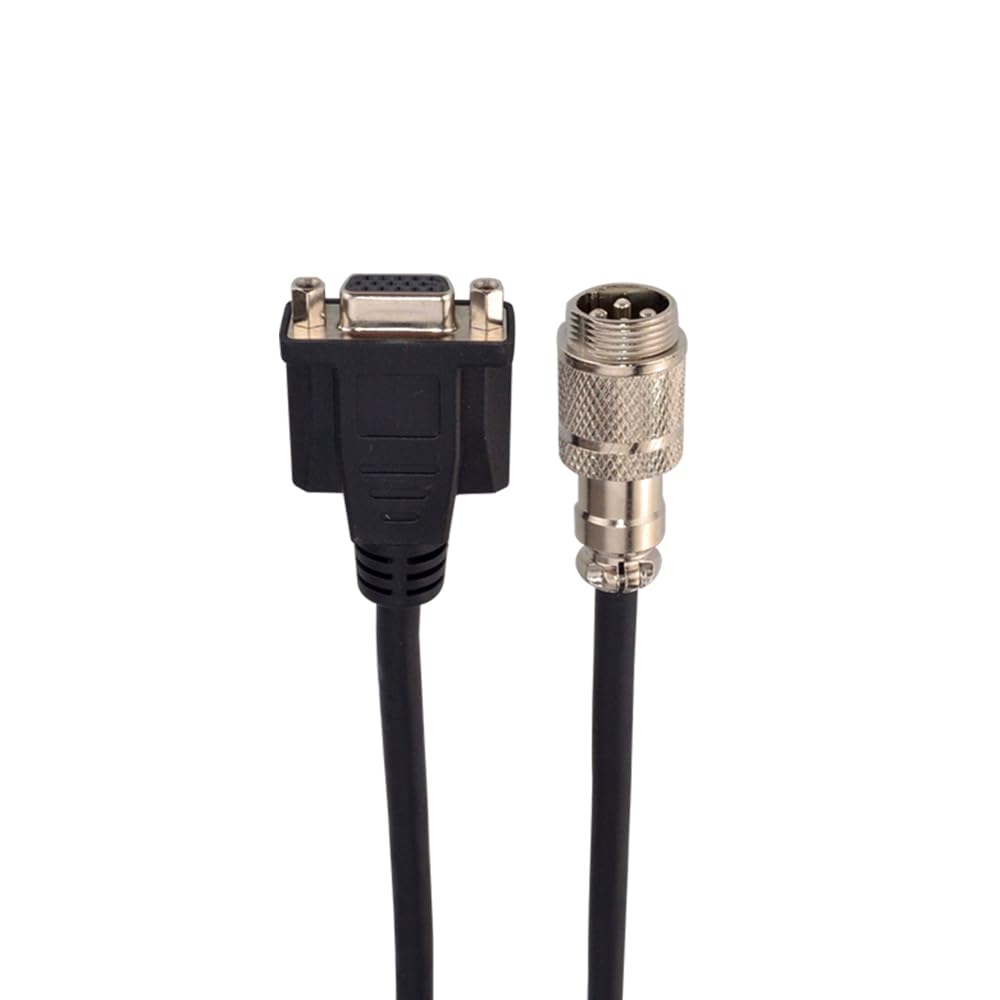

1 x CE2-M2-18: 1.7m(67") Long Encoder and Motor Extension Cables

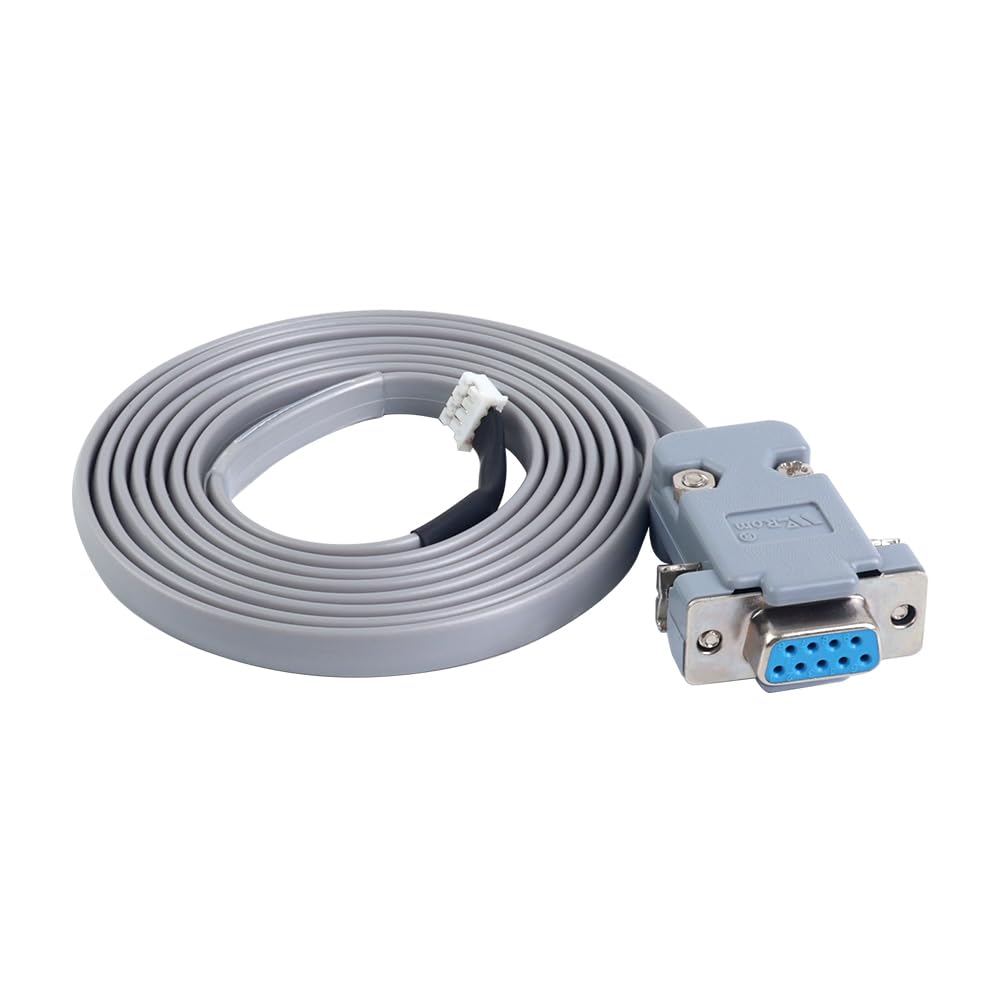

1 x CABLE-PC-2: RS232 debugging cable

Motor Specification

Manufacturer Part Number: 34HS59-6004D-E1000
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 12.00Nm(1699.34oz.in)
Rated Current/phase: 6.0A
Phase Resistance: 0.53ohms ± 10%
Inductance: 4.8mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]
Frame Size: 86 x 86mm
Body Length: 175mm
Shaft Diameter: φ14mm
Shaft Length: 37mm
Keyway Shaft Length: 25mm
Cable Length: 300mm

Encoder Specification

Output Circuit Type: Differential type
Encoder Type: Optical Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 2channels
Supply Voltage Min: 4V
Supply Voltage Max: 5V
Output Current: 100mA
Output High Voltage: 5V
Output Low Voltage: 4.5V
Output Frequency Max: 60kHZ

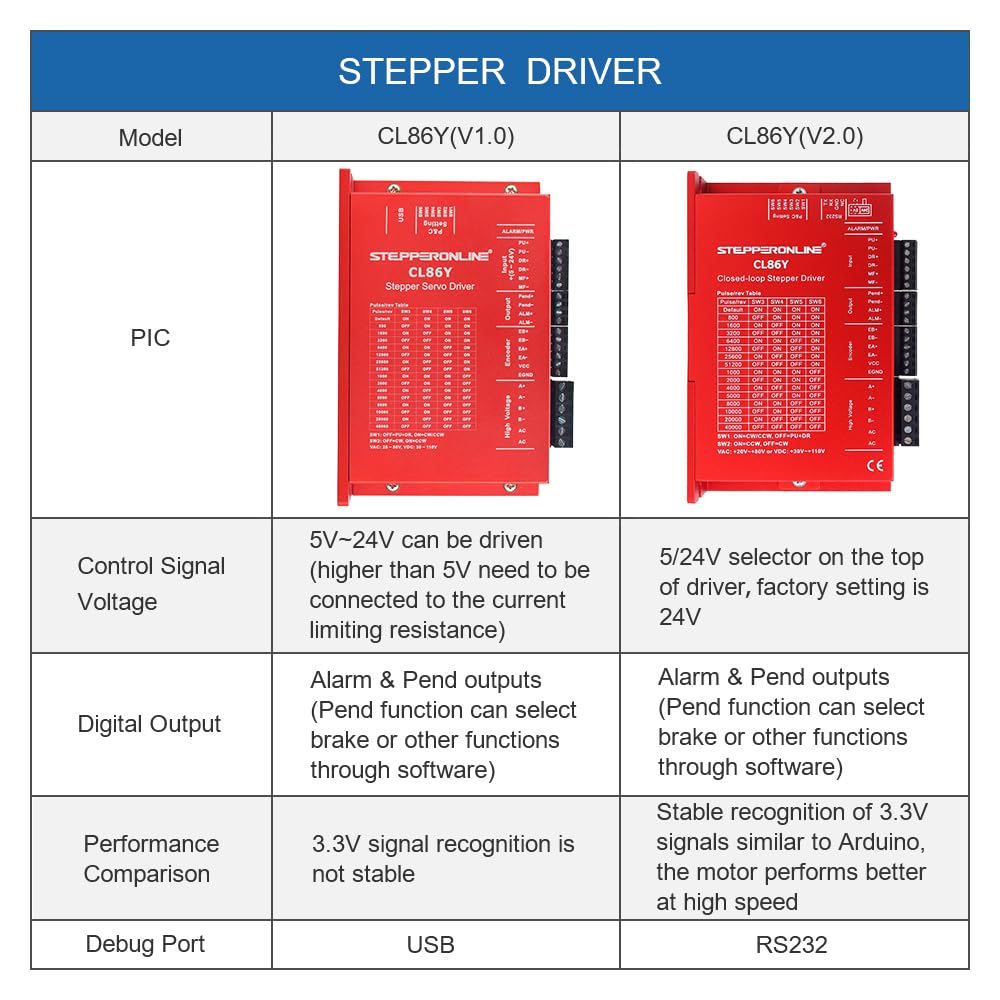

Driver Specification

Output Peak Current: 0~8.5A（0~6 RMS）
Input Voltage: 20~80VAC/30~110VDC(Typical 48/60VDC)
Logic Signal Current: 7~16mA(Typical 10mA)
Pulse Input Frequency: 0~200kHz
Pulse Width: 2.5μS
Isolation Resistance: 500MΩ
