HX711 module with 4 pieces of 50kg half-bridge strain gauge weighting sensors. This set is designed for precision electronic scale applications, featuring a 24-bit high-accuracy A/D converter for reliable data acquisition
Two analog channel inputs with integrated 128x gain programmable amplifier ensure sensitive measurement capabilities
Specification:

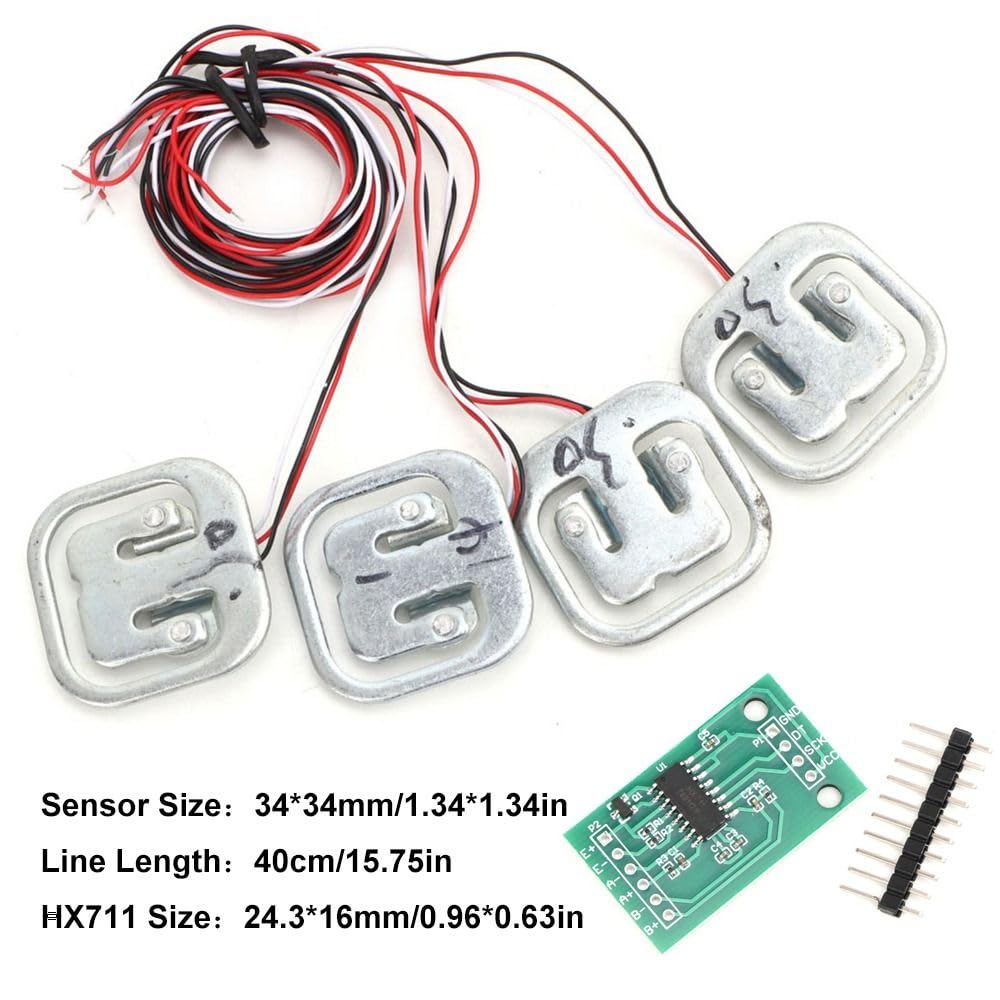

Sensor Size:34*34mm/1.34*1.34in
Line Length:40cm/15.75in

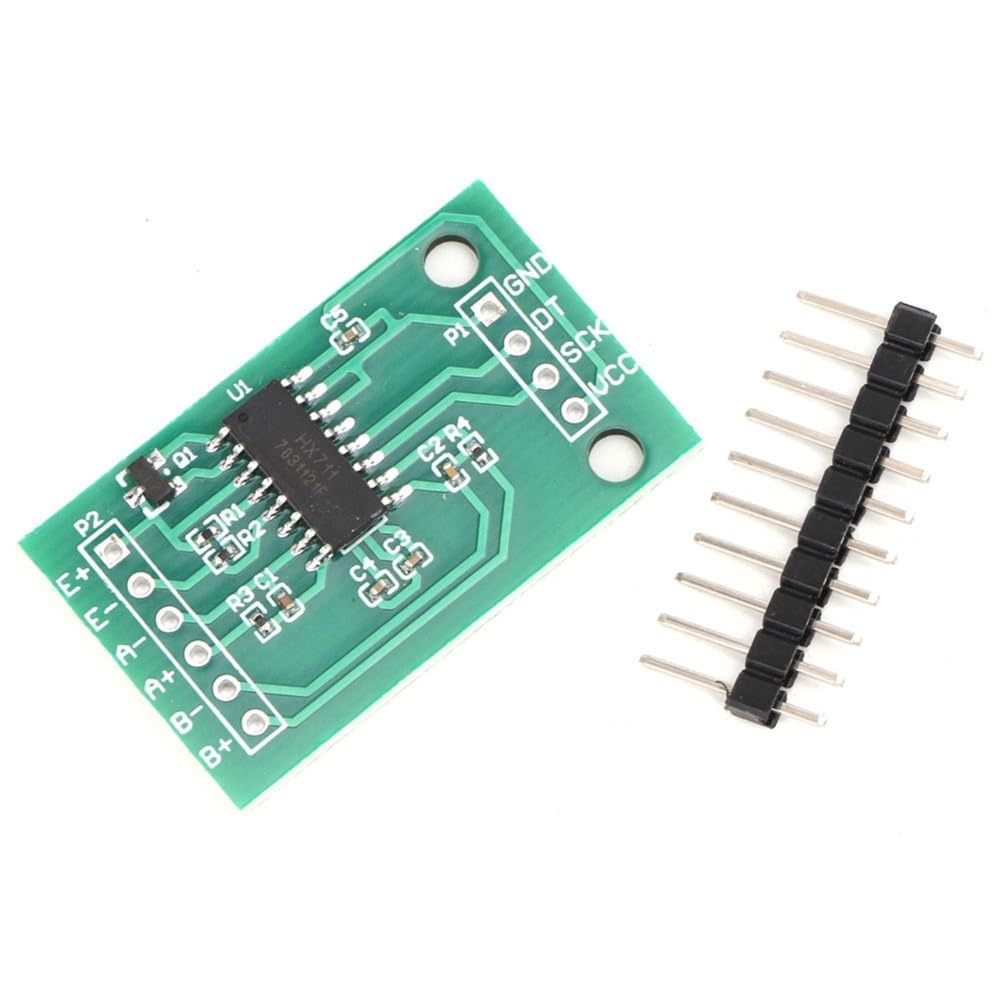

HX711 Size:24.3*16mm/0.96*0.63in

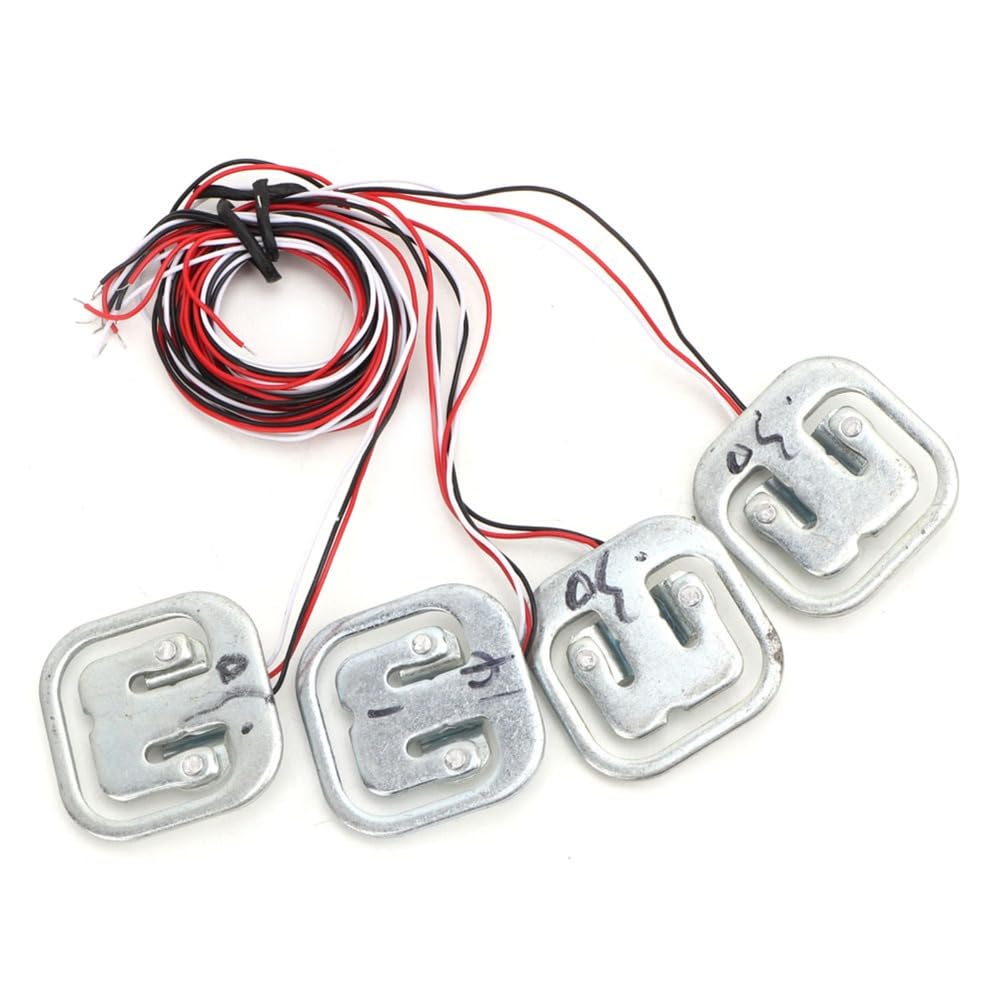

Sensor Inner Construction: 1000ohm half-bridge strain gauge
Measuring Range: 50kg/100kg/200kg
Users Manual:
When measuring, the outer side is correctly applied with external force. The strain beam part of the E-shaped sensor (that is, the beam arm with the white rubber in the middle of the strain gauge) and the outer side are to form a shearing force in the opposite direction, that is, the middle of the strain beam must be able to undergo bending changes under stress, and there should be no obstruction on the other side of the strain beam
Inside the sensor is a set of half-bridge strain gauges, which can be used in the following three ways:
1. Use one sensor with external resistor to form a full bridge measurement. The range is one sensor's range: 50kg. Requires higher demands of outer resistor.
2. Use two sensors to form a full bridge measurement. The range is the sum of the ranges of the two sensors: 50kgx2=100kg
3. Using four sensors to form a full bridge measurement, the range is the sum of the ranges of four sensors: 50kgx4=200kg
Package List:

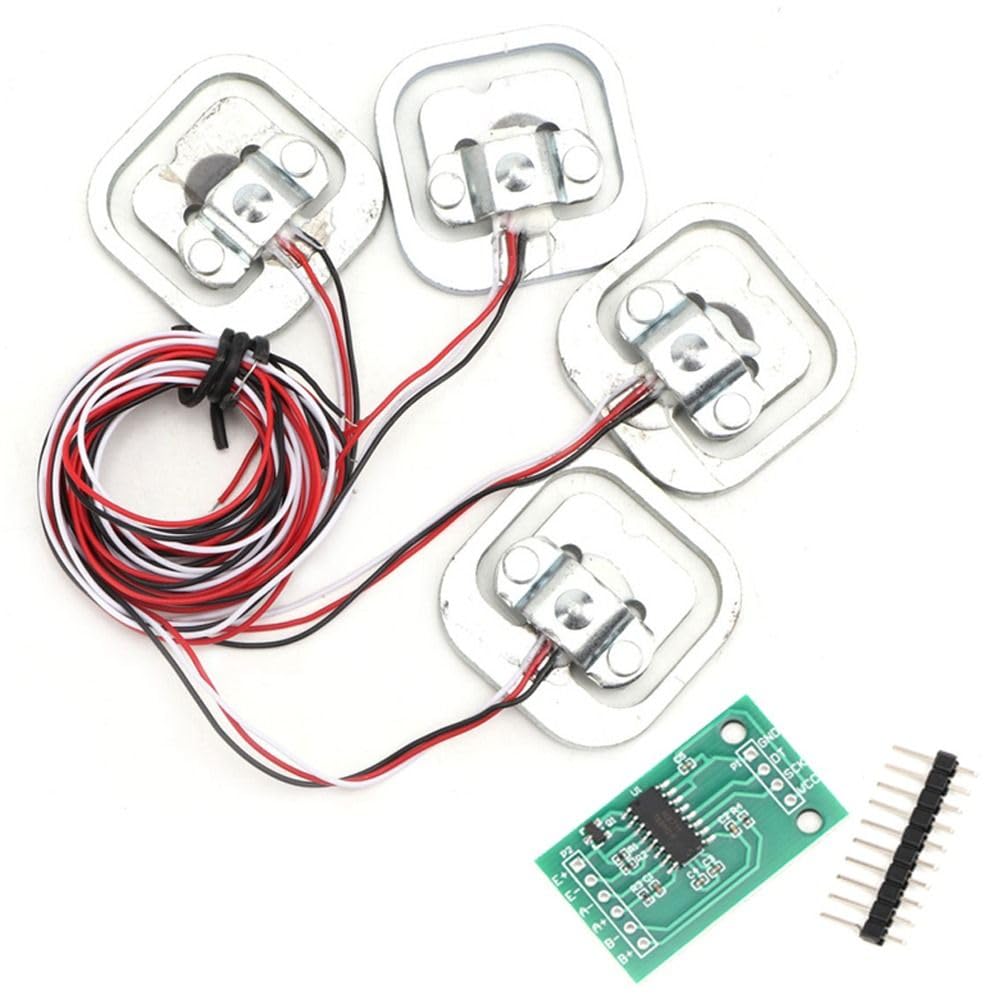

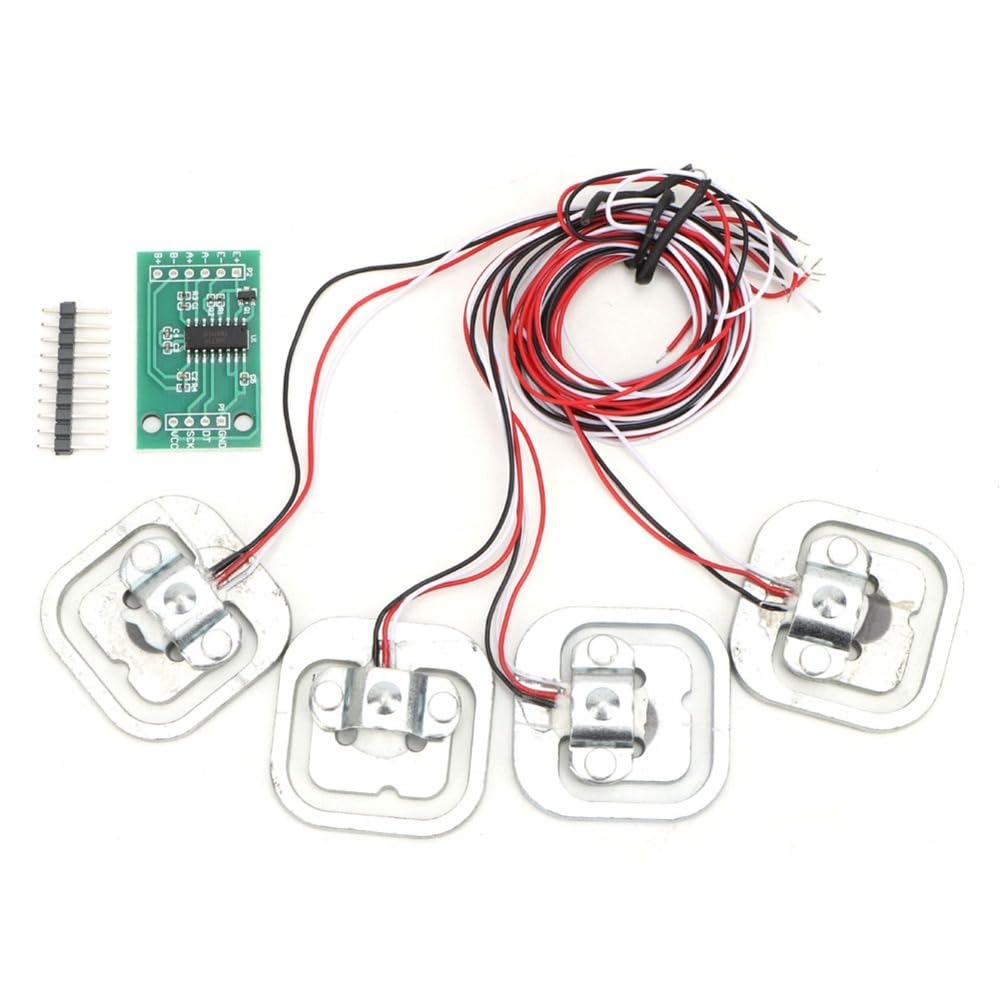

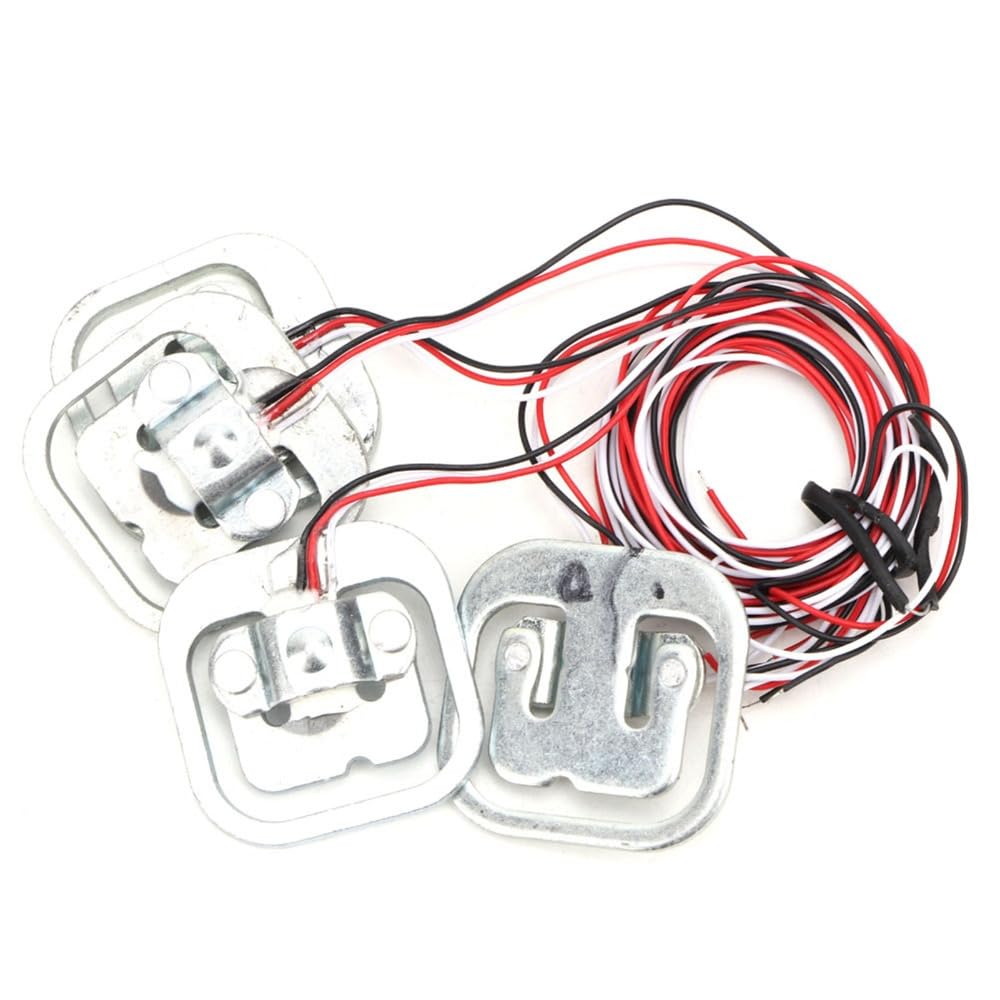

4 x Weighting Sensor
1 x HX711 Module
Note:
1. Due to the difference between different monitors, the picture may not reflect the actual color of the item
2. Please allow slight dimension difference due to different manual measurements. Thank you for your understanding
