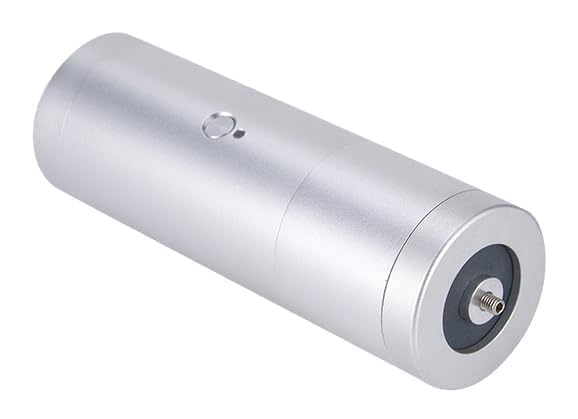

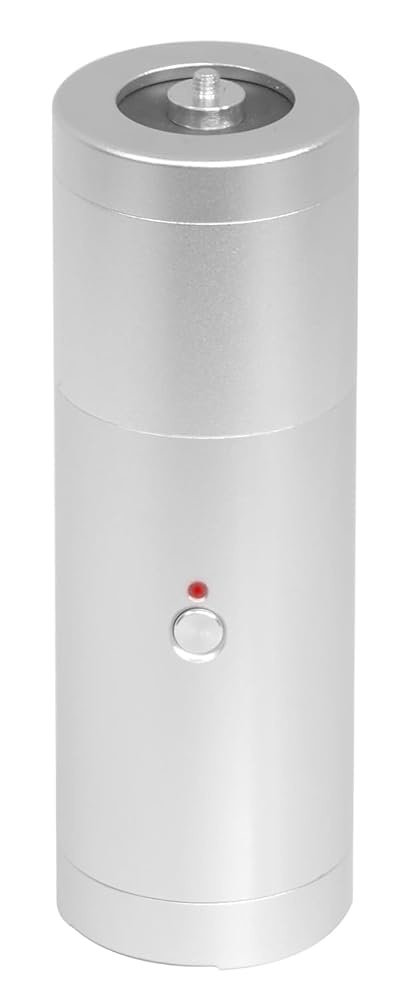

HFBTE Handheld Vibration Calibrator Self-Contained Handheld Shaker Designed 10 mm/s RMS Velocity Output for Quick and Easy Checking of Accelerometers Vibration Monitoring Systems Recording Systems
Introduction

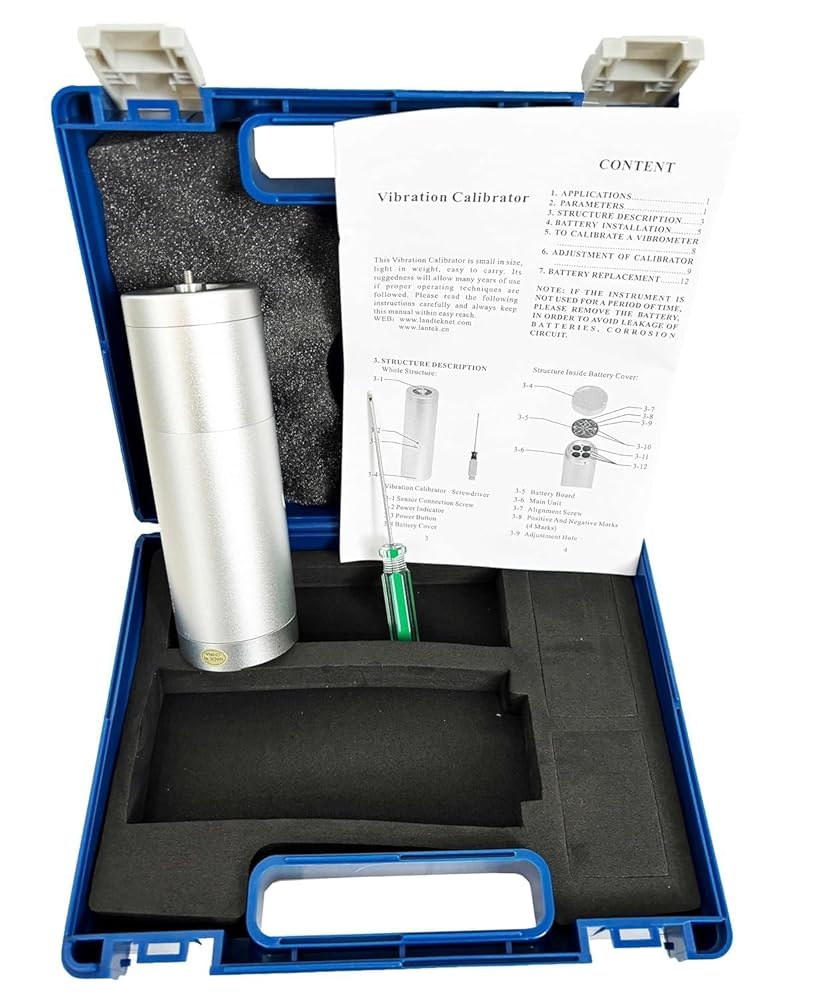

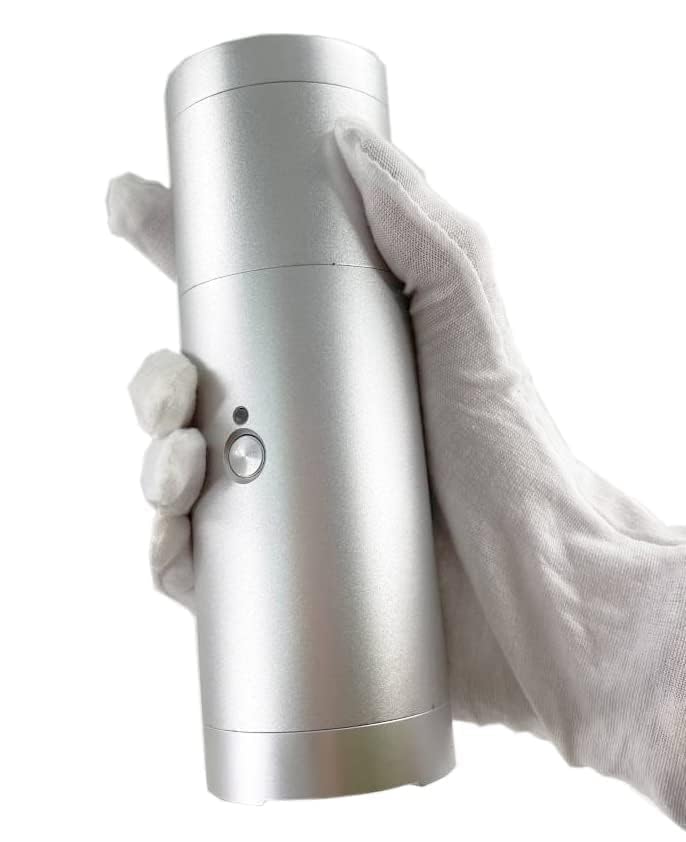

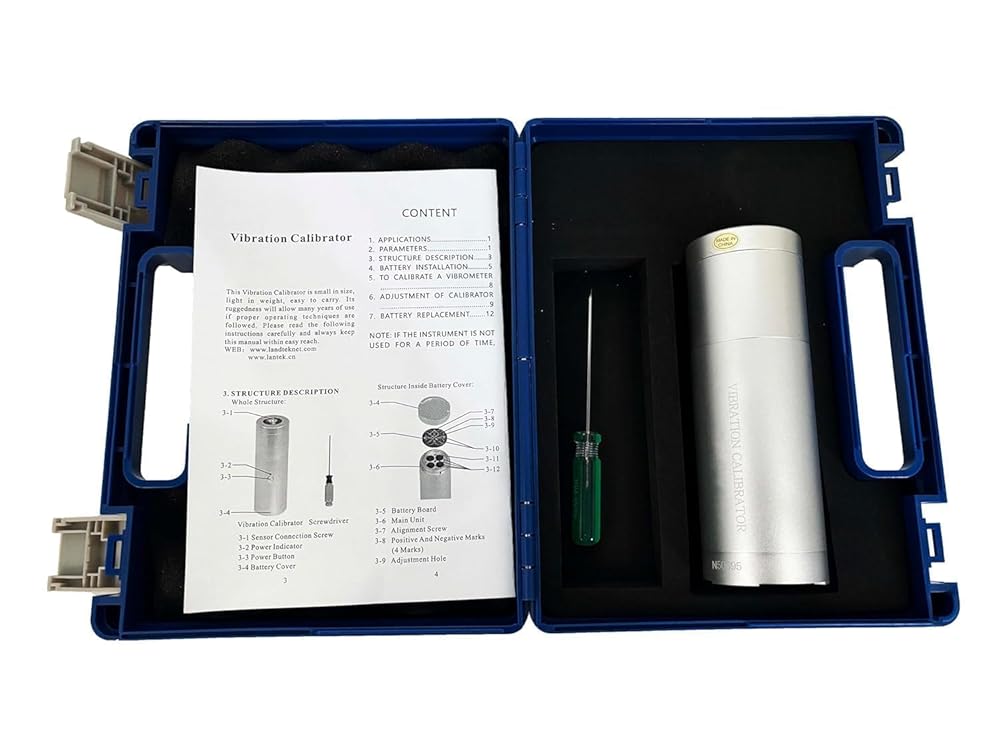

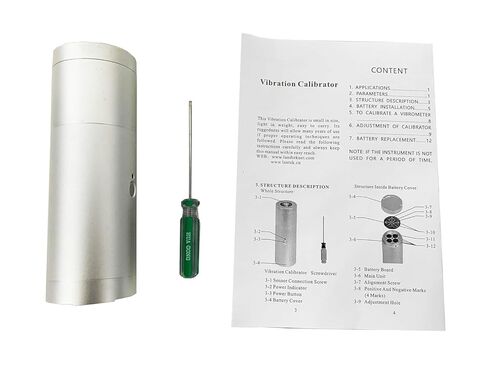

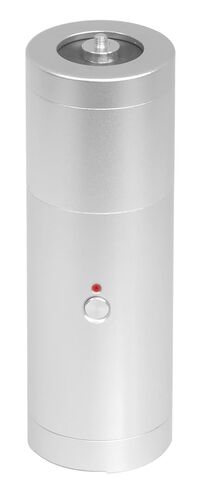

♦The Vibration Calibrator is a small, self-contained handheld shaker designed for quick and easy checking of accelerometers, vibration monitoring systems and recording systems. Providing a known and controlled RMS vibration for verification of accelerometers weighing up to 150g.

Feature:
♦Operates at 159.2 Hz.
♦10 mm/s RMS velocity output.
♦Drives vibration sensors up to 150g.
♦CE compliant.

Specification:
♦Operating Frequency:159.2Hz±0.5%
♦Acceleration Output:14.14m/s²(Peak)±3%
♦Velocity Outout:10mm/s(RMS)±3%
♦Displacement Output:28um(Peak-Peak)±4%
♦Transverse Output:♦Distortion:♦Maximum Losd:150 g
♦Ramp-Up Time:♦Operating Conditions
Temp: -10°C~40°C

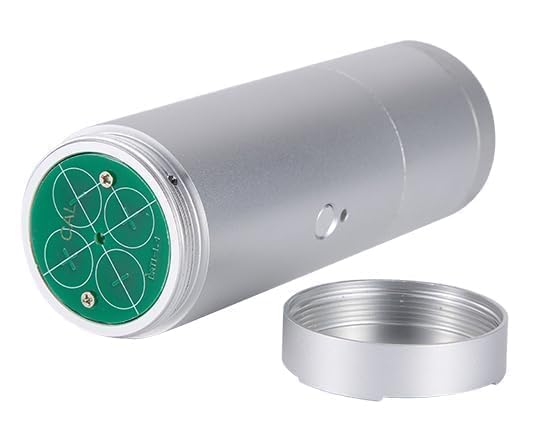

Humidity: ♦Battery Supply:4x1.5V AA (UM-3) battery(Batteries are not included during the shipment)
♦Size (Diamter x Height):56 mm x 200 mm
♦Weight (with batteries):960g
