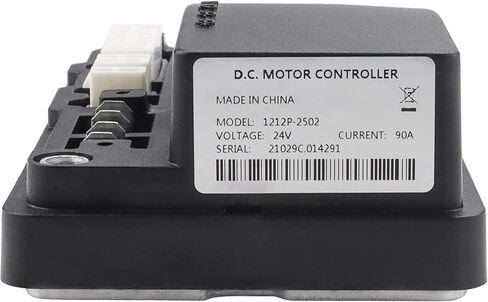

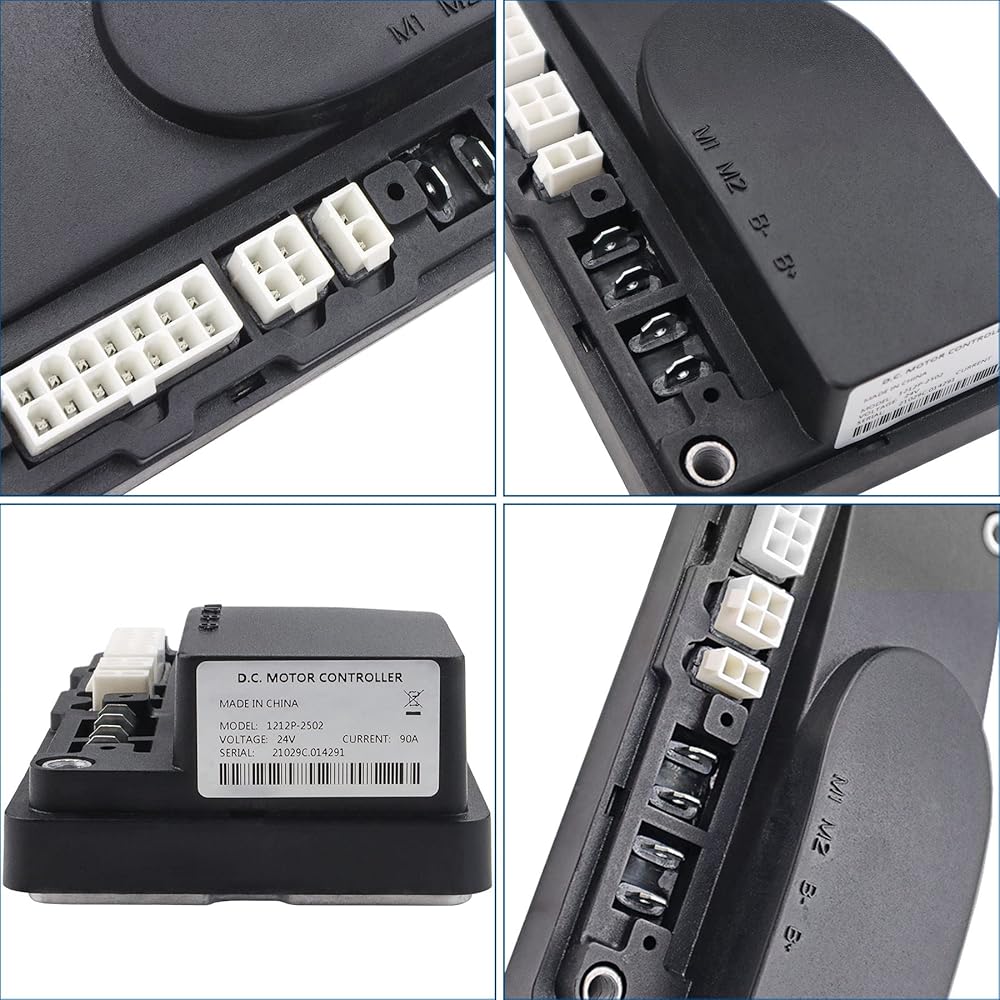

【Replaces Part Number】1212P-2501. For the buyer without permanent magnet motor speed controller applying experience, please consult your cart/motor dealer and read carefully the for Curtis 1212&1212P controller manual before making the purchase. By default, we will the controller of setting of 24v 90amp 0-5v.
【Applicable Models】This permanent magnet motor speed controller is used for Curtis Forklift.
【Notice】Notice: By default, the throttle type setting is type "7" (7 = single-ended; neutral when wiper ≤ PotLow). If you don't know the throttle type, please kindly send us some photos of your whole car, both front and rear.

Compatible With

For Curtis Forklift

Replace Part Number

1212P-2501

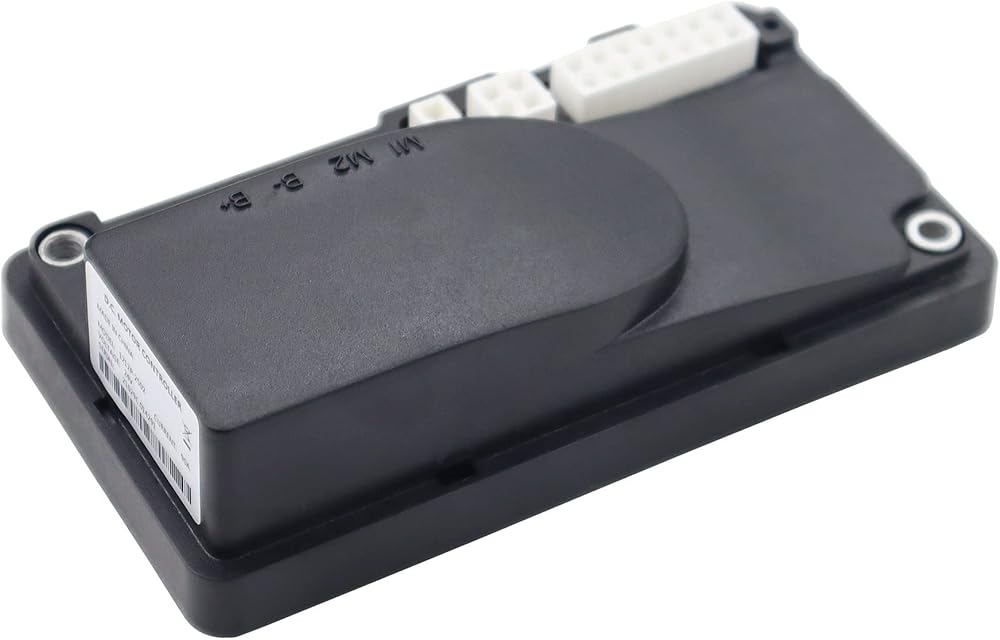

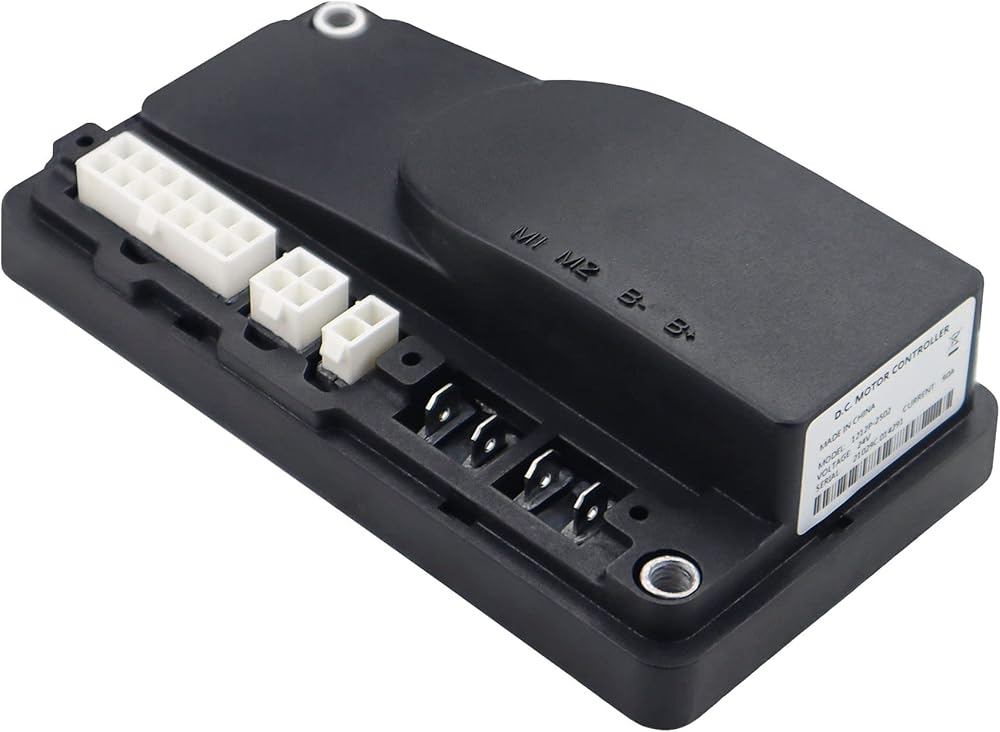

Package Included : 1 x for Curtis Permanent Magnet Motor Speed Controller.

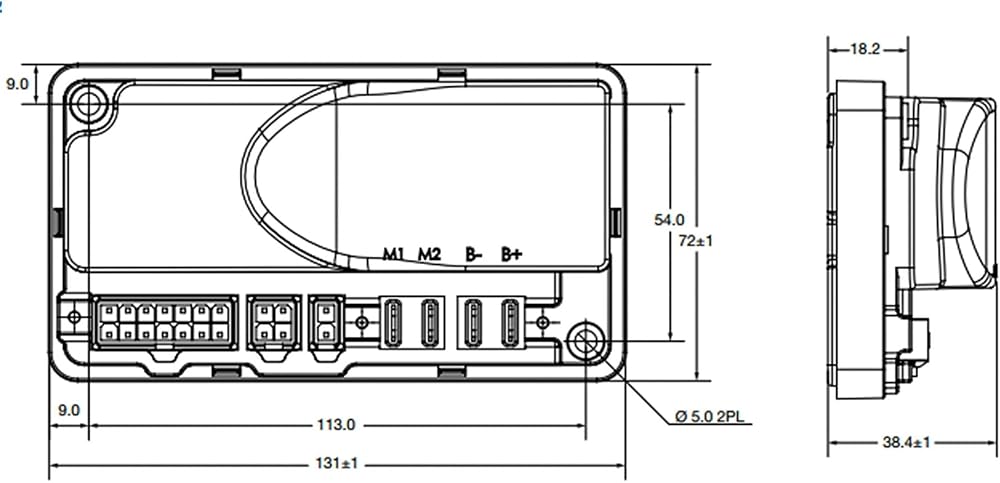

Technical Specifications:

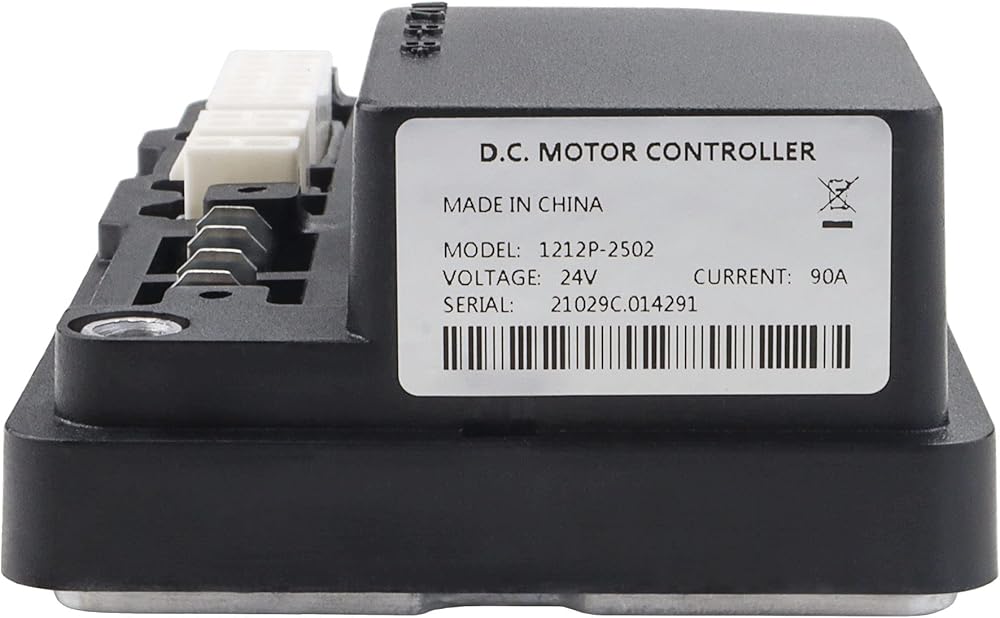

Nominal Voltage: 24V

Norminal Battery Voltage (Volts): 24V

20 Second Current Rating (amps): 90

2 Minute Current Rating (amps): 50

1 Hour Current Rating (amps): 20

Peak Boost Current (amps): 90

Max Boost Current Duration: 10 Second

Minimum motor resistance: 120 mΩ

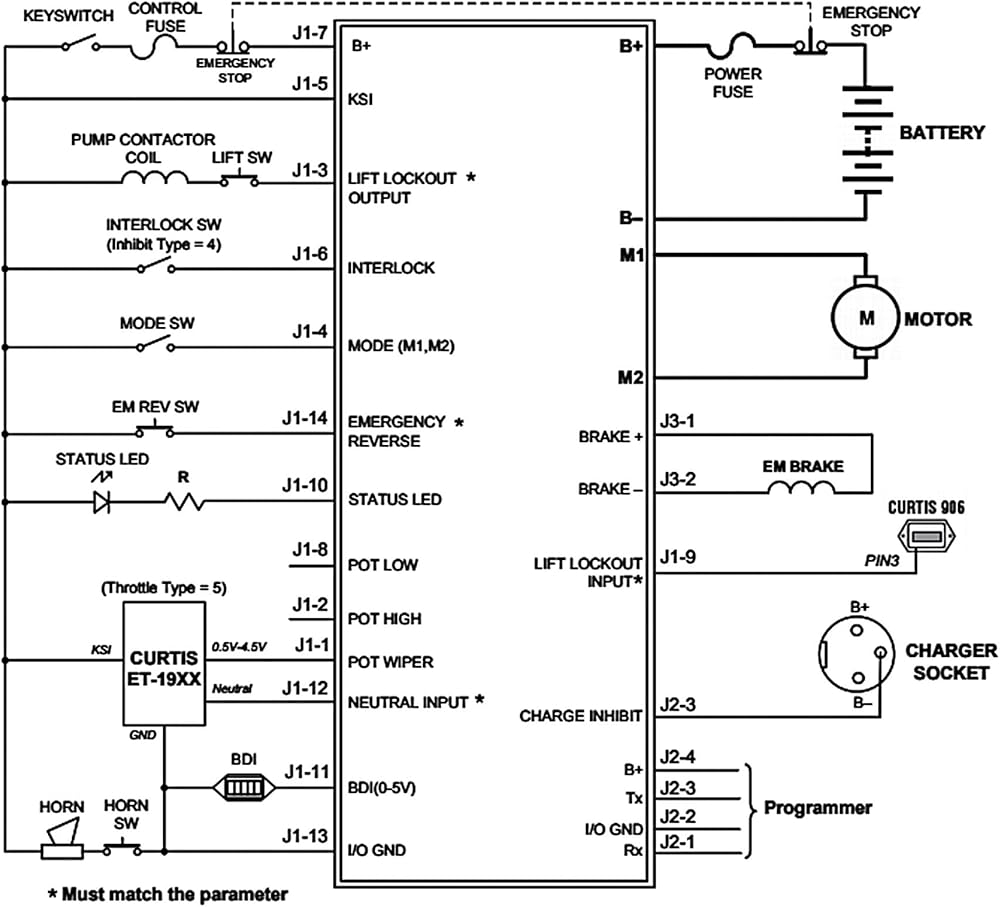

B+, B- logic pin current (max.): 9 A (pins 7 and 13 on 14-pin connector)

KSI input current (typical): 80 mA

Logic input current (typical): 1 mA

Horn output current (max.): 15 mA

BDI output voltage, resistance (max.): 0–5 V, 10 kΩ

LED output current (max.): 15 mA

Electromagnetic brake coil resistance (min.): 32 Ω

PWM operating frequency: 15.6 kHz

Electrical isolation to heatsink (min.): 500 VAC

Heatsink overtemperature: linear cutback starts at 80°C; complete cutoff at 105°C

Heatsink undertemperature: cutback starts at -10°C; and is reduced linearly to 50% at -25°

Undervoltage cutoff: 14V
