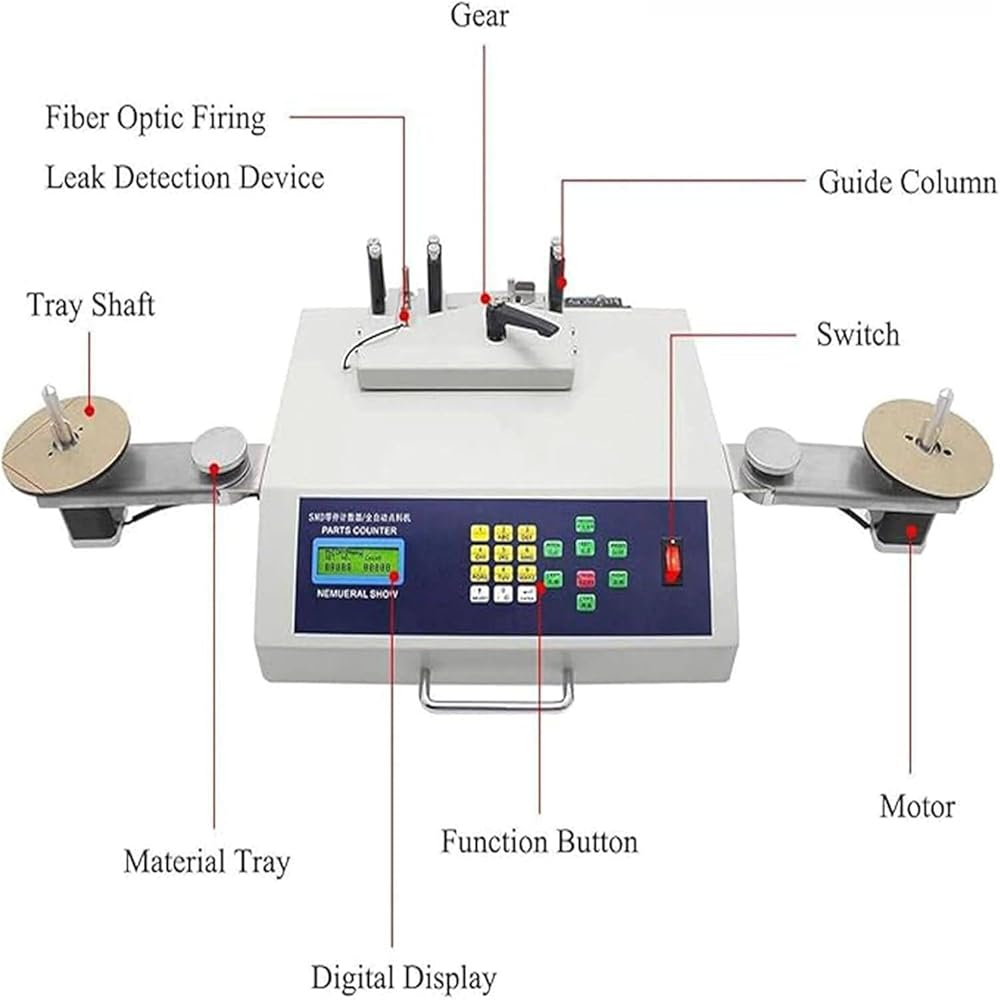

【SMT/SMD COUNTER】: The SMT/SMD components counter is an efficient auxiliary equipment for SMT materials management,which adopts the principle of photoelectric sensing, and uses the corresponding relation between the guide hole and the part, through the special-purpose processing chip and the large-scale centralized circuit processing to realize less error, accurately measure the number of SMD parts.
【ACCURATE COUNTING】: The automatic counting machine is more accurate,and it is aligned with the optical fiber leak detector to accurately measure the number of parts.In addition,the machine automatically stops when unloaded, allowing you to use it safely.

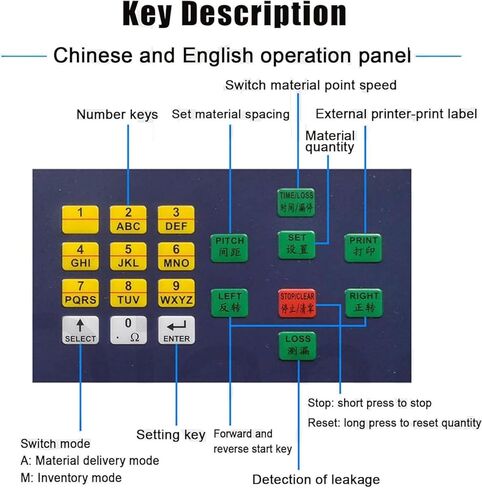

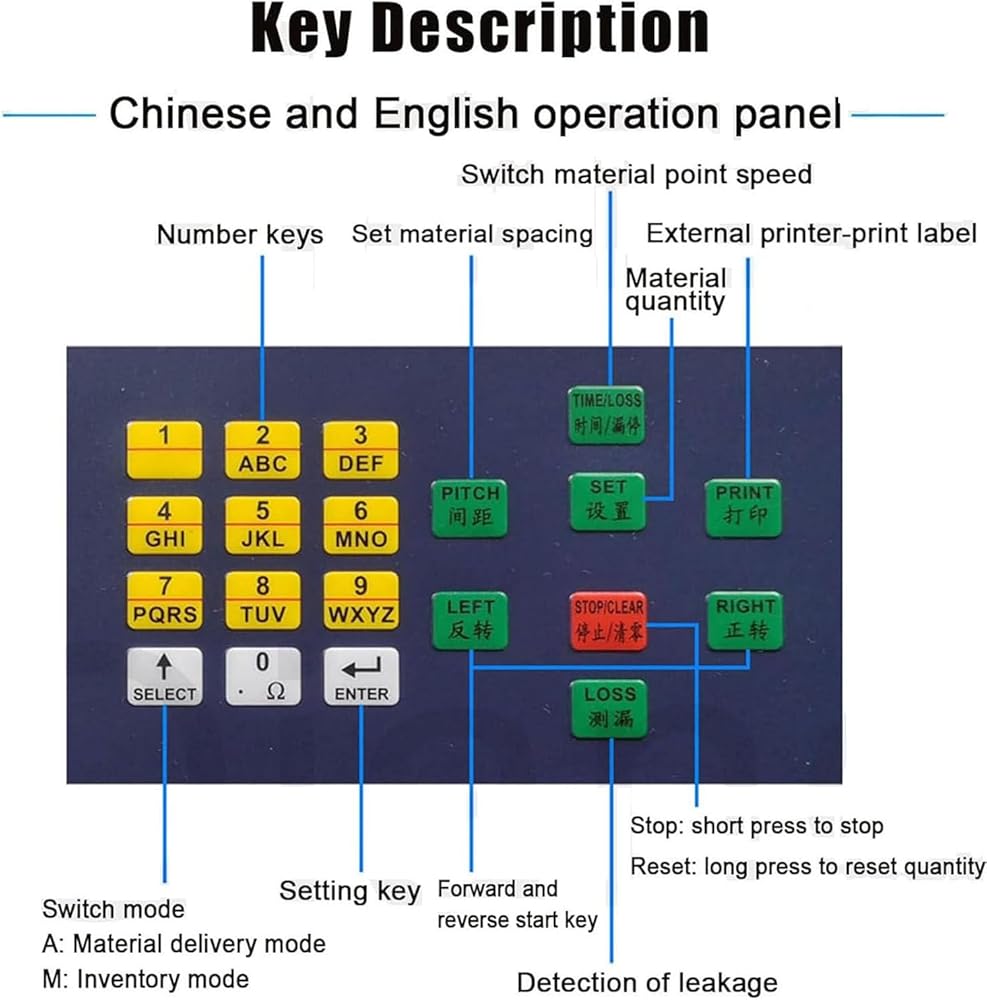

【LCD DIGITAL DISPLAY】: With a 3-digit LCD display screen, this SMT SMD parts counting machine is easy to observe the dispensing process and status,and the Chinese and English intelligent control panel allows you to set the count, spacing, time, forward and reverse rotation, and leakage detection, which is very convenient.

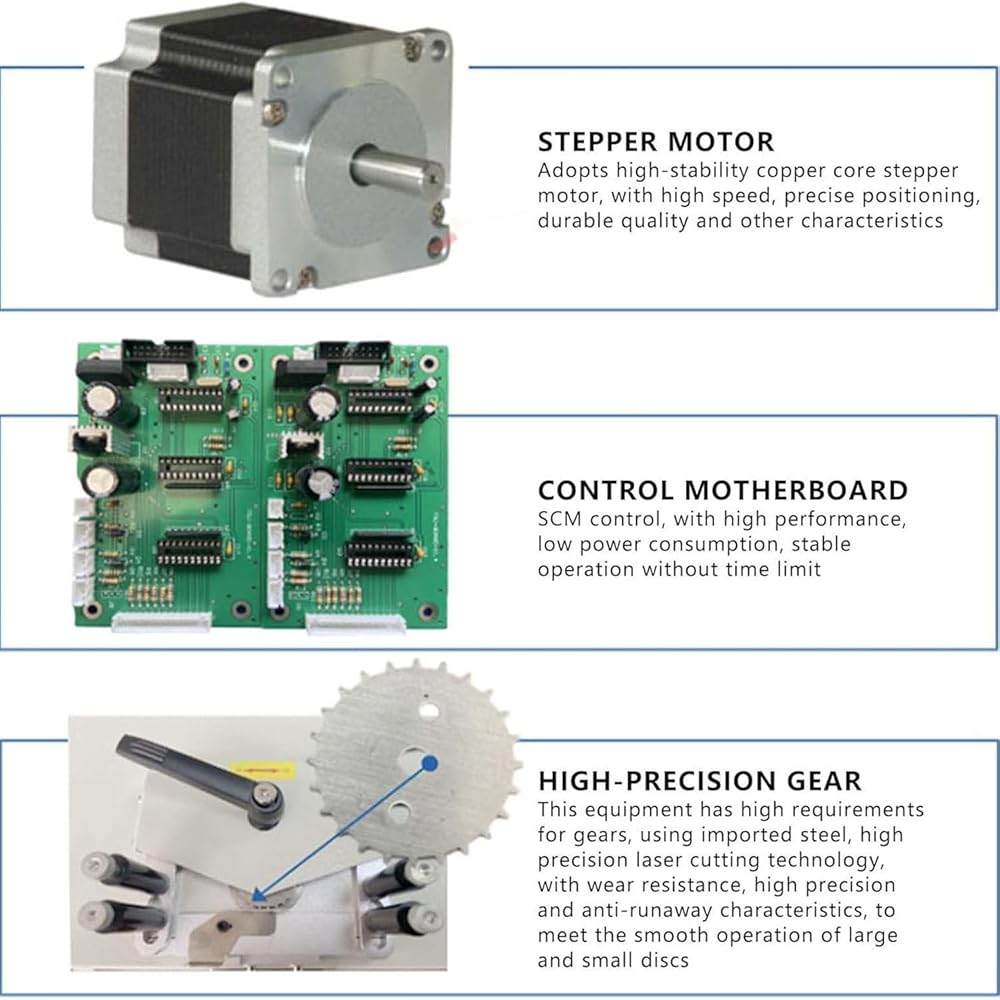

【MULTIPLE ADJUSTMENTS】: The efficient and powerful motor help you automatically calculate the number of parts and simplify the part-feeding process. You can choose to set the number of parts manually or use the automatic mode, and also you can choose at will among speeds to improve the efficiency of the counting.

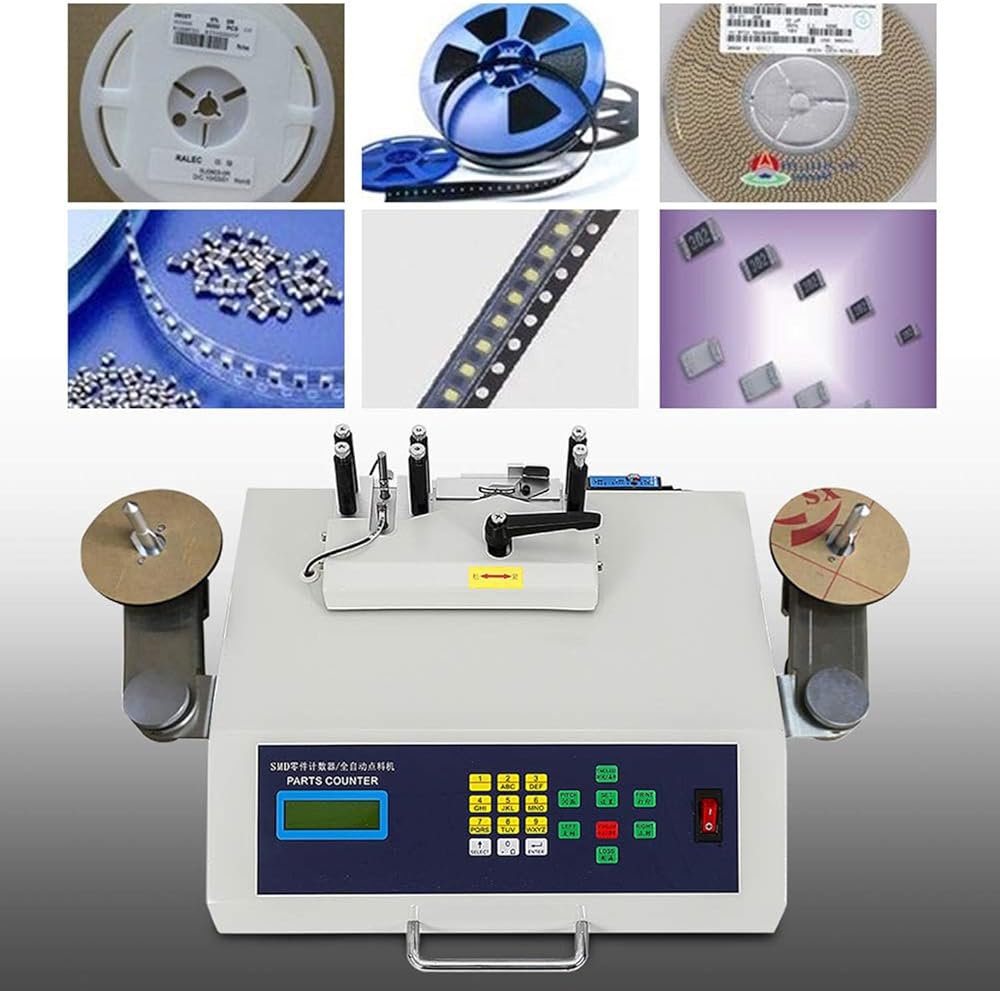

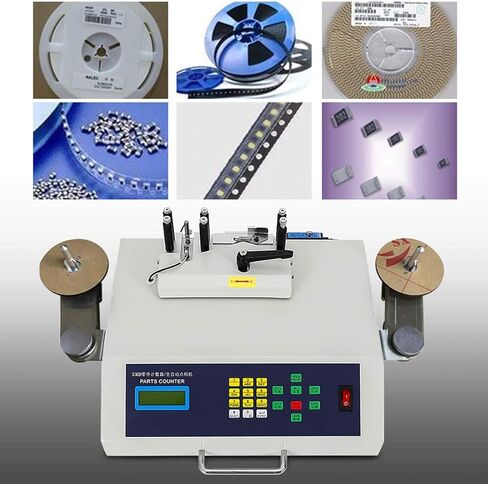

【APPLICABLE SCENARIOS】: SMD tape parts are widely used for counting the quantity of SMD materials such as resistors, magnetic beads, capacitors, diodes, ICs, chips, and LED beads. Pitch: 1,2,4,8,10,12,16,24,32,44,56 mm；Width: 4,6,8,12,16,24,32,44,56 mm.

وصف

Specifications:
Name: SMT/SMD components counter
Materials: Aluminum, Steel
Display: 3-digit LCD
Power: 50W
Power supply: AC /
Leak detection function: Yes
Counting range: -99999~99999PCS

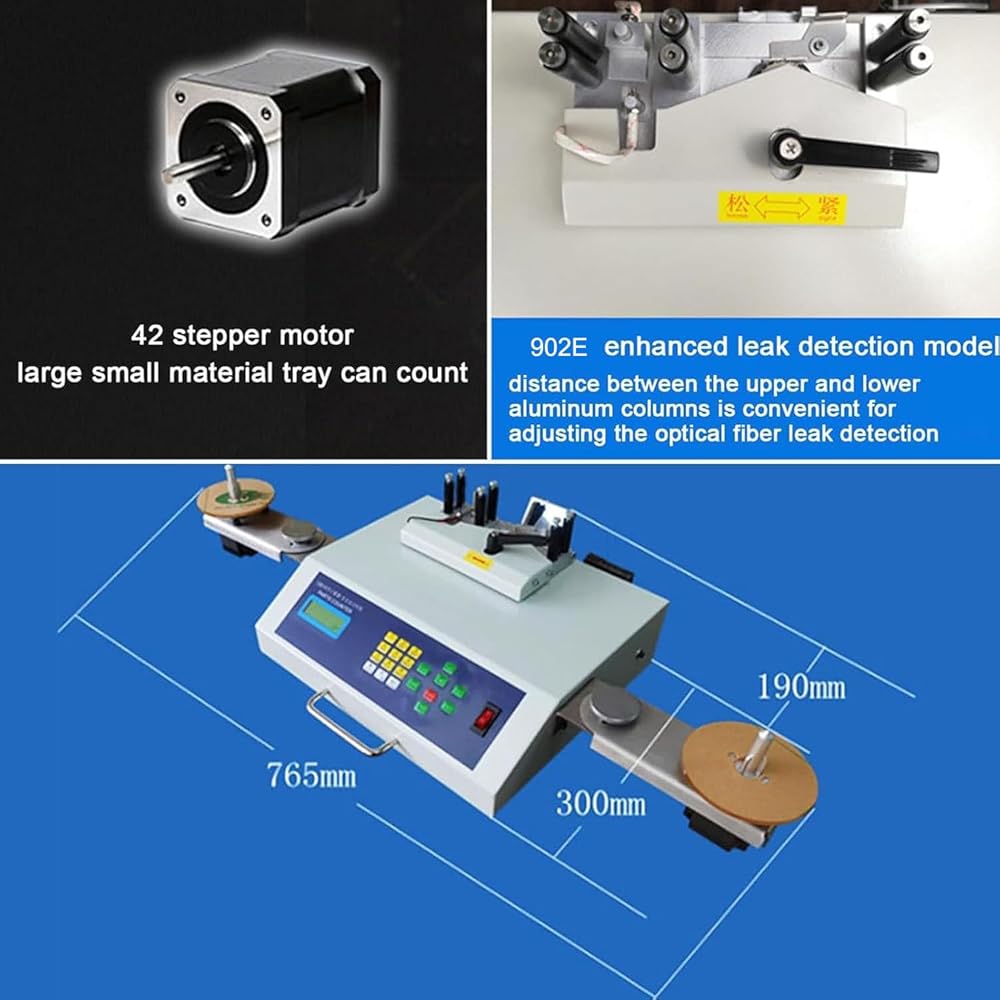

Product size: 76.5*30*19 cm
Net weight: 9.5kg
Gross weight: 10kg

Application:
The SMD materials belt type components are all suitable
Diameters of belt wheel:Any size is all suitable
Pitch: 1mm/0.04in, 2mm/0.04in, 4mm/0.07in, 8mm/0.16in, 10mm/0.31in, 12mm/0.47in, 16mm/0.63in, 24mm/ 0.94in, 32mm/1.26in, 44 mm/1.73in, 56mm/2.2in

Width: 4mm/0.07in, 6mm/0.24in, 8mm/0.16in, 12mm/0.47in, 16mm/0.63in, 24mm/0.94in, 32mm/1.26in, 44mm/1.73in, 56mm/2.2in

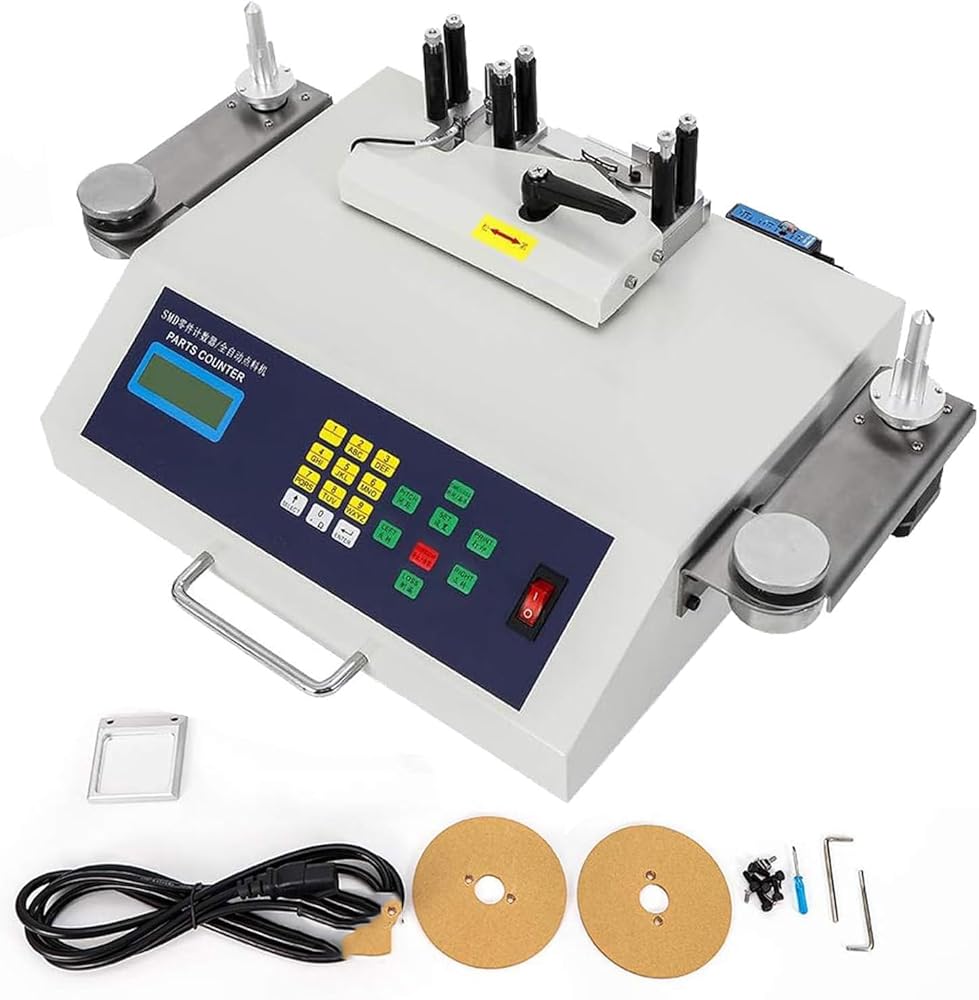

Package includes:
1 * Automatic counter
1 * Power cord
1 * Mirror
1 * Instructions
Accessories required for assembly

Installation:
- Mirror Installation:
1. Use the hexagonal plate hand to screw out the 2 hexagonal screws behind the pointing machine.
2. Align the mirror with the hole of the dispenser and then screw on the screws.

- Pallet Installation:
1. Use the screwdriver to screw up the 2 screws on the rotating shaft.
2. Align the tray with the hole of the shaft and lock the screws.

Notes:
1.After unpacking, please check if all the attachments are complete.
2.Please read the manual carefully before using and keep it properly.
3.Check whether the voltage specification is consistent with that of municipal power. Please make sure to connect the ground wire to ensure the safetys of the person and parts.
