SMT/SMD COUNTER: The SMT/SMD components counter is an efficient auxiliary equipment for SMT material management,which adopts the principle of photoelectric sensing, and uses the corresponding relation between the guide hole and the part, through the special-purpose processing chip and the large-scale centralized circuit processing to realize less error, accurately measure the number of SMD parts.
ACCURATE COUNTING: The automatic counting machine is more accurate,and it is aligned with the optical fiber leak detector to accurately measure the number of parts.In addition,the machine automatically stops when unloaded, allowing you to use it safely.

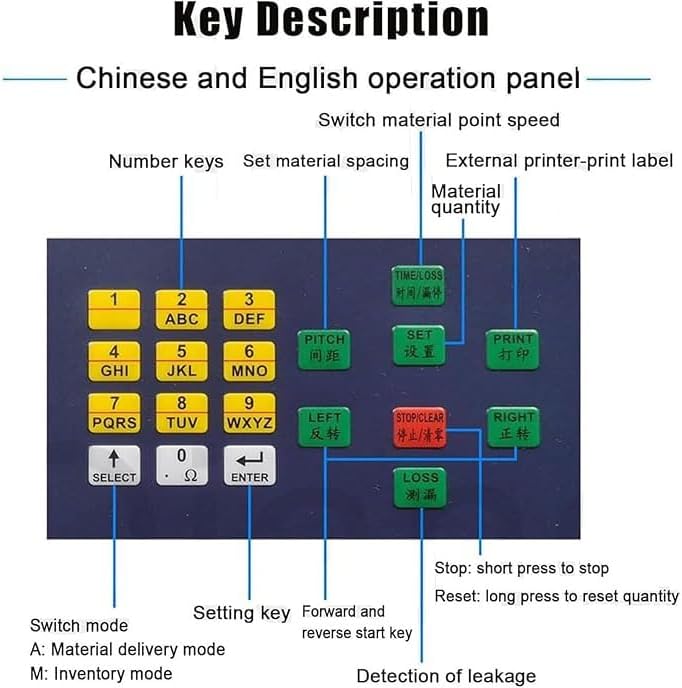

LCD DIGITAL DISPLAY: With a 3-digit LCD display screen, this SMT SMD parts counting machine is easy to observe the dispensing process and status,and the Chinese and English intelligent control panel allows you to set the count, spacing, time, forward and reverse rotation, and leakage detection, which is very convenient.

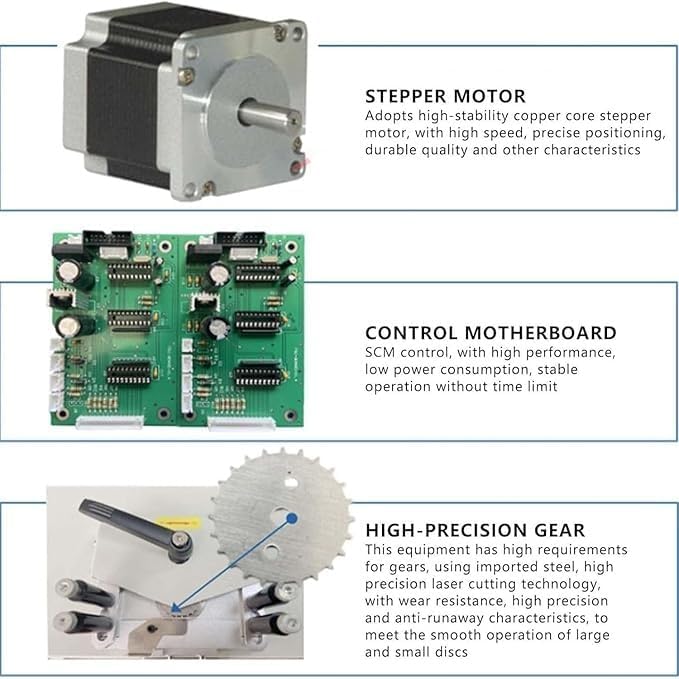

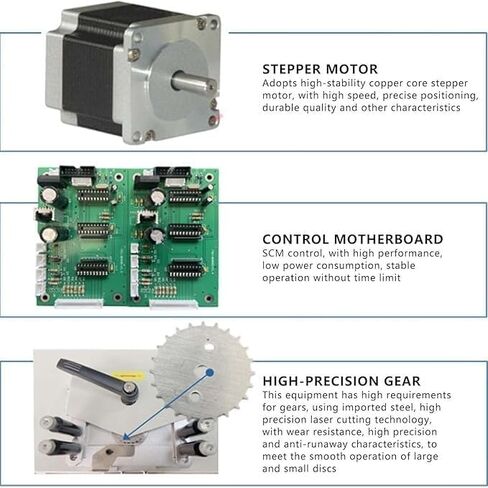

MULTIPLE ADJUSTMENTS: The efficient and powerful motor help you automatically calculate the number of parts and simplify the part-feeding process. You can choose to set the number of parts manually or use the automatic mode, and also you can choose at will among speeds to improve the efficiency of the counting.

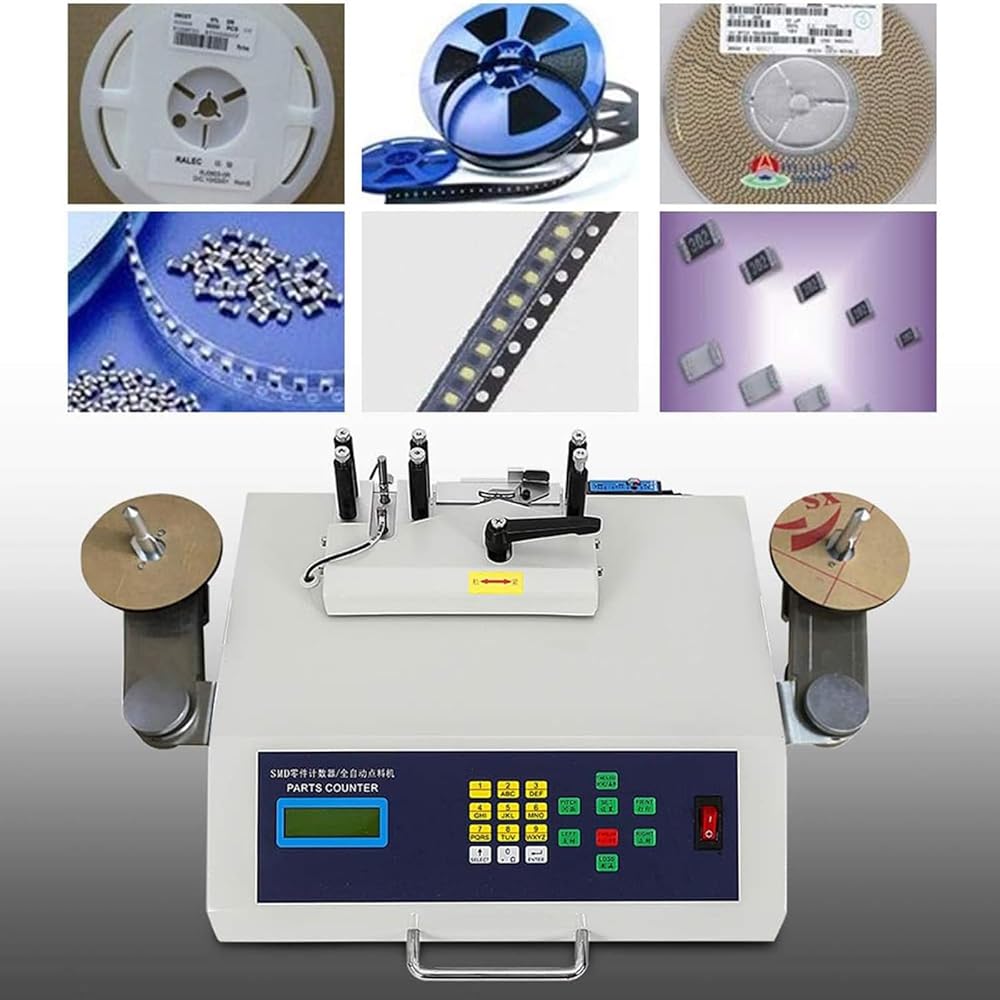

APPLICABLE SCENARIOS: SMD tape parts are widely used for counting the quantity of SMD materials such as resistors, magnetic beads, capacitors, diodes, ICs, chips, and LED beads. Pitch: 1,2,4,8,10,12,16,24,32,44,56 mm；Width: 4,6,8,12,16,24,32,44,56 mm.

وصف

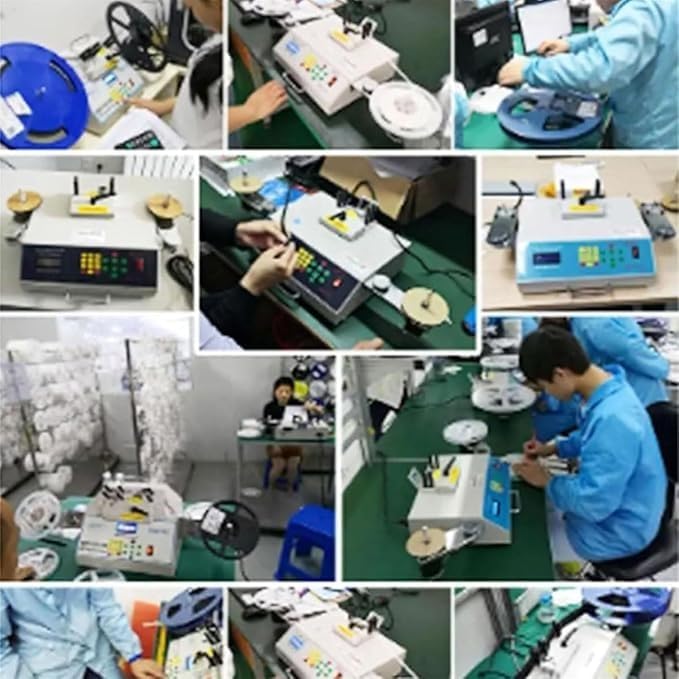

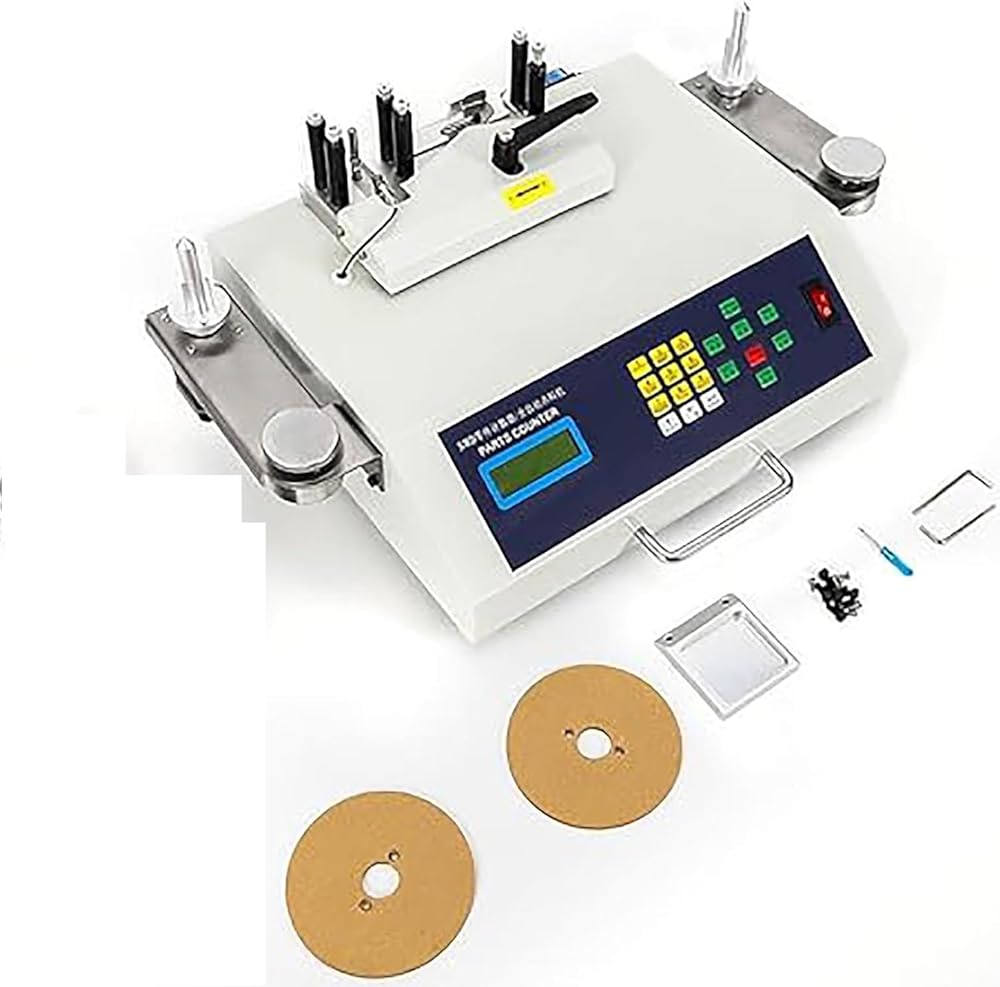

This automatic counter is specifically designed for counting various SMD materials such as resistors, magnetic beads, capacitors, diodes, ICs, chips, and LED lamp beads. It is widely used in the electronic product manufacturing industry, SMT processing plants, SMD parts manufacturers, parts counters, and taping packaging manufacturers for fully automatic incoming inspection, missing parts inspection, and inventory management.

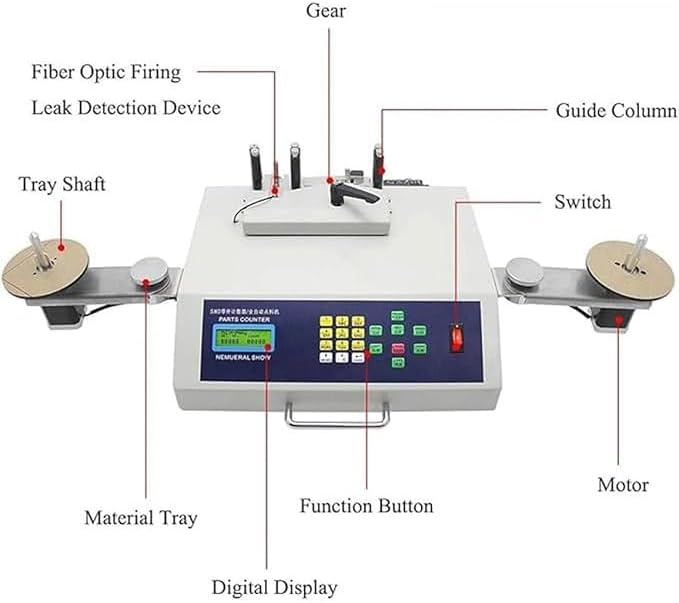

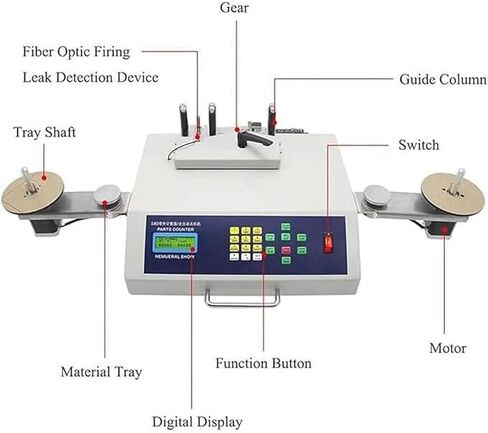

Features:
Rounded Corners: Features rounded, burr-free edges for a more comfortable touch compared to rigid right angles.
Auxiliary Rod: The rod in front of the control panel stabilizes the machine and improves force application during operations.
Mirror: Enhances the fiber optic detector's signal reception and provides visibility to observe materials status efficiently.

Specifications:

- Display: 3-digit LCD
- Power Cord Length: 1.5m / 4.9 feet
- Power Supply: AC , 50HZ
- Power: 30W
- Counting Range: -99999 to 99999 PCS
- Materials: Aluminum, Steel
- Pitch Options: 1mm / 0.04in, 2mm / 0.08in, 4mm / 0.16in, 8mm / 0.32in, 10mm / 0.39in, 12mm / 0.47in, 16mm / 0.63in, 24mm / 0.94in, 32mm / 1.26in, 44mm / 1.73in, 56mm / 2.20in
- Width Options: 4mm / 0.16in, 6mm / 0.24in, 8mm / 0.31in, 12mm / 0.47in, 16mm / 0.63in, 24mm / 0.94in, 32mm / 1.26in, 44mm / 1.73in, 56mm / 2.20in

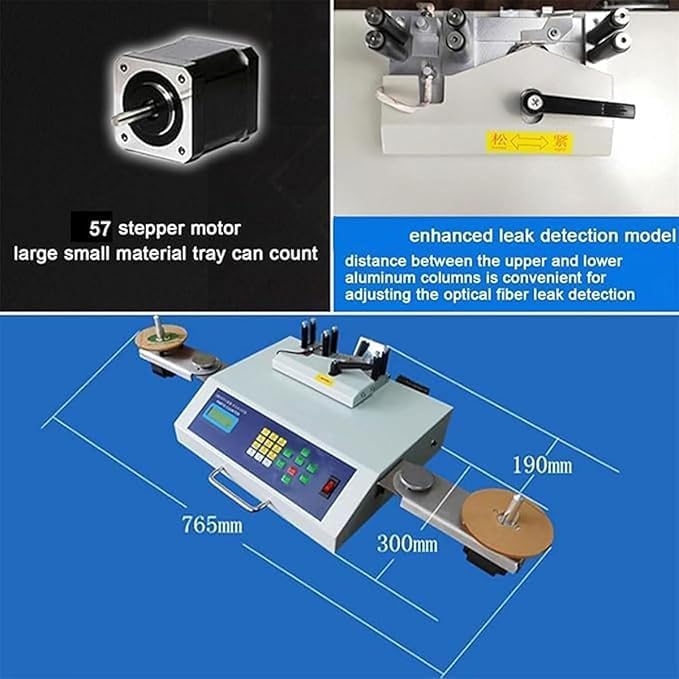

- Product Size: 76.5 x 30 x 19 cm
- Net Weight: 9.5 kg
- Gross Weight: 10 kg

Package Includes:

- 1 Automatic Counter
- 1 Power Cord
- 1 Mirror
- 1 Instruction Manual in Chinese and English
- Accessories required for assembly

مرحبًا،

بحث

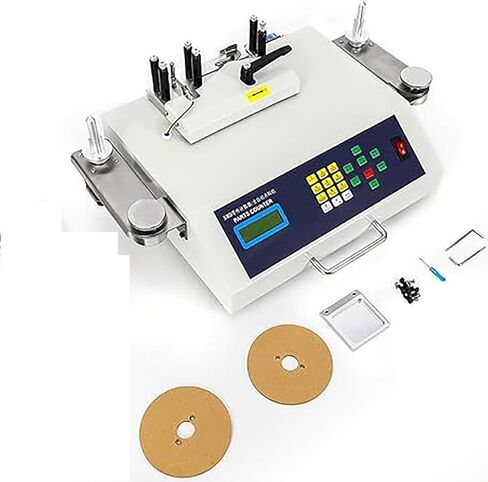

عداد مكونات 30 وات، ماكينة عد مكونات أجزاء SMT/SMD أوتوماتيكية، ماكينة عد SMD مع شاشة LCD مكونة من 3 أرقام، كشف التسرب
