Radio Frequency Attenuators
SDCB09B: BNC (Male-Female) 0.5kHz-9GHz
SDCB08T: TNC (male-female) 0.5kHz-8GHz
SDCB13RS: RP SMA (Internal Thread - External Thread) 13GHz
SDCB08RS: RP SMA (Internal Thread - External Thread) 8G

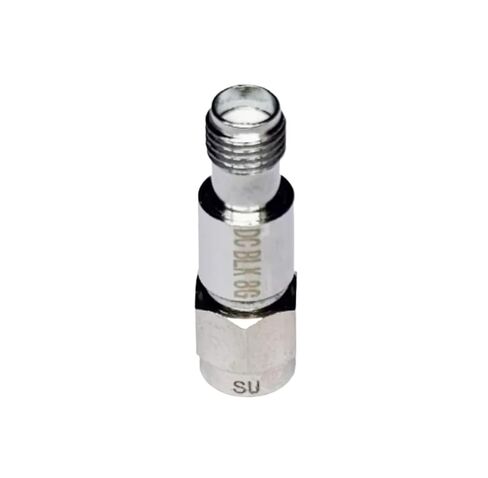

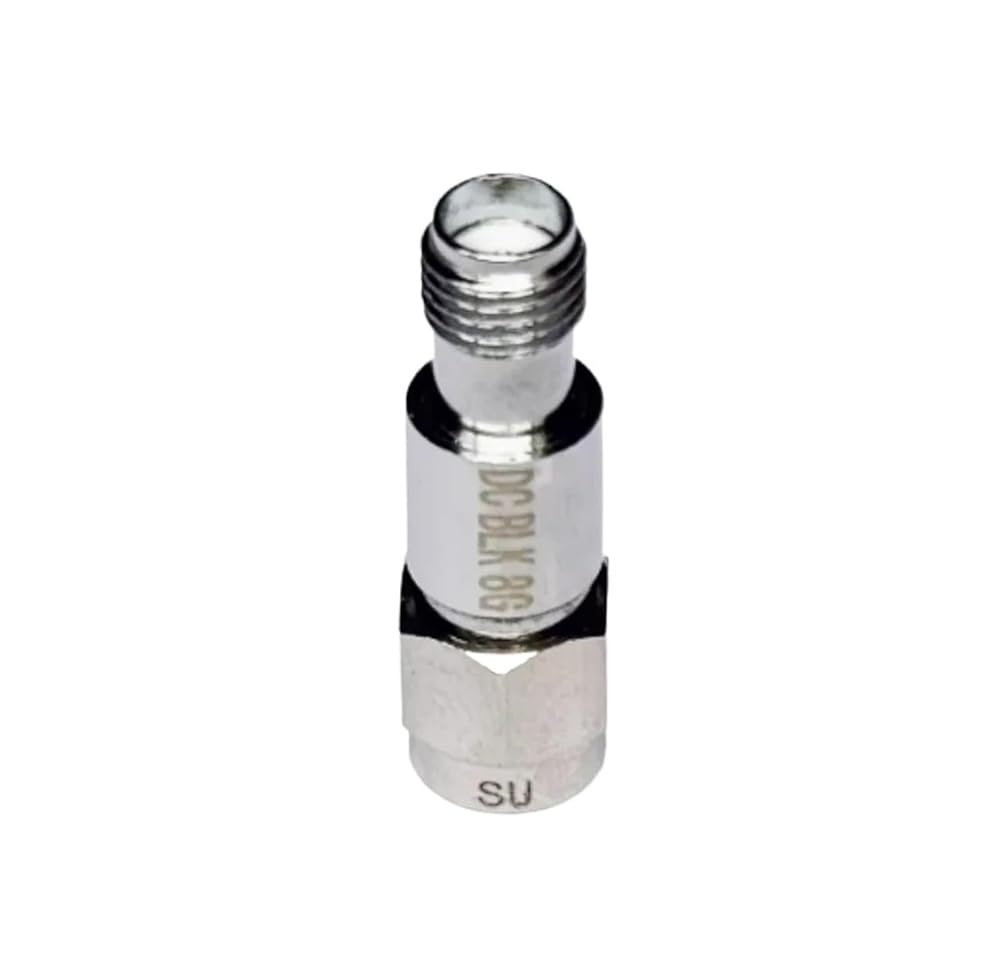

SDCB08S: SMA (Male-Female) 0.5kHz-8GHz
SDCB13S: SMA (High Frequency) 0.5kHz-13GHz
SDCB08N:N (Male-Female) 0.5k-8GHz
SDCB20S: SMA (High Frequency) 0.5kHz-20GHz
-20 ~ 115
Operating temperature
size
BNC: 14.5 × 36.5mm; TNC: 14.5 × 38mm;
SMA: 7.5 × 23mm; N: 17.5 × 43mm;
size
Connector type
SMA/N/BNC/TNC
Connector type
nominal impedance
50 ohms
impedance
strength
2W (N-type 5W)
strength
VSWR (maximum value)
Voltage standing wave ratio (maximum value)
Insertion loss
Insertion loss
Blocking voltage
50 volts
DC voltage
Frequency range
50kHz-8GHz (Cutoff frequency only for DC; AC signals below 50kHz can still pass through, but the degree of attenuation will vary depending on the frequency)
Operating frequency
