1. Conformal coating is used to protect circuit boards and related equipment from environmental erosion.
2. High‑quality ABS material Cover, high temperature and impact resistance, can be used for a long time.
3. 35mm standard guide rail installation, easy installation and disassembly, and does not occupy space.
4. Realize the isolation of input, output, power supply and Cover, strong anti‑interference ability and high reliability.
5. Has excellent insulation, -proof, anti-leakage, anti-vibration, anti-aging, anti- performance, etc.

Specification:

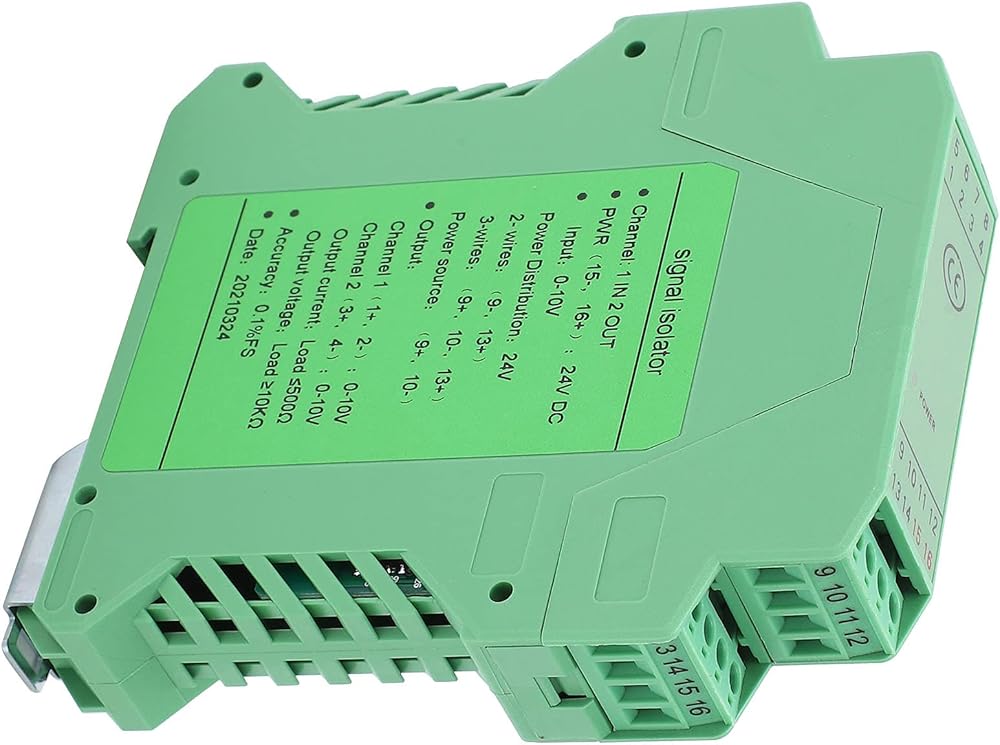

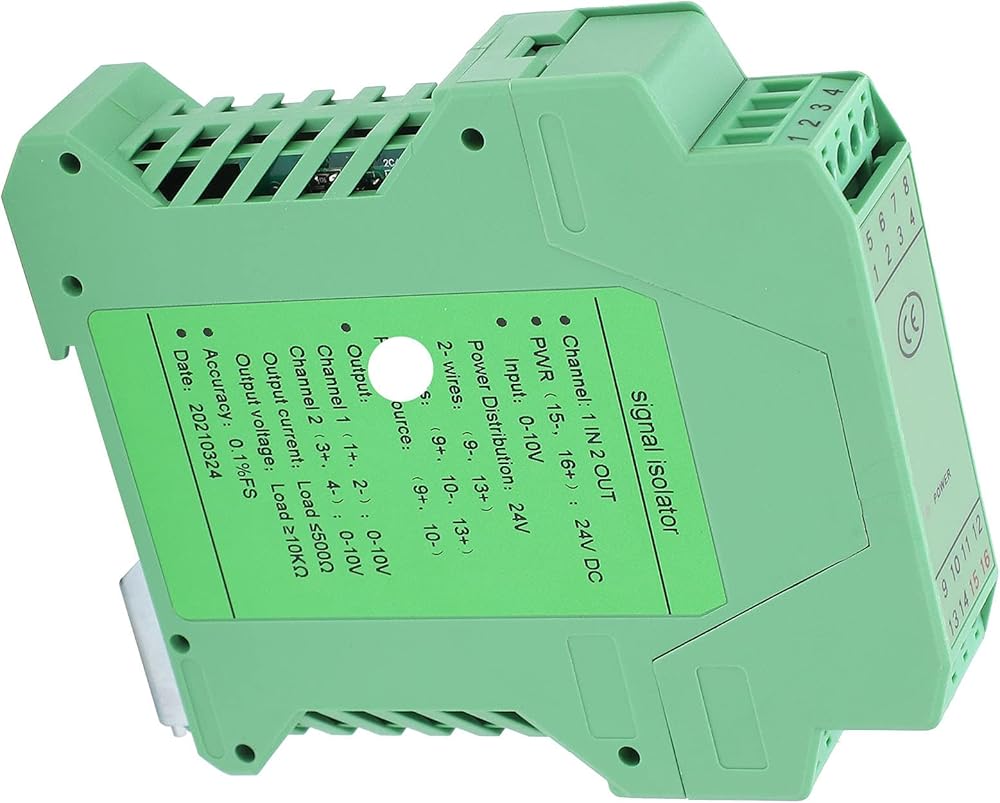

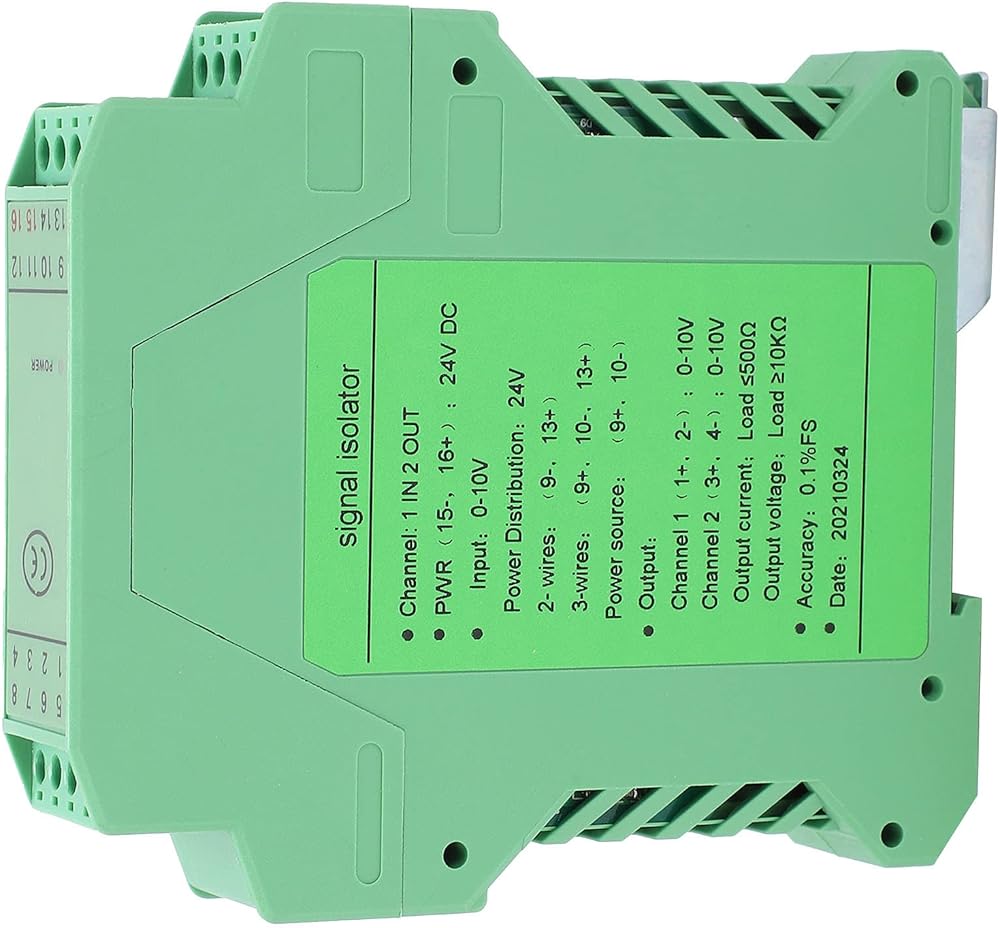

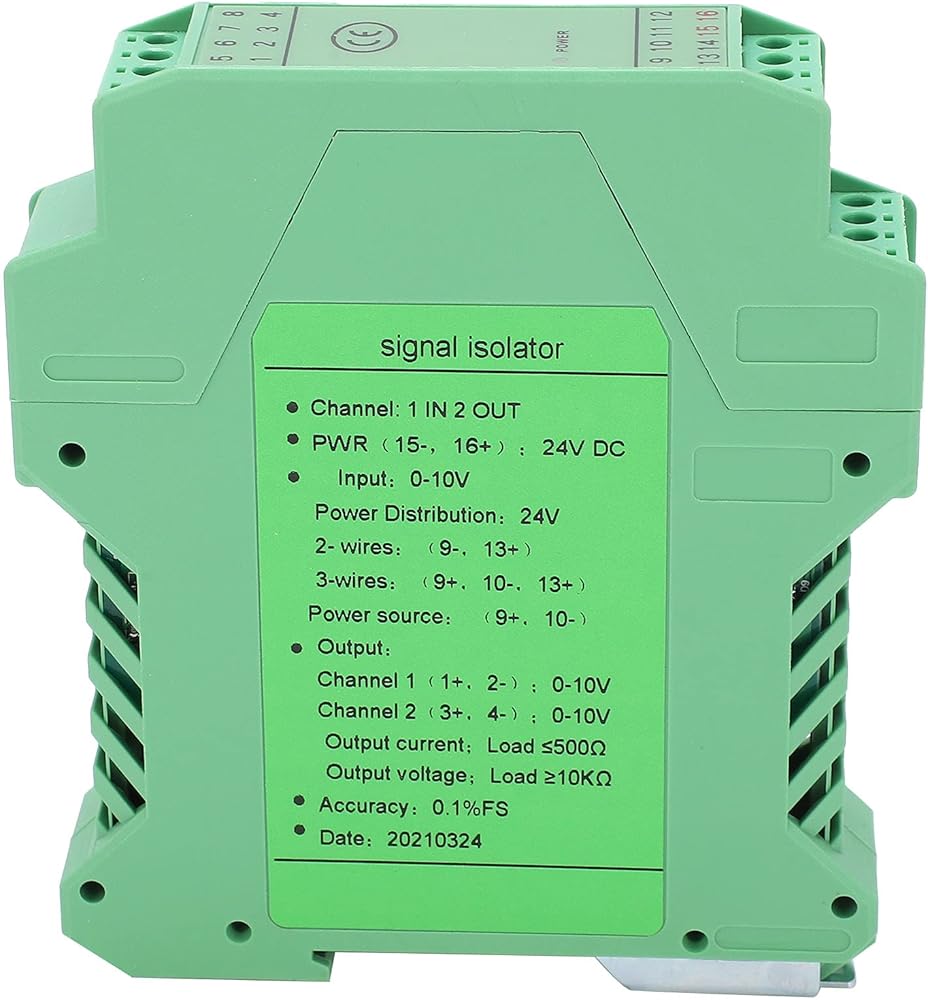

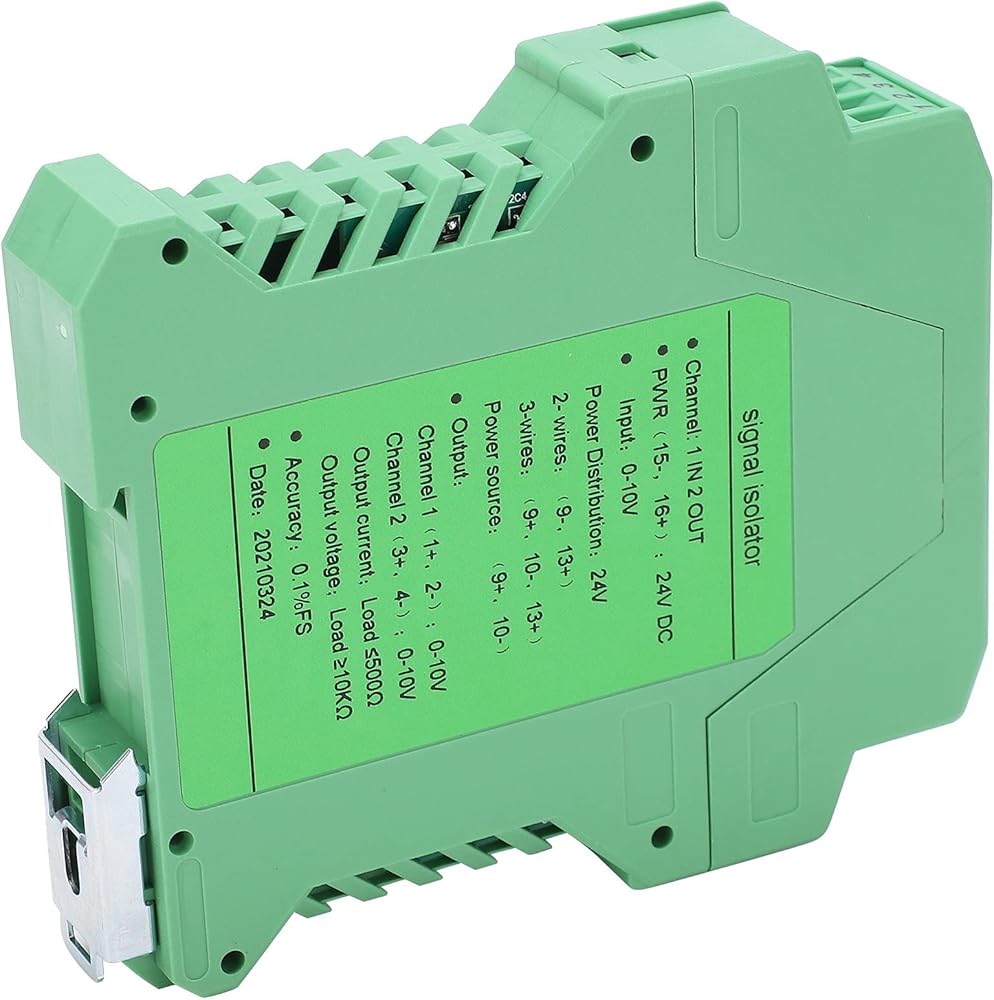

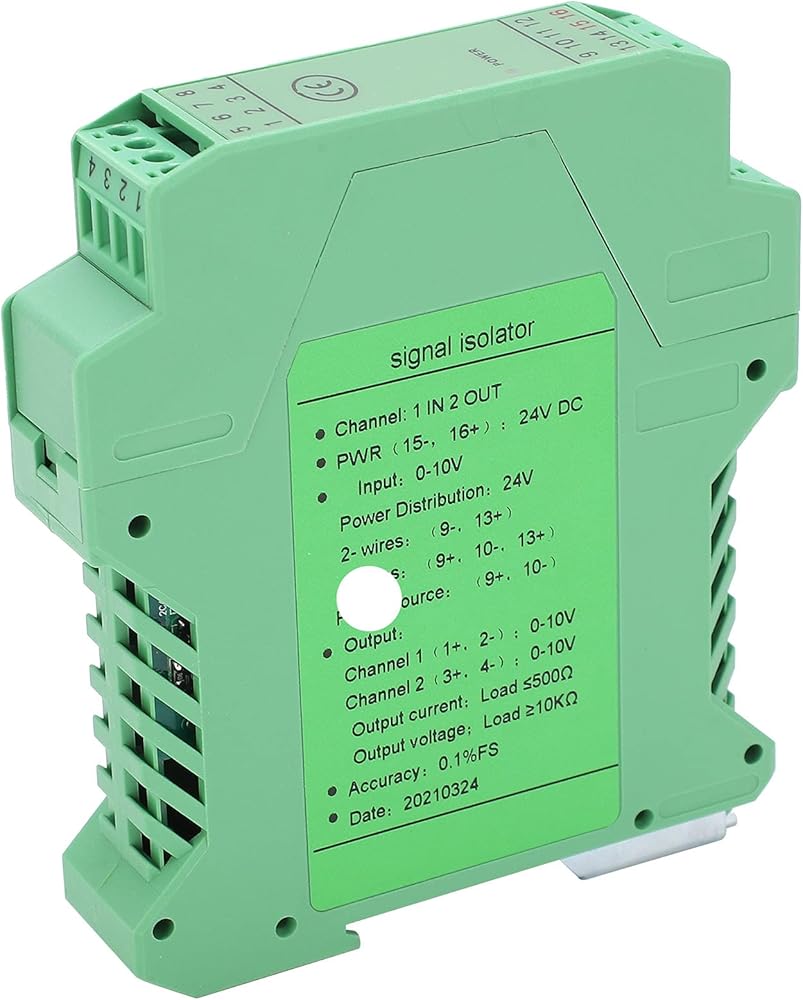

Item Type: Signal Isolator
Material: ABS
Model: GLG
Channel: 1 in 2 out
PWR (15-, 16+): 24V DC
Input: 0-10V
Distribution Voltage: DC 24V

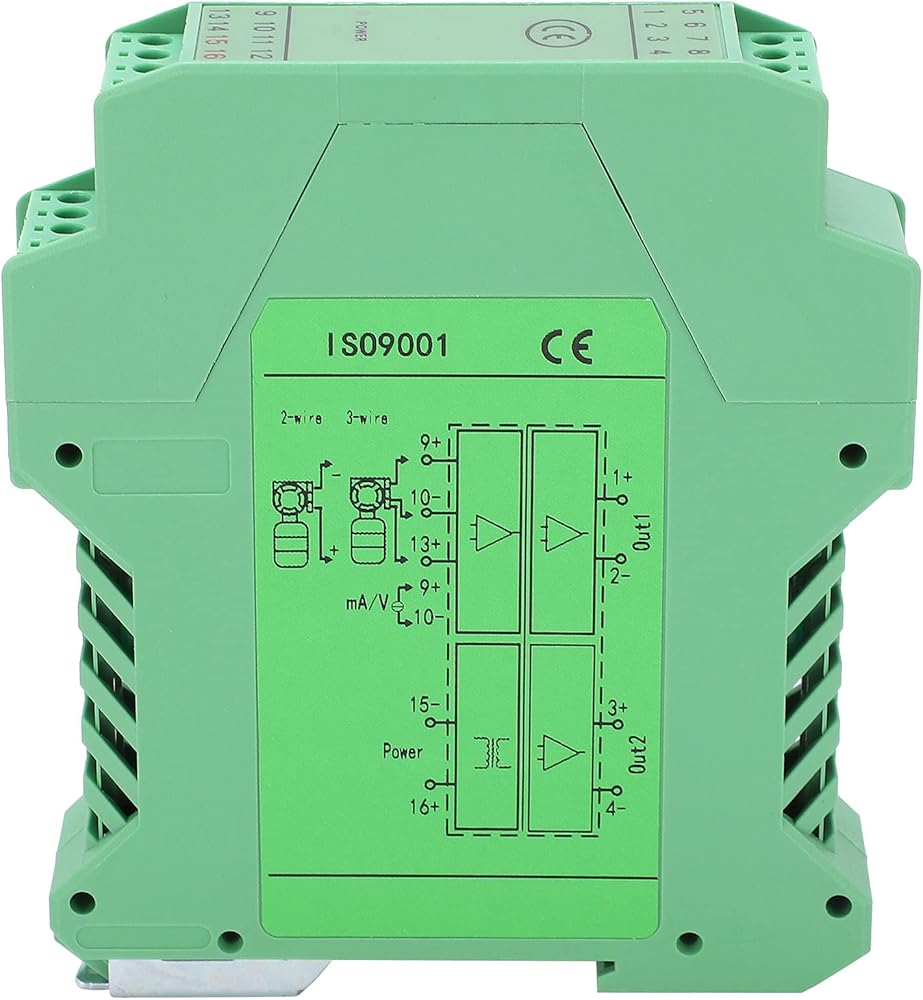

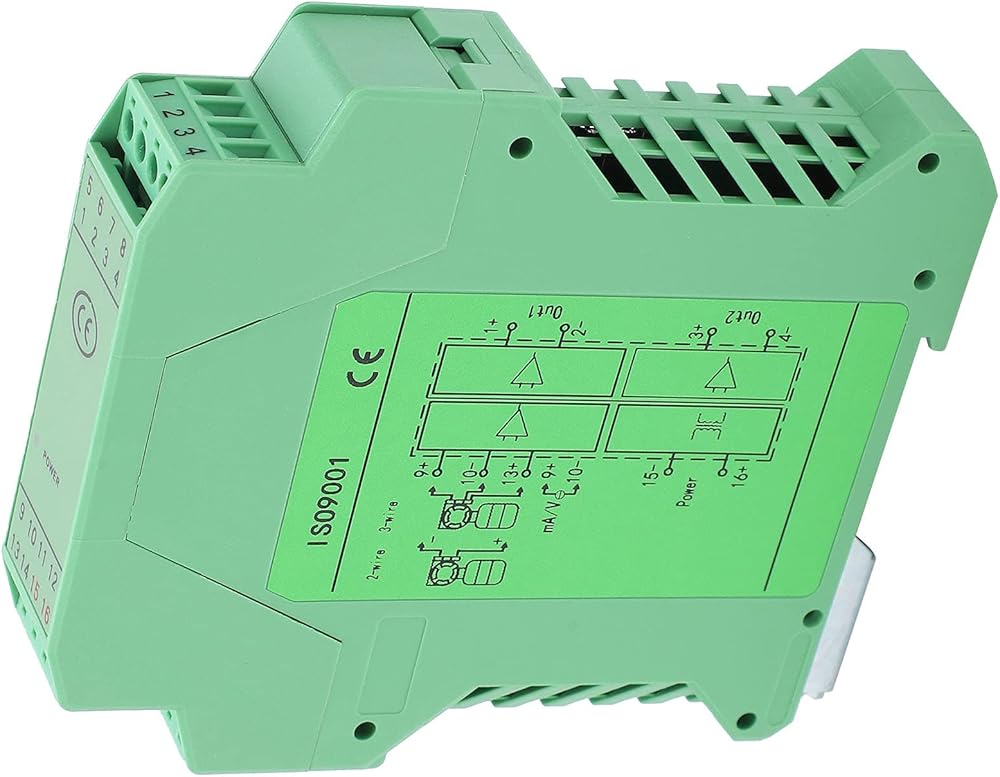

2-Wire System: (9-, 13+)
3-Wire: (9+, 10-, 13+)
Power Supply: (9+, 10-)
Output:
Channel 1 (1+, 2-): 0-10V
Channel 2 (3+, 4-): 0-10V
Output Current: Load≤500Ω
Output Voltage: Load≥10KΩ
Accuracy: 0.1% FS
Working Temperature Range: -20-+55℃
Electromagnetic Compatibility: with GB/T 18268 (1EC61326-1)
Applicable Field Equipment: 2-wire, 3-wire transmitter, current source
Product Description:
DC24V power supply, provides isolated power distribution for the transmitter on site, and at the same time isolates and transmits the current signal generated by the transmitter from the site to the control room, PLC, DCS and other input terminal interface current source, 2-wire system, 3-wire system transmitter General purpose; internal use of high-efficiency magnetic isolation technology, isolation between input, output, and power supply, with Precision Machined, high linearity, low temperature drift and other characteristics.

How to Use:
Installation Method:
1. For 35mm rail installation, please pay attention to the stability and firmness of the bayonet during installation.
2. Please install it as vertically as possible to facilitate the heat dissipation inside the instrument.

Package List:
1 x Signal Isolator

Note:
The installation location must not have strong vibration, and the intensity of electromagnetic interference from the signal terminal, power supply terminal and space exceeding the third category of the IEC61000‑4 series of industrial field electromagnetic interference, and the use environment must not be harmful to metal and plastic parts. substance.
