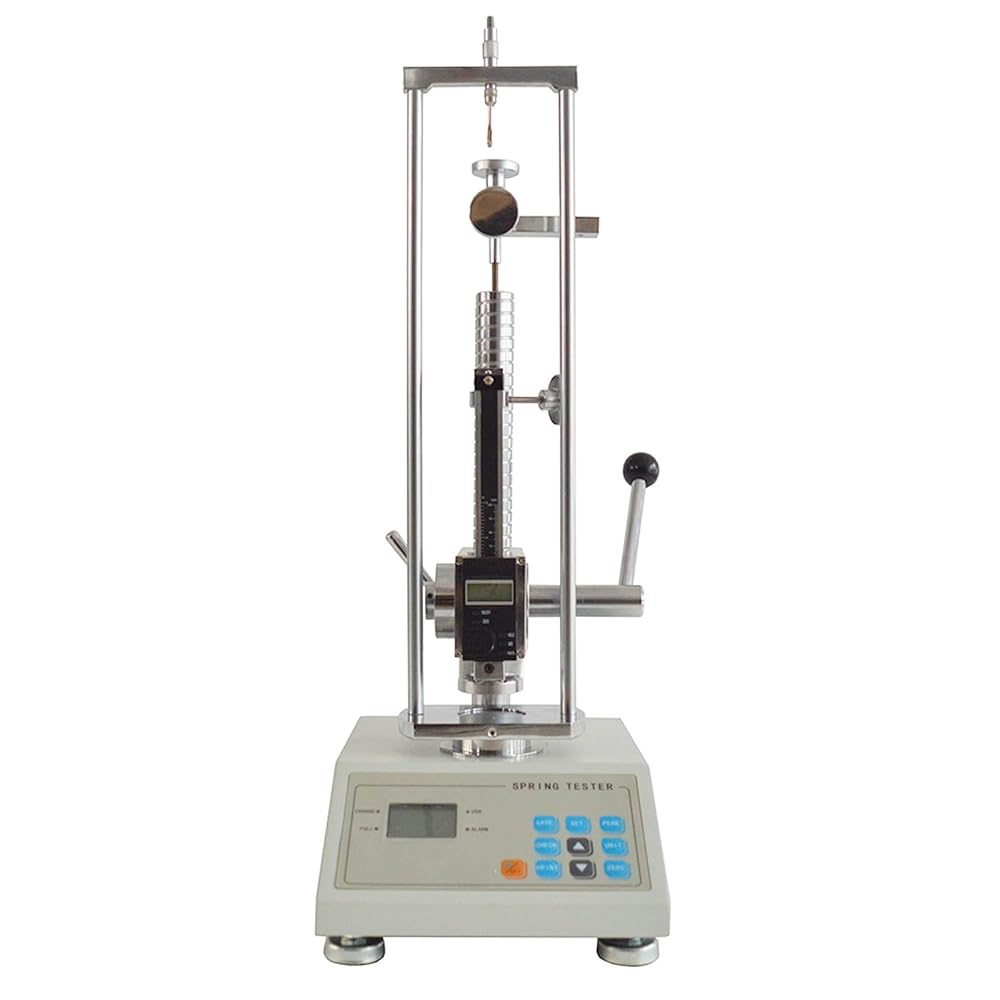

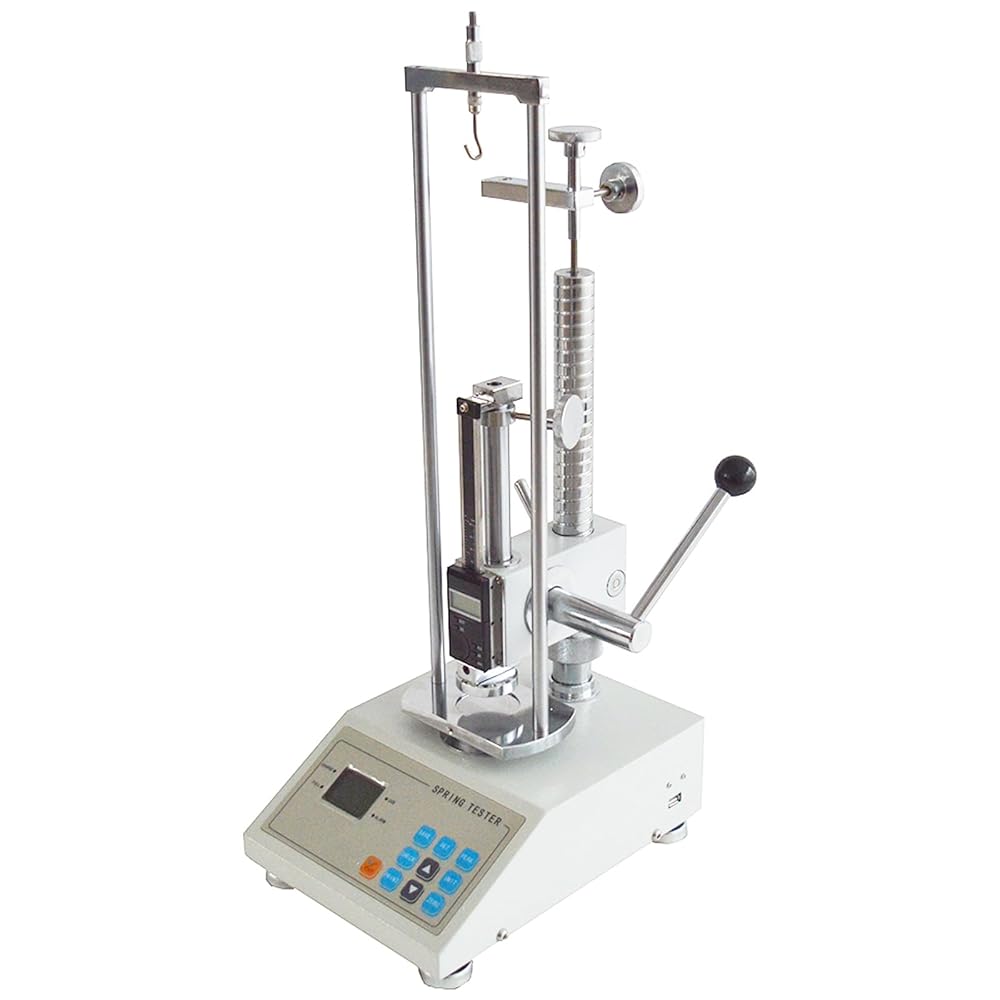

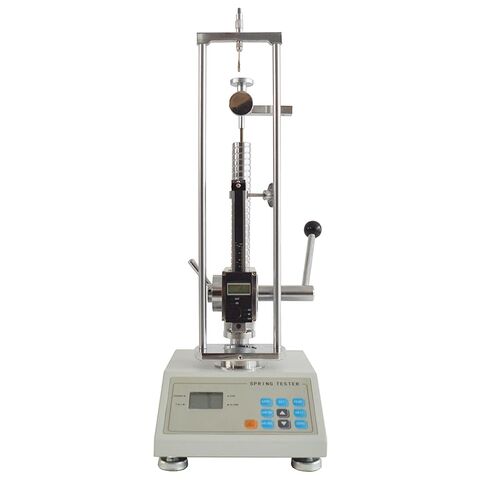

This tensile-compression tester is designed for testing the working load of extension and compression springs at specified working lengths.

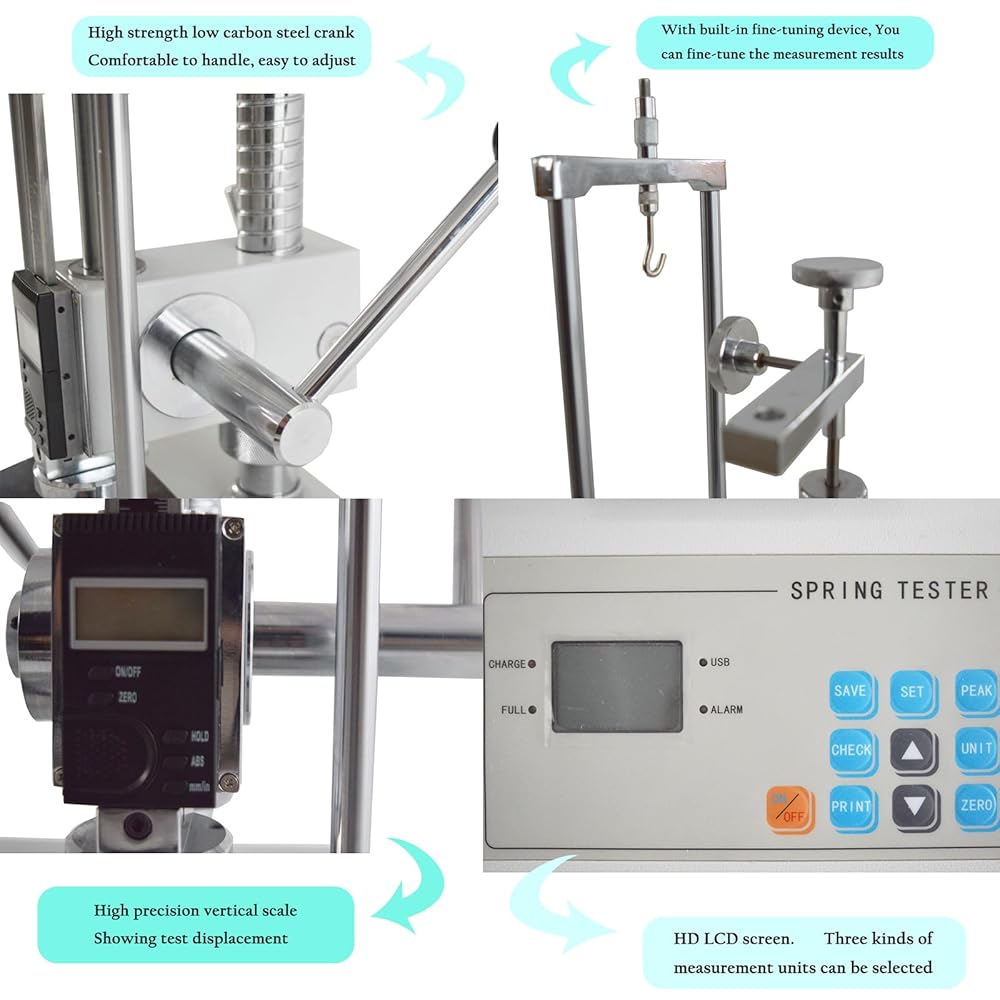

This machine adopts an advanced, highly integrated microprocessor chip, equipped with an English LCD display and a metal enclosure, which significantly enhances the system's anti-interference performance.
Have comparison function. The upper and lower limits of free deviation set, the alarm lights were to traffic lights and peak automatic alarm.
There are N, KG, LB three kinds of measurement units to choose from.
Built-in printer supports printing up to 99 groups of stored measurement data, including maximum, minimum and average values.
وصف

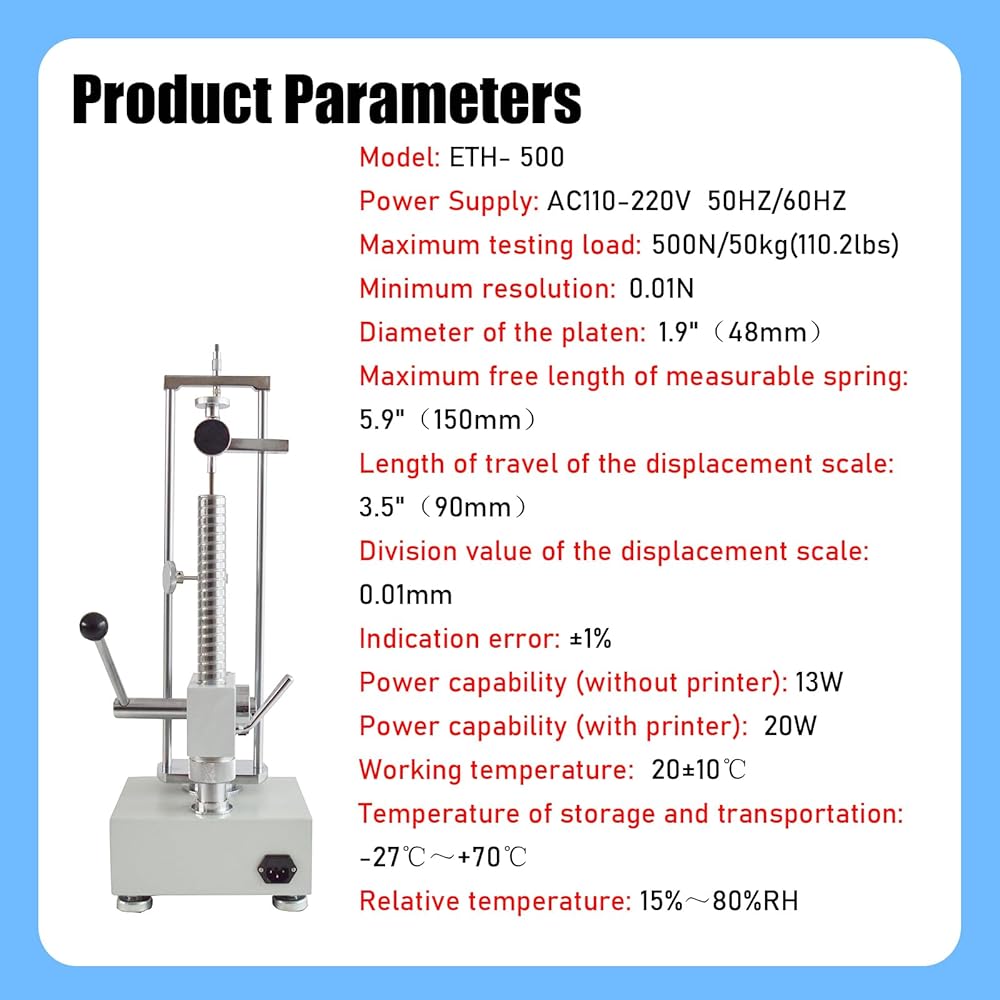

Specification
Model: ETH- 500
Power Supply: AC110-220V 50HZ/60HZ
Maximum testing load: 500N/50kg(110.2lbs)
Minimum resolution: 0.01N
Diameter of the platen: 1.9"(48mm)
Maximum free length of measurable spring: 5.9"(150mm)
Length of travel of the displacement scale: 3.5"(90mm)
Division value of the displacement scale: 0.01mm
Indication error: ±1%
Power capability (without printer): 13W
Power capability (with printer): 20W
Working temperature: 20±10℃
Temperature of storage and transportation: -27℃~+70℃
Relative temperature: 15%~80%RH
Package Dimensions
9"*12"*23";53pounds
