Din Rail LCD Digital Backlight Single Phase Energy Meter kWh Power Consumption Meter Wattmeter Electronic AC 220V 80A Reset Zero
Features:
Maximum current: 80A
Pulse: 1000imp / kwh
LCD display with Backlight
Pulse LED indicates working of meter.
35mm din rail installation
The meter is multifunctional display total Energy kWh, temporary Energy kWh, real Voltage, real Current, real Power by manual pressing .
Hold the button for 6 seconds to Reset the temporary kWh
NOTE: This Temporary kWh is available RESET to be Zero . The Total kWh can not be Reset.
Package included:
1 piece Energy meter
1 English instructions

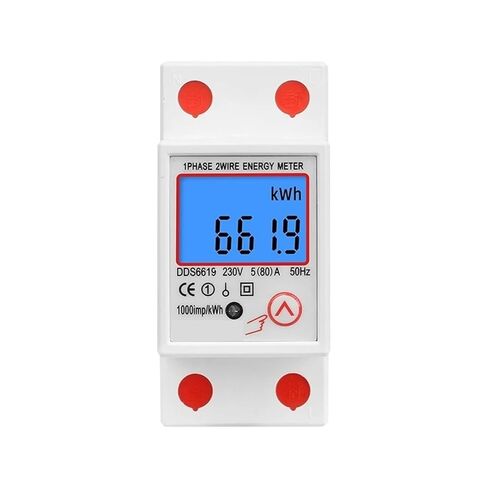

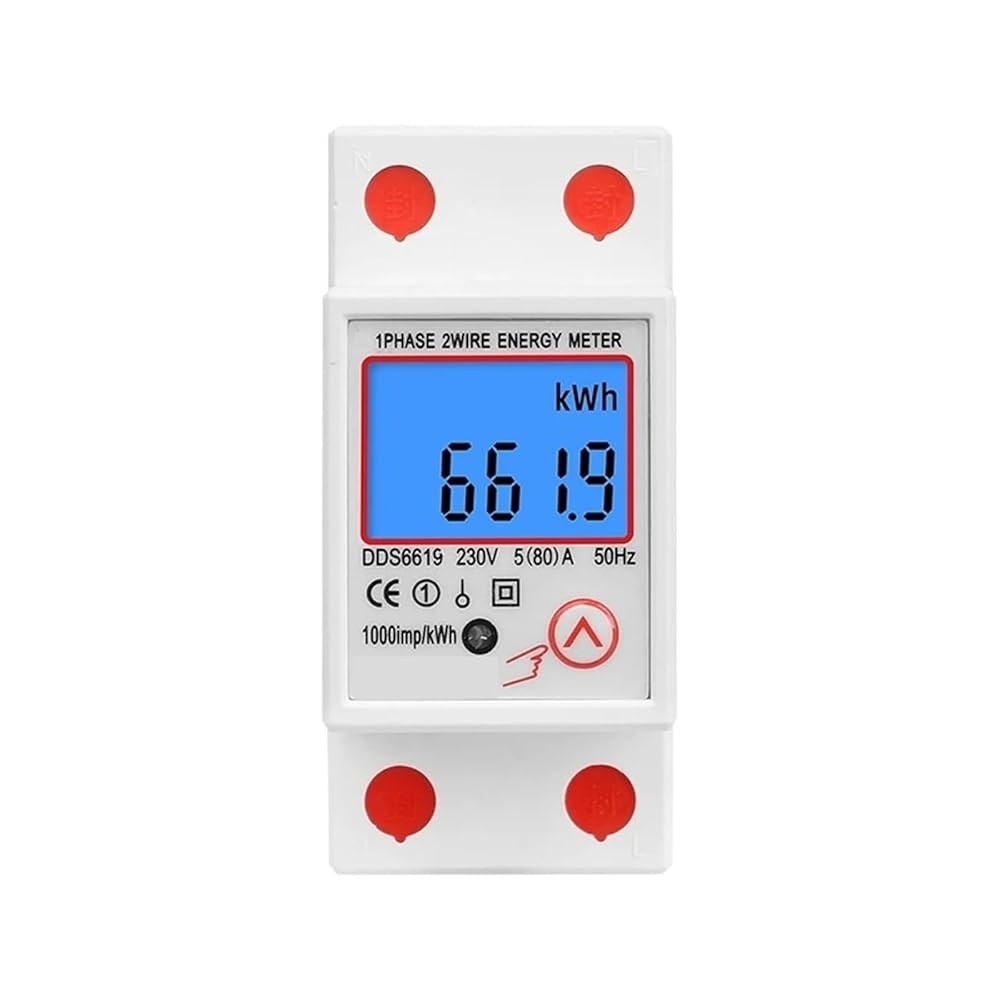

Here are the pictures of DDS6619-013
Dimensions : 78.5*65.6*36.5 mm
Operating Temperature : -10 to 50'C
Output Voltage : 230V AC
Accuracy Class : 1
Measuring Energy Range : 99999.9
Phase : single phase
Model Number : DDS6619
Max Operating Current : 50A - 79A
Rated Voltage : 220V
Power Supply : AC
Display Type : LCD
DIY Supplies : Electrical
Model : DDS6619-012
Origin : De(origin)
Display 1 : total Energy kWh
Display 2 : temporary kWh
Display 3 : Voltage
Display 4 : Current
Display 5 : Power
Blacklight : Yes
Temporary kWh : can be RESET
Max. Rated Current : max 80A
