Details
Smooth Surface: The smooth and burr-free surface allows you to safely install this product without hurting your hands.
Cap: The yellow cap can effectively protect the output bore when not in use, reducing friction and wear.
Specification

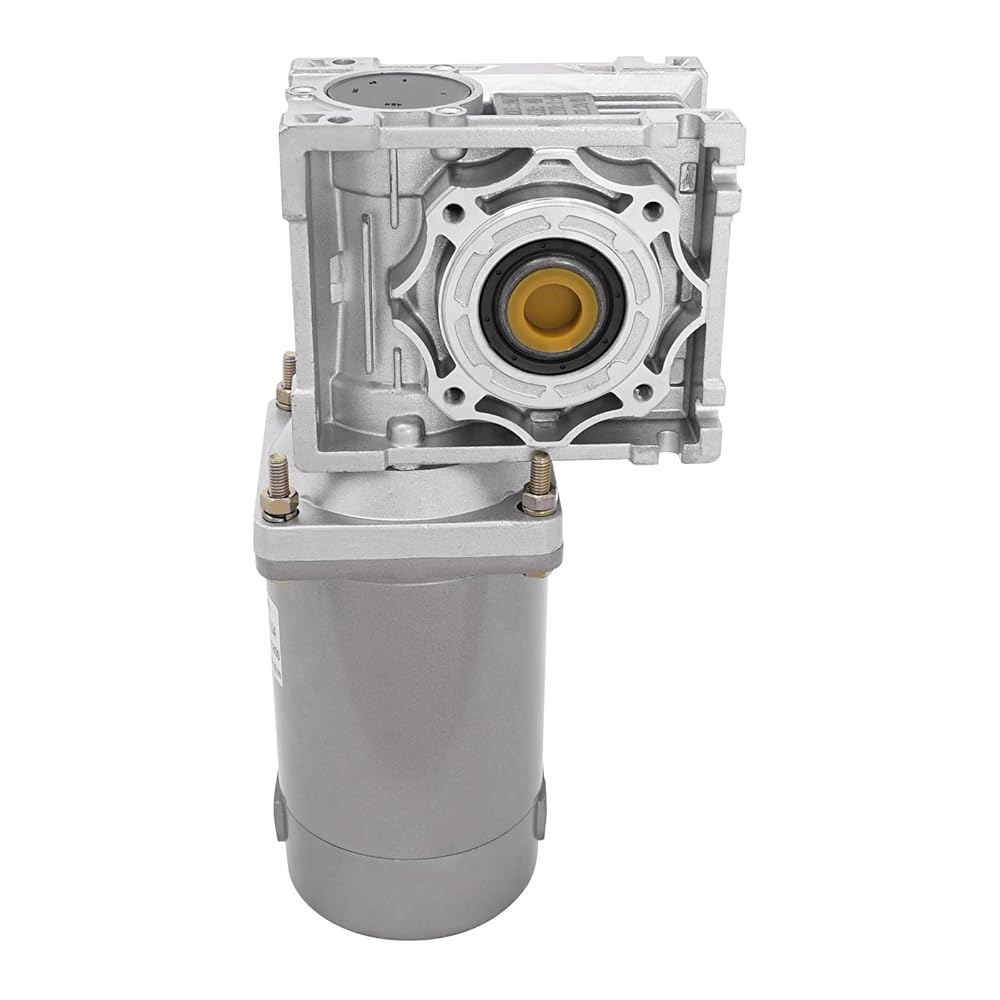

Model: DM09 12V 200W NMRV40, 50
Material: Die-cast Aluminum Alloy, 40Cr Alloy Steel
Process: Tempering Heat Treatment, Fine Machining, NitridationTechnique
Color: Silver
Motor Type: Brushed Pure Copper Motor
Input Voltage: DC12V
Current: 23A
Output power: 200W
Speed: 1800RPM
Rated Torque: 6.4kg/cm
Ratio: 1:50 (50K)
1-meter Noise: About 70dB(Actual Smaller)
Product Size: 9*9cm/3.54*3.54in
Output Hole Diameter: 18mm/0.71in
Package Size: 35*17*15cm/13.78*6.69*5.91in
Gross Weight: 10kg/22.05lbs
Net Weight: 9kg/19.84lbs
Package Included
1*200W Gear Motor
Notes
1. Please note that if you need to adjust the speed, you need to use it with a controller (not included). The motor itself does not have a built-in output shaft.
2. To ensure the heat dissipation of the product, please do not use it in a closed environment.
3. This product does not have waterproof properties, so please do not let it rely on damp environments or use it outdoors on rainy days.
4. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
