مميزات خاصة

High-Accuracy Linear Output: This pressure transducer offers a precise 0.5V to 4.5V linear voltage output, ensuring accuracy within 2% of the reading across its full scale. This feature is crucial for applications requiring exact pressure measurements, such as in oil, fuel, and gas systems.
Robust Construction and Protection: Crafted from stainless steel, the transducer is built to withstand harsh conditions. It includes a complete voltage protection function, making it suitable for a range of environments, from industrial to marine applications.
Versatile Pressure Range Options: Available in various pressure ranges from 30 psi to 500 psi, this transducer can be tailored to specific needs. Each model maintains its accuracy and is designed to work with oil, fuel, , gas, water, and air.
Rapid Response and Insulation: With a response time of 1ms and insulation resistance greater than 100mΩ at 500VDC, the transducer provides quick and reliable data transmission while ensuring electrical safety.
Wide Operating Temperature and Resistance: Capable of operating in temperatures from -40℃ to +125℃, the transducer is ideal for use in extreme climates. It also offers overload capacity up to 2-4 times its rated pressure, demonstrating its resilience.

وصف

Product Description:

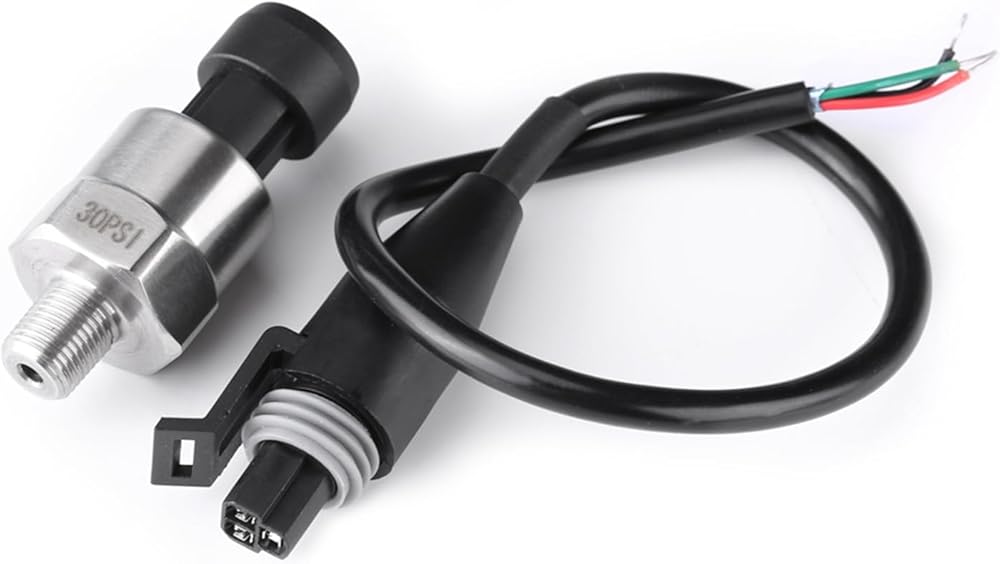

This pressure transducer is an advanced solution for accurate and reliable pressure measurement in various industrial applications. With a linear voltage output from 0.5V to 4.5V and a precision of within 2% of the reading, it ensures high accuracy for oil, fuel, , gas, water, and air pressure monitoring. The stainless steel construction and voltage protection make it and suitable for a wide range of environments. Its versatility in pressure ranges and quick response time make it an ideal choice for demanding applications.

Product Specifications:
Material: Stainless steel
Voltage: DC 5V
Pressure Ranges: 30 psi, 100 psi, 150 psi, 200 psi, 300 psi, 500 psi (optional)
Thread Type: 1/8 NPT
Output: 0.5V to 4.5V linear voltage
Accuracy: Within 2% of reading (full scale)
Overload Capacity: 2-4 times rated pressure
Working Temperature: -40℃ to +125℃ (depending on model)
Protection Class: IP67
Pressure Medium: Compatible with 316L stainless steel
Load Resistance: (supply power-6.5V/0.02A)Ω
Long-term Stability: Less than 0.1%FS/year
Response Time: 1ms
Insulation Resistance: >100mΩ 500VDC
Electromagnetism Compatibility: EN50051-1, EN50081-1, EN50082-2, IEC6 1000-4-3

Product List:

1 x Pressure Transducer (With cable)
