Elbow Fittings
Description

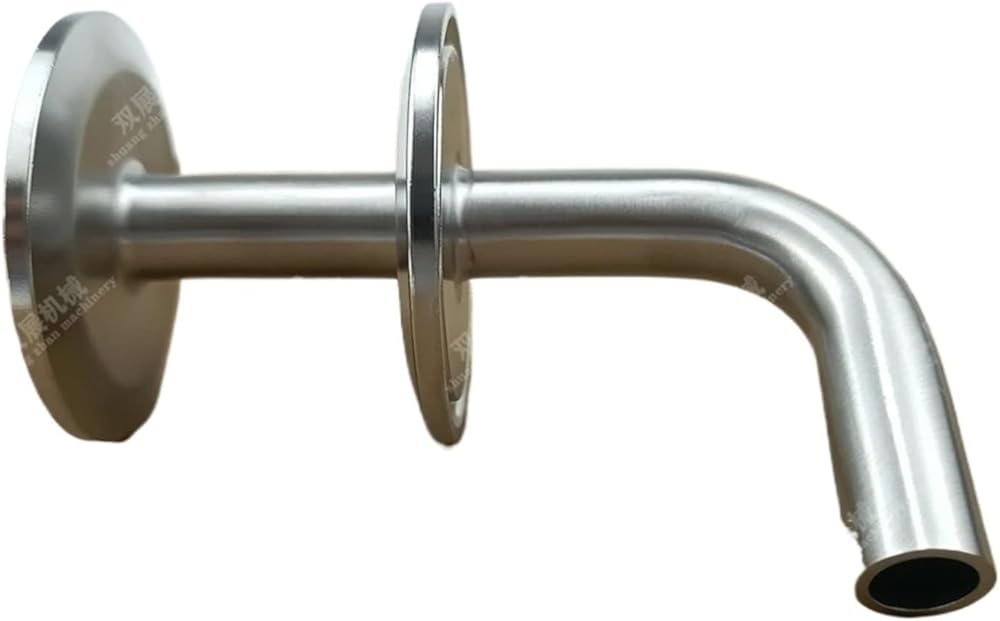

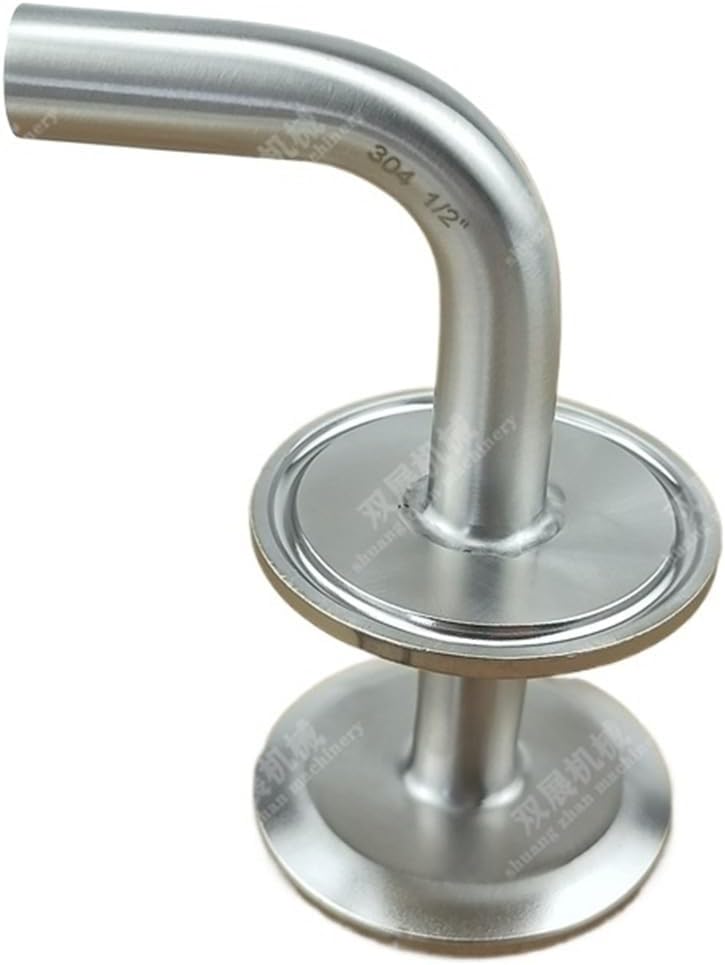

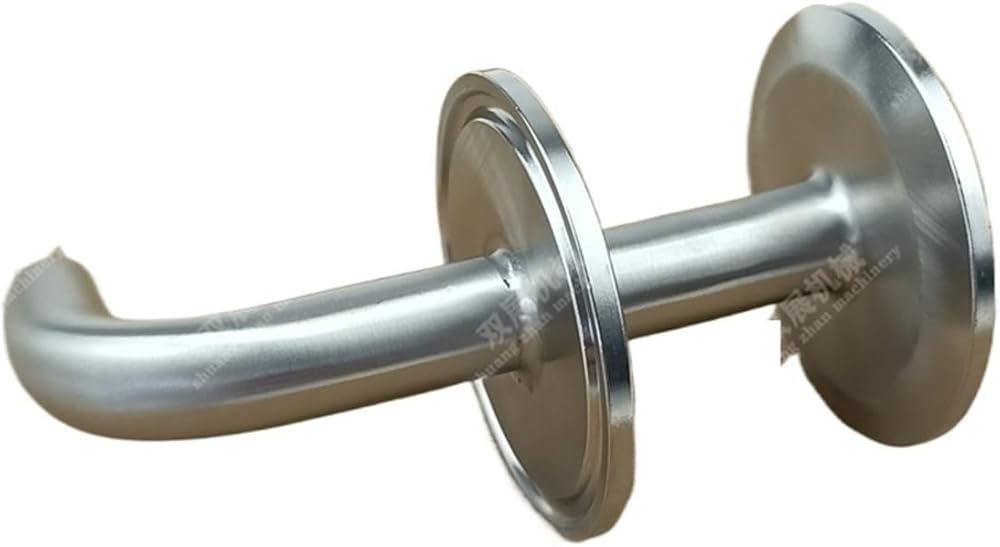

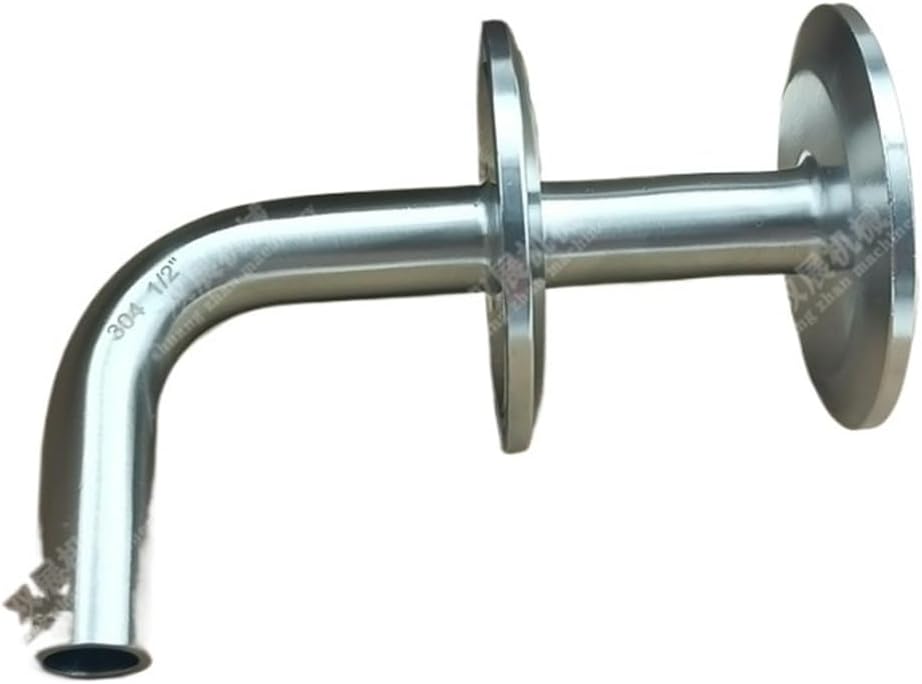

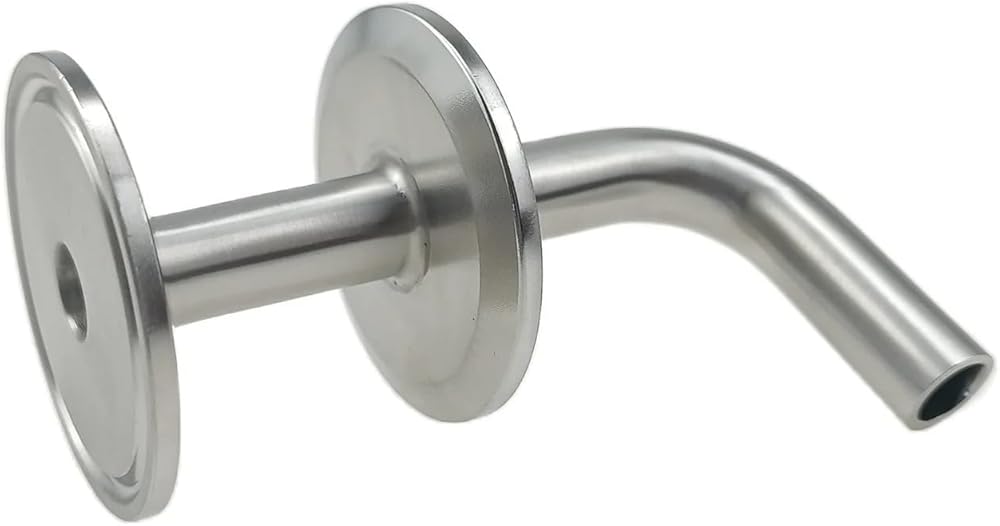

Tri Clover Tube
1.5" TC x 1.5" TC x 0.5" OD Tube
304 Stainless Steel
CHARACTERISTICS and SPECIFICATIONS:
.304 Stainless Steel
.Heavy duty, extra-thick tube is .5" outer diameter. Resists dents and bending.
.1.5" tri-clover connection on outside edge of tube
.1.5" tri-clover connection on middle section of tube
.Length between outer edges of facing tri-clover fittings is 1-5/8"
.Standard tube length from 1.5" tri-clover weld to outer edge of tube is 2-1/8"
.Standard tube height is 2-1/16" from tube pickup to top edge of tube
.Over-all length is 3-3/4".
.All measurements are targeted to within 1/16"
==========
Hign-concerned Chemical : None
Hose Inner Diameter : 8mm
Connection : triclamp
Head Code : round
Technics : Forged
Model Number : NT1/2DTUBE
Type : Coupling
Material : Stainless Steel
