Linear Brakes
Technical Parameters
Voltage (V)
DC 6/12/24V
No-load speed (mm/s)
4
8
15
thirty
150
Load thrust (N)
150
70
50
20
7
Load tension (N)
150
70
50
20
7
Static damping (N)
150
70
50
20
7
Stroke length (mm)
10mm, 15mm, 30mm, 50mm, 75mm, 100mm, 150mm, 200mm
Operating temperature
-20~65
IP rating
IP43
limit switches
built-in
Operating frequency
Continuous use for 2 minutes, maximum 10%
inner tube
aluminum tube
color
silver gray
Screw type
T-type

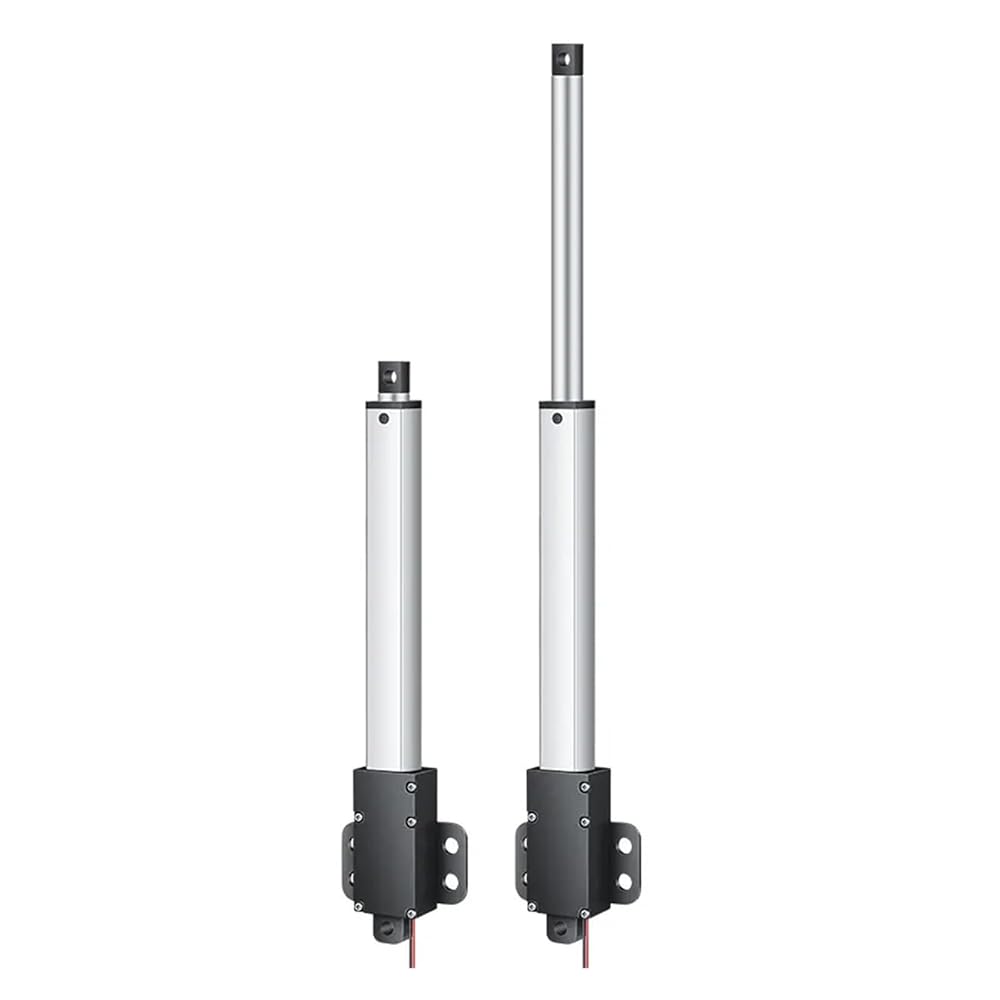

Advantages: Our linear actuators are equipped with linear reciprocating motors and durable stroke, which are ideal for range hoods, fan blades, cabinets, window openers, robots, home automation.
Feel Stop: Stop at any position, with machine lock, stops when reaching the top.
Safe and worry-free: overcurrent protection, short circuit protection, overload protection, and overvoltage protection.
Product 1 year, if you have any product problems, please feel free to contact us.
Stroke Length (mm) Drawing
Please see the dimensional drawings below for the IP60 series linear actuators.
L (mm) indicates the installation size/initial length, and S (mm) indicates the stroke length.
Length = Shortness + 57.5 mm
For example, when s (stroke length) = 30 mm, L (installation dimension) will be equal to 87.5 mm.
The length of the telescopic rod after extension = L + S = 117.5mm
Color: Grey
Torque: Maximum 150N 15KGS 33.07LBS
Application: automobiles, electric bicycles, fans, electrical appliances
Model: IP60
Continuous current (A): 0.25
Structure: Permanent magnet
Protection function: drip-proof
Type: Gear Motor
Commutation: Brush type
Efficiency: IE 2
Output power: 3W
Origin: Mainland China
Color: Grey
Input voltage: DC 6/12/24V
Noise: less than 48dB
IP rating: IP43
Certification: CE, ROSH
No-load current: 0.03A
Full load current: 0.25A
