Proportional Control Valve with PTO Switch, Dump Truck Tipper PTO Switch to Rise, Mid Stop, Descent & Slow Descent, Dump Truck Hydraulic System Tipper Switch, Indicator Light

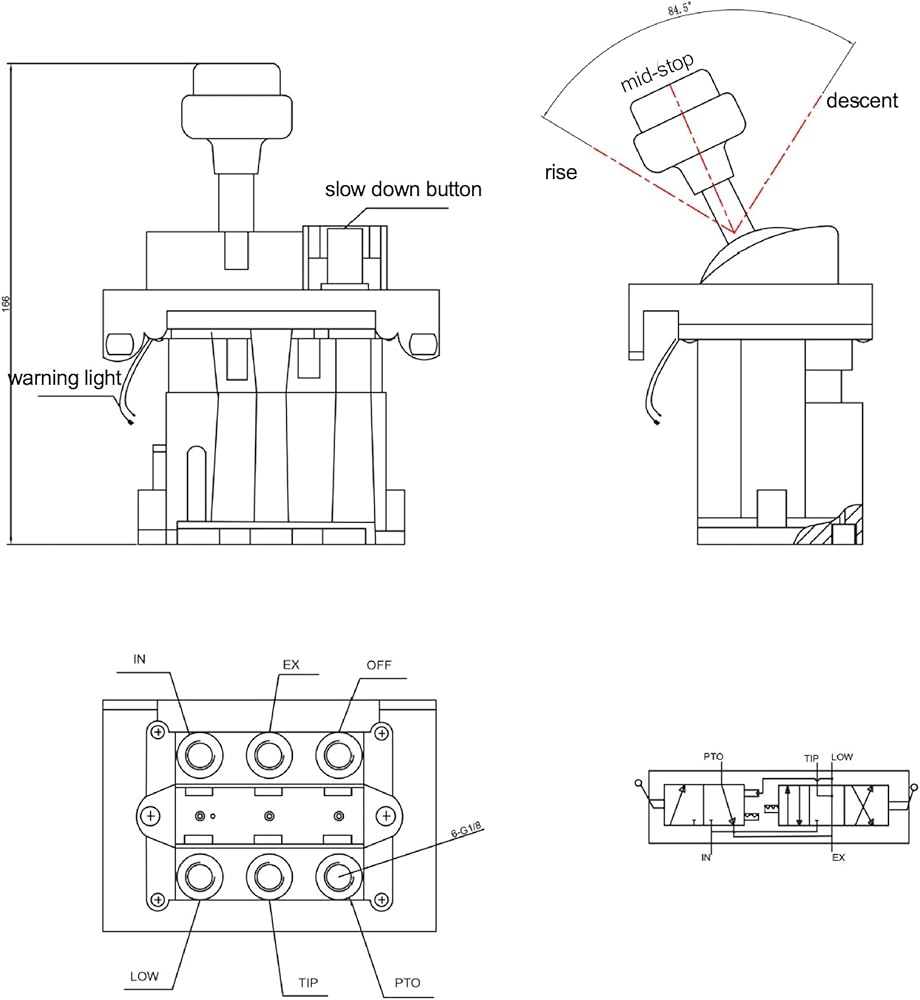

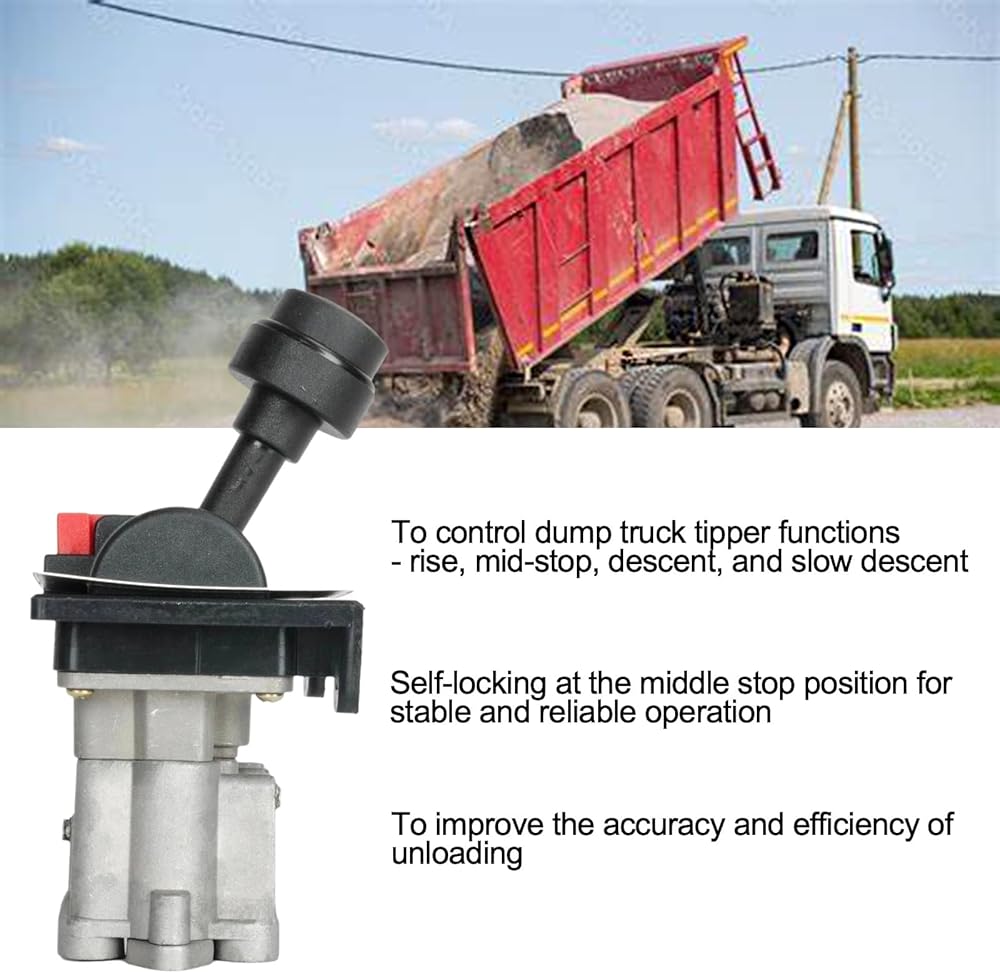

Proportional control valve equipped with a PTO switch for controlling dump truck tipper functions such as rise, mid-stop, descent, and slow descent

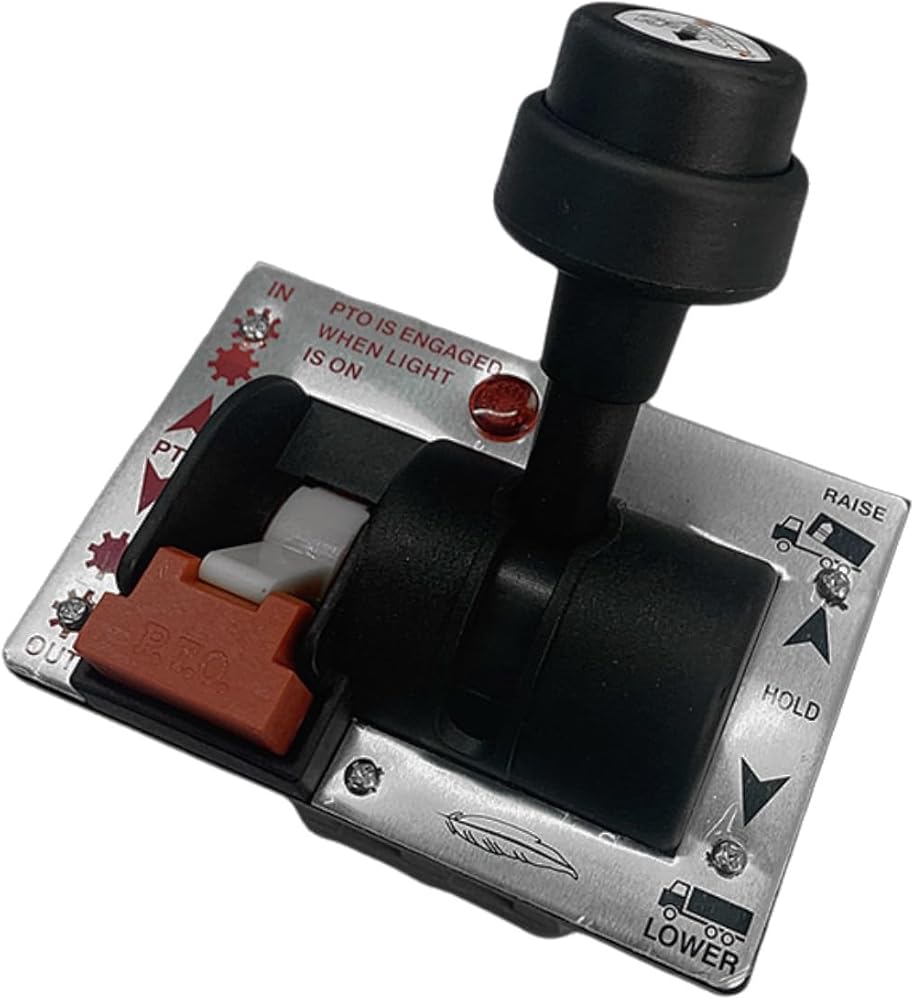

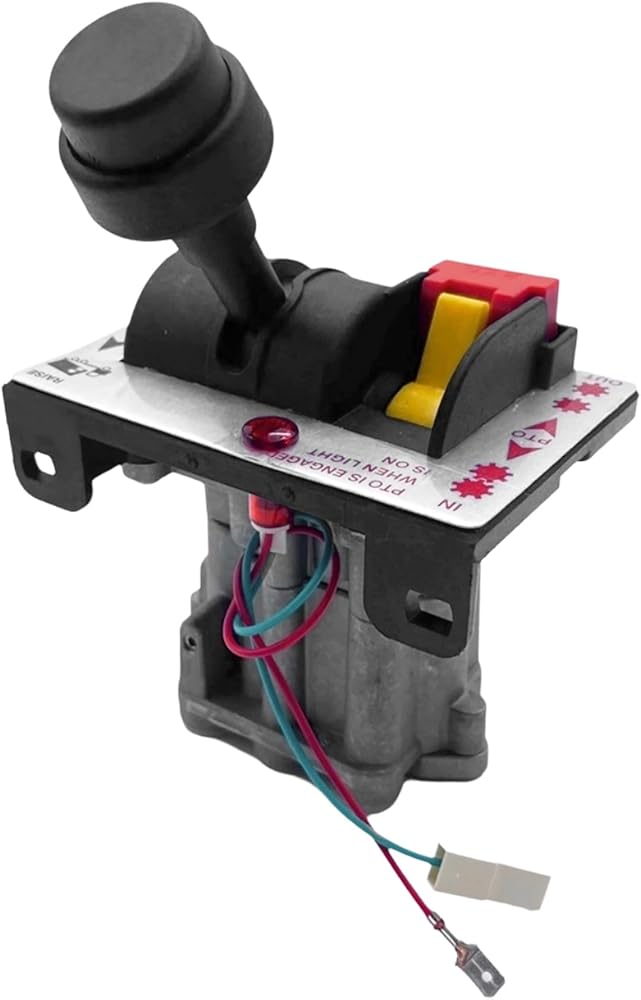

PTO disengages automatically when the vehicle body is lowered, ensuring safety with a warning light
Proportional control valve PTO switch features self-locking at the middle stop position for stable and reliable operation
Dump truck proportional control valves enable precise control, improving the accuracy and efficiency of unloading

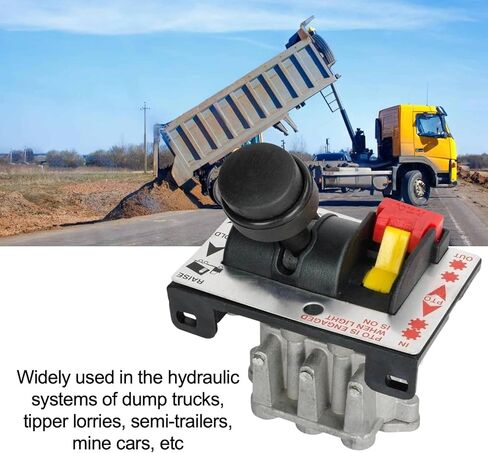

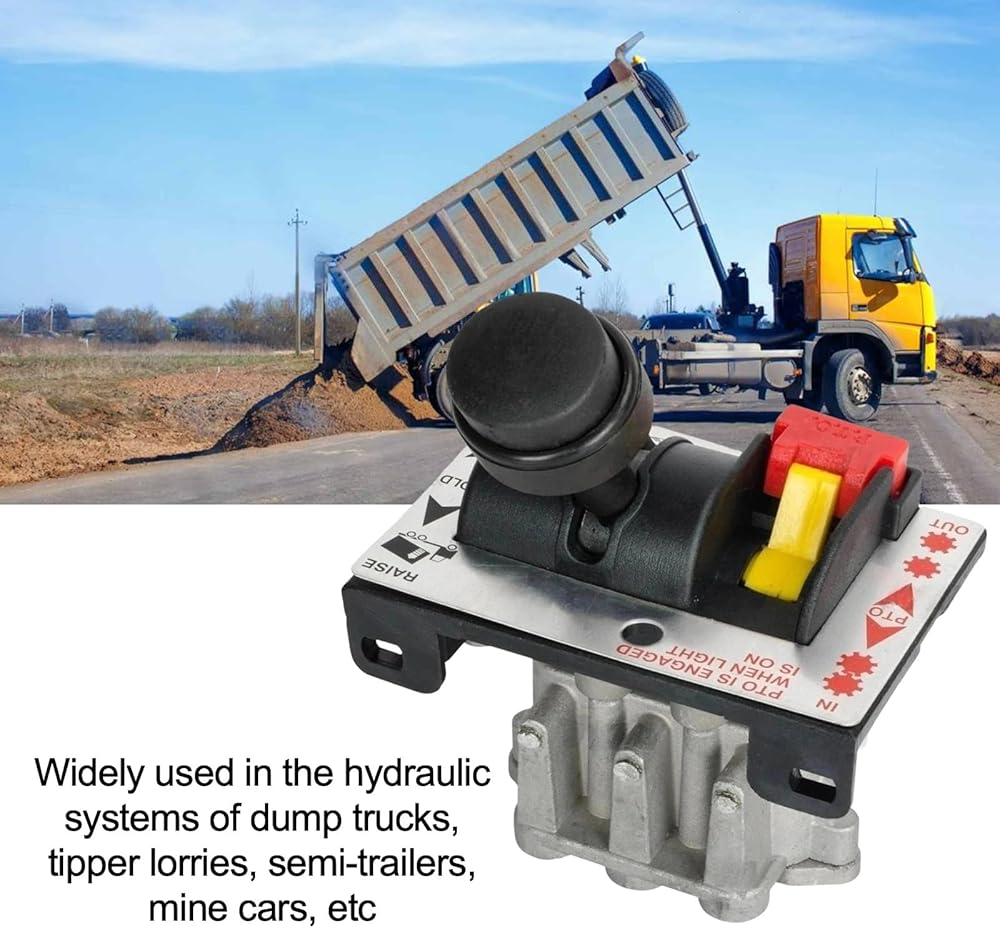

PTO switch proportional control valve widely used in the hydraulic systems of dump trucks, tipper lorries, semi-trailers, mine cars, etc
Instructions for Use
To be installed in the driver's cab, this control valve works in conjunction with the oil cylinder to control the movement of the compartment through the proportional movement of the handle.
- When the handle is moved to the lifting position under normal air connections, the oil cylinder will automatically lift.
- When the handle is moved to the lowering position under normal air connections, the oil cylinder will automatically lower.
- When the handle is moved to the neutral position under normal air connections, the oil cylinder will automatically stop.
SPECIFICATION
Model: 6CV-D-N
Material: aluminum, plastic
Pressure: 0.06-0.12 MPA
Temperature: -40℃-+80℃
PACKAGE
1 x Proportional Control Valve with PTO Switch
