Current Sensors
Features:
1. Basic function When the perforation current exceeds the set value, the output switch action will automatically reset when the perforation current is less than the set value
2. The maximum monitoring current range is 30A; the monitoring threshold is adjustable from 0.2 to 30A.
3. The lag is less than 1%. Can be used in strong magnetic environment.
4. Non-contact electronic switch, fast response, unlimited switching times.
5. Mutual inductance current monitoring, input and output safety isolation, self-powered
6. The shell is made of environmentally friendly flame retardant PC material.
Product parameters:
Optional models: M3050 normally open, M3056 normally closed (0.2A-30A), M3060 normally open, M3066 normally closed (0.2A-50A), M3070 normally open, M3076 normally closed (0.2A-100A), M3080 normally open, M3086 normally closed (0.2A-200A)
Range: AC 0.2-30A
Contact capacity: AC/DC 0.3A-240V
Diameter of perforation line: 10mm
Maximum leakage value: 0.1MA
Maximum overload capacity: 100%
Working temperature: -20-55
Lag: less than 1%
Packing list:
Type A: M3050 normally open current sensing switch*1
Type B: M3056 normally closed current sensing switch*1
Type C: M3060 normally open current sensing switch*1
Type D: M3066 normally closed current sensing switch*1

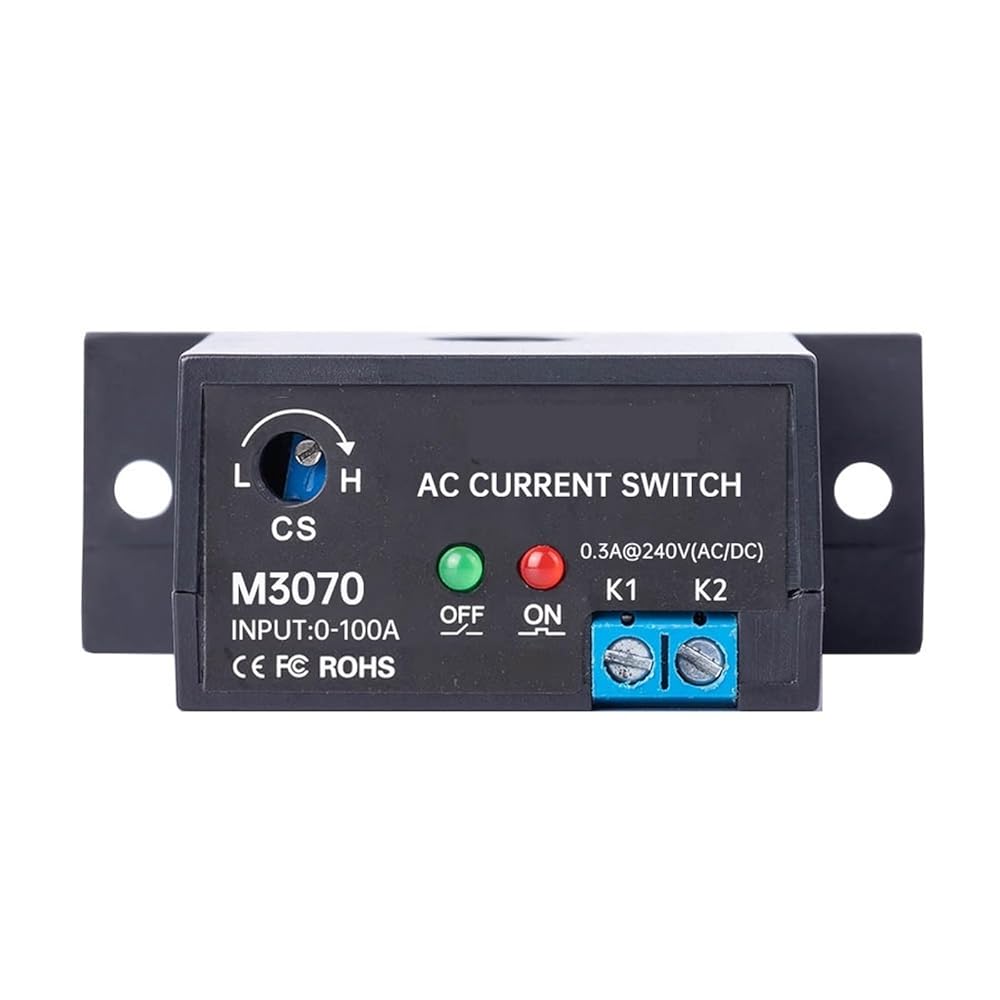

Type E: M3070 normally open current sensing switch *1
Type F: M3076 normally closed current sensing switch*1
Type G: M3080 normally open current sensing switch*1
Type H: M3086 normally closed current sensing switch*1
==========
Quantity : 1
Dissipation Power : Current Detection Switch
Supply Voltage : Current Detection Switch
Type : SWITCH
Operating Temperature : 0-50C
