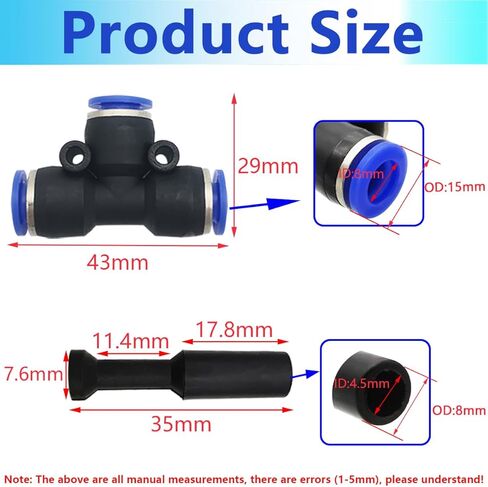

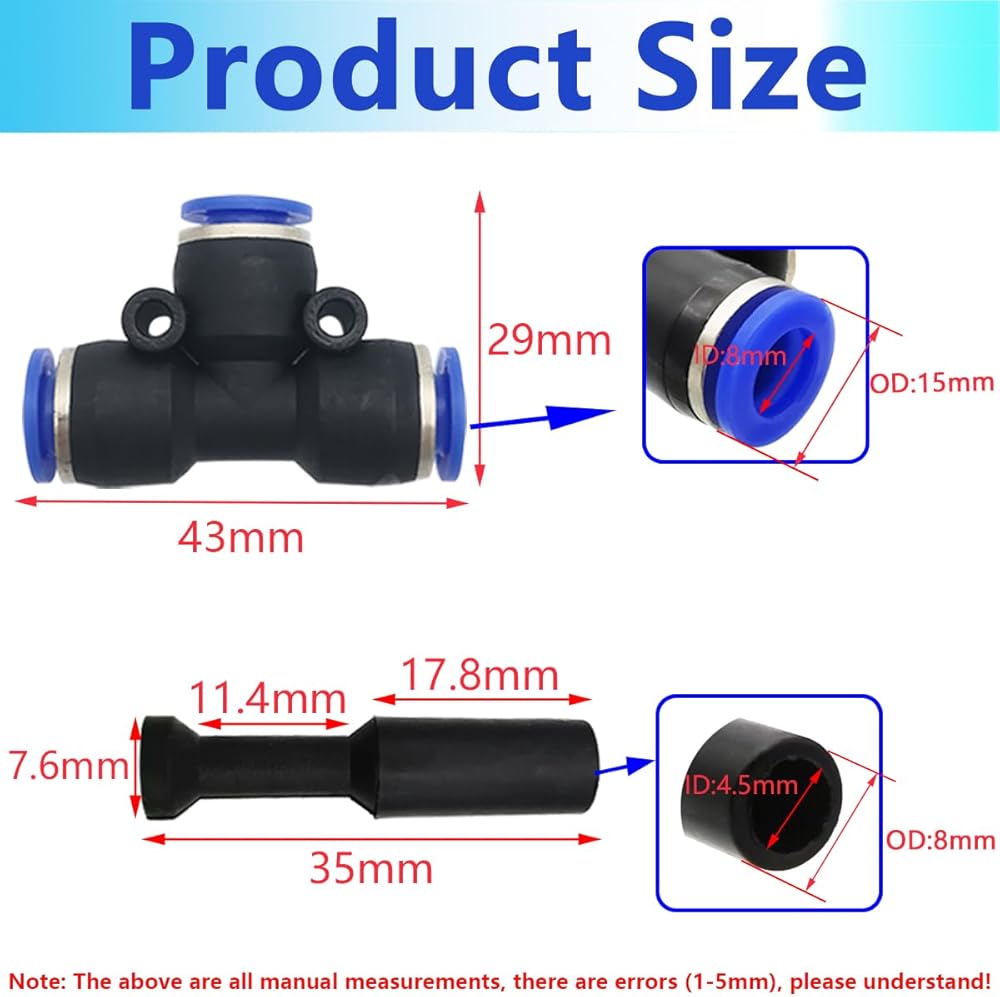

Product Parameters:
Connector ID: 8mm
Choke plug OD: 8mm
Working Pressure: 0-1.0MPa | 0-150psi
Applicable outer diameter 8mm Tubing: PU / PA / PE / PVC
Proof Pressure: 3.0Mpa | 435psi
Sealing O-ring: NBR
Lock Claw: Stainless Steel (SUS)
Body Material: Plastic (PET)
Working Temperature: 0-60°C | 32～140°F
Negative Pressure: -100Kpa | -29.5 InHg

Features:
♦Material: Constructed from premium PET, this push-in plugs offer exceptional resistance to deformation, cracking.
♦Tool-Free Installation: Simply push tubing in to connect and press release ring to disconnect, saving time and labor.
♦Flexibility: Equipped with mounting holes, you can flexibly choose the installation method according to the environment.
♦Compatibility: Suitable for PU, PA, PE and PVC tubing, adaptable to diverse pneumatic system requirements.

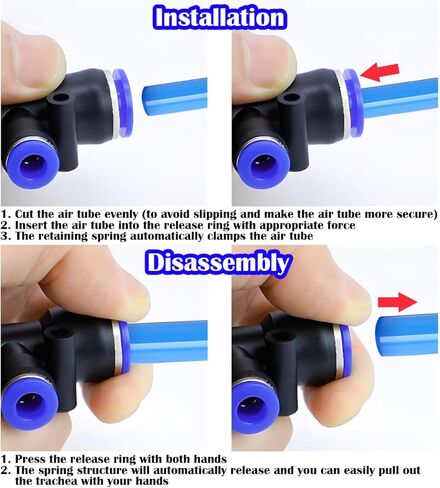

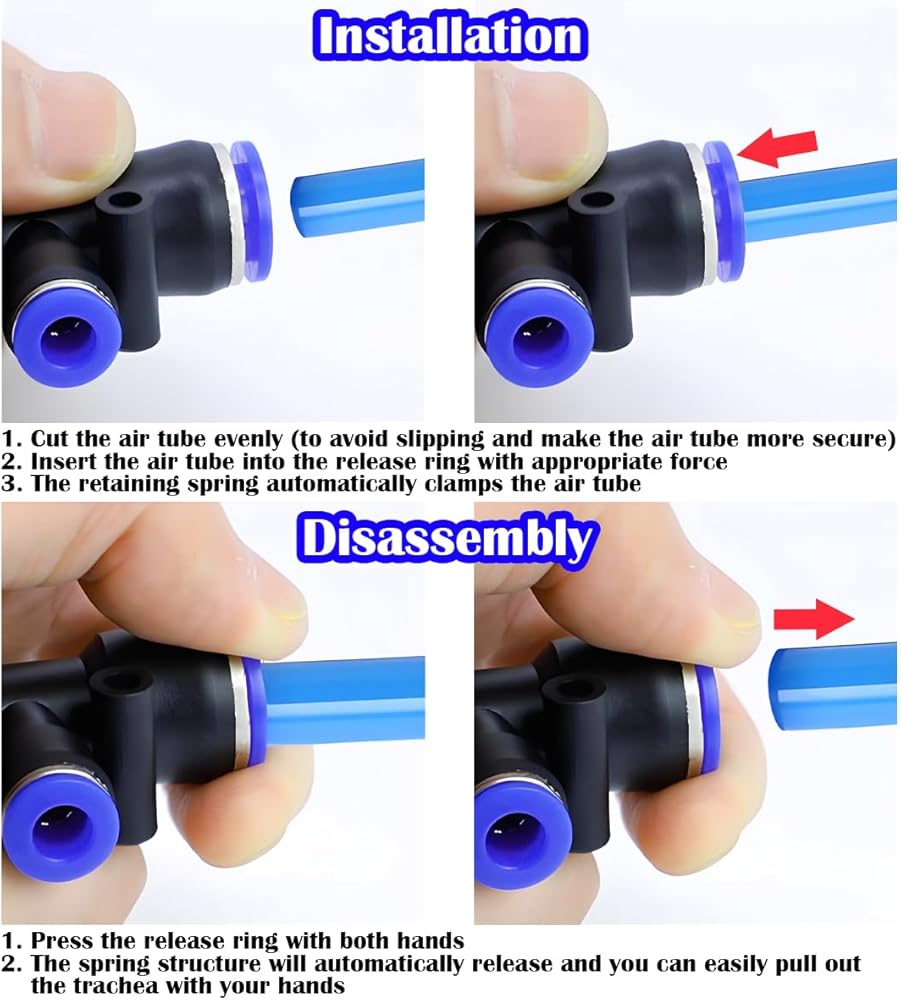

Note:
(1) Make sure that the cut surface of the pipe is vertical, that there are no scars on the outer circumference of the pipe.
(2) When inserting the pipe, be sure to insert it to the bottom of the joint. If the pipe is not inserted to the bottom, it may cause air leakage.
(3) After the pipe is inserted, can pull the pipe to confirm that it cannot be pulled out.

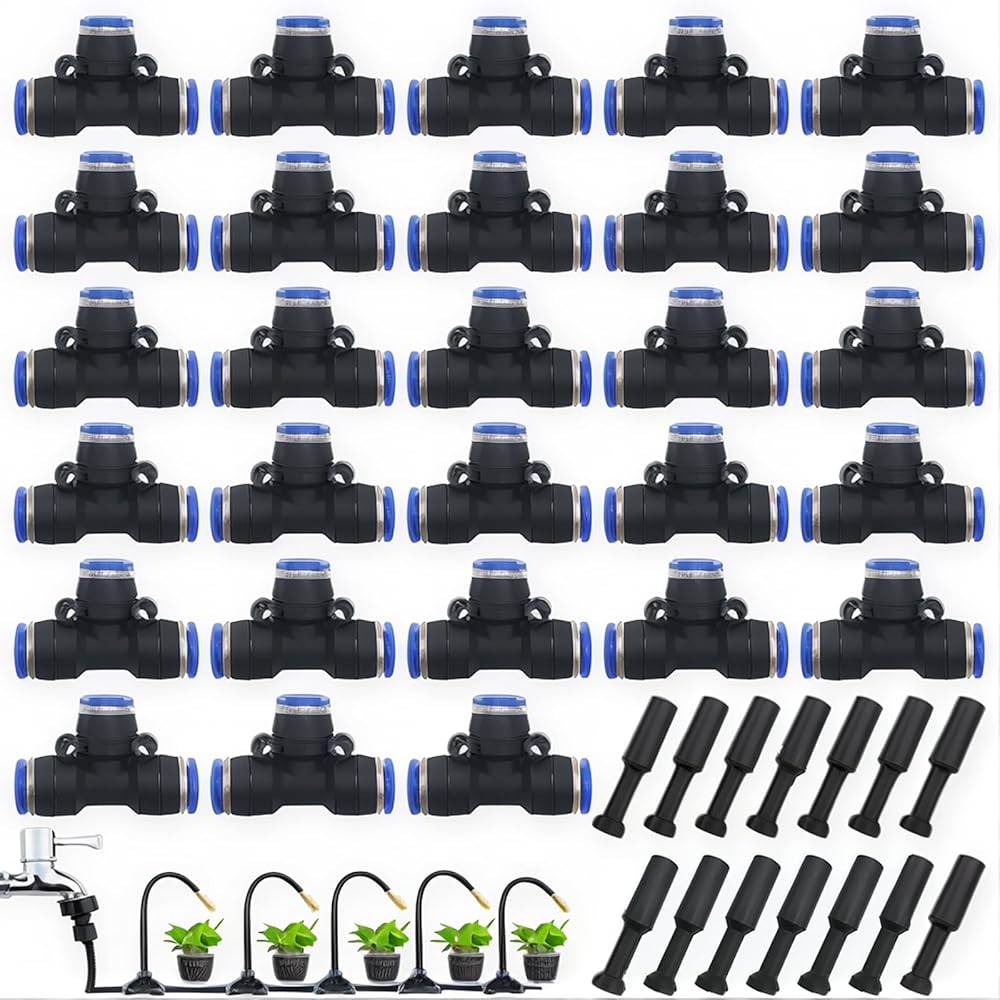

Packaging includes:
28 pcs * T-shape quick connect fittings(ID: 8mm)
14 pcs * flow blocking head(OD: 8mm)

Warranty:
If any product may be defective, please contact us first.
Our professional customer service team is always ready to solve your after-sales problems.
