Sensors

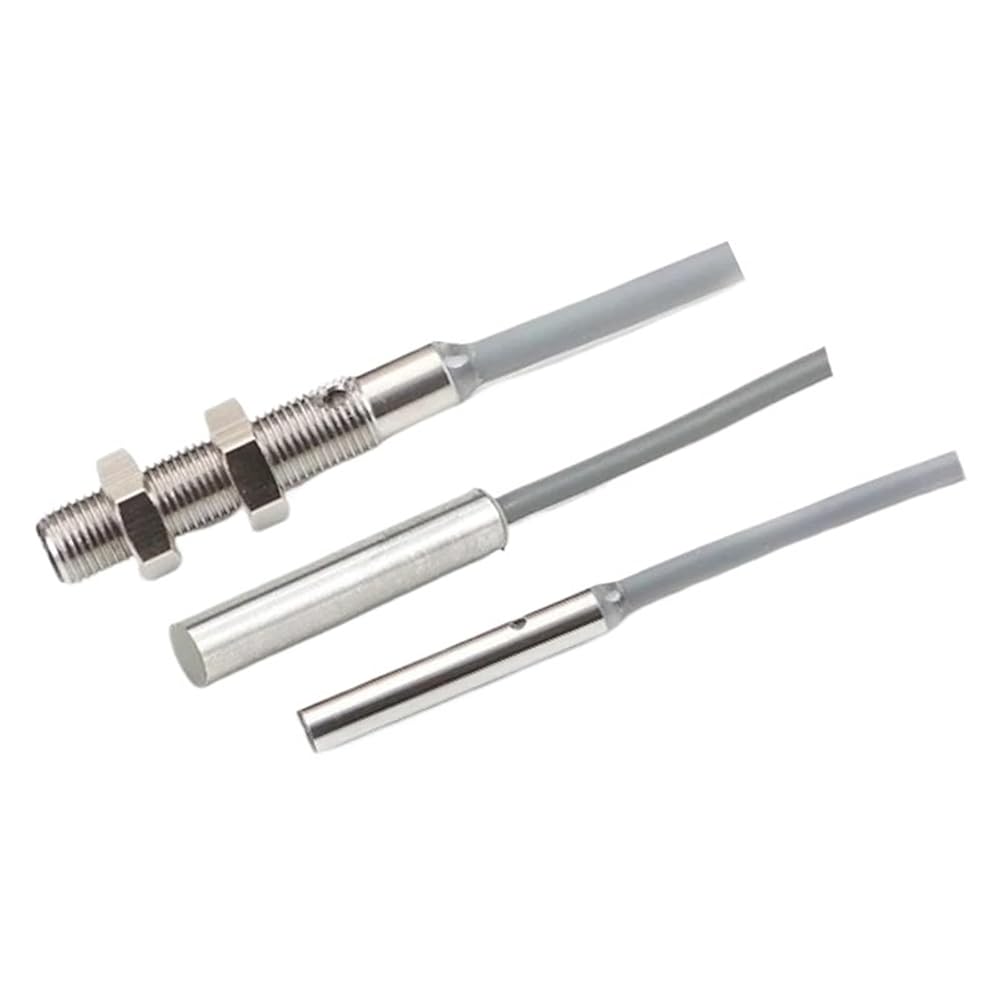

DC D4 Proximity Sensor
Size
D4*0.5*25mm
Mounting
shielded
Distance Sn(mm)
0.8mm/1mm
Housing Material
Stainless steel
With or Without LED
Without LED
Operating Voltage
6-12VDC
Ripple
-
No Load Current
Switching Frequency
1.5KHz
Response Time
0.1ms
Switching Hysteresis
Repeat Accuracy
3%(Sr)
Protection Category
IP67
Operating Temperature
-25°C - +70°C
Temperature Drift
10%(Sr)
Short Circuit Protection
-
Overload Trip Point
-
The time of Delay start
EMC
RFI>3V/M / EFT>1KV / ESD>4KV(contact)
Shock/Vibration
IEC 60947-5-2,Part 7.4.1 / IEC 60947-5-2,Part 7.4.2
Material Active Face
PA66
Connection
D2.5 2*0.14 PVC 2M
NAMUR
SL-I1S04*NA
DC M5 NAMUR Proximity Sensor
Size
M5*0.5*25mm
Mounting
shielded
Sensing Distance Sn(mm)
0.8mm/1mm
Housing Material
Stainless steel
With or Without LED
without LED
Operating Voltage
6-12VDC
Ripple
-
No Load Current
Switching Frequency
1.5KHz
Response Time
0.1ms
Switching Hysteresis
Repeat Accuracy
3%(Sr)
Protection Category
IP67
Operating Temperature
-25°C - +70°C
Temperature Drift
10%(Sr)
Short Circuit Protection
-
Overload Trip Point
-
The time of Delay start
EMC
RFI>3V/M / EFT>1KV / ESD>4KV(contact)
Shock/Vibration
IEC 60947-5-2,Part 7.4.1 / IEC 60947-5-2,Part 7.4.2
Material Active Face
PA66
Connection
D2.5 2*0.14 PVC 2M
NAMUR
SL-I1S05*NA
DC D6.5 NAMUR Proximity Sensor
Size
D6.5*0.5*25mm
Mounting
shielded
Distance Sn(mm)
1mm/2mm
Housing Material
Stainless steel
With or Without LED
Without LED
Operating Voltage
6-12VDC
Ripple
-
No Load Current
Switching Frequency
100/70Hz
Response Time
2ms
Switching Hysteresis
Repeat Accuracy
3%(Sr)
Protection Category
IP67
Operating Temperature
-25°C - +70°C
Temperature Drift
10%(Sr)
Short Circuit Protection
-
Overload Trip Point
-
The time of Delay start
EMC
RFI>3V/M / EFT>1KV / ESD>4KV(contact)
Shock/Vibration
IEC 60947-5-2,Part 7.4.1 / IEC 60947-5-2,Part 7.4.2
Material Active Face
PA66
Connection
D2.5 2*0.14 PVC 2M
SL-I1S06*NA
==========
Theory : Inductance Sensor
Material : Metal
Output : Switching Transducer
Use : Position Sensor
