مميزات خاصة
360° Full Surround Coverage：Mid-360S improve the horizontal FOV to 360° and the vertical FOV to 59°. The omnidirectional ultra-large FOV coverage provided by the Mid-360S LiDAR helps mobile robots accurately perceive their surroundings in all directions. This provides the basis on which mobile robots can formulate plans and make decisions.
Smaller and Lighter：BThe miniature Mid-360S unlocks a new world of possibility in robot design. For the first time 3D LiDAR can be seamlessly integrated without compromise.
Greater Performance with Reduced Blind Spot.
Short minimum detection range of 10cm：The Mid-360S can detect objects as close as 10 cm. Its compact size makes it easy to mount and eliminate blind spots.
Active anti-interference ：Reliable performance without disruption from multiple lidar signals, even in indoor environments.
Light or Dark：Unaffected by bright or low-light environments. The Mid-360S offers consistently excellent performance, detecting 80% reflective objects at a distance of up to 70m.
وصف

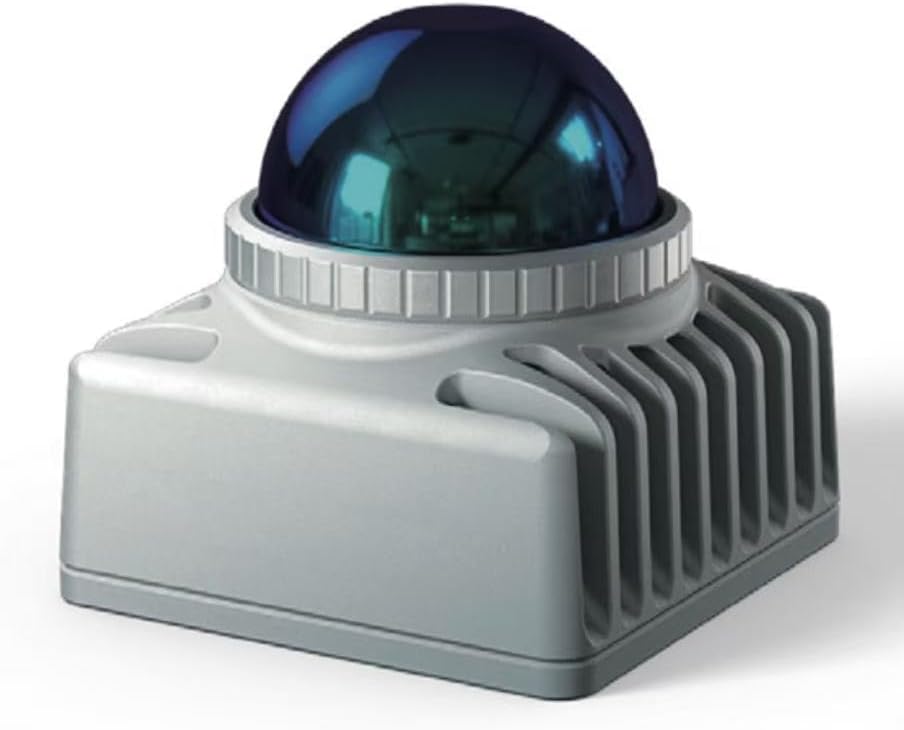

MID-360S is the latest generation of Livox LiDAR for low speed robotics.
Weight:265g ;
Size: 65mm L*65mm W *60mm H.
Wavelength: 905 nm
Close Proximity Blind Zone2 is 0.1m
Frame Rate: 10 Hz (typical)
Point Rate: 200,000 points/s (first return)；
Data Port: 100 BASE-TX Ethernet；
Data synchronization: IEEE 1588-2008 (PTPV2), GPS
Anti-Interference Function is Available
IMU: Built-in IMU Model: ICM40609
IP Rating: IP67
Power Supply Voltage Range: 9 ~ 27 V
DC Target objects within 0.1 to 0.2 m from Mid-360 can be detected and point cloud data can be recorded.
