Description:

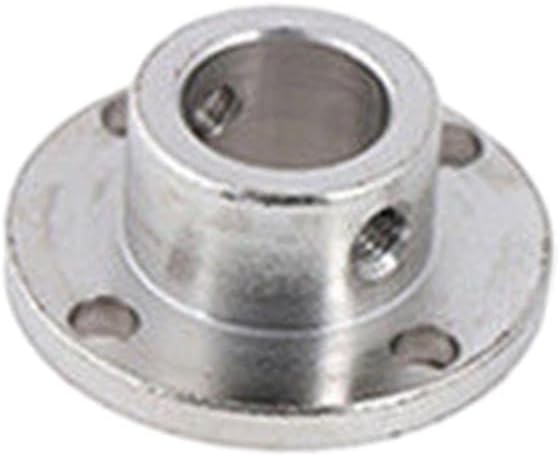

- 【Product Name】Flange Coupling Connector
- 【Function】Flange Shaft Coupling can fix a shaft to a flat surface and easily install other accessories on the shaft.
- 【 Material】Rigid Flange Coupling is made of iron material, which is reliable in quality, sturdy and .
- 【Package List】You will receive 1 Motors Guide Shaft Support Coupler.
- 【Premium】Flange Coupling, professionally manufactured, with stable performance and long service life.

Specification:

- Material: iron

Size Chart:

Optional:
Dimensions of inner diameter 2mm, 3mm, 3.17mm, 4mm, 5mm, 6mm: cylinder outer diameter 10mm, cylinder height 10mm, overall height 12mm, chassis diameter 22mm, distance between holes on opposite sides of base 16MM, fixing hole screws are
Dimensions for inner diameters of 7mm, 8mm, and 10mm:
cylinder outer diameter 16mm, cylinder height 10mm, overall height 13mm, chassis diameter 32mm, distance between holes on opposite sides of base 24MM, fixing hole screws are M4.
Dimensions of inner diameters 11mm, 12mm, and 14mm:
cylinder outer diameter 18mm, cylinder height 10mm, overall height 13mm, chassis diameter 32m, distance between holes on opposite sides of base 26MM, fixing hole screws are M4.

Package Includes:

1x Flange Coupling

Note:

Please allow slightly errors due to manual measurement and different monitors.
