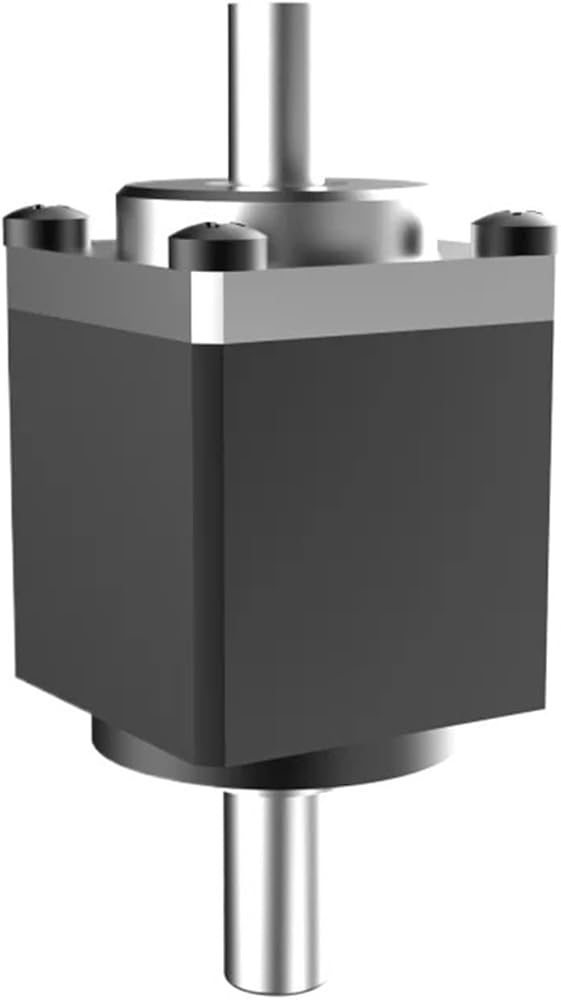

CSF-03-XX-1U-U محرك متناسق صغير عالي الدقة روبوت مشترك مصغر صغير الحجم (نسبة التخفيض 50) in Kuwait

نسبة التخفيض 100

KWD 192.500
ماركة
UEIHOCNIK
مقاسنسبة الحد من 100
– 1 +

مميزات خاصة

  • speed reducer
  • Gearboxes Gearheads & Speed Reducers
  • CSF-03-XX-1U-U Harmonic Drive Mini High-precision Robot Joint Harmonic Reducer Miniature Compact Reducer

وصف

speed reducer
Gearboxes Gearheads & Speed Reducers
Note Different product models have different appearance size and weight parameters
CSF-03-XX-1U
Shaft input shaft output type
Diameter: 13*13mm
Thickness: 31.5mm
Weight0.03kg
Reduction ratio: 30 50
Rated Tq when inputting 2000r/min: 0.06N.m 0.11N.m
Allowable peak Tq when starting and stopping: 0.13N.m 0.21N.m
Maximum allowable average load Tq: 0.1N.m 0.13N.m
Instantaneous allowable maximum Tq: 0.22N.m 0.41N.m
Backlash: 20 20
Allowable maximum input speed: 10000r/min
Allowable average input speed: 6500r/min
Moment of inertia (1/4GD)[kgcm2]: 5.3*10(-7)
