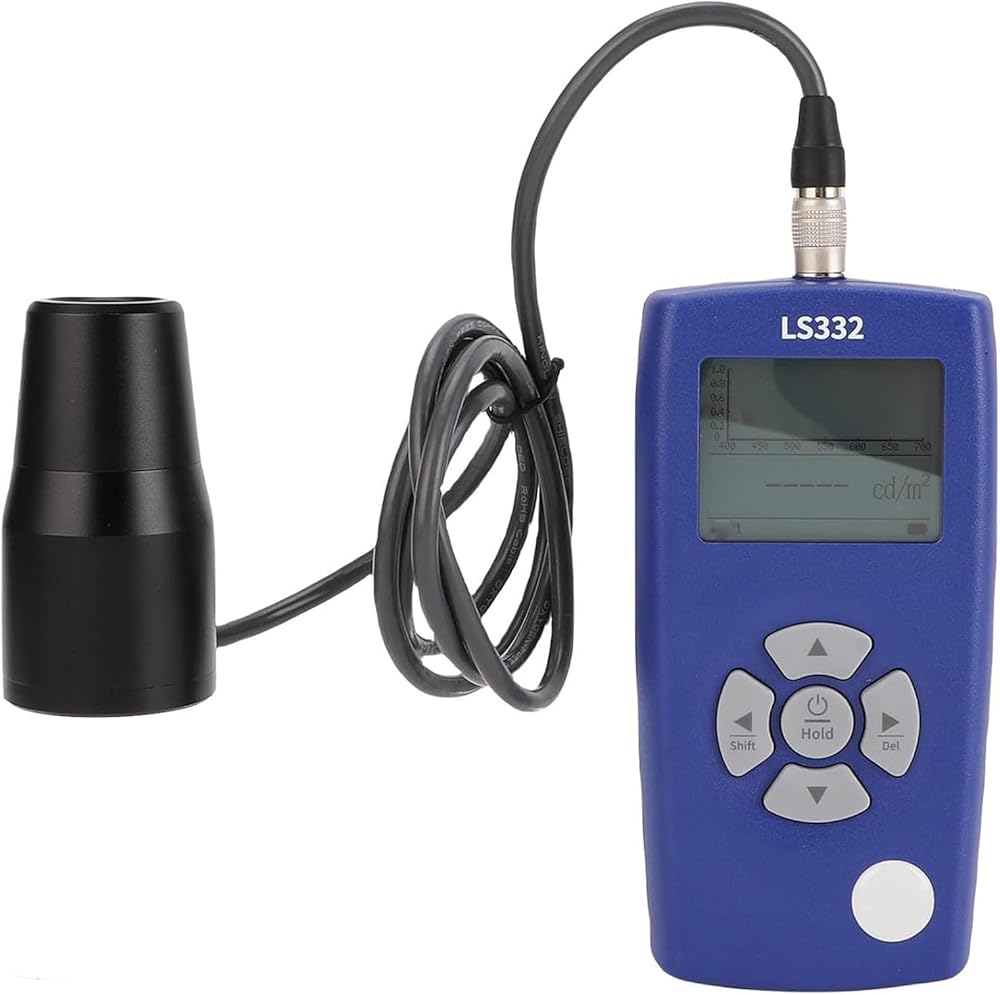

Digital Luminance Meter,: This brightness meter has an ultra wide range of 1 to 1000000 cd/m ², which can accurately measure low brightness night screens, ultra-high brightness HDR displays, and projectors. Its brightness accuracy is as high as ± (5%+2), and it has a high resolution of 0.01 cd/m ²
Multi purpose, comprehensive evaluation of display and lighting quality: In addition to brightness, it can also synchronously measure correlated color temperature (1000K-100000 K), color rendering index (0-100, accuracy ± 2), flicker frequency (10-500Hz), and fluctuation depth. Help you comprehensively evaluate the screen display effect, color reproduction ability of lighting fixtures, and eye health.
Accurate identification of light source type: The device is equipped with a high-precision spectral sensor, whose spectral response is completely consistent with the standard V (λ) function, ensuring measurement accuracy under different color temperature light sources. It can display spectral curves in real-time within the wavelength range of 400-700nm
Probe design and rich statistics: The product comes with two replaceable light tube probes, one with a diameter of 10mm or 20mm, allowing you to flexibly respond to measurement targets of different sizes, from mobile phone pixels to large TV screens. At the same time, the instrument interface can display real-time maximum, minimum, average, and current values
Portable, and user-friendly design: Equipped with a fire-resistant ABS shell and all aluminum alloy probe, it is sturdy . Equipped with high-definition LCD display screen and anti slip silicone buttons, the operation is clear and comfortable. Powered by two universal AA batteries, it is very easy to carry and conduct outdoor inspections
وصف
Specifications:
Name: Digital Luminance Meter
Color: Blue
Brightness Wavelength Range: 400nm-700nm
Brightness Wavelength Interval: 10nm
Brightness Measurement Distance: ≤1m
Brightness Measurement Range: 1-1,000,000 cd/m2
Brightness Resolution: 0.01 cd/m2
Brightness Measurement Accuracy: ≤±(5%H+2cd/m2)H (standard value)
Optional Units for Brightness: cd/m2, fL
Correlated Color Temperature Measurement Range: 1000-100,000 K
Correlated Color Temperature Measurement Accuracy: ±5%
Color Rendering Index (CRI) Measurement Range: 0-100
CRI Measurement Accuracy: ±2
Flicker Frequency Measurement Range: 10-500Hz
Flicker Frequency Measurement Distance: ≤0.1m
Flicker Frequency Measurement Accuracy: ±5%
Test Aperture Diameter: 10mm/20mm
Power Supply: 2*AA batteries (not included)
