Gas Tube Arrestors

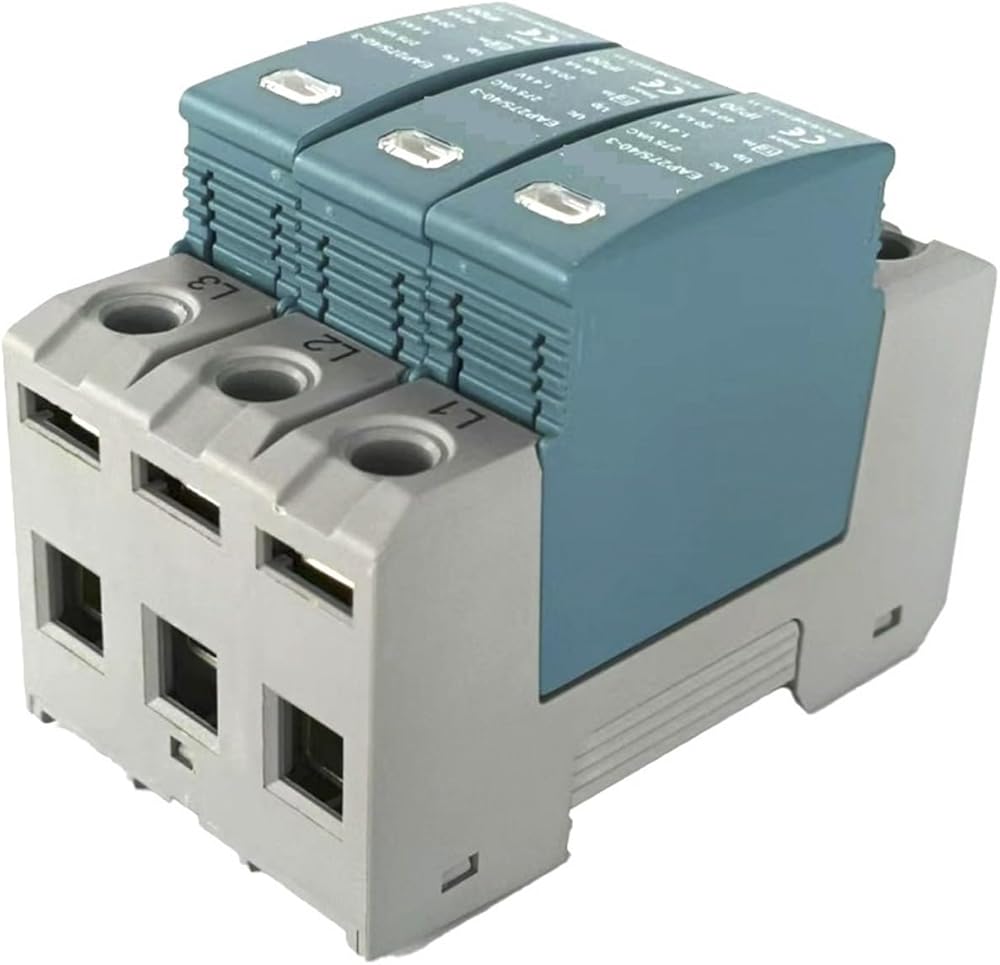

EAP Series Surge Protection Device was designed and manufactured, complyingstandard GB/T18802.1/EN61643-11 ,Rated voltage 275V~,320V~,385V~Maximum discharge current 40kA,High Energy Varistor, high effective for lightningprotection.
EAP series surge protective devices can be widely used in various fields, including homes, distribution boxes, switchgear, fire protection, photovoltaic systems, communications, data centers, gas stations, factories, communities, elevators, control cabinets, industrial applications, renewable energy, construction, and rail .
Feature
Pluggable module, easy for installation and maintenance
High Energy Varistor, Response Time Less Than 25 Nanosecond

COMMON DATA:
Operating Temperature Range(Ta):-40' to +158'F[-40' to +80C]
Permissible Operating Humidity(RH):5%...95%
Atmospheric pressure and altitude:80k Pa...106k Pa/-500m...2000m
Terminal Screw (Mmax):39.9 lbf-in [2.0~2.5-Nm]
Conductor Cross Section(max):2 AWG (Solid, Stranded) / 4 AWG (Flexible)
35mm' (Solid, Stranded)/25mm*(Flexible)
Mounting:35mm DIN Rail, EN 60715
Degree of Protection:IP20(built-in)
Housing Material:Thermoplastic: Extinguishing Degree UL 94 V-0
Operating State / Fault iIndication:Green: ok / Red: failure
Thermal Protection:yes
==========
High-concerned chemical : None
Type : Surge Protective Device
Type : Circuit breaker
Is Smart Device : No
