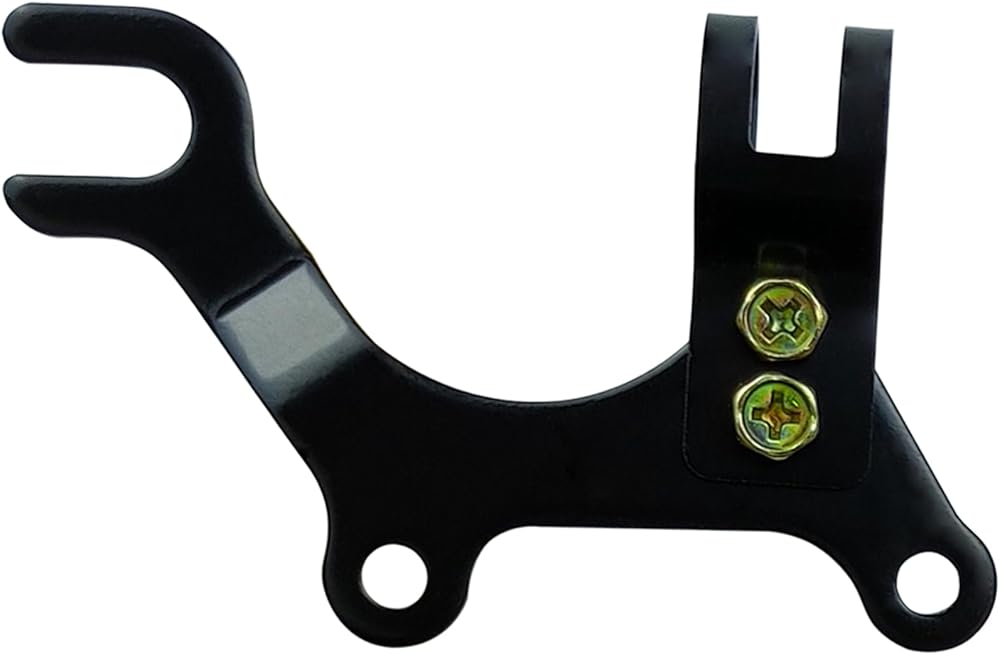

【Size】Fork Port: 10.5mm/0.41in, the fork port needs to be fixed on the hub axle. Iron Ring: 20mm/0.787in(Maximum 22mm/0.87in), the Iron ring needs to be fixed on the frame. Two small round holes: 6mm/0.236in, the spacing between the two holes is 51mm/2.01in, they need to be fixed on the position of the disc brake mount. Scope of application: Generally suitable for rear disc brake conversion.
【Specifications】Material: Metal. For MTB Type: Universal. Type: Disc Brake Bracket Frame Adaptor. Position: Rear Tires(Generally). Removable: Feel free to get creative with your bike brakes! Attention: Please note that this brake bracket adapter needs to be used with disc brakes and is only compatible with disc brake pad.

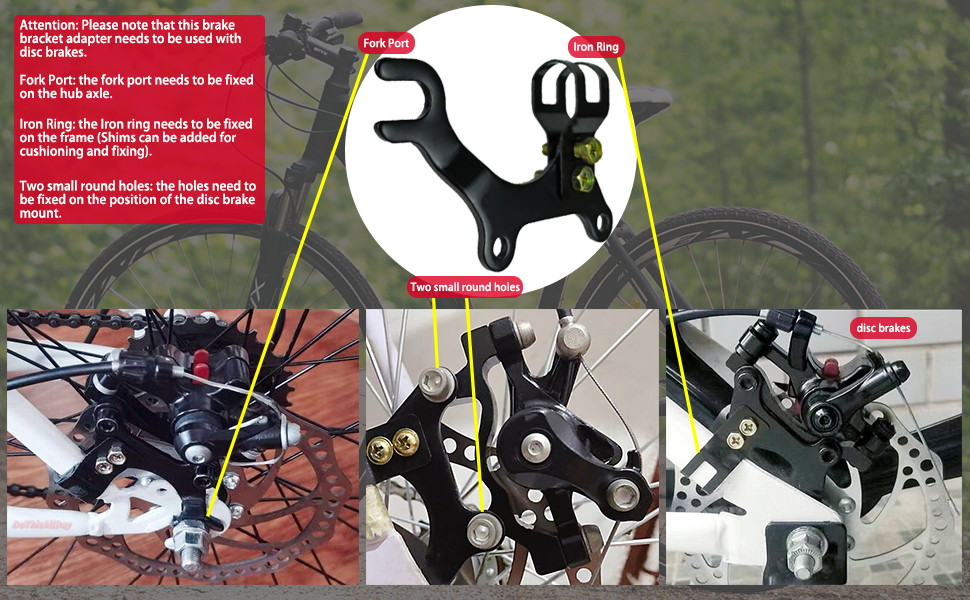

【Installation instructions】Fork Port: the fork port needs to be fixed on the hub axle. Iron Ring: the Iron ring needs to be fixed on the frame (Shims can be added for cushioning and fixing). Two small round holes: the holes need to be fixed on the position of the disc brake mount. Scope of application: the 22mm brake bracket adapter is generally suitable for rear disc brake conversion. Attention: please note that this brake bracket adapter needs to be used with disc brakes.
【Features】Help normal bikes to updated into disc brake bike. Suitable for most types of bike: mountain bikes(MTB), normal bicycles, etc. Pay attention: only compatible with disc brake pad.
