Features:
Brand New And High Quality Made Of Premium Stainless Steel And DieCast Aluminum Material , In Use Full Digital Calibration, No Potentiometer The Movable Lower Temperature Drift. Enhanced AntiJamming Design Suitable For A Variety Of Harsh Industrial With Ip 65 Level Waterproof And Excellent ExplosionProof Performance

Specification:
Measuring Medium: Liquid Or Gas (NonCorrosive To Stainless Steel)

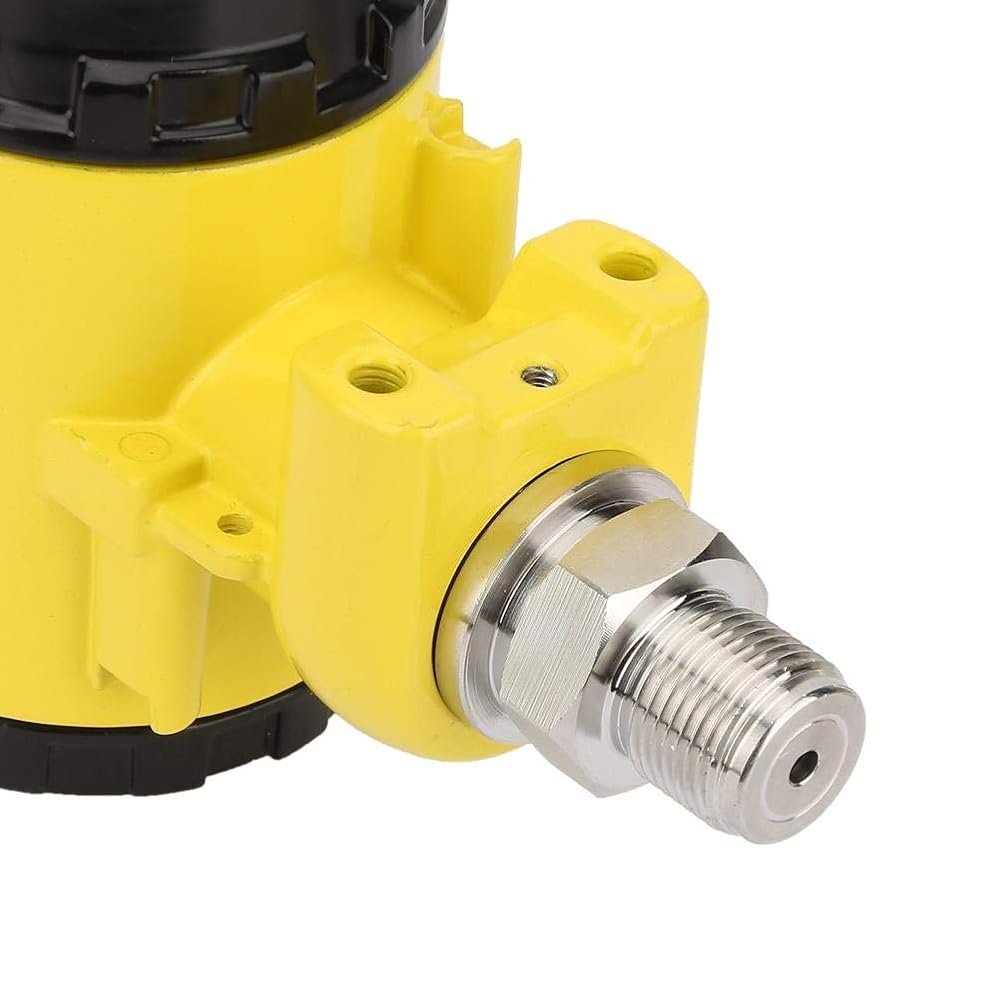

Overall Material: Diaphragm 316S Stainless Steel, Process Connection 304 Stainless Steel, Shell DieCast Aluminum
Pressure Range:0~60Kpa,0~100Kpa,0~0.6Mpa,0~1.0Mpa,0~1.6Mpa,0~2.5Mpa,
0~4.0Mpa,0~6.0Mpa(Optional)
Pressure Mode: Gauge Pressure, Absolute Pressure, Negative Pressure
Output Signal: 4~20Ma
Power Supply Voltage: 24Vdc
Accuracy Level: 0.25% Fs
Medium Temperature: 40 ~ 85℃
Ambient Temperature: 40 ~ 85℃
Seismic Performance: 25G (20.. 2000 Hz)
Overload Capacity: 200%Fs
Response Frequency:≤500Hz
Stability:±0.1%Fs/ Year
Soil Temperature Drift:±0.01%Fs/℃
Level: Ip65
Explosion Proof Grade: Exia Ii Ct6
Maximum Power: Current Type≤0.02Us(W) Voltage Type≤0.008Us(W) Digital Type 0.015Us(W)Note :Us= Supply Voltage
Weight: 840 G / 29.6 Oz(Approx.)
&Nbsp;
Package List:

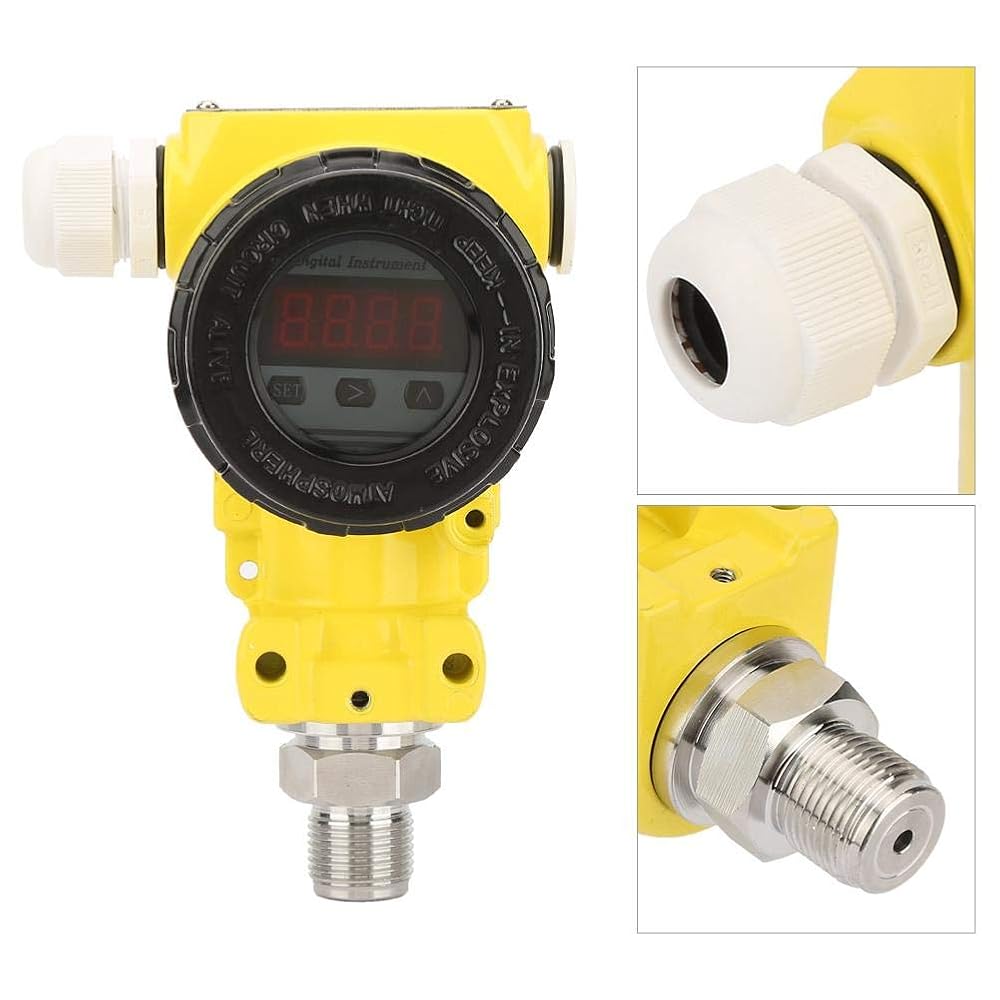

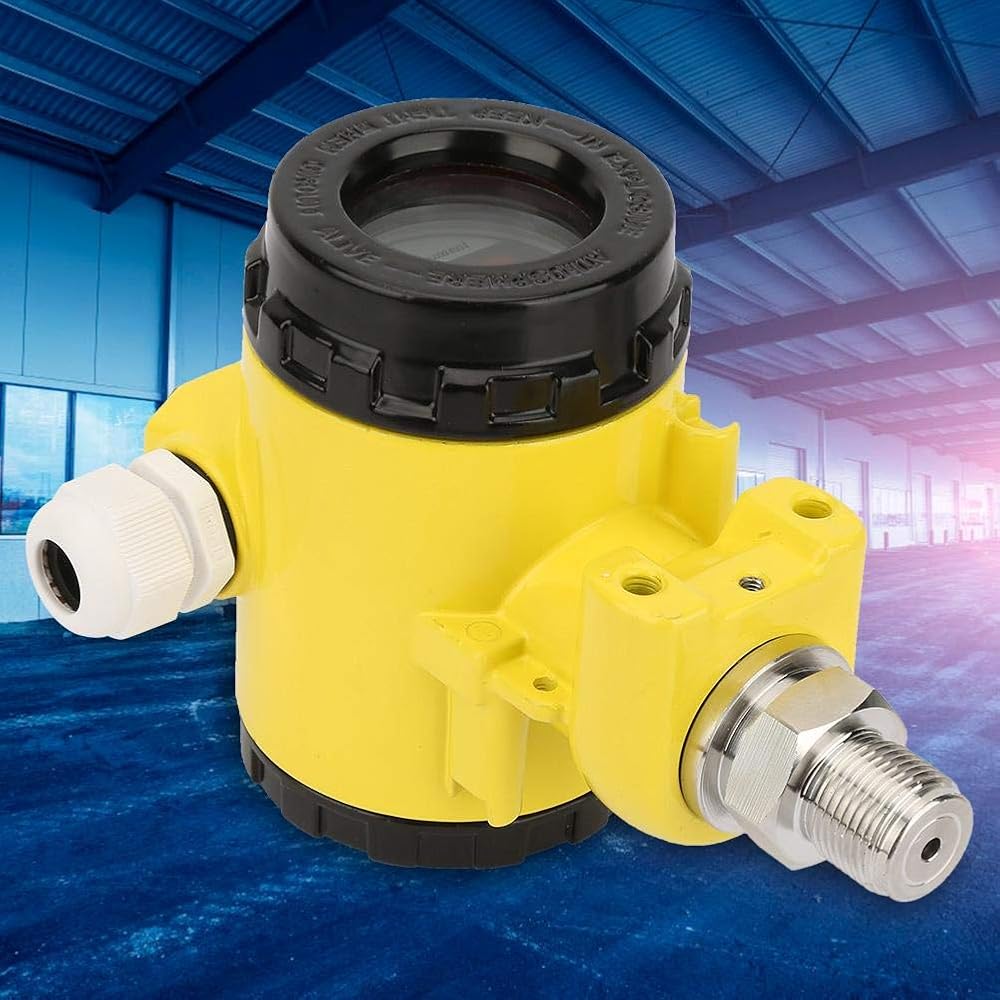

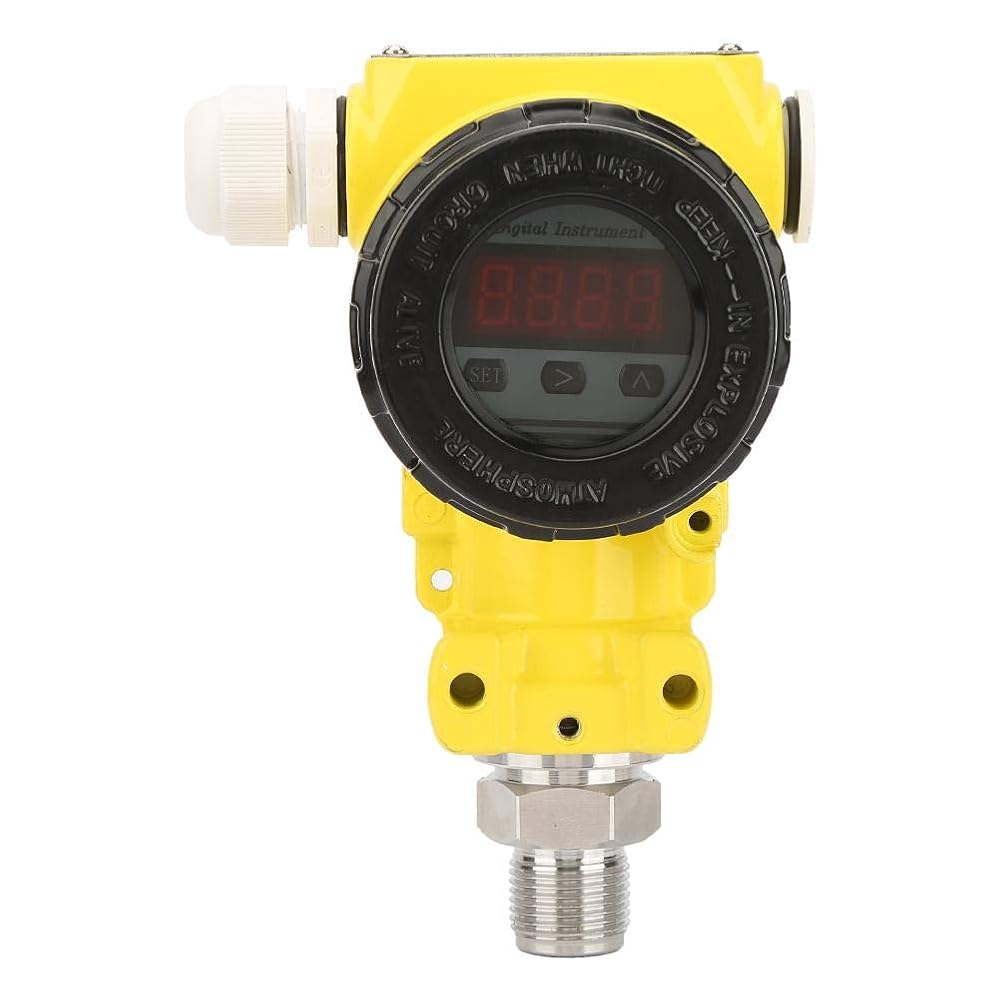

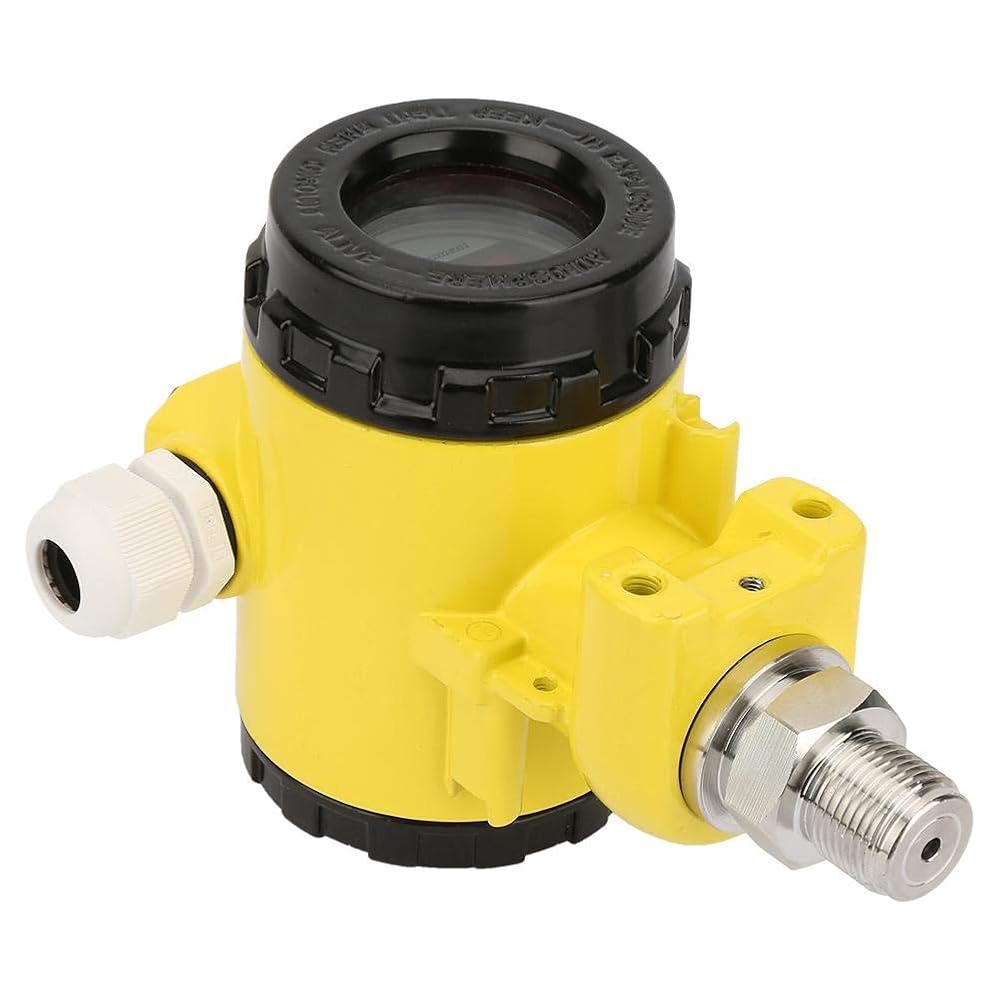

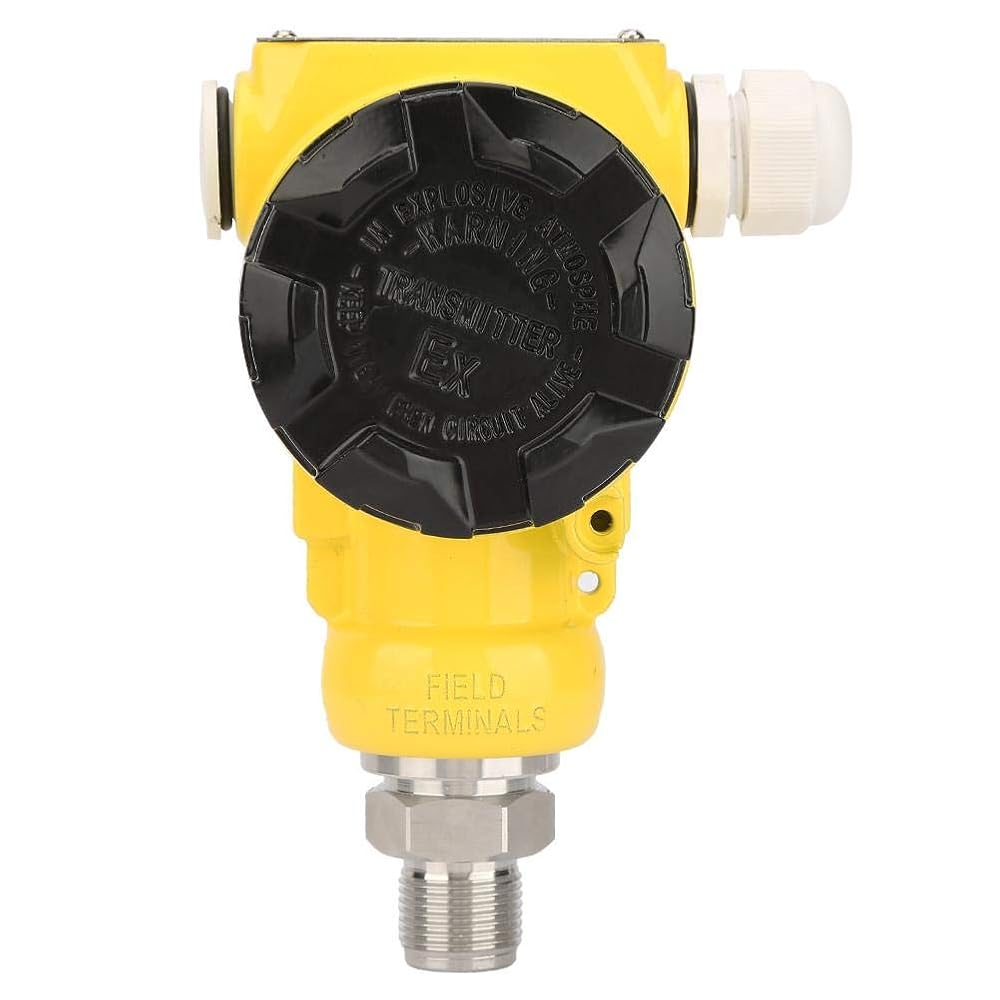

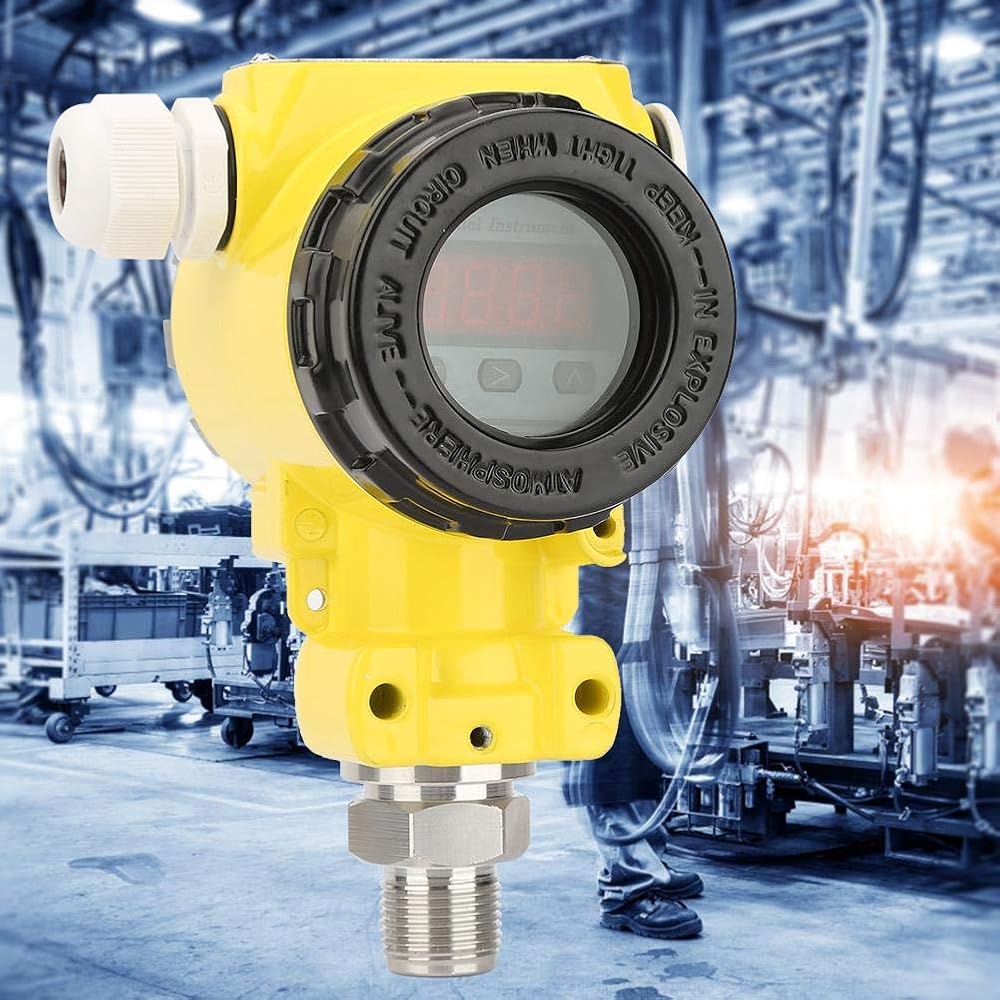

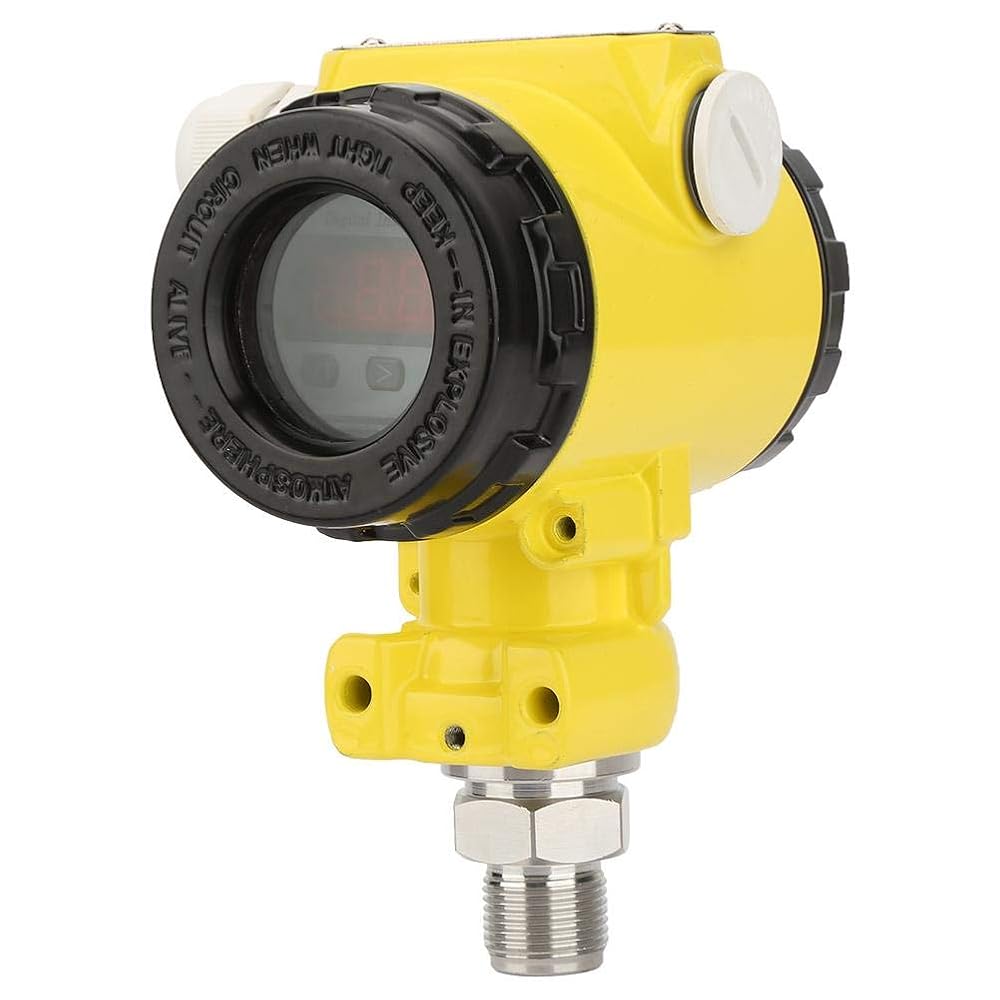

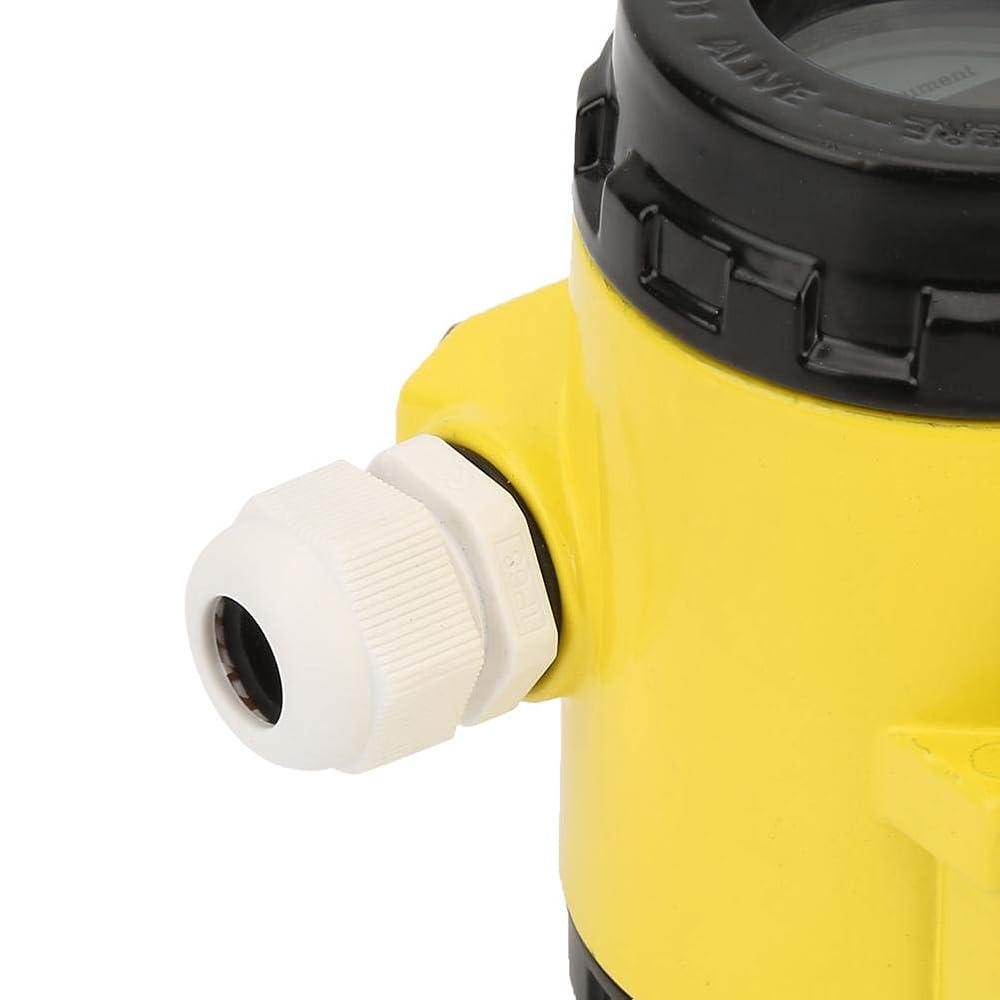

1 X ExplosionProof Pressure Transmitter
