Motor Model: R370
Material: Metal
Rated Voltage: 3.7V / 6V /12V DC
Rated Current: Less than or equal 800mA(3.7V) / Less than or equal 400mA(6V) / Less than or equal 200mA(12V)
Power: 2.4W
Type: Air Pump
Nozzle Size: 4.2mm
Pressure: Greater than or equal 60 KPa(450mmHg)
Flow Rate: 0.5 - 2.5L/min (LPM)
Noise: Less than 60db (30cm away)

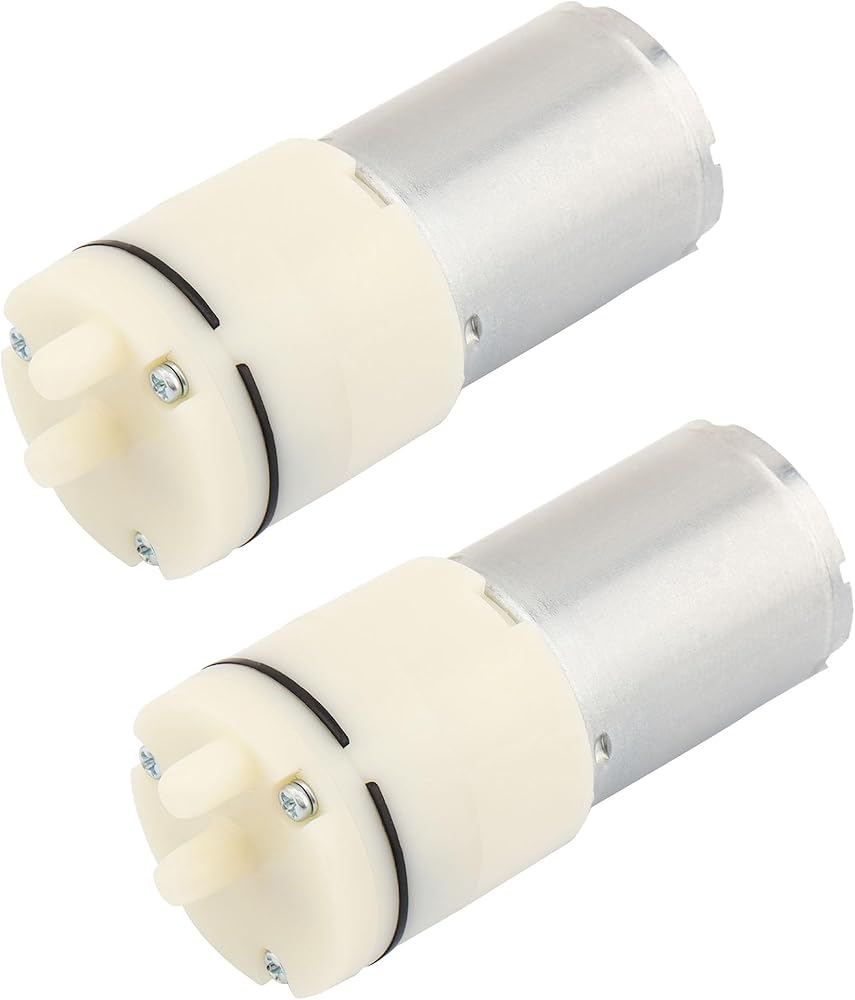

Product Name: Micro Vacuum Pump Motor
- This mini vacuum pump with high air , for good performance, which is easy to disassemble and assemble.
Inflation Time: Less than 10s (From 0 to 300mmHg in a 500cc tank)
Airtightness: Less than 3.0mmHg/min (from 300mmHg in a 500cc tank)
Test Life: Pumping 10 seconds,on 5 seconds for a cycle,test for 50,000 cycles ,the under performance range is within 15 percent
Service Life: If the air pump runs continuously for 24 hours, the service life is 200-500H, if the air pump is not continuously operated and used intermittently, the life of the air pump is extended
Note:
DO NOT Pump Flammable / Corrosive / High Viscous / Muddy Liquids!
Please note that if the pump is working, the outlet of the pump cannot be blocked!
This product uses DC DC voltage, so you need to choose the appropriate DC power supply to match the product voltage. If DC voltage power supplies such as batteries, chargers, and batteries need to use 220V household electricity, you need to select a matching power adapter to be converted and used.
