Buy 2PCS+ 10% OFF Ultrasonic Label sensor Clear label detection S-2300NP FC-2300 Suitable all labels. NPN+PNP Double Sheet Detection

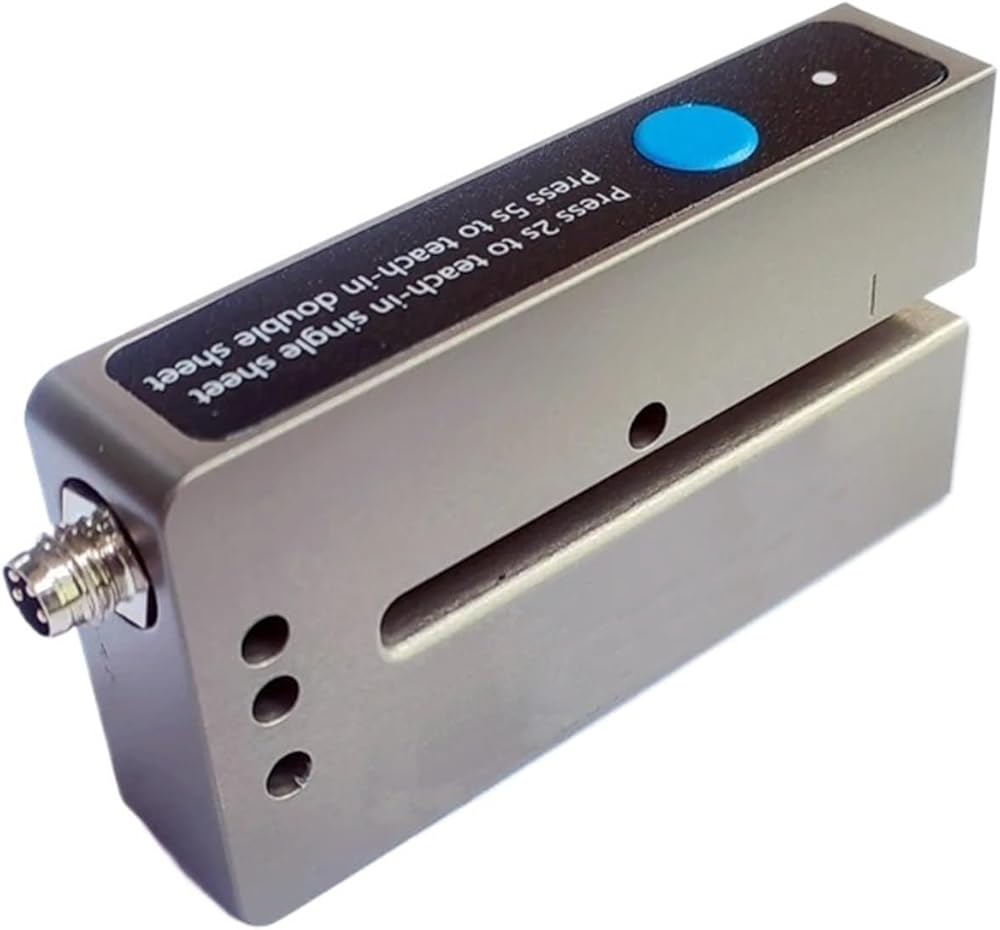

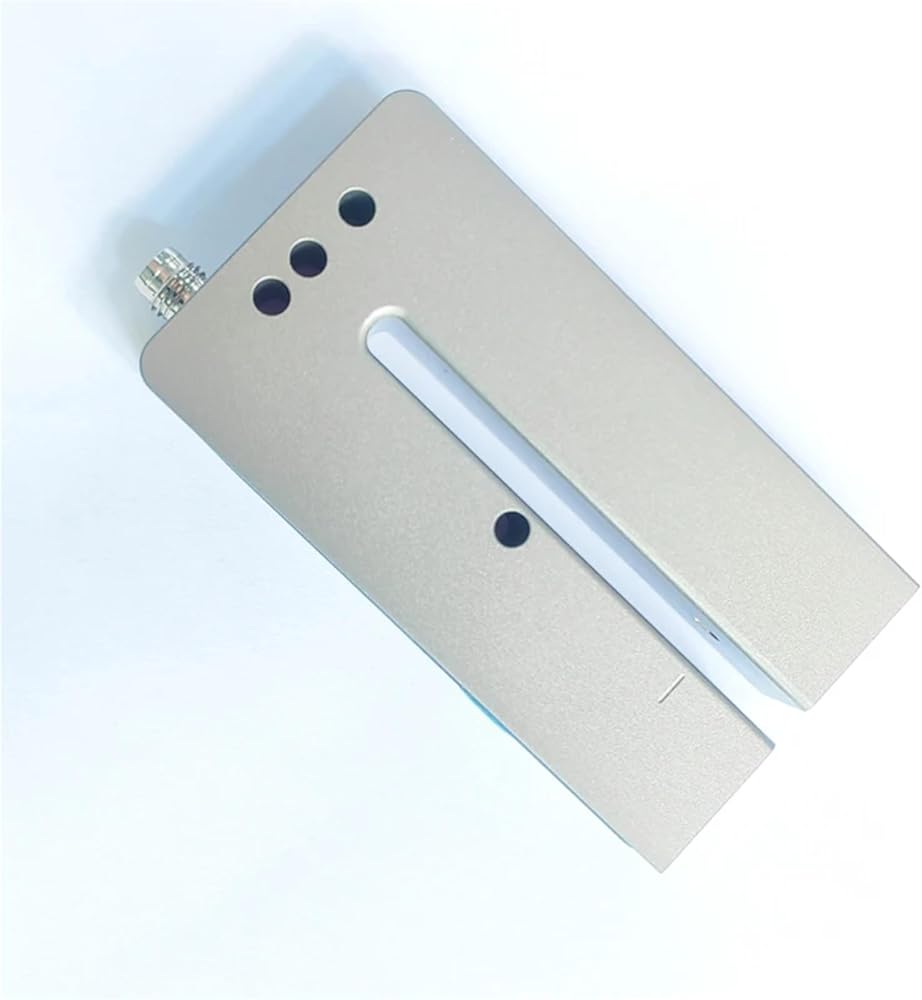

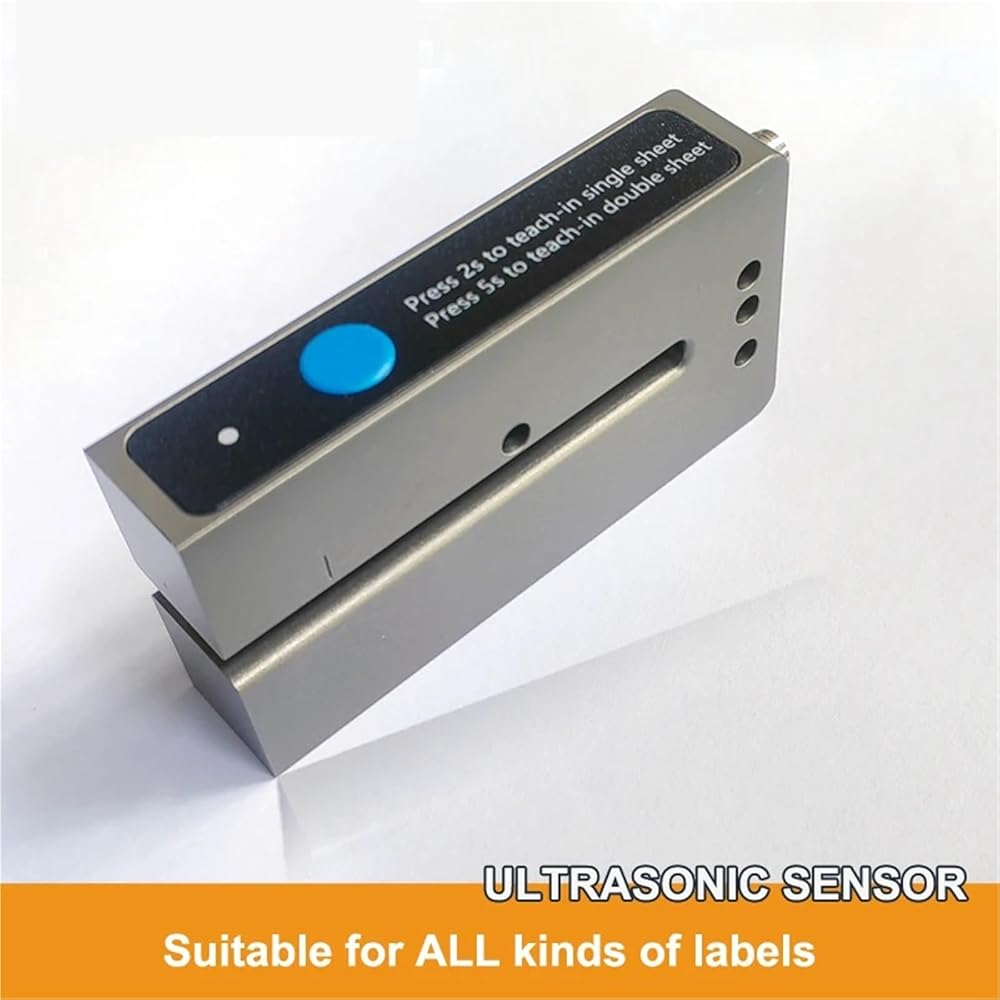

Ultrasonic Clear/Transparent Label Sensor S-2300 Series, not effected by
color, metallic, printing style, material ect. suitable for all

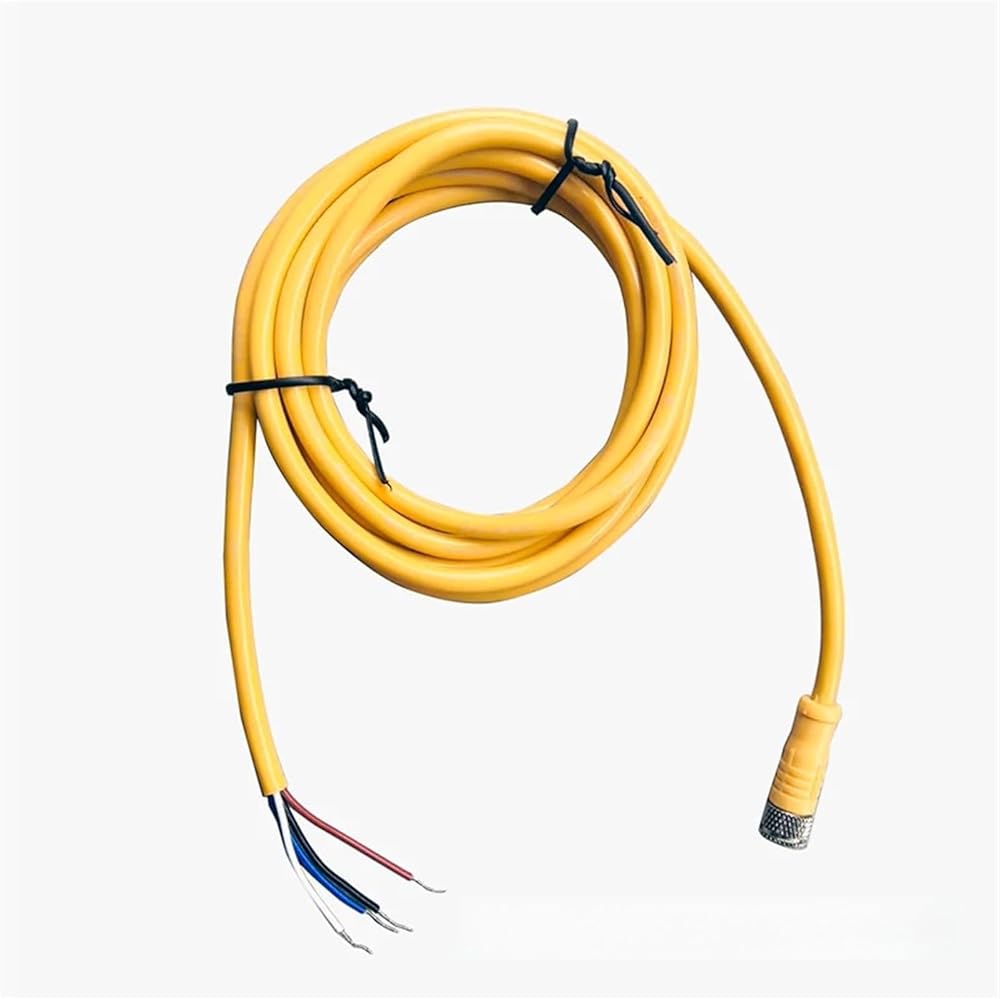

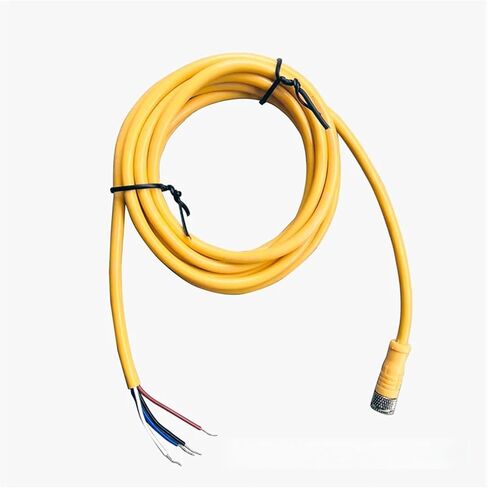

labeling machine, accurate sensing function, offering M8 connector type
with 2M femal cable.
Model
S-2300 series
Width
5mm
Label from
5mm
Label size
5mm
Power supply voltage
10..........30VDC
Power consumption
40mA
Ripple value
Switch output
PNP+NPN
Signal voltage

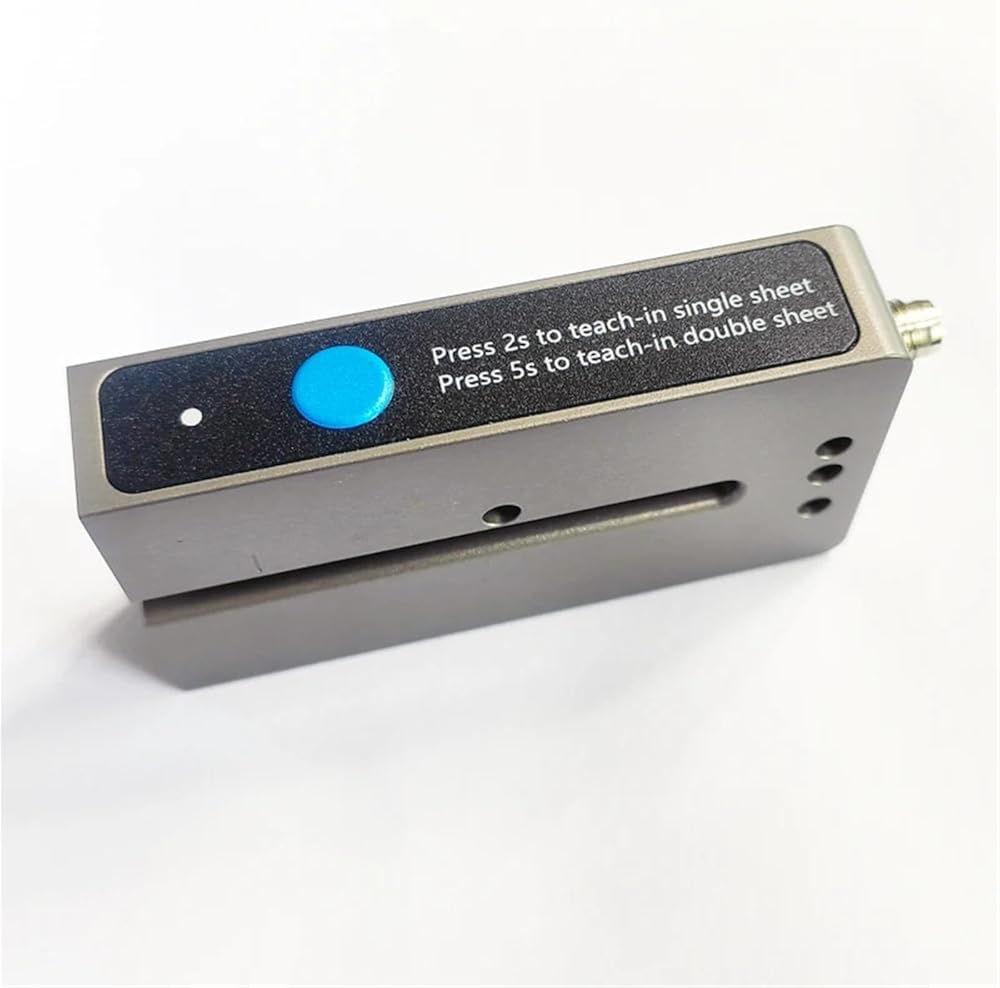

Ligh/Dark Action can be adjusted by button
PNP
NPN
Maximum output current
100mA
Capacity
100uF
Reaction time
250us
Initialization time
100ms
VDE protection class
III
protection class
ip65
Circuit Protection
B.C
Short-circuit protection
yes
Ambient temperature
operating:-5.....+55
storage:-30.....+70
Work
Ultrasonic inspection
Maximum wind speed environment
5m/sec

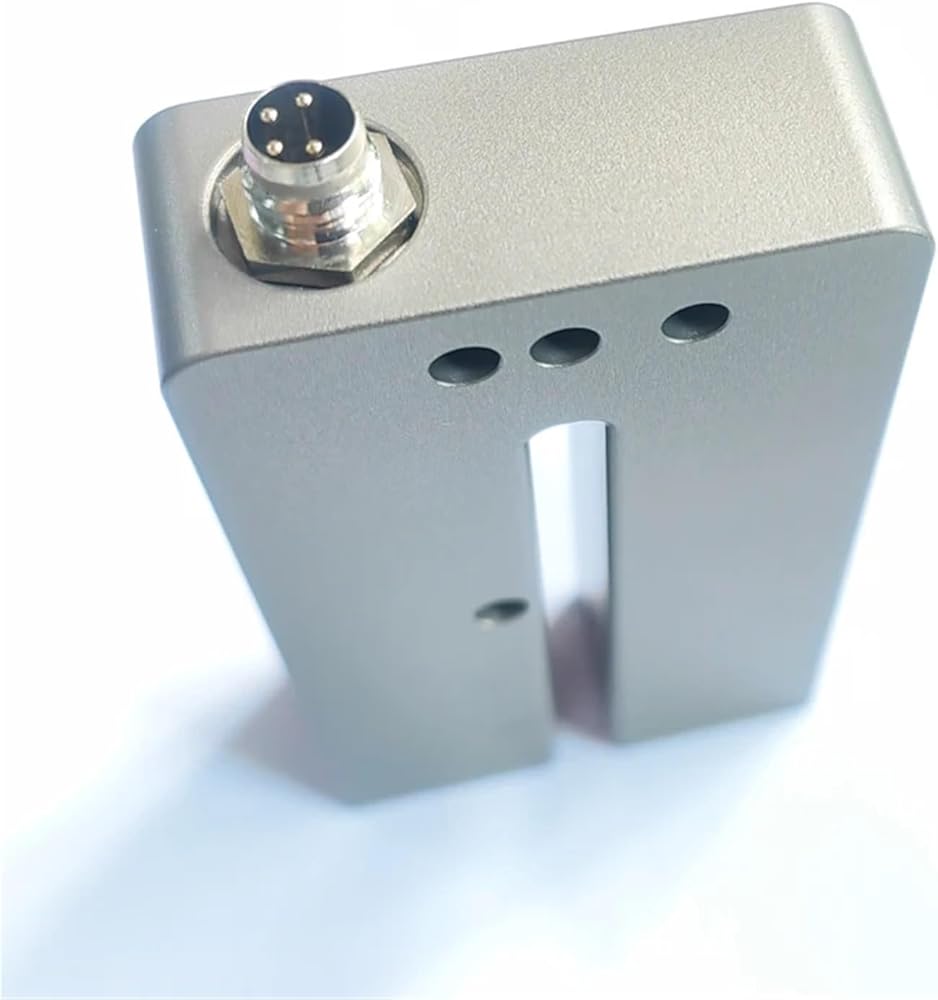

Connector Type
M8,4-pin
Options Adjustment
Long press
Shell Material
Aluminum
Weight
95g
==========
Theory : Ultrasonic Sensor
Material : Metal
Output : Switching Transducer
Use : Position Sensor
Outputs : NPN+PNP
Connection : M8-4pins
Detection Method : Ultrasonic label sensor
