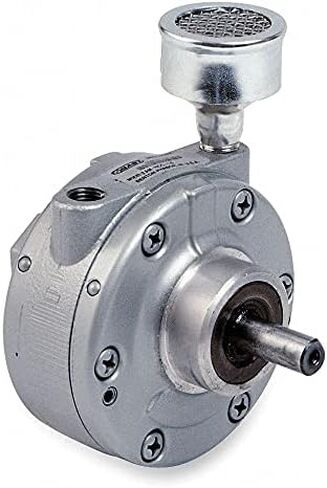

محرك هواء مثبت على المحور مقاس 4.94 بوصة × 4.16 بوصة × 5.75 بوصة من Gast مع قطر عمود 1/2 بوصة. وحجم منفذ NPT 1/4 بوصة - 2AM-NCC-96
مميزات خاصة
- Item:-Air Motor
- HP:-0.75
- Running Torque @ Max. Pressure:-19.5 in.-lb.
- Max. Air Flow:-30 cfm
- Max. RPM:-3000
وصف
Specifications:
Item:-Air Motor
HP:-0.75
Running Torque @ Max. Pressure:-19.5 in.-lb.
Max. Air Flow:-30 cfm
Max. RPM:-3000
Shaft Dia.:-1/2"
Shaft Length:-1.13"
Mounting:-Hub
Port Size:-1/4" NPT
Rotation:-CCW
Housing Material:-Cast Iron
Finish:-Gray Metallic
RPM @ Max. Torque:-300
Max. Air Pressure:-100 psi
Keyway Length:-1.00"
Overall Length:-4.94"
Overall Width:-4.16"
Overall Height:-5.75"
Operating Temp. Range:-0 Degrees to 250 Degrees F
Includes:-Muffler
UNSPSC:-27131508
