Inverter
Product Description:

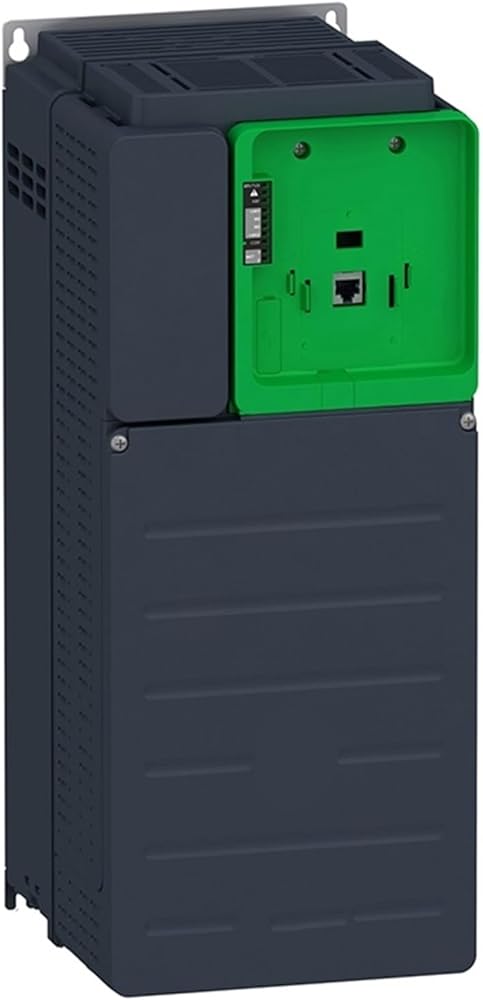

Product series: ATV ATV900
Product application: Industrial use
Product type: Frequency converter
Product application scenarios:
Asynchronous motor
machine
Application area: Process for industrial
Variable:
Brake unit
Standard version
Number of network phases: 3 phases
Installation type: cabinet mounted
Communication port protocol:
Modbus serial
Ethernet Modbus
Ethernet/IP
Rated power supply voltage [Us]: 380... 480 V -15... 10%
Motor power (kW):
15.0 kW applicable standard load
11.0 kW suitable for heavy loads
Motor power:
20.0 hp applicable standard load
15.0 hp suitable for heavy loads
Continuous output current:
31.7 A on... 4 kHz applicable standard load
23.5 A is suitable for overload at 4 kHz on
EMC filter:
Integrated
With EMC mounting plate option
IP protection level: IP21
Discrete input logic: 16 preset speeds
Asynchronous motor control configuration file:
Standard variable
Optimize mode
Standard constant
motor control configuration mode:
Permanent magnet motor
reluctance motor
Maximum output frequency: 599 Hz
Switching frequency:
2... 16 kHz adjustable
4... 16 kHz available
Rated switching frequency: 4 kHz
Line current:
27.0 A on... 380 V (standard load)
20.6 A on... 380 V (heavy load)
23.3 A on... 480 V (standard load)
18.1 A on... 480 V (heavy load)
Apparent power:
19.4 kVA on... 480 V (standard load)
15 kVA on... 480 V (heavy load)
Maximum transient current:
38 A at 60 s (standard load)
35.3 A at 60 s (overload)
Grid frequency: 50... 60 Hz
Expected line Isc: 50 kA
