مميزات خاصة

Rated voltage: DC6/12/24V; No-load speed: 6rpm/10rpm/18rpm/23rpm/30rpm/40rpm/66rpm/90rpm/150rpm; Rated torque: 0.2-26.5kg.cm; Rated Current: 0.6/0.6/0.2A
Motor Size:76.8x32x25mm;Shaft Diameter: 6mm ; Shaft Length: 15/14mm;Shaft Screw Thread Inner Diameter:3mm.

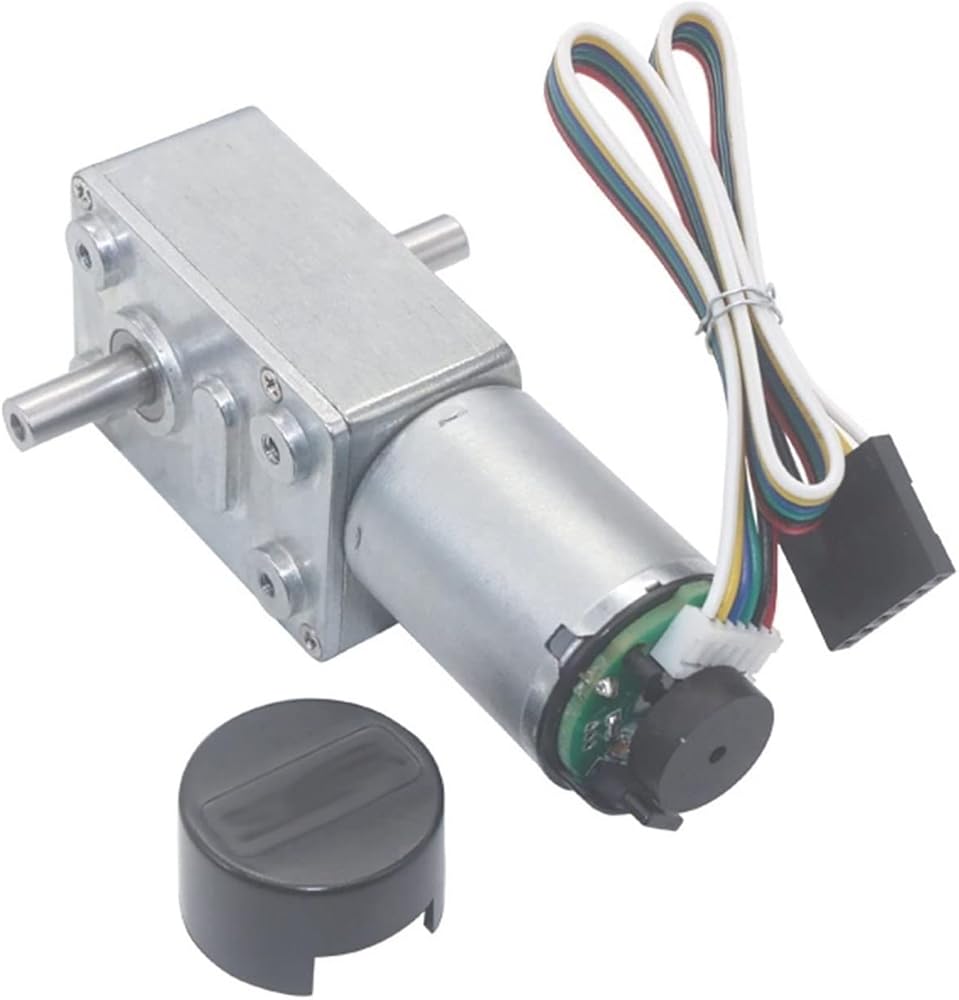

DC Gear Motor: This product is a DC gear motor with high precision metal gear, stable working.
Small size, elegant appearance, durable, low-noise
Smooth transmission, wear-resistant transmission

وصف

No-load speed::6-150rpm
Type: Geared Motor
Motor size: 46×32MM {exclude shaft}
Model: JGY370GB
Outlet diameter: 6MM
Power: 3w
Whether speed regulation: adjustable speed
Rated voltage: 6/12/24V
Whether it is positive or negative: can be reversed
No-load current: 100mA
Can be customized: shaft length, speed and voltage can be customized
Line length: 230mm
Motor weight: 172g
Wiring
Red: Red is connected to the motor + positive pole
Black: black to motor-negative pole
Green: Green to the sensor ground wire-(5-12V)
Blue: blue is connected to the sensor power supply + (5-12V)
Yellow: Signal A output point (11 pulses)
White: Signal B output point (11 pulses)
incloud: 1 pack Motor with encoder
