Power supply: 18V DC-32V DC
Power consumption: 0.7W(24V,single out) 1.3W(24V,double out)
Input: Pt100,Cu100,Cu50,BA1,BA2 etc
Lead resistance: 20 /Line (thermal resistance)
Output: 4-20mA
Approved loading: RL 550
Range 100°C ±0.1% F.S. (25°C±2°C)
Temperature drift: 40ppm/°C
Response time: 500ms
Electromagnetic compatibility : IEC 61326-3-1
Dielectric strength: 2500V AC (Native and non-native) 1500V AC (Between non-native ends)
Insulation Resistance: 100M (Input/Output/Power)
Working temperature: -20°C-+60°C
Storage Temperature: -40°C-+80°C
Product size: 12.7 mm × 110mm × 118.9mm
Dimensions : 110*118.9*12.7mm
Supply Voltage : 18-32V
Accuracy Class : 0.1%
Model Number : QD-6041/6044/6045
Display Type : Analog Only
DIY Supplies : ELECTRICAL
Origin : China
Certification : CE,FCC,RoHS

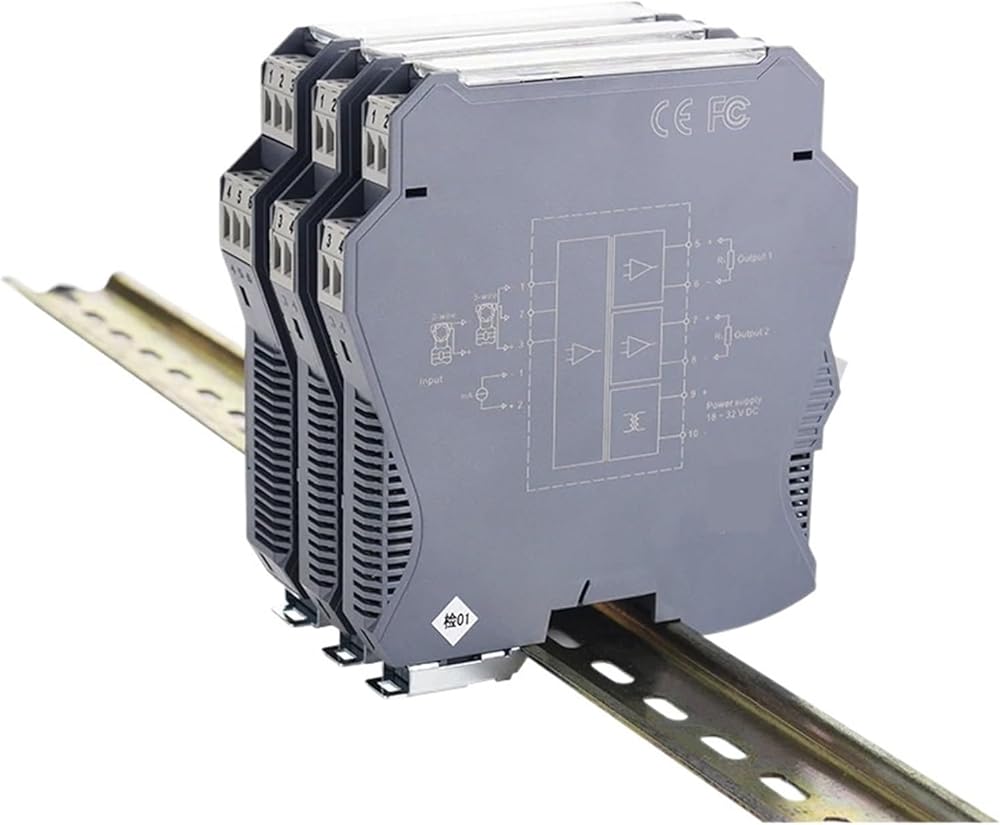

product name : pt100 inputsafety barrier
Input signal : pt100
Output signal : 4-20mA
Channels : 1 in 1 out,1 in 2 out,2 in 2 out
Power supply : 12-28VDC(standard)
Installation : 35mm DIN rail
Environment temperature : -40~85
Accuracy : 0.1%
