Sensors

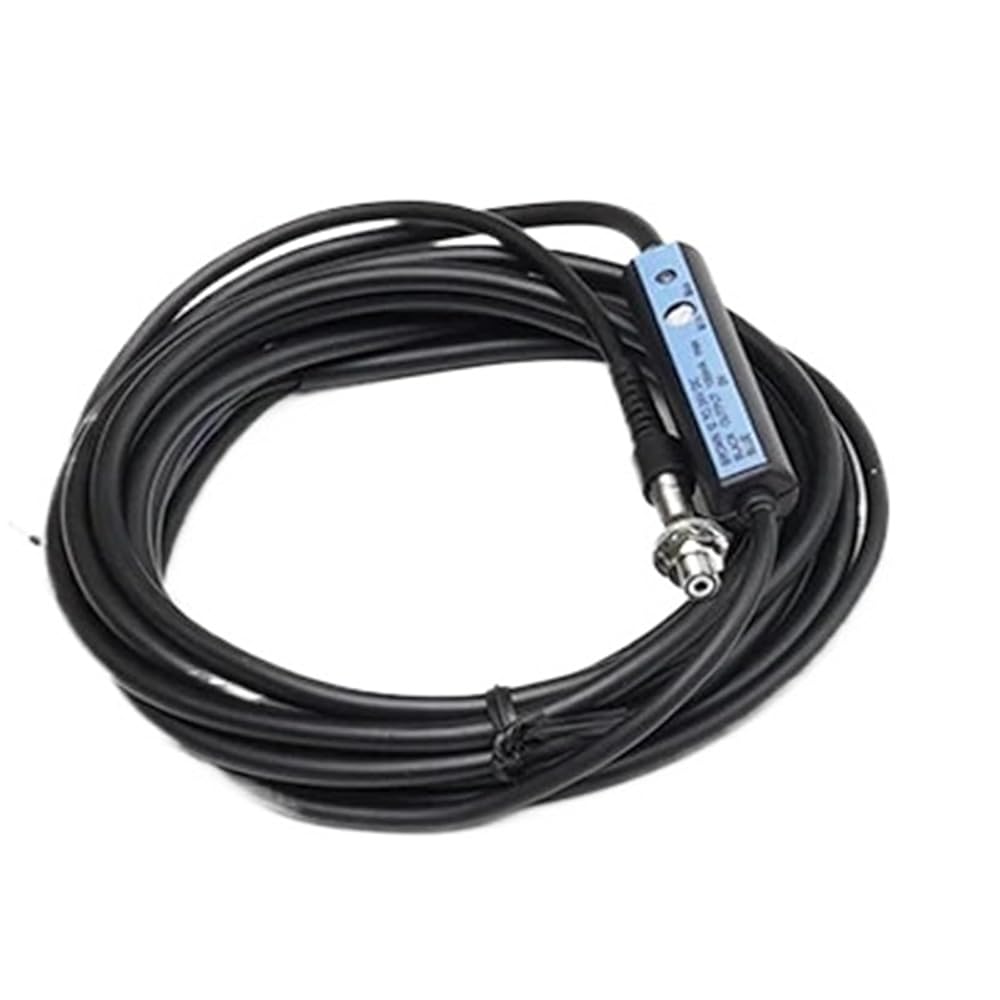

DC M6 Ultra-Mini sensor diffuse mode
Size
M6*29mm
Sensing Distance Sn:
150mm adjustable
Spot size
Can be 0.5mm small spot
Housing Material
Stainless steel
With or Without LED
WithLED
The light
Red(660nm)
Operating Voltage
10-30VDC
DC Ripple
No Load Current
Max.Load Current
150mA
Leakage Current
Voltage Drop
Switching Frequency
100Hz
Response Time
5ms
Switching Hysteresis
Repeat Accuracy
Protection Category
IP65
Operating Temperature
0°C-50°C
Temperature Drift
Short Circuit Protection
YES
Overload Trip Point
180mA
EMC
RFI>3V/M / EFT>1KV / ESD>4KV(contact)
Shock/Vibration
IEC 60947-5-2,Part7.4.1/ IEC 60947-5-2,Part 7.4.2
Material Active Face
Filter Mirror
Connection
D3.8 3*0.15 black PVC 2M
==========
Theory : Optical Sensor
Material : Metal
Type : Optical-Electronics Sensor
Output : Switching Transducer
Use : Level Sensor
