مميزات خاصة

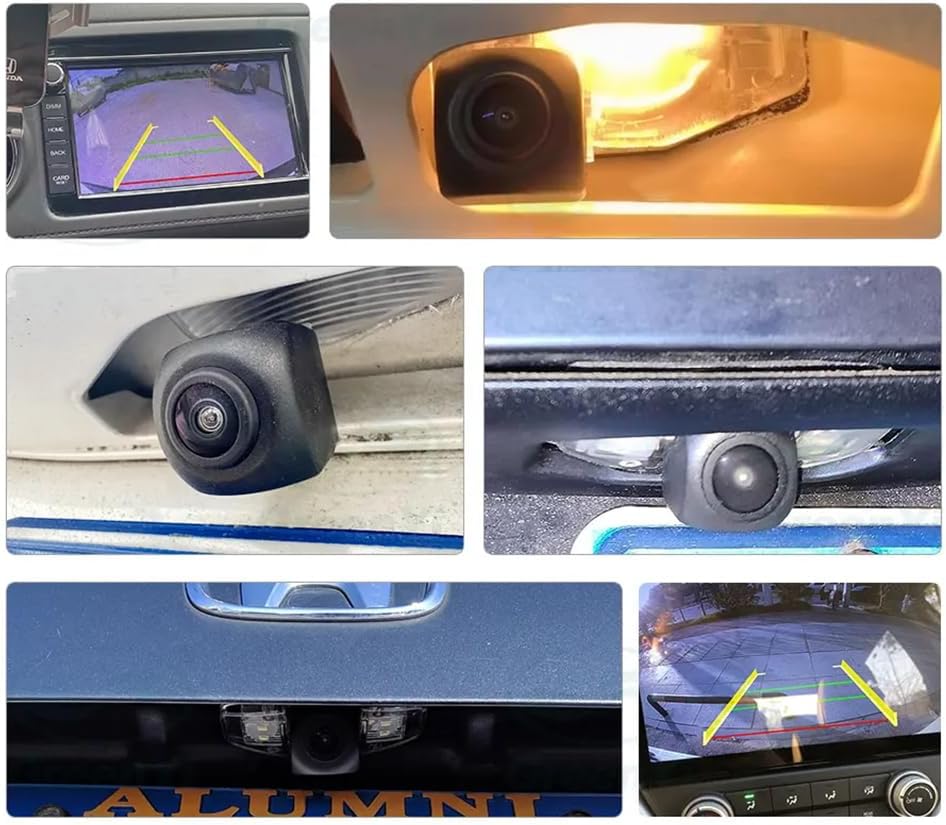

AHD Camera Sensor Precision Lens——This car rear camera adopts superb 1/2.7 inch large sensor chip.The Vehicle Backup Cameras 170 degree wide view angle fisheye lens,1.4mm aperture.Plus the Back Up Parking Camera noise reduction and powerful image processing capability,all this ensure excellent images in various light environment.
Camera Matching Model——Backup Parking Vehicle Camra Replacement For Toyota 4Runner N210 MK4 2002~2010;For Toyota Hilux Surf N210 2002~2010;For Toyota SW4 N210 MK4 2003~2012;For Toyota Fortuner 2005~2012<br> For Toyota Innova 2013~2015

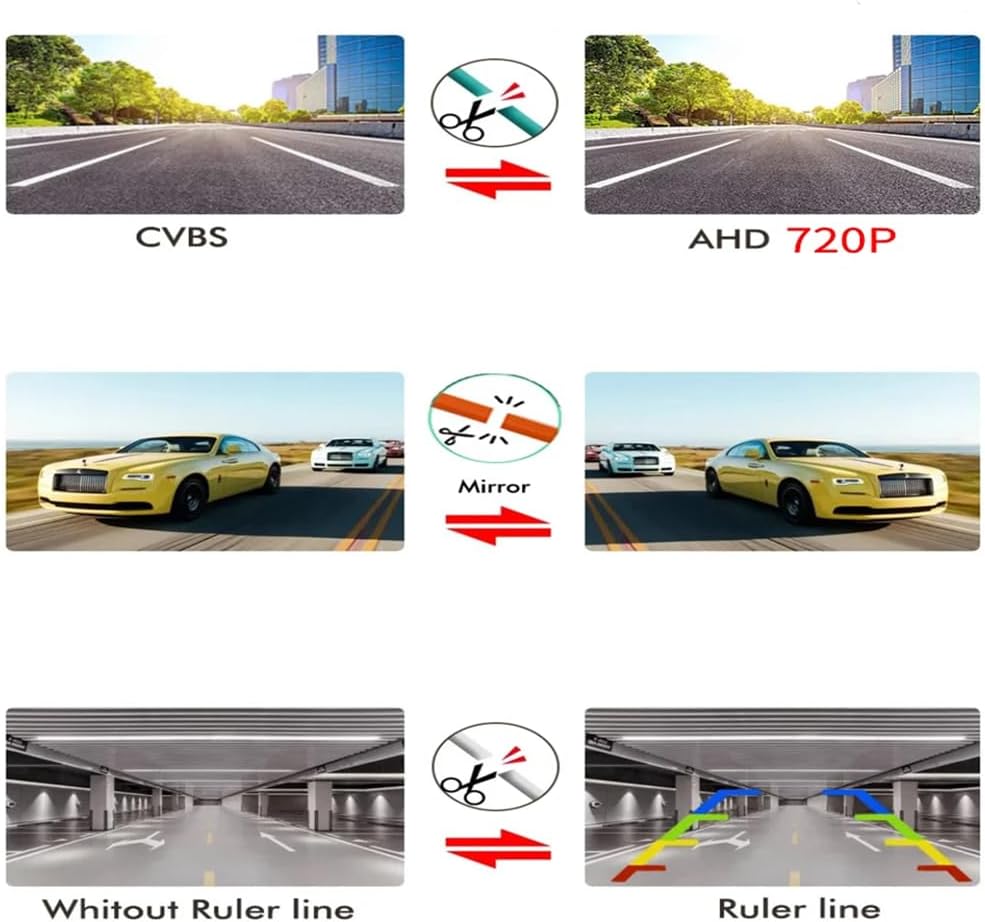

Both AHD and CVBS Video Signal Available, Camera Guideline on / off Adjustable---The car rear view camera can work with both AHD and CVBS monitors. Its output video signal is AHD by default, if you need it to connect with a CVBS monitor, please cut the white cable on the camera and reconnect to power supply. AHD video signal image is much clearer than CVBS. It is with guide line by default. If you don't need it, please cut the green loop and reconnect to power supply

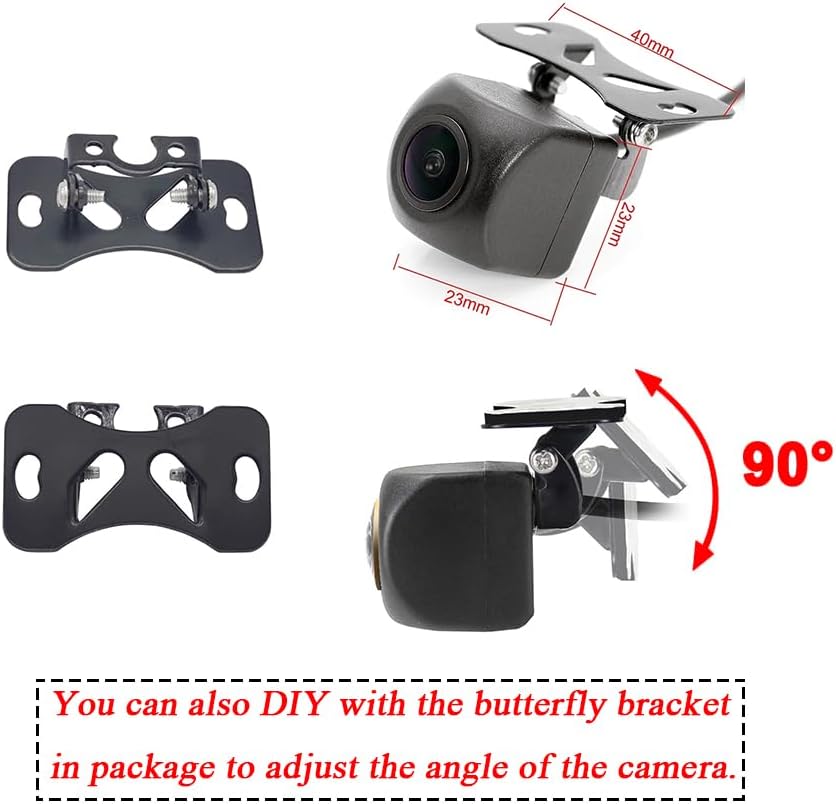

Both Front and Rear View Camera---You can flip backup camera image cut the orange cable on the camera, thus you can install it in the front or rear according to your need. Also, we have included a butterfly bracket in the package
Remarkable Waterproof IP69——The Back Up Parking Camera for license plate adopts a sturdy housing,and Nano sealant infusion.The Vehicle Backup Cameras can be even immersed into water without worrying about
Easy Installation——The cable on the camera is RCA, connection cable operation is very convenient and easy. Also, the video cable within the package is double-shielded type to ensure better performance
Important Notes——Please note before purchasing this backup camera is only suitable for car screen with RCA connector, not for dash cam, dash camera, mirror cam,GPS and car recorder
After-sales Support——Each of the license plate backup cameras has been tested, any question after receiving this car rear view camera, contact our Customer us, and we will respond fast

وصف

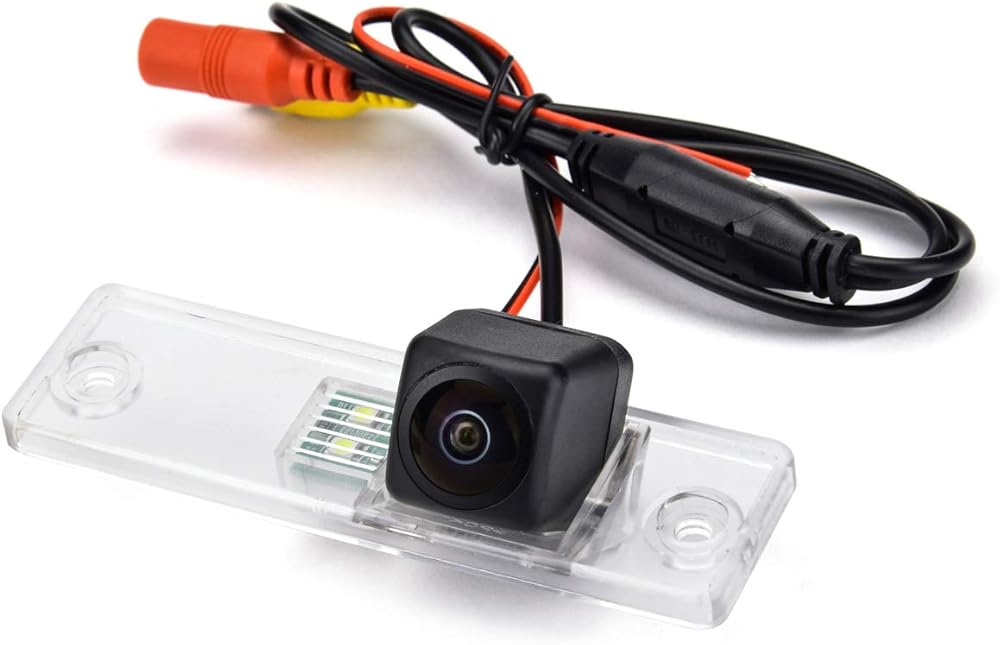

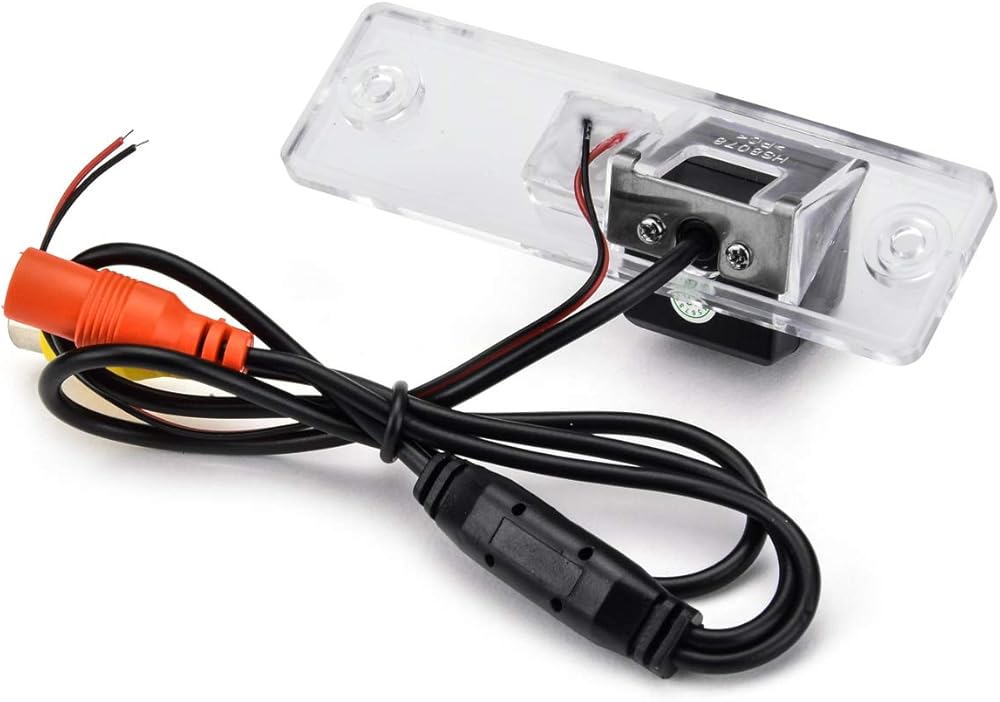

CVBS-AHD Car Rear View Camera &RCA Female Adapter Cable / Car Rear View Camera/Back Up Parking Camera/License Plate Light Lamp Camera & AHD Camera Night Vision 170° Angle Waterproof and Shockproof
For Toyota 4Runner N210 MK4 2002~2010
For Toyota Hilux Surf N210 2002~2010
For Toyota SW4 N210 MK4 2003~2012
For Toyota Fortuner 2005~2012
For Toyota Innova 2013~2015

Specification:
1.Pixels: 1080(H) * 720(V)
2.Power: DC 12V
3.View Angle: 170 degree
4.Image Sensor: CCD1/3
5.TV system: NTSC
6.Horizontal Resolution: 1000 TV lines
7.Sync. System: internal
8.S/N Ratio: >48Db
9.Electronic Shutter: 1/60 to 1/100,000 seconds
10.Video Output: 1.0Vpp, 75Ohm
11.White Balance: Auto
12.Water-proof: IP69
13.Video Cable Length: about 6m

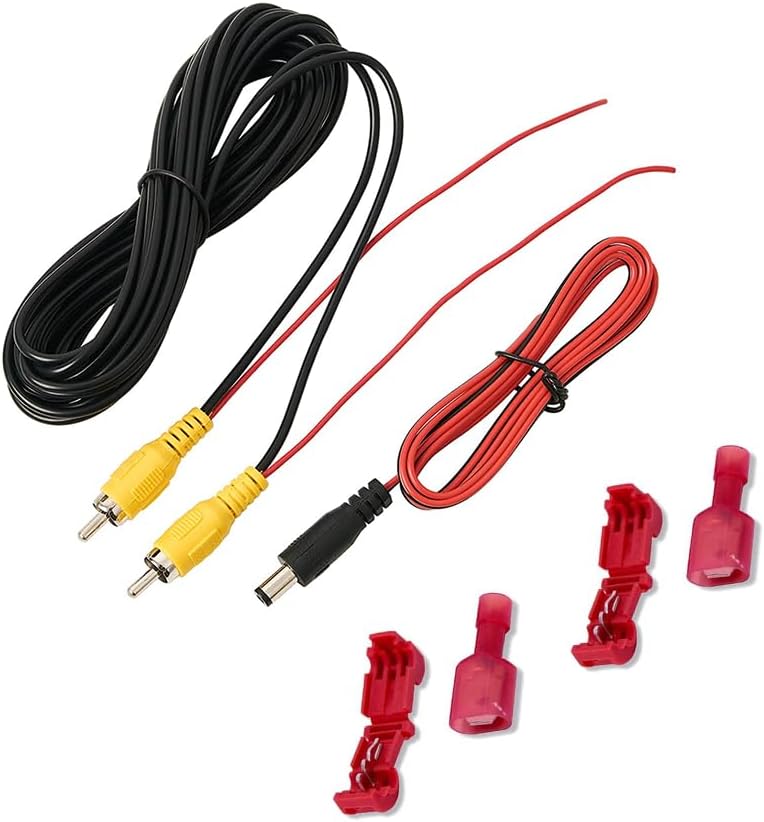

Package includes:
1 x Car Rear View Camera
1 x 6m Video Cable
1 x 1m Power Cable
1 x User Manual

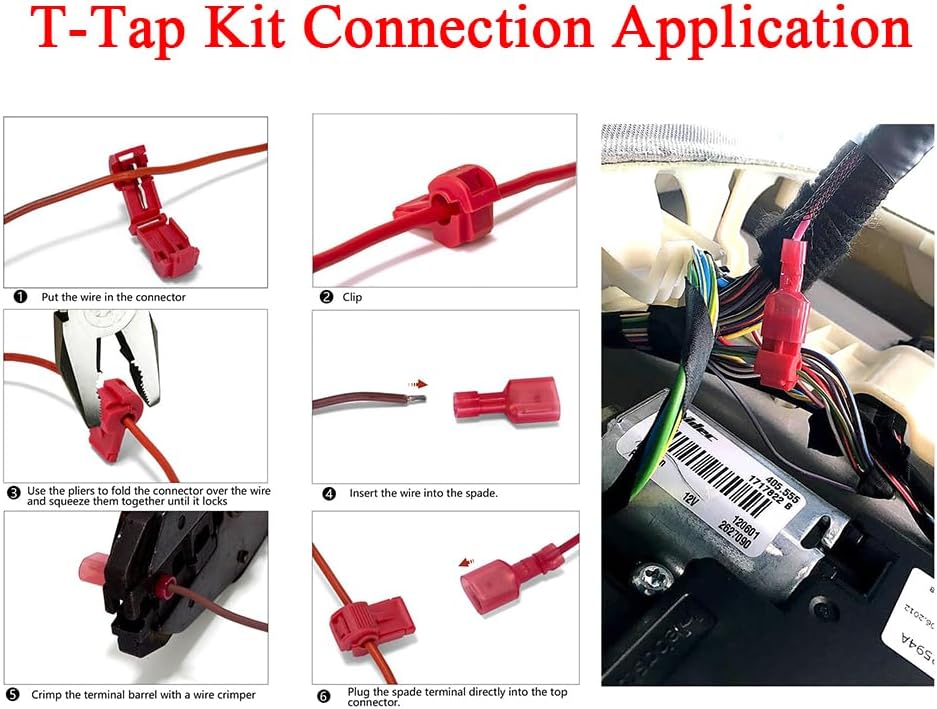

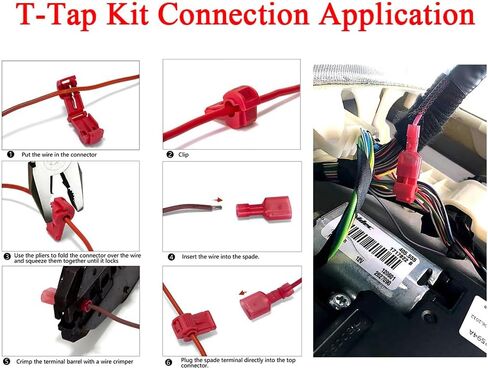

2 x T-Tap Kit
1 x Butterfly Bracket

Item Caution:
I.Do not open the cover of the camera.It will no longer be waterproof if it is opened.
II.Do not aim the camera at bright or strong light soureces,this will make the camera ineffective in capturing video.

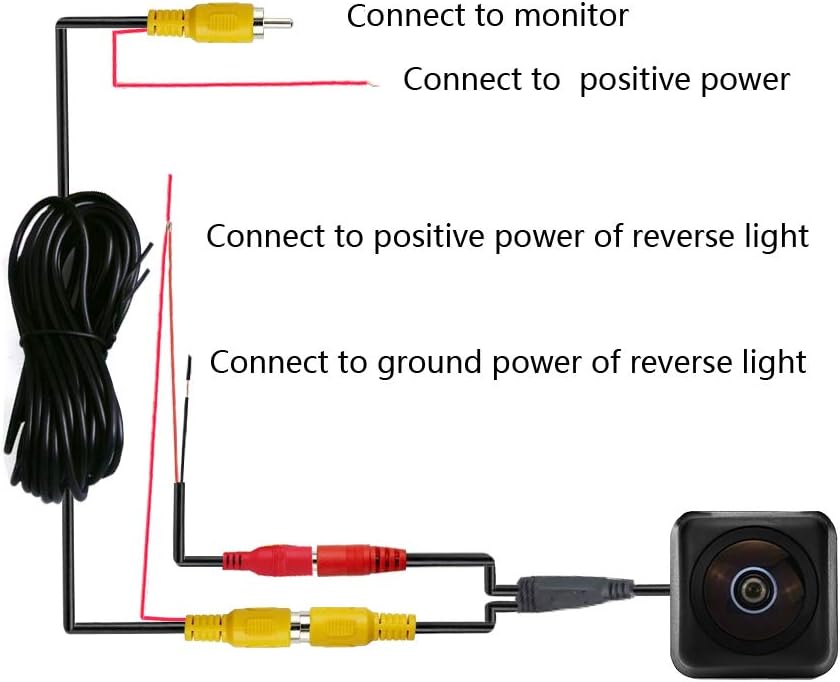

A. Black socket is connected to DC 12V
B. Yellow socket is for video output
