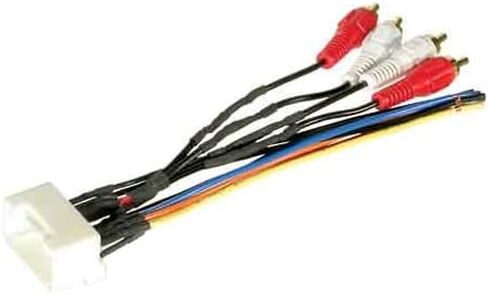

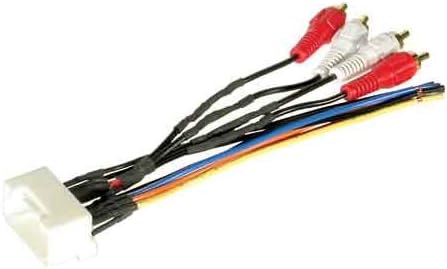

American Terminal JBL Stereo Wire Harness compatible with Toyota Avalon 2000-2004
Interchange Part Number: Metra 70-8113, Best Kits TWH-17, Xscorpion TOY-6980
Compatible list:
Toyota:
2000-2004 Avalon With Amplified System - Tweeters In A-Pillar
2002-2006 Camry With JBL Or Factory Amplified
2000-2001 Celica With 8 Speaker System
2001-2002 Land Cruiser With Amplified System
2000-2003 Solara With Amplified System
2000-2005 Celica With Amplified System
2001-2007 Highlander With Amplified System
2001-2011 Land Cruiser With Amplified System
2001-2004 Sequoia
1999-2003 Solara
2003-2005 Tundra (Does Not Fit 4 Door Models)
Lexus:
1999 - 2001 ES300
2002 - 2003 ES300 (Without 6 Disc In-Dash CD Changer)
General Features:
Factory Amplifier Interface Harness
Compatible With Select 2005-2010 Toyota Vehicles
20-Pin Connector
4 RCA Plugs To Plug To Aftermarket Radio's Pre-Amp Outputs
Allows Installation Of Aftermarket Radio Using Factory Wiring And Connector
High Quality, ABS Plastic Molded Connector For The Perfect Fit
Heat Resistant So They Will Last A Lifetime
No Cutting Of Factory Wiring Needed
Connections:
Yellow – 12V Constant
Red – 12V Accessory
Black - Ground
Orange – Dash Light Dimmer/Illumination
Green – Left Rear Speaker (+)
Green With Black Stripe Left Rear Speaker (-)
White – Left Front Speaker (+)
White With Black Stripe – Left Front Speaker (-)
Purple – Right Rear Speaker (+)
Purple With Black Stripe – Right Rear Speaker (-)
Gray – Right Front Speaker (+)
Gray With Black Stripe – Right Front Speaker (-)
