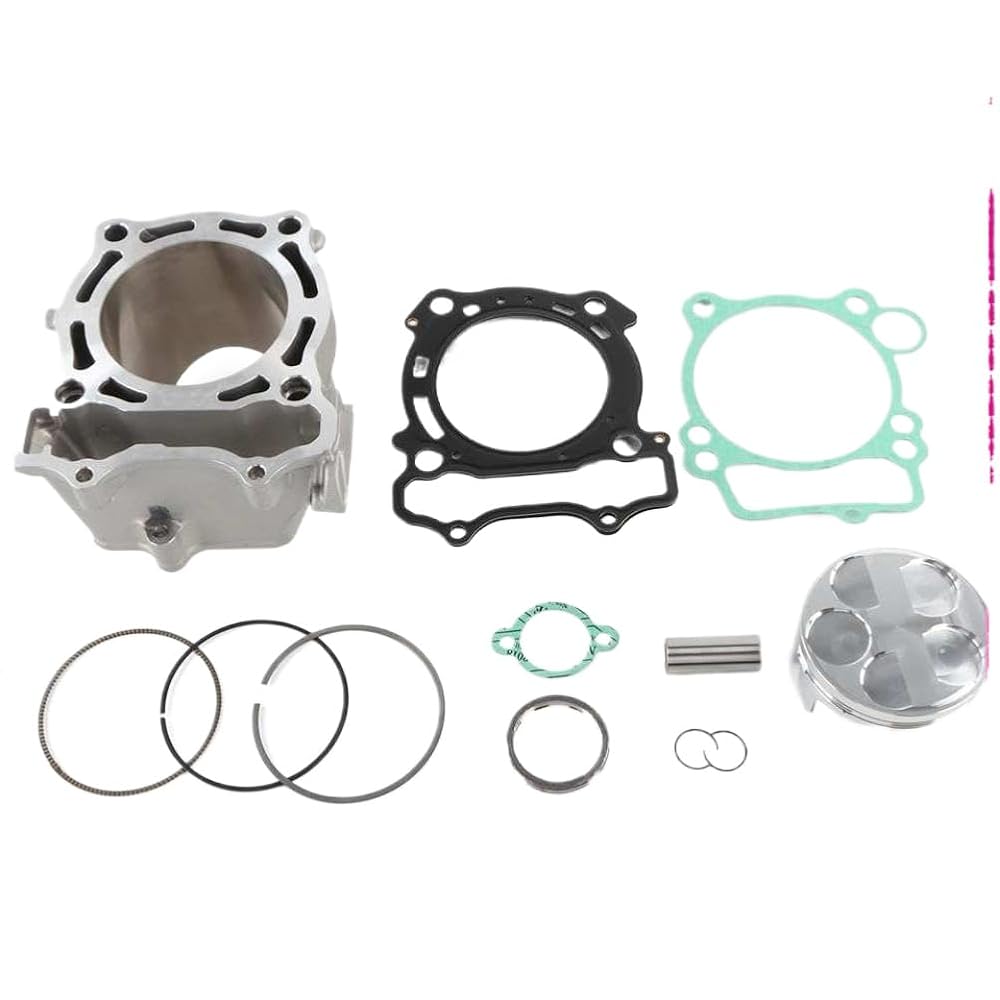

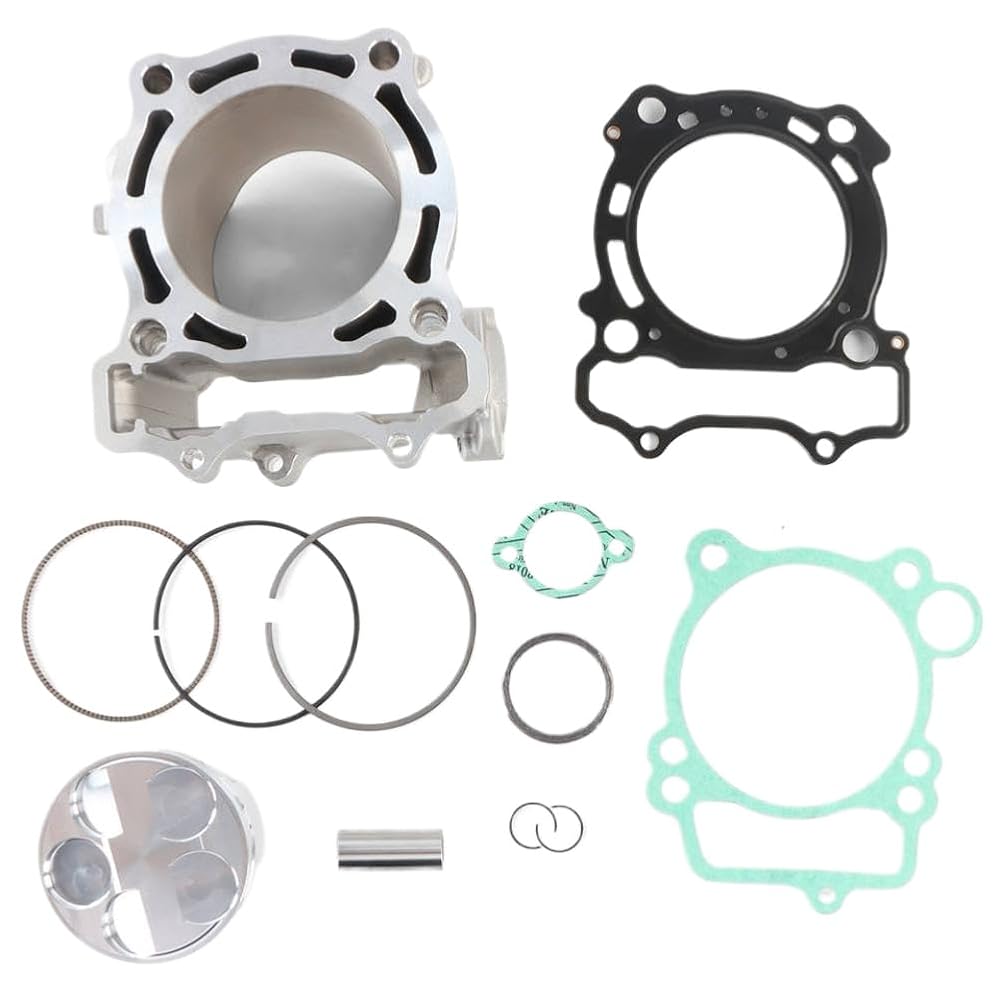

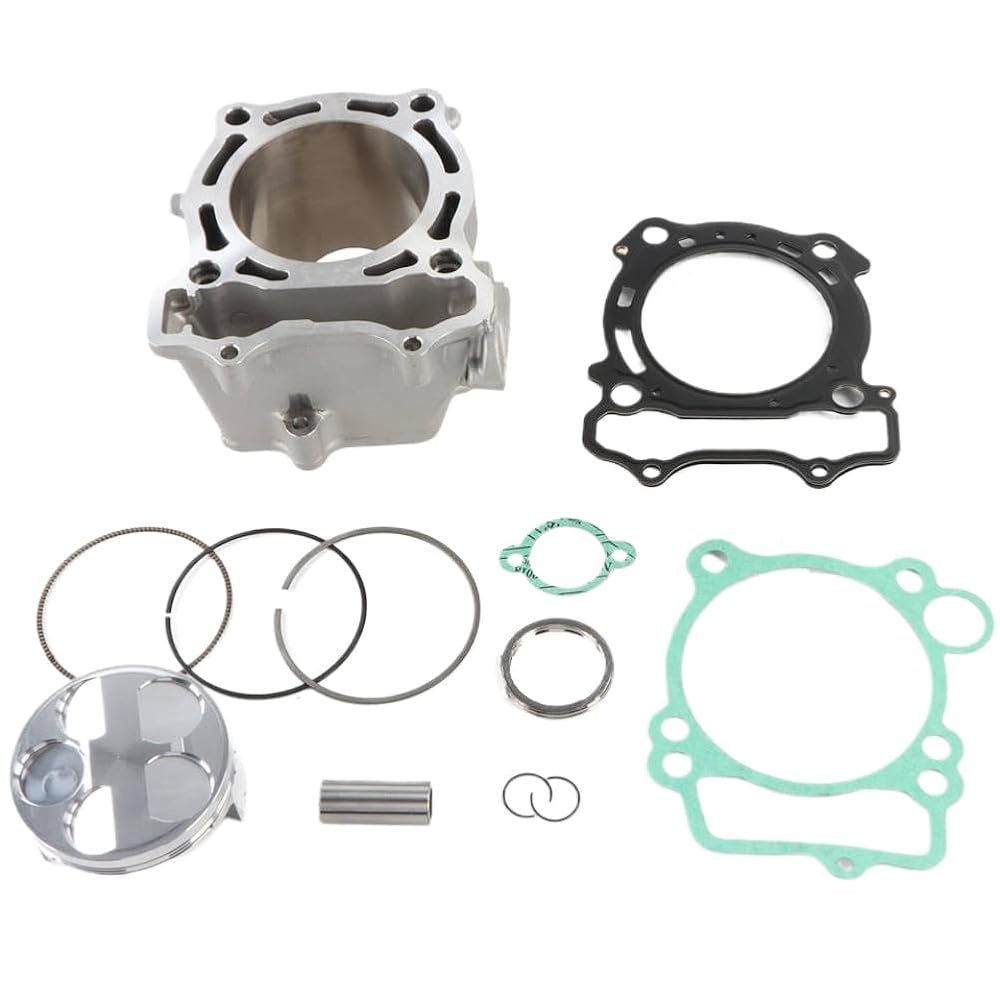

Cylinder Piston Gasket Kit 77MM 5XC-11311-20-00 5NL-11311-00-00 5XC-11311-00-00 5XC-11311-10-00 For YZ250F WR250F 2001-13 Package includes: 1 piece cylinder, 1 set piston rings, pin clips kit Preparation before installation: Gather necessary tools and components: Wrench and socket set suitable for the motorcycle's bolt and nut sizes Piston removal tool for safely extracting piston parts Cleaning agent and brush to clean piston ring grooves and cylinder walls Verify the middle cylinder is compatible with the vehicle model Installation steps: Remove the motorcycle side cover, seat, and fuel tank.the fuel valve is closed prior to disassembly to prevent fuel leakage.Detach the cylinder head and related components as required by the model.Remove the old cylinder block.Inspect the piston for scratches or damage.Replace the piston if necessary.When installing piston rings, correct positioning and that ring gaps are not aligned with the piston pin.Space ring gaps at 120° to 180° apart.Clean the cylinder bore and surfaces thoroughly using cleaning agent and brush.no or residue remains.Apply lubricating oil evenly inside the cylinder bore and on piston surfaces to allow smooth insertion.Install the cylinder body carefully, it is straight and not tilted.After placement, rotate gently to confirm proper fit.Operate the starter mechanism to verify smooth piston movement within the bore, then reinstall surrounding components.Post-installation checks: Wipe the inner cylinder wall with a lint-free cloth to remove any fingerprints or.Confirm all fasteners are tightened and no tools or foreign objects remain in the engine area.Before starting the engine, disconnect the ignition coil or fuel pump fuse and engage the starter briefly to establish oil pressure.Reconnect all systems and start the engine.Monitor for unusual noises, smoke, or fluid leaks.Avoid the following during installation: Striking the cylinder liner directly with a hammer, which may cause deformation or cracks.Using worn or substandard sealing rings, which can lead to oil and coolant mixing or leaks.Tilting the cylinder liner during installation, which can result in distortion, increased friction, and premature wear.Incomplete cleaning of components, as even small particles can act as abrasives and cause significant engine wear upon startup.
