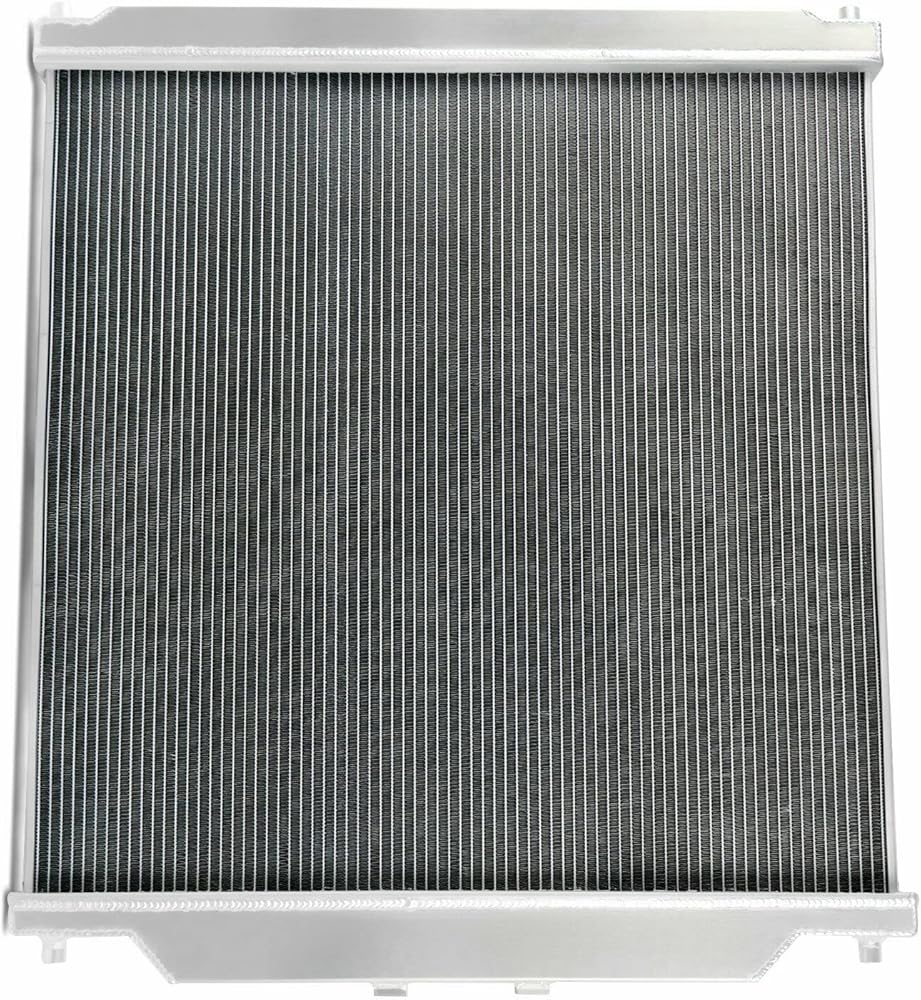

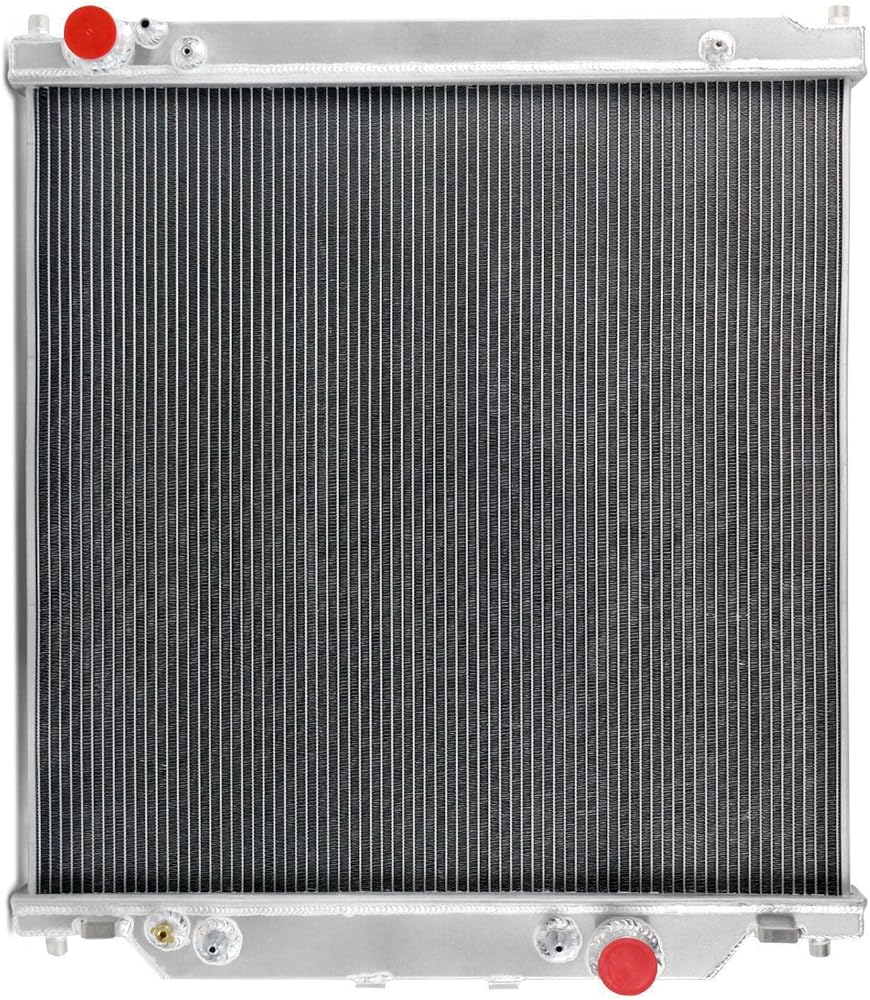

Radiator Specifics:
Condition: 100% Brand New
Material: Aircraft T-5052 grade aluminum tank & core
Row: 2 Row
Core Size: 28.5'' H x 29.1'' W x 1.34'' Thickness
Overall Size: 34.4''H x 30.1''W x 4.3'' T
Inlet Diameter: 1.77 inch Driver Side
Outlet Diameter: 1.97 inch Passenger Side
Transmission Oil Cooler: 32x305xM18x1.5(P)
OEM Style Brass Petcock Drain

Fan Spec:
Maximum Fan CFM: 2200±200
FAN Diameter: 14.05" X 14.05" X 2.5"
Number of Blades: 8 blades (Plastic)
Maximum Fan RPM/ Amp Draw :2,250 rpm / 12.70 amps

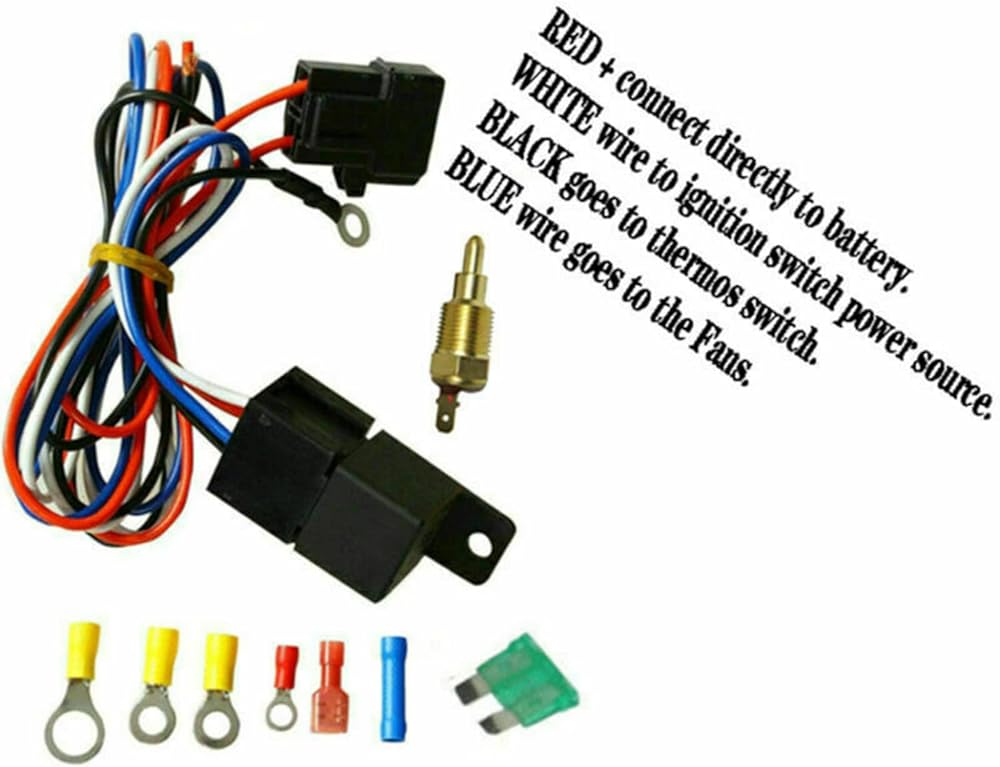

Thermostat Relay Kit Instructions:
Activates by grounding electric fans at preset temperature.
180'F/165'F turn on/off temperature.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.

This Radiator Compatible with:
2003-2007 Ford Powerstroke F250 F350 6.0L Turbo Diesel
2003-2005 Ford Excursion 6.0L
2003 2004 Ford F250 Super Duty 6.0L
2003 2004 Ford F350 Super Duty 6.0L
2003 2004 Ford F450 Super Duty 6.0L
2003 2004 Ford F550 Super Duty 6.0L

PLS check more detailed vehicle information by AmazonConfirmedFit to confirm this radiator fit
your vehicle before you order.

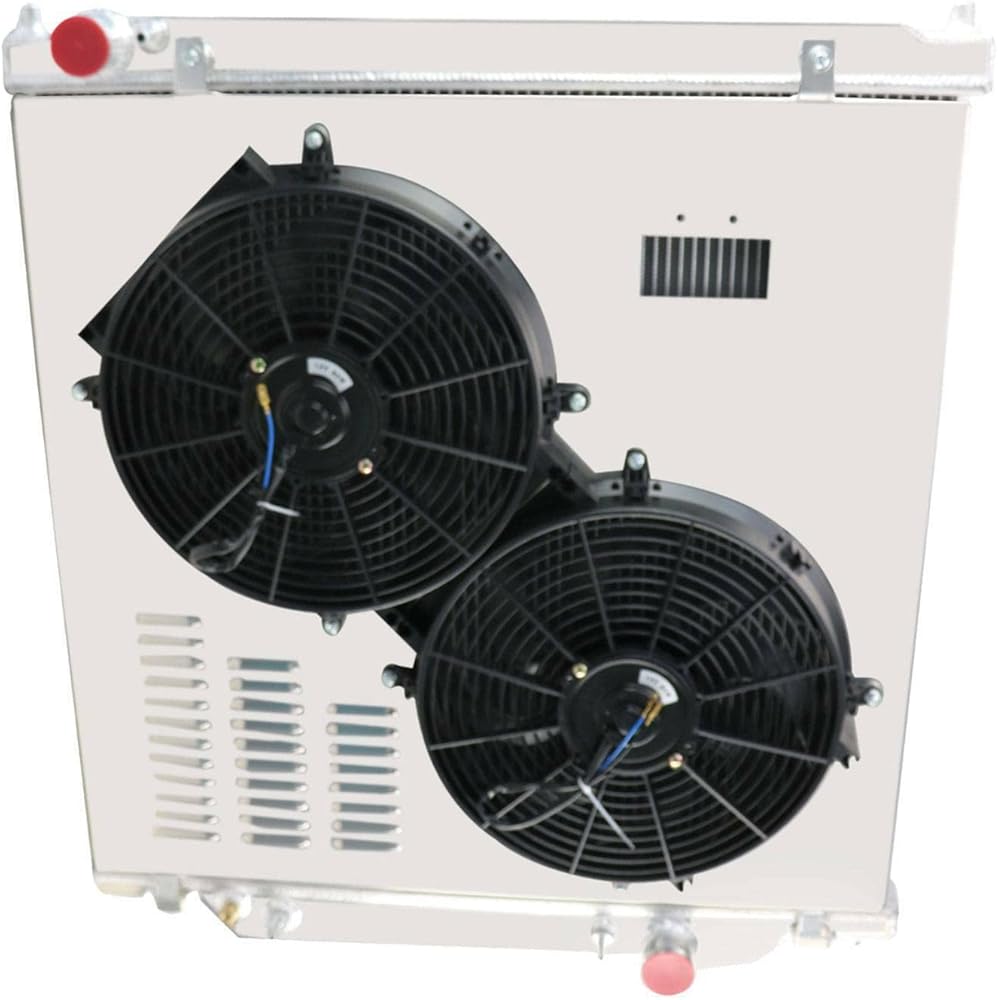

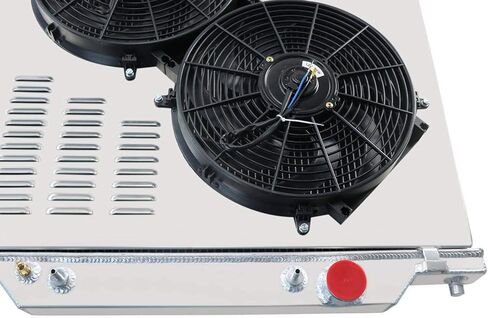

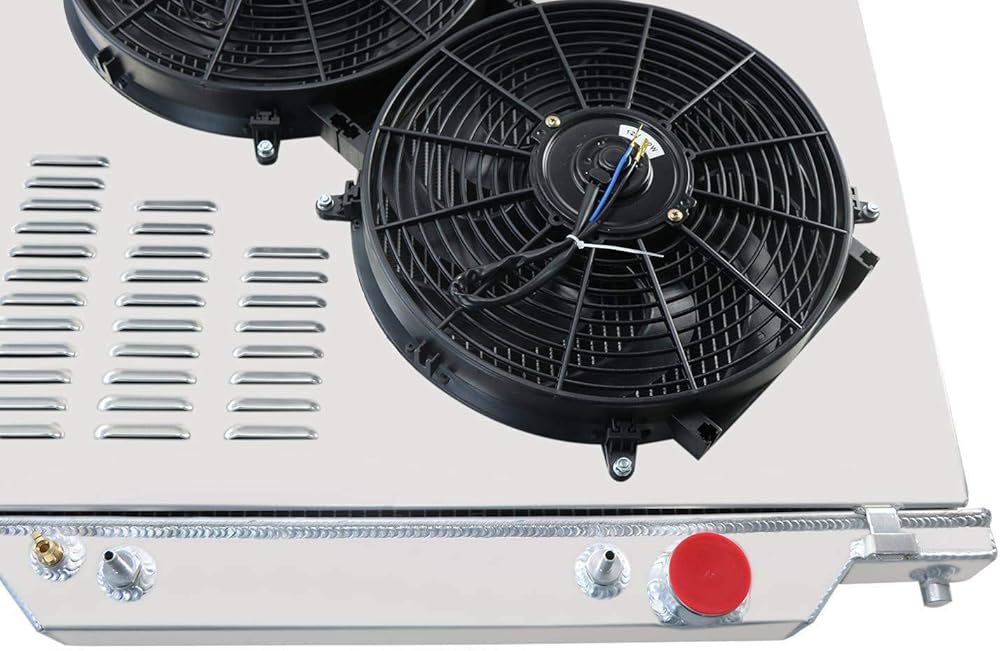

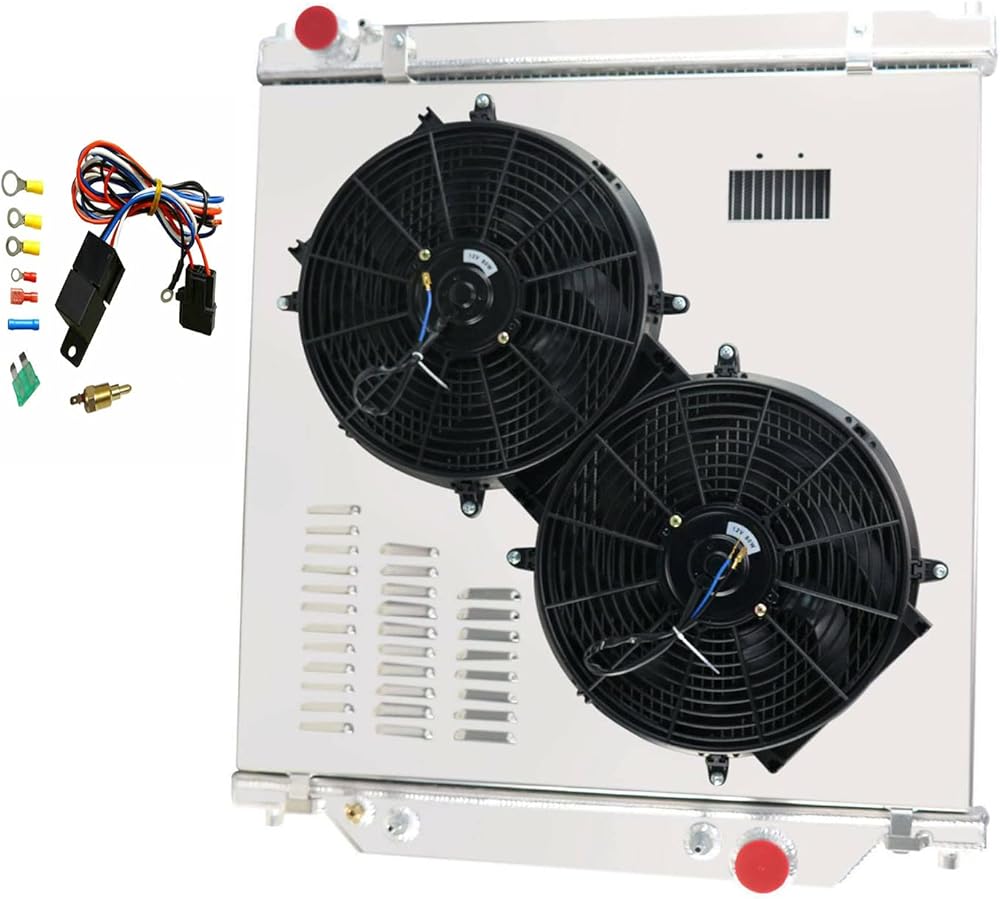

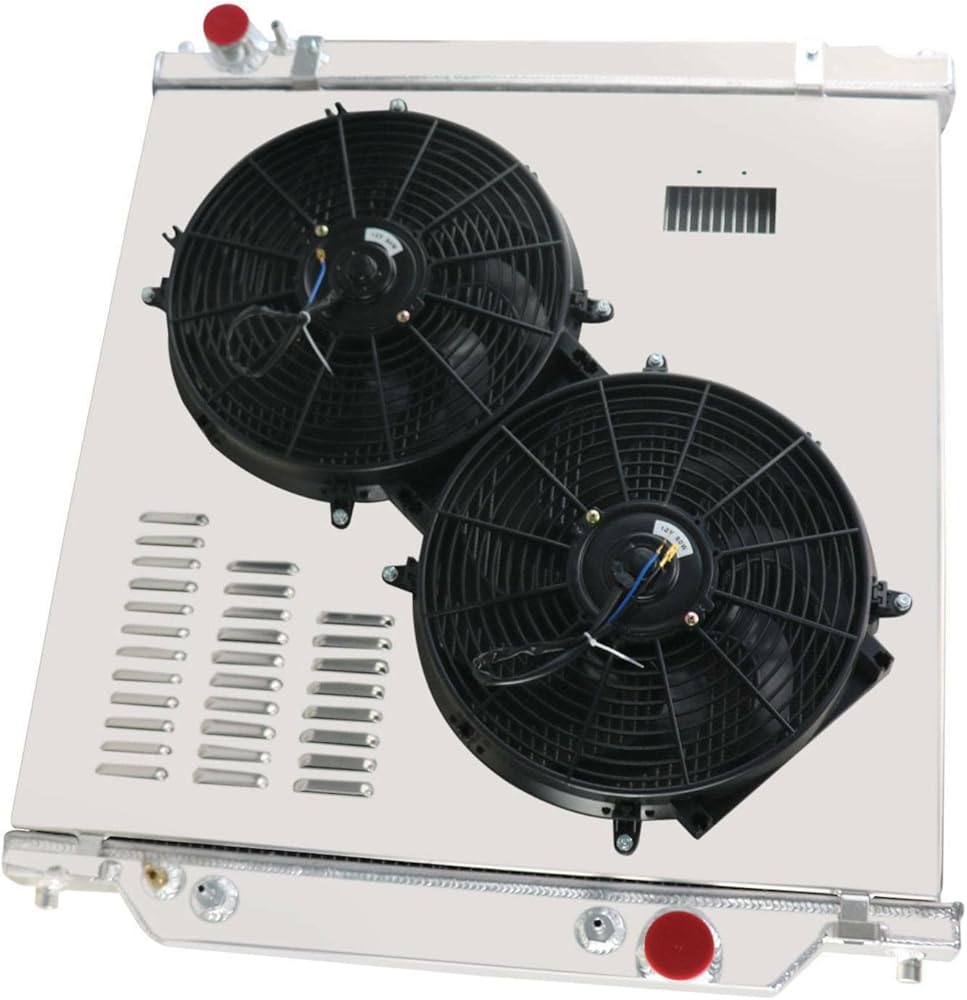

Shroud+Fans
The fan and the fan shroud effectively drive the heat over and out the engine compartment
rather than thrusting it into the front of the engine.
The fan shroud basically houses the fan blades securing it in place and keeping it from damaging
the other engine components that may disturb the smooth and even operation of the engine.
With excellent operating temperature management, allowable levels of engine temperature are stabilized.
Investing in proper maintenance though will considerably benefit the ride and driving quality in
maintaining the ideal working conditions of the engine.
