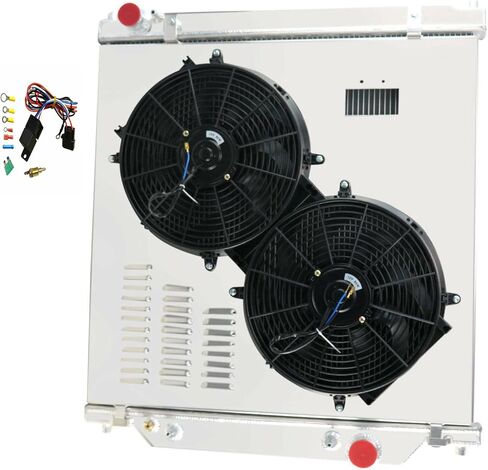

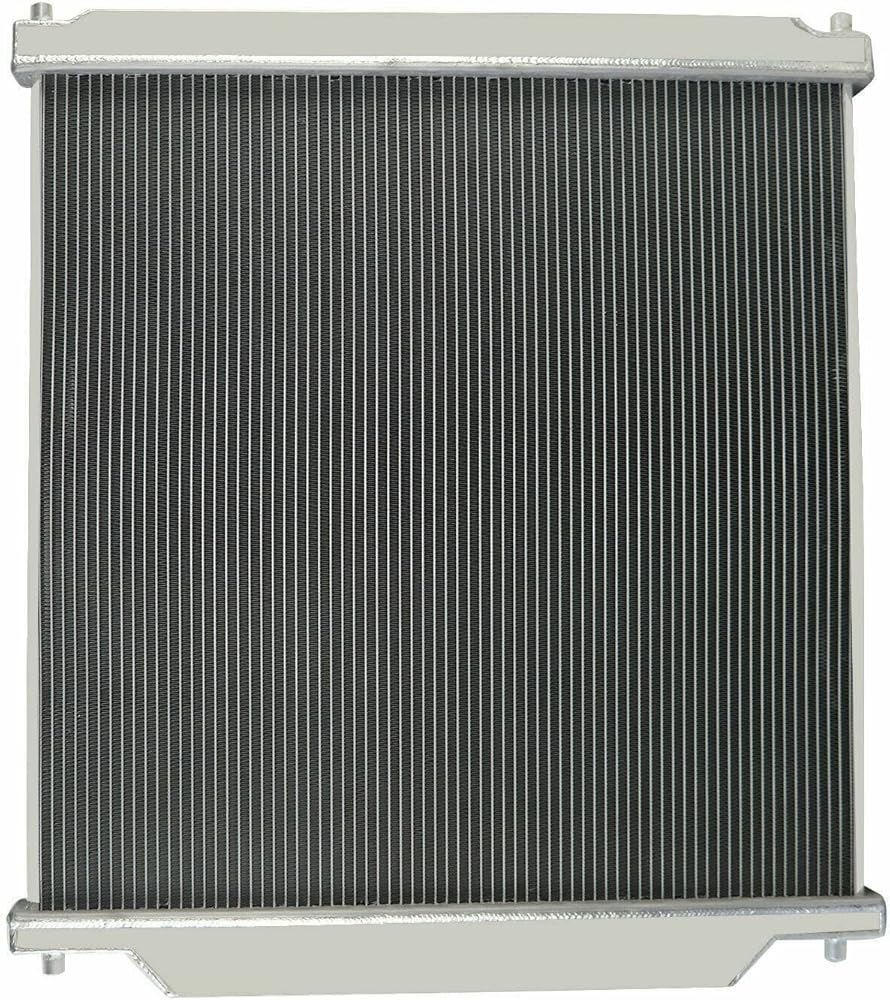

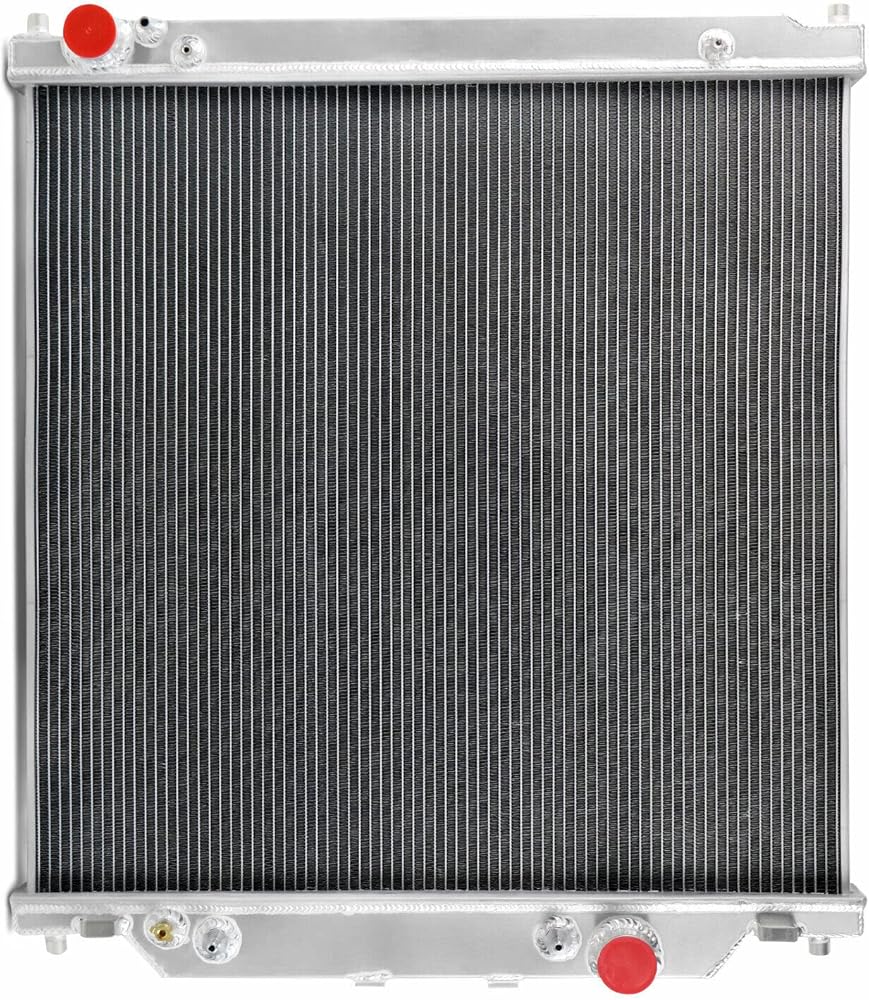

Radiator Specifics:
Condition: 100% Brand New
Material: Aircraft AA5052 grade aluminum tank & core
Row: 2 Row
Core Size: 28.5'' x 29'' x 1.42'' Thickness
Overall Size: 30.1''x 34.4'' x 5.7'' T
Inlet Diameter: 1.77 inch Driver Side
Outlet Diameter: 1.97 inch Passenger Side
Drain Plug Thread Size: M12 x 1.5
Transmission Oil Cooler: 32x305xM18x1.5(P)
OEM Style Brass Petcock Drain

Fan Spec:
Maximum Fan CFM: 2200±200
FAN Diameter: 14.05" X 14.05" X 2.5"
Number of Blades: 8 blades (Plastic)
Maximum Fan RPM/ Amp Draw :2,250 rpm / 12.70 amps

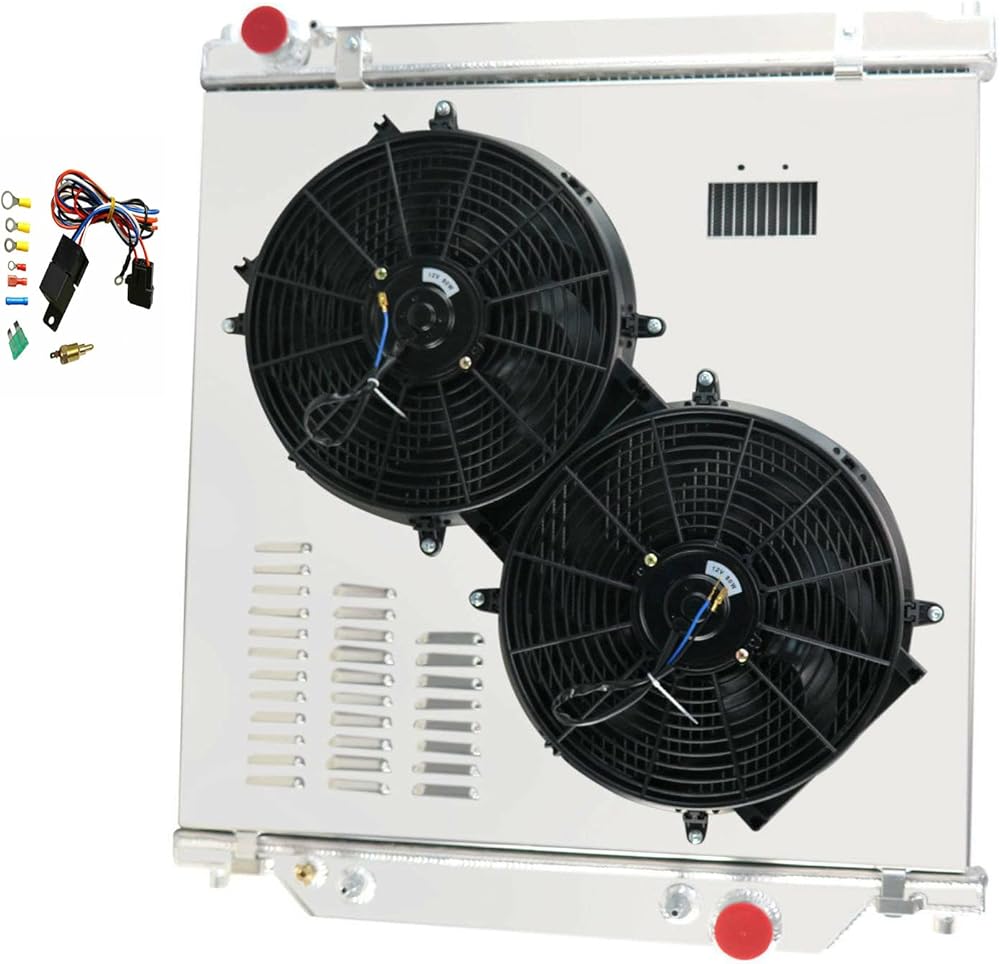

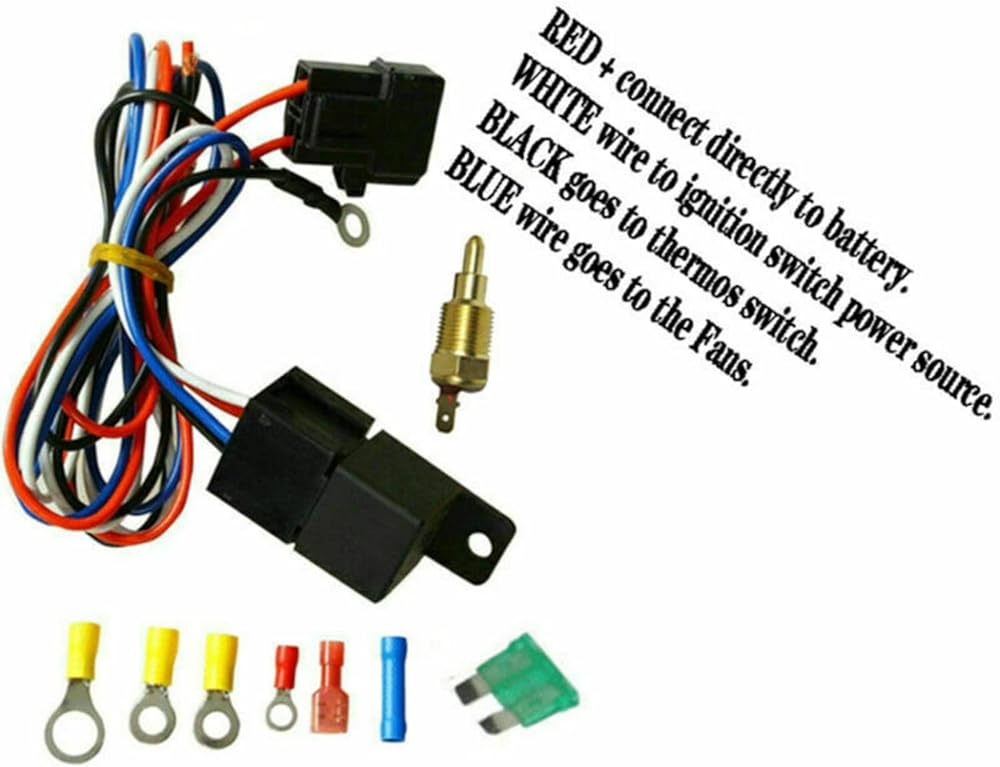

Thermostat Relay Kit Instructions:
Activates by grounding electric fans at preset temperature.
180'F/165'F turn on/off temperature.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.

This Radiator Compatible with:
Direct fit for 2003–2007 Ford trucks equipped with the 6.0L Powerstroke
2003-2005 Ford Excursion Powerstroke Diesel 6.0L
2003-2007 Ford F250 Powerstroke Diesel 6.0L
2003-2007 Ford F350 Powerstroke Diesel 6.0L
2003-2007 Ford F450 Powerstroke Diesel 6.0L

PLS check more detailed vehicle information by AmazonConfirmedFit to confirm this radiator fit
your vehicle before you order.

Please Notes:
HKAUTOPART offering a brand new professional Aluminum Radiator at an best price.
We warranty that all our products are made of the best materials and advanced manufacture technique.
We also offer you 100% risk-free satisfaction guarantee to let you buy with confidence; If you are not
satisfied with the quality of the product, please contact us in time, we will fully-refund you after item returned.
If you have any problem(Before payment or after payment), please feel free to contact us via email.
We will try our best to solve your problem as soon as possible.

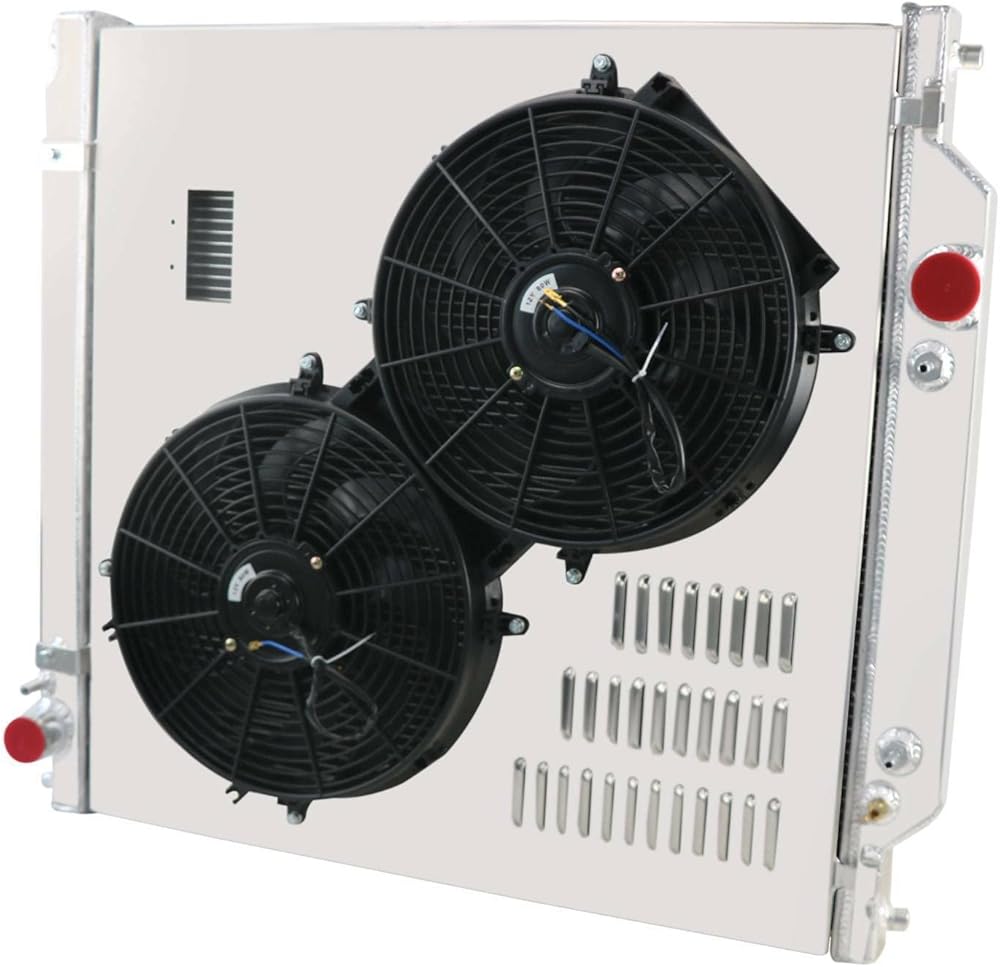

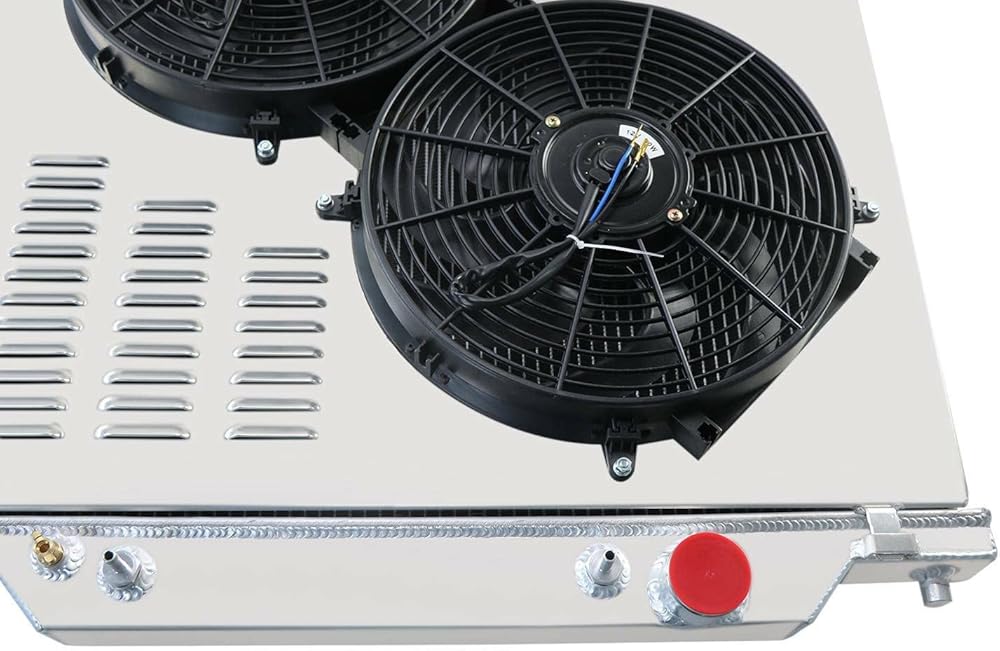

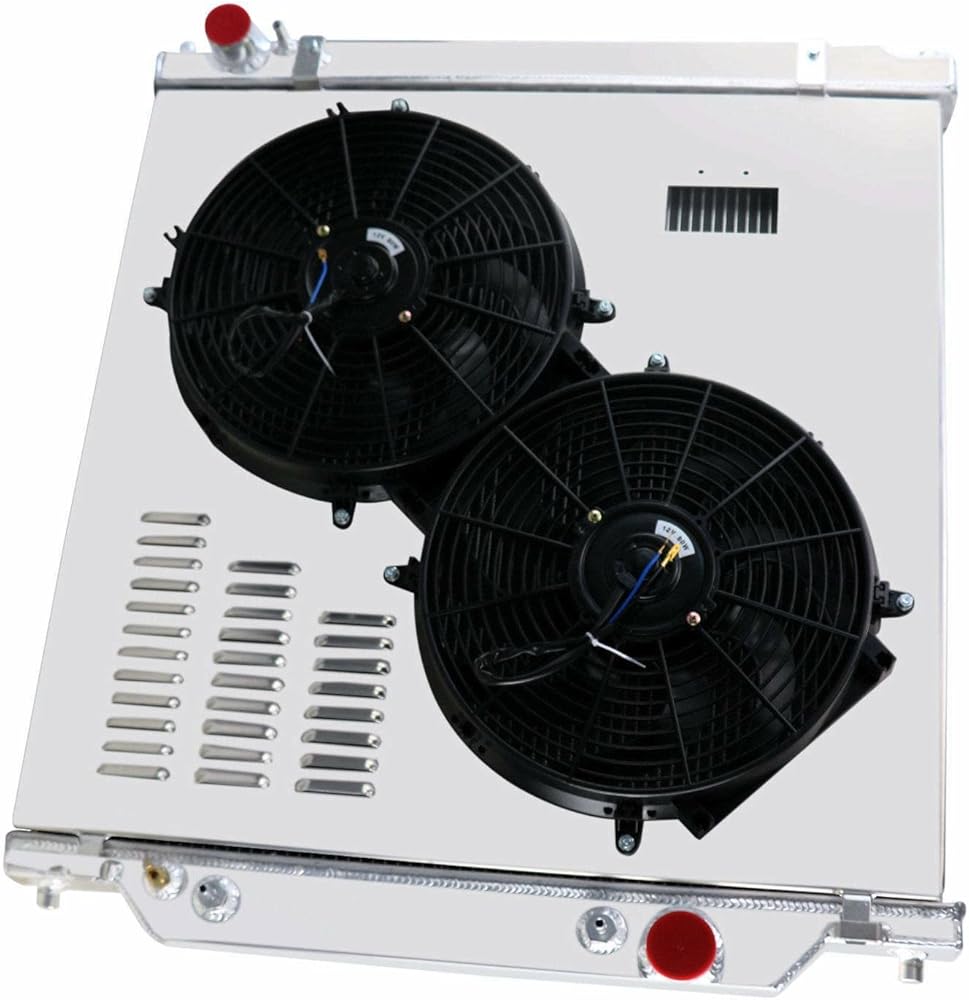

Shroud+Fans
The fan and the fan shroud effectively drive the heat over and out the engine compartment
rather than thrusting it into the front of the engine.
The fan shroud basically houses the fan blades securing it in place and keeping it from damaging
the other engine components that may disturb the smooth and even operation of the engine.
With excellent operating temperature management, allowable levels of engine temperature are stabilized.
Investing in proper maintenance though will considerably benefit the ride and driving quality in
maintaining the ideal working conditions of the engine.
