Vehicle Fitment
For 1963-1966 Chevy C10 C20 C30 Panel 3.8L 4.1L
For 1963-1966 Chevy C10 C20 C30 Pickup 3.8L 4.1L 4.6L 4.8L 5.3L
For 1963-1966 Chevy K10 K20 Pickup 3.8L 4.1L 4.6L 4.8L 5.3L
For 1963-1966 Chevy Suburban 3.8L 4.6L 4.8L
For 1963-1966 GMC 1000 1500 2500 Suburban L6 V8
For 1965-1966 Oldsmobile Cutlass 5.4L 6.6L
For 1964-4965 Oldsmobile F85 3.7L 5.4L 6.6L
For 1961-1966 Pontiac Catalina Bonneville 6.4L 6.9L
For 1962-1964 Pontiac Grand Prix Star Chief 6.4L 6.9L
Part Number：284,CC284,MC284,899284,B284

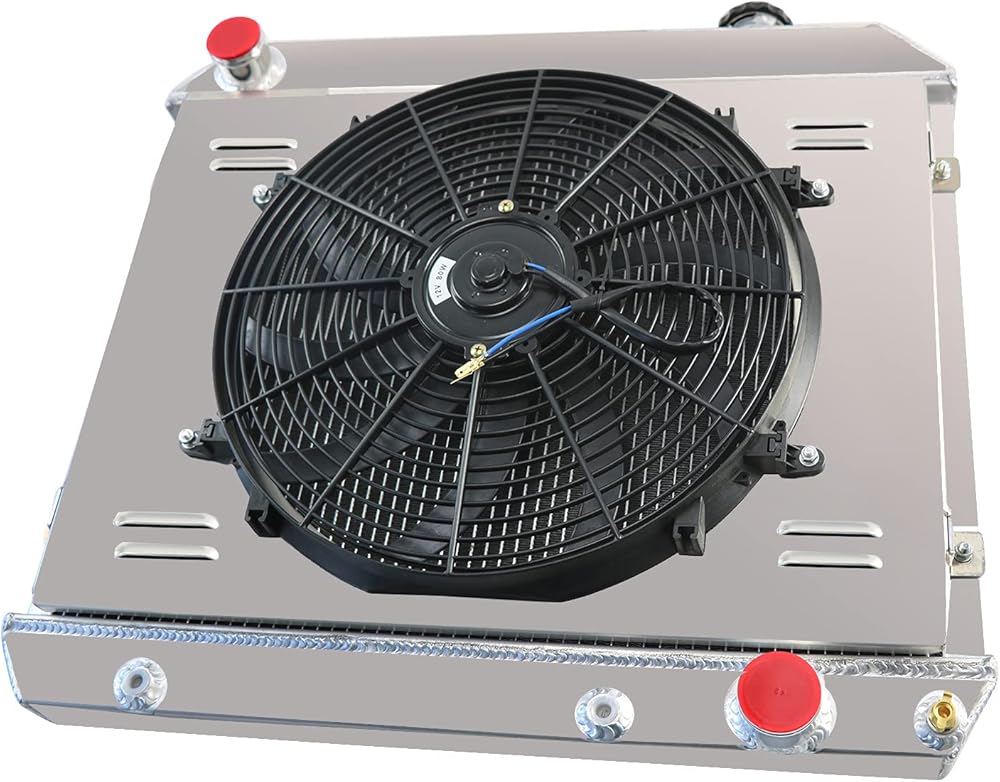

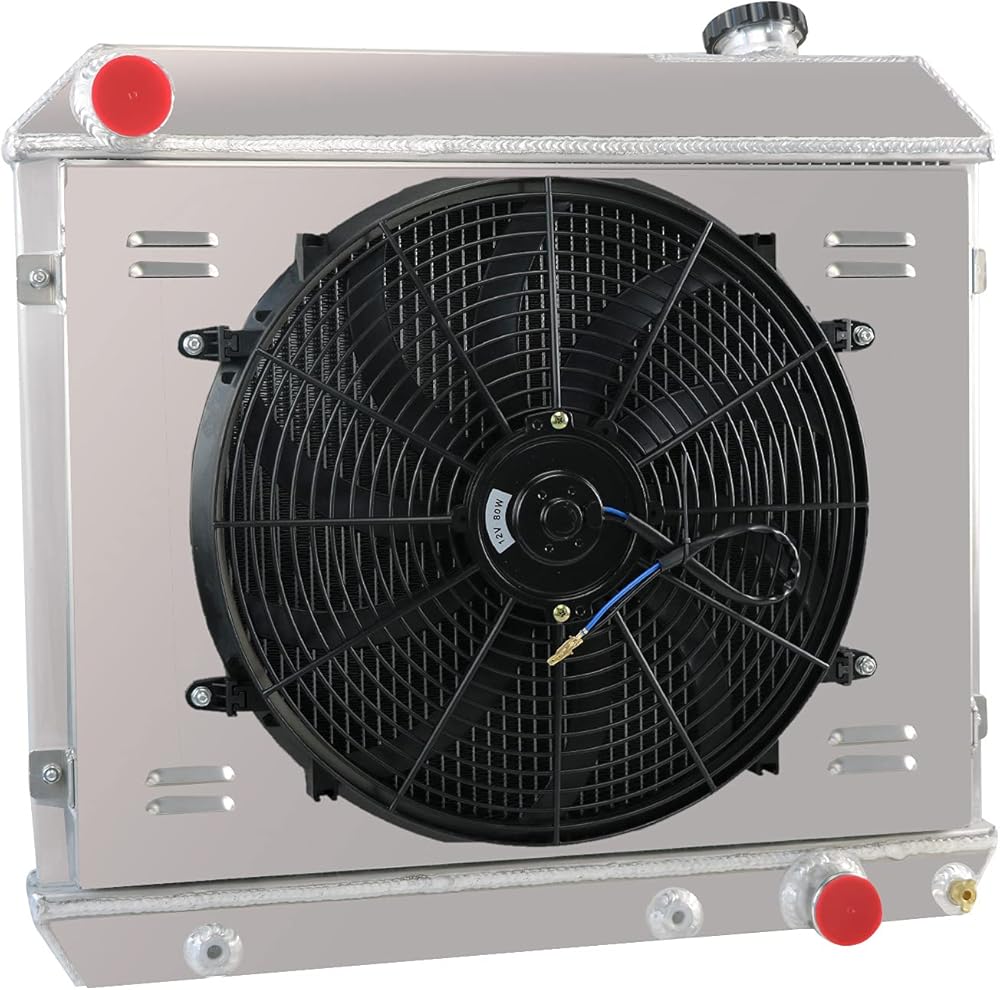

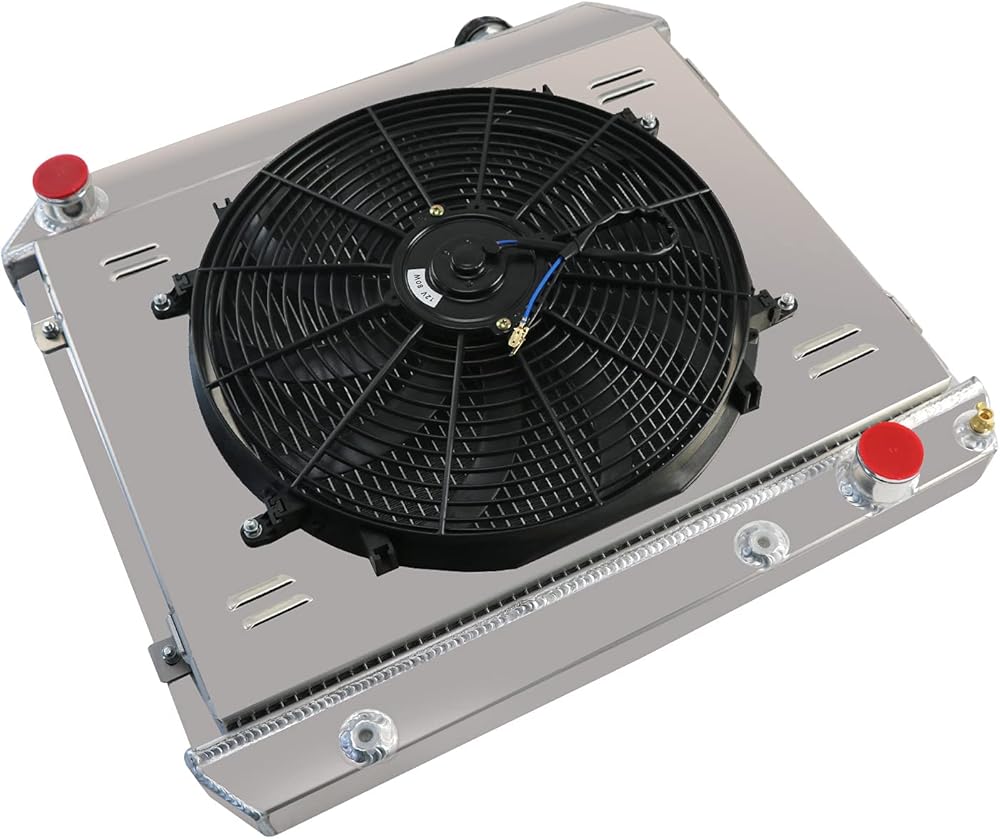

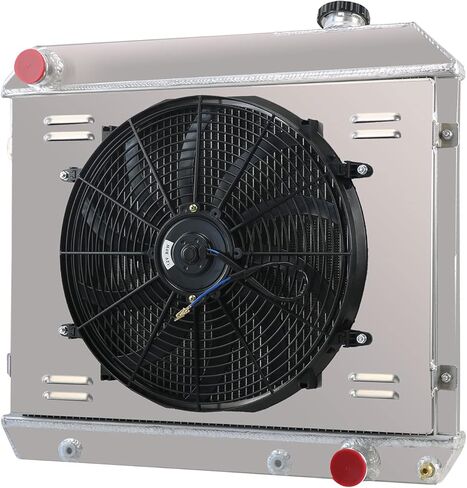

Radiator Size:
Material: High Quality Full AA5052 Aluminum Construction
Core Size: 17 1/2" H x 22 3/4" W
Over Size: 23 3/8" H X 25 1/2" W
Inlet Hose Connection: 1 3/4" Driver Side
Outlet Hose Connection: 1 3/4" Passenger Side
Transmission Oil Cooler: ￠22*300*G1/4(Z)

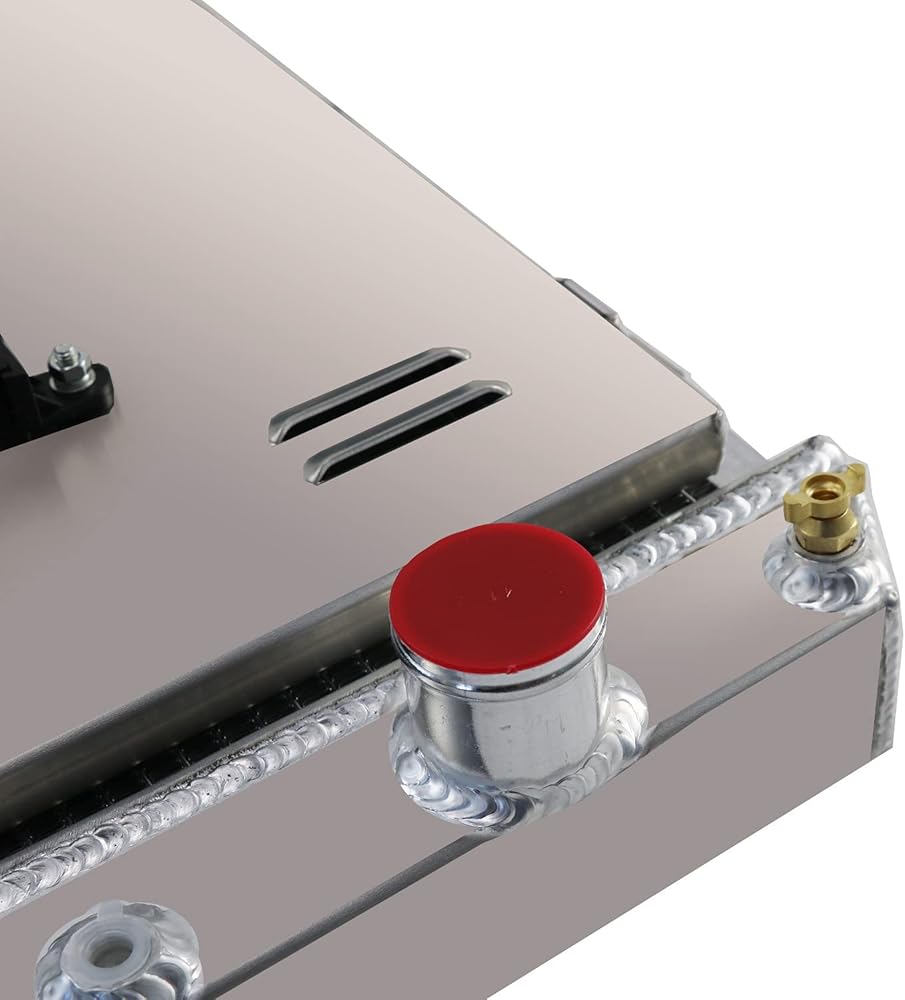

OEM Style Brass Petcock Drain

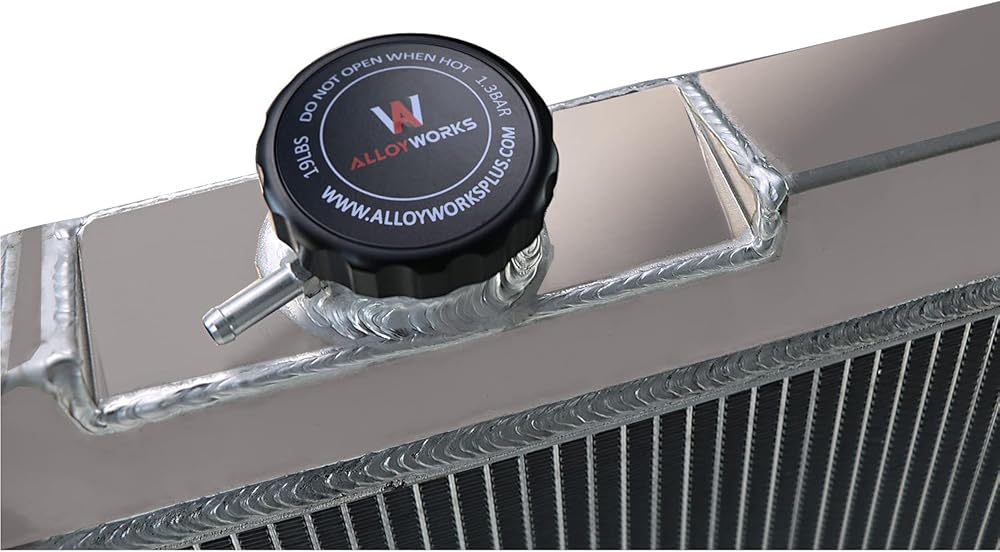

CNC Machined Filler Neck and Cap

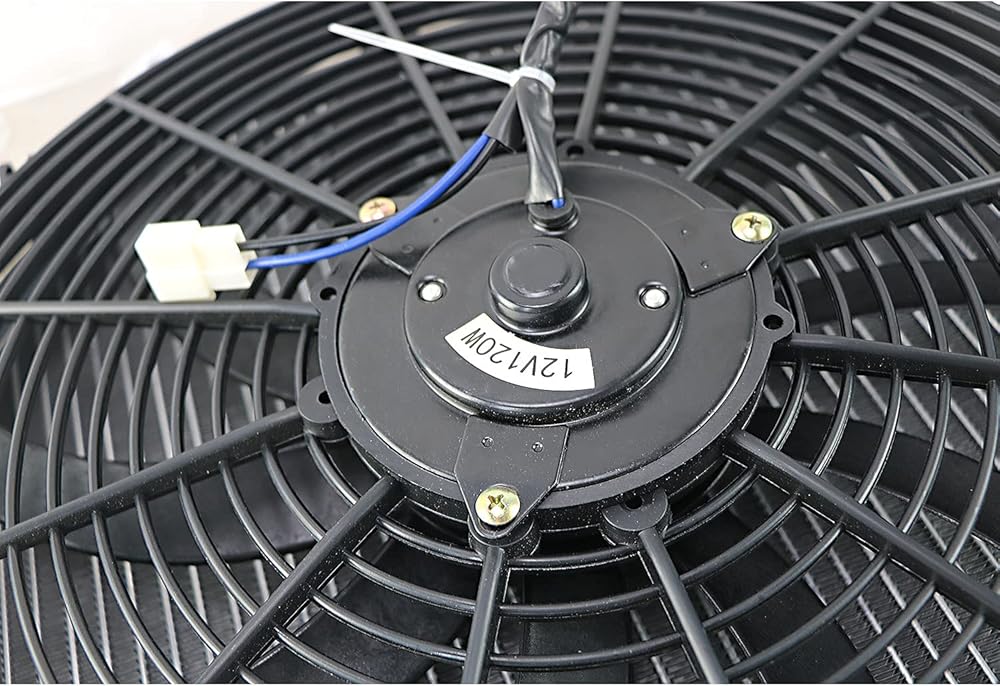

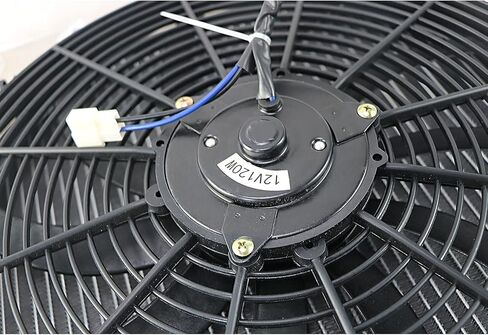

Fan Specification:
Diameter : 16'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 120W
Number of Blades: 10 S-Type blades
Maximum Fan CFM（Cubic Feet per Minute）: 3,000 cfm
Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%
Amp Draw: 10amp
Fan Thickness: 3.27"
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect

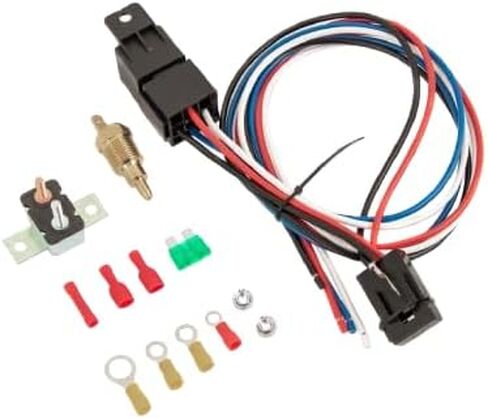

Thermostat Kit:
The thermostat kit is a universal fit, which makes it the perfect choice for any automotive vehicle and electric fan. This thermostat activates by grounding electric fans at preset temperature. It features a 185 degree Fahrenheit turn-on temperature and a 165 degree Fahrenheit turn-off temperature. The 3/8" NPT thread-in brass probe adapter are included.
RELAY KIT INSTRUCTIONS
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
