Monitor Stands
Installation and operating instructions:
1. Using the wall board as a template, drill four holes with a diameter of 10mm and a depth of 50mm on the concrete wall. Four plastic concrete anchors are then wedged into the holes.
2. Install the wall panel, place the wall panel on the wall, then screw the four lag bolts into each plastic concrete anchor through metal washers, connect the four lag bolts, plastic concrete anchors and the wall stand up.
3. Install the monitor bracket to the back of the flat-screen TV: Screw the four bolts into the holes on the back of the flat-screen TV, making sure that the distance between each bracket and the top of the flat-screen TV is equal and as centered as possible. According to the size of the opening on the back of the flat-screen TV Select the part.

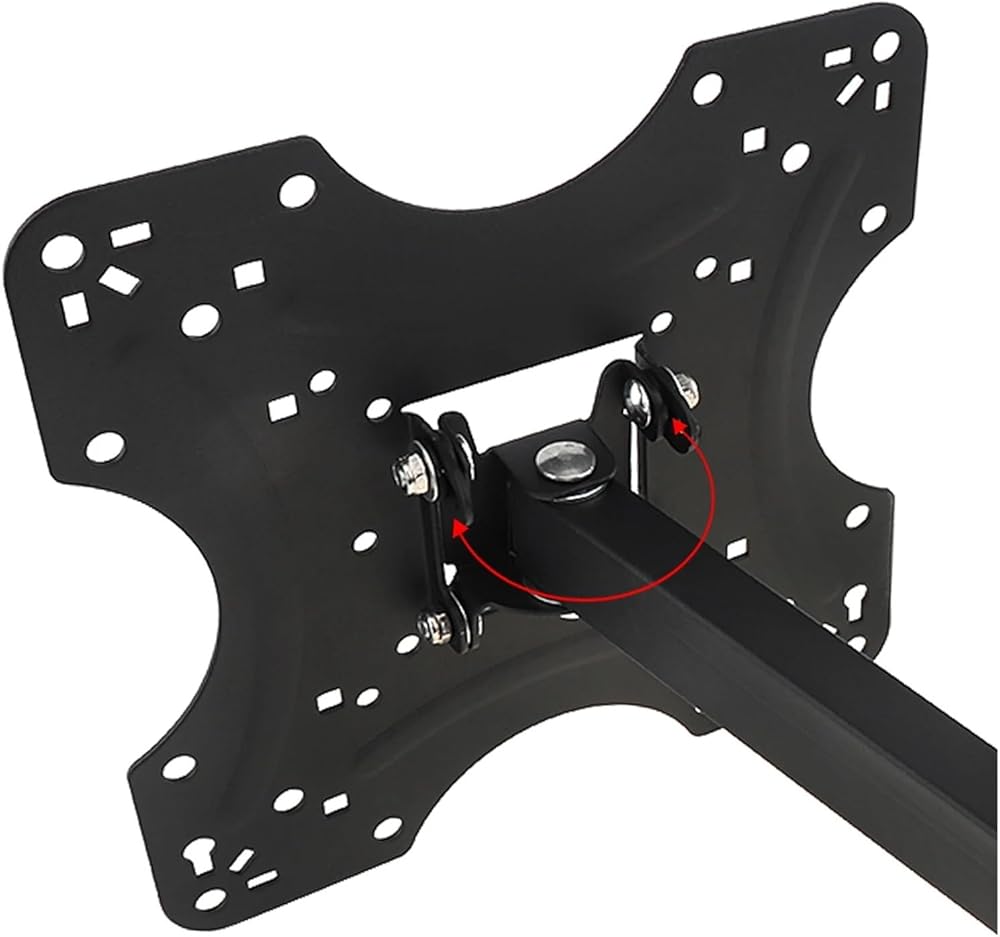

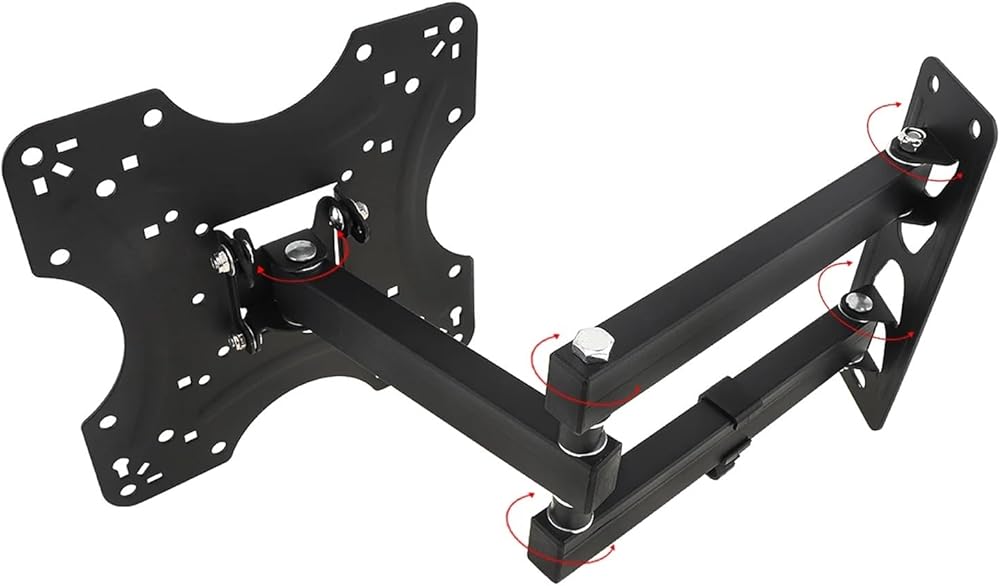

4. Use your hands to adjust the angle of the LCD screen to a suitable position between -5°~+I5°.
Applicable places: 17-32 inches LCD LED
notes:
- When purchasing, please check whether the hole spacing of the TV is the same as the product and whether the weight is within the allowable range of the product.
- The number of product accessories will vary slightly, but it does not affect installation and use.
